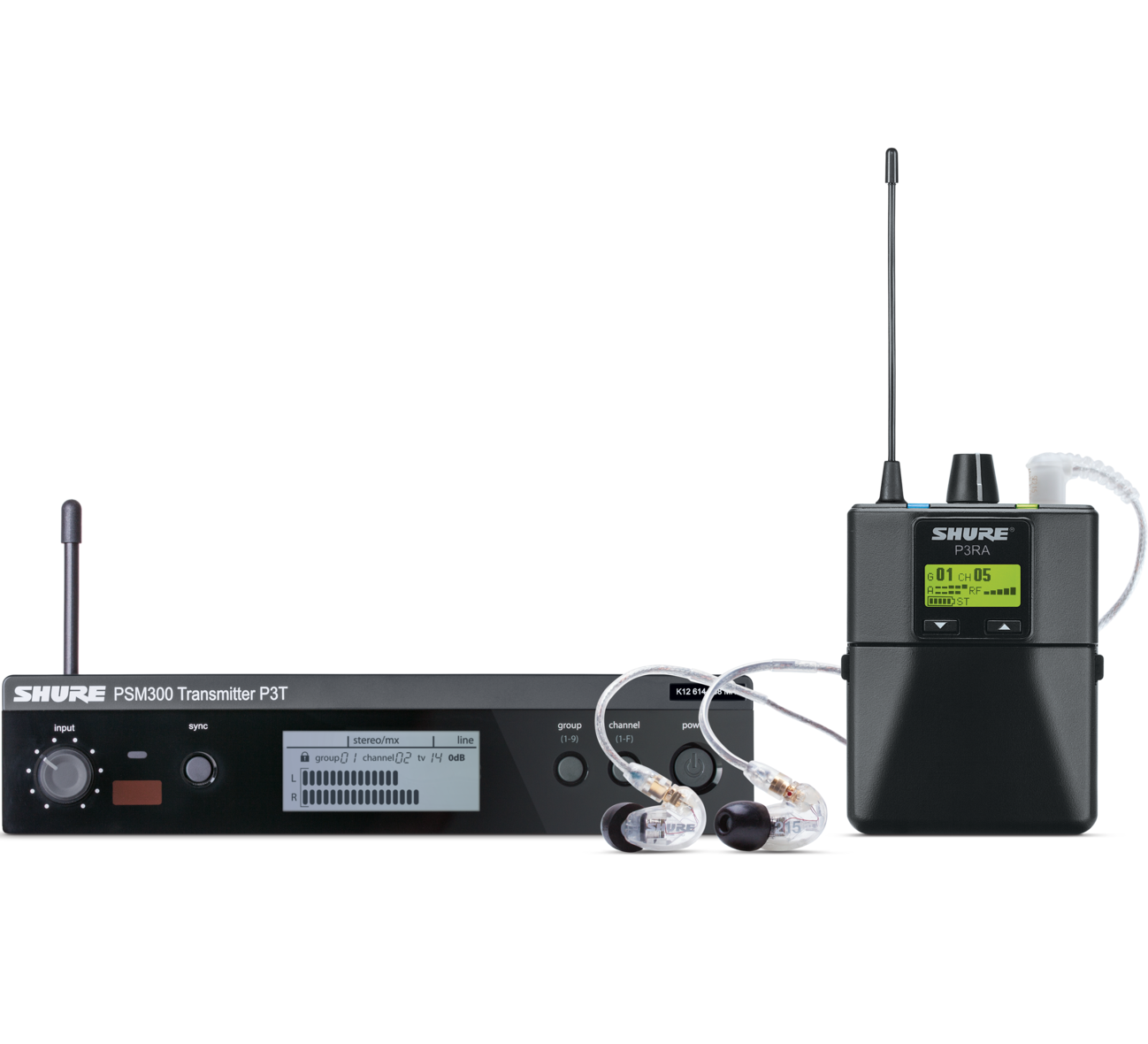

Shure P3TRA215CL-G20 Wireless Monitor System W/ Bodypack & Earphones - G20 Band


  • Our Price
  • $799.00
  • Regular price MSRP: $999.00





Make Sure Nothing Gets Lost In Transmission With The Shure P3TRA215CL-G20 Wireless Monitor System W/ Bodypack & Earphones - G20 Band

The P3TRA215CL is part of the PSM 300 wireless systems family.
PSM 300 Stereo Personal Monitor Systems deliver reliable wireless freedom to every corner of the stage. Patented Audio Reference Companding ensures the clearest sound, with ultra-low noise and no artifacts.

Easy to setup and operate, PSM 300 systems offer one-touch frequency scan and sync to find and assign a clean wireless channel. Adjust the volume and use MixMode technology or stereo mode to create a personal mix from two channels of audio.

This version of the Shure P3TRA215CL supports a frequency band of 488–937.5 MHz (Note: varies by region)



GENERAL

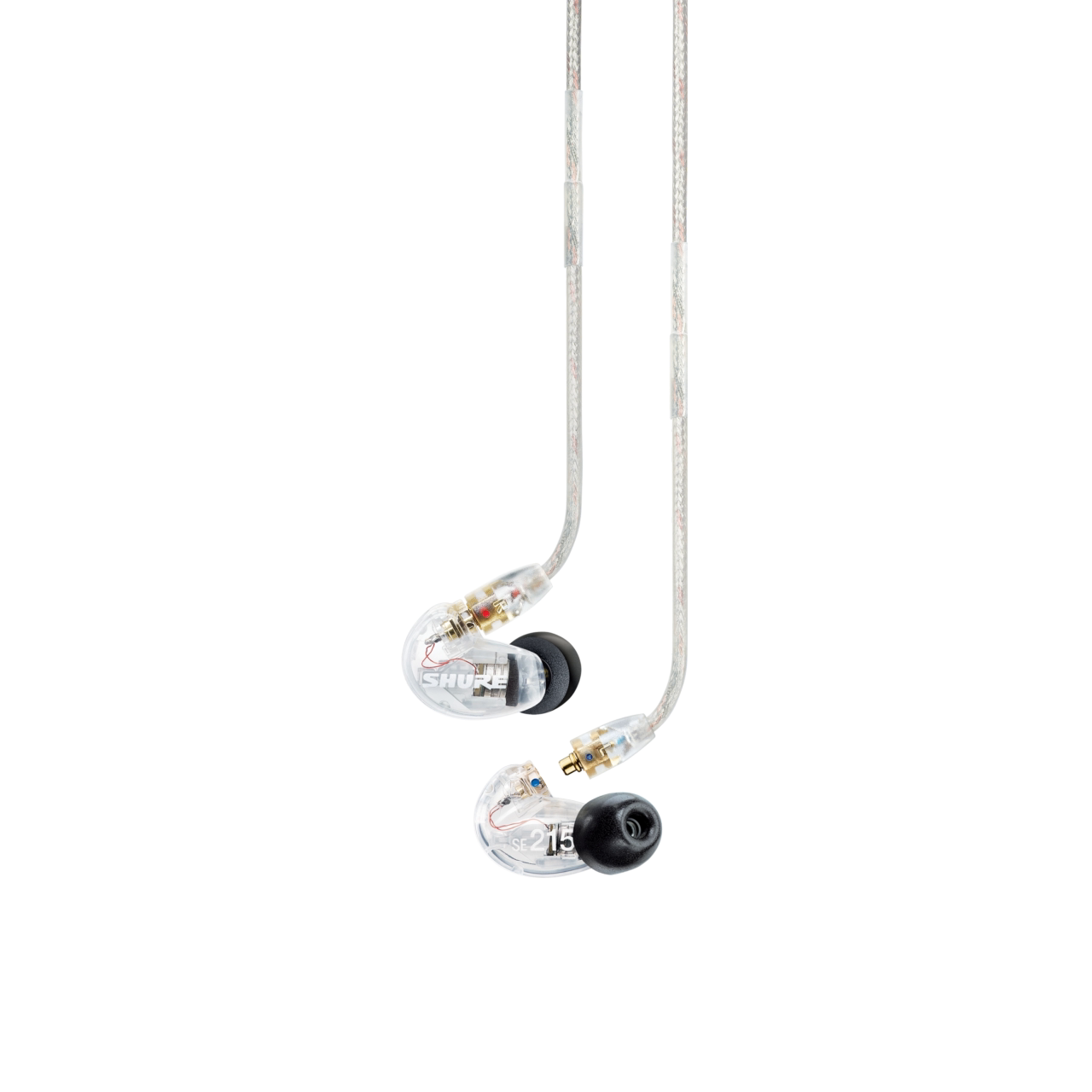

  • Features SE215 Sound Isolating Earphones
  • All-metal components
  • Optional receiver rechargeability
  • Advanced receiver controls
  • Includes P3RA, P3T, SE215, rackmount and hardware kits, ¼ wave antenna, BNC bulkhead adapter, BNC cable, power supply, battery adapter kit, 2 AA batteries, zipper bag, and user guide

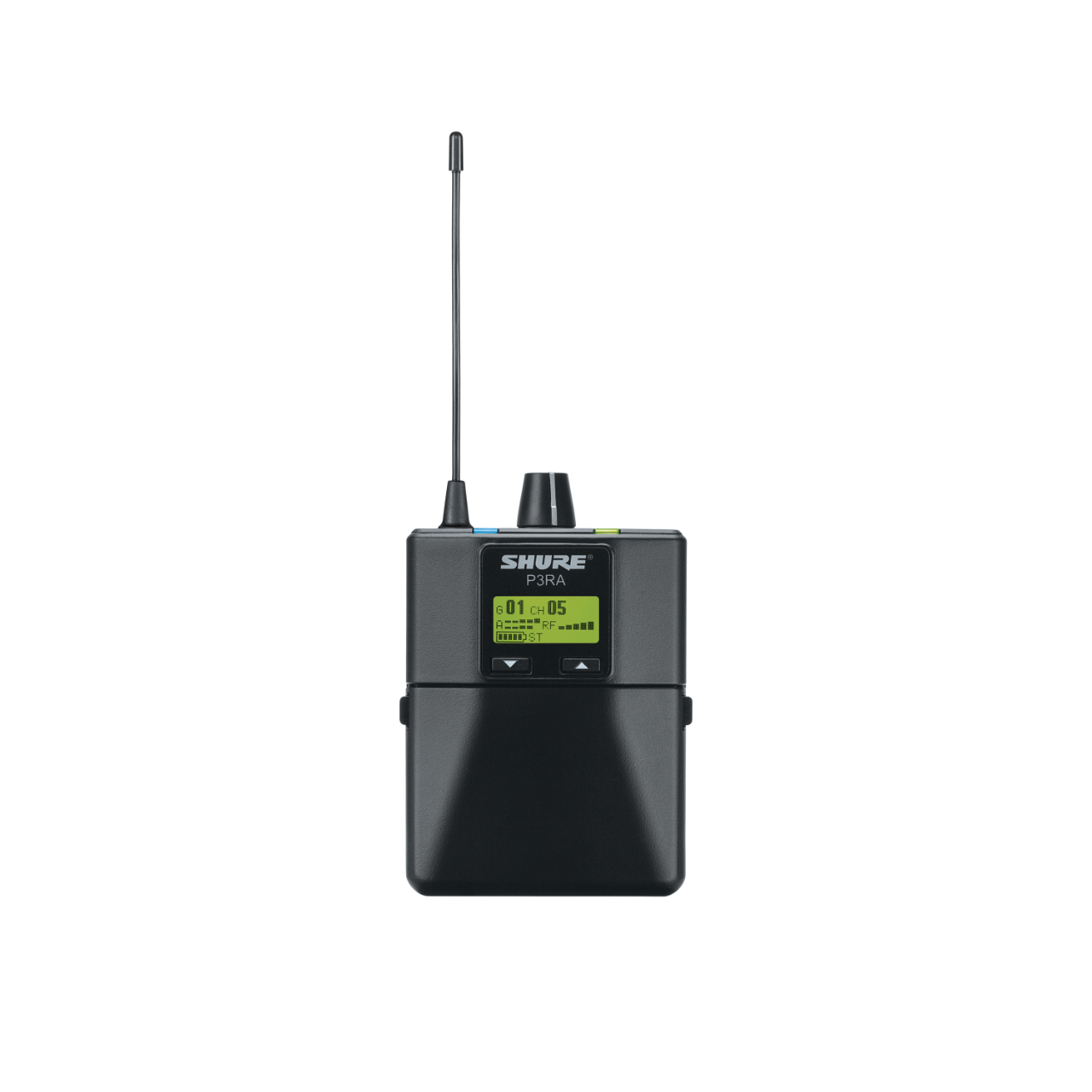

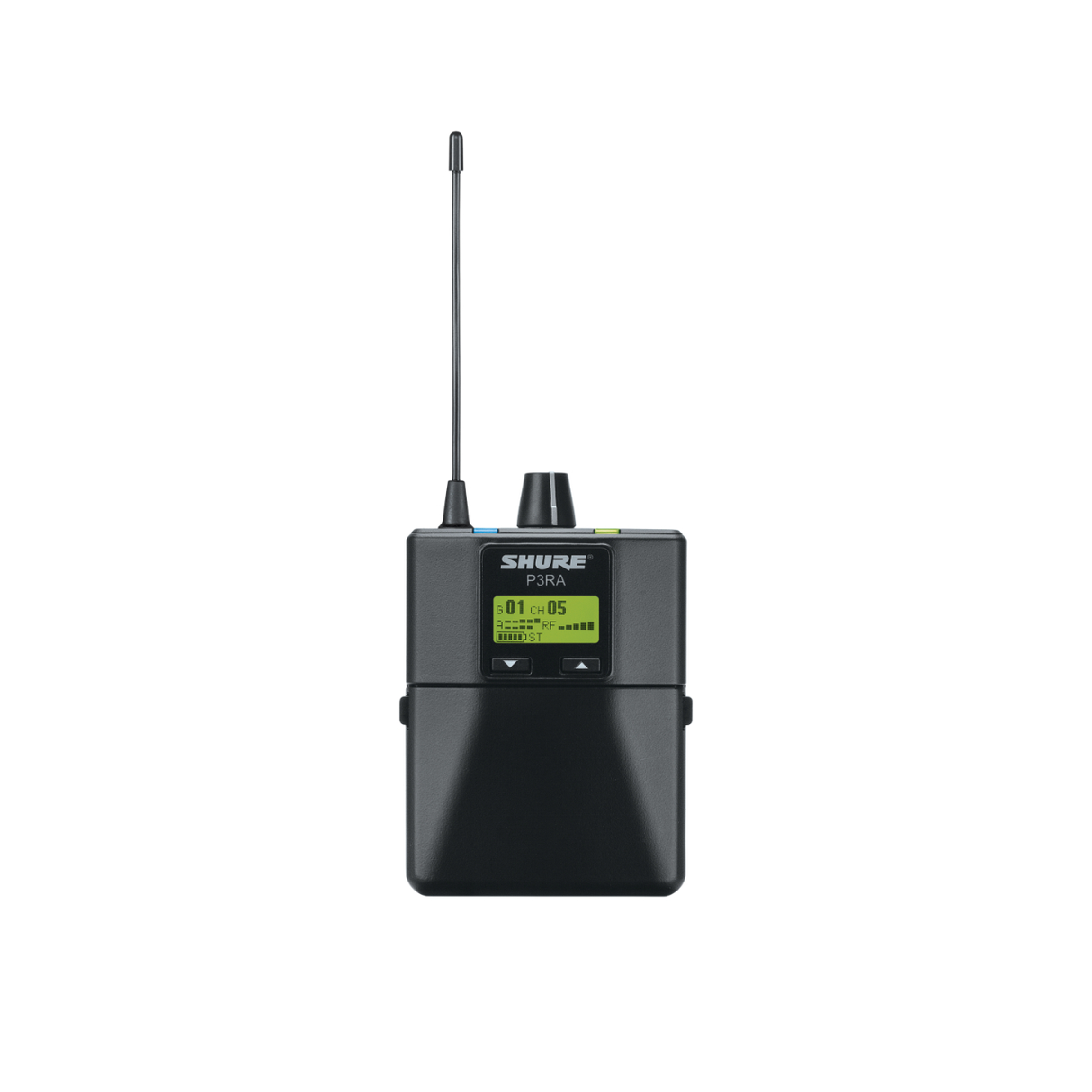

P3RA PROFESSIONAL WIRELESS BODYPACK RECEIVER

  • Rugged, all-metal construction
  • LCD display with menu based navigation
  • 2 band shelving EQ with high and low boost
  • Volume limiter sets the maximum gain level range
  • 2 AA batteries or optional Shure SB900 rechargeable battery power

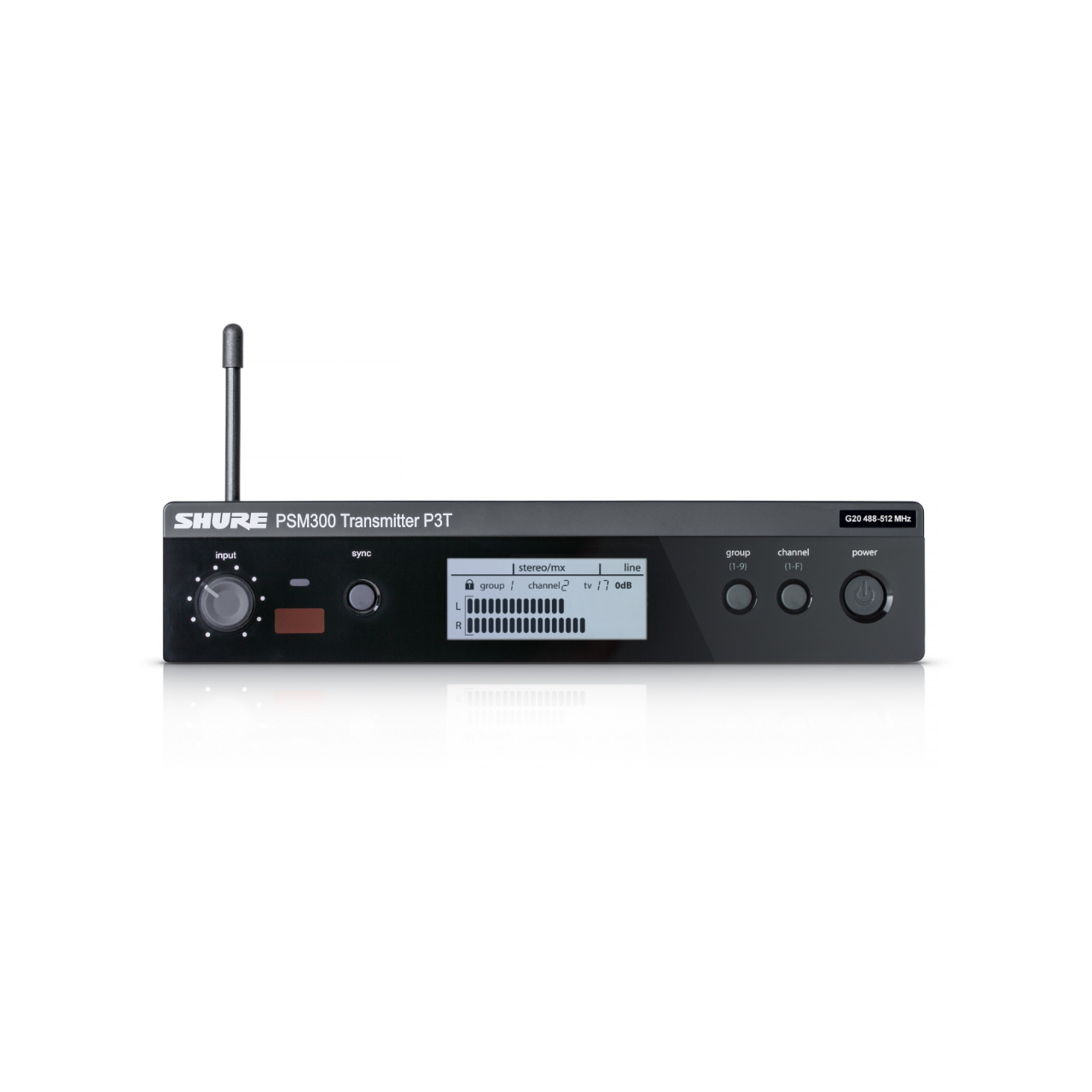

P3T WIRELESS TRANSMITTER

  • Sends a stereo or mono mix wirelessly to performers onstage
  • Detailed, 24-bit digital audio
  • Rock-solid analog wireless connection over a 300 foot (90 meter) range
  • One-touch IR sync instantly links transmitter to bodypack receiver
  • High-contrast LCD screen with audio metering
  • Selectable line/aux level
  • ¼" (6.3 mm) TRS balanced inputs and loop outputs
  • Detachable ¼ wave antenna
  • Rack hardware kit included


G20 Frequency Band: 488–937.5 MHz (Note: varies by region)

PSM 300 SYSTEM

  • RF Carrier Range: 488–937.5 MHz (Note: varies by region)
  • Compatible Freqeuncies: Per Band up to 15
  • Tuning Bandwidth: 24 MHz maximum (Note: varies by region)
  • Operating Range: 90 m (300 ft)
  • Audio Frequency Response: 38 Hz–15 kHz
  • Signal-to-Noise Ratio: 90 dB (typical)
  • Total Harmonic Distortion: <0.5% (typical) (ref. ±34 kHz deviation @ 1 kHz)
  • Companding: Patented Shure Audio Reference Companding
  • Spurious Rejection: >80 dB (typical)
  • Frequency Stability: ±2.5 ppm
  • MPX Pilot Tone: 19 kHz (±1 Hz)
  • Modulation: FM*, MPX Stereo (ref. ±34 kHz deviation @ 1 kHz)
  • Operating Temperature: −18 °C (0 °F) to +63 °C (145 °F)

P3RA PROFESSIONAL WIRELESS BODYPACK RECEIVER

  • Active RF Sensitivity: (at 20 dB SINAD) 2.2 μV
  • Image Rejection: >90 dB
  • Adjacent Channel Rejection: >60 dB
  • Intermodulation Attenuation: >50 dB
  • Blocking: >60 dB
  • Audio Output Power 1 kHz @ <1% distortion, peak power, @32 Ω: 80 mW (per output)
  • Minimum Load Impedance: 16 Ω
  • Headphone output: 3.5 mm (1.8") stereo
  • Net Weight: 196 g (6.9 oz.) (with batteries)
  • Dimensions (H × W × D): 99 x 66 x 23 mm (3.9 x 2.6 x 0.9 in.)
  • Battery Life 4–5.5 hours (continuous use) AA batteries, 5.5–7 hours (continuous use) SB900 Rechargeable Battery

P3T TRANSMITTER

  • RF Output Power: 10, 20, 30 mW
  • RF Output Impedance: 50 Ω (typical)
  • Net Weight: 783 g (27.6oz.)
  • Dimensions (H × W × D): 43 × 198 × 172 mm (1.7 × 7.8 × 6.8 in.)
  • Power Requirements: 12–15 V DC, 260 mA maximum

Manufacturer: Shure
Model: P3TRA215CL-G20
Warranty: See manufacturer website for details
SKU: I362668-N-1
UPC: #042406371704
Listing ID: NA76051
