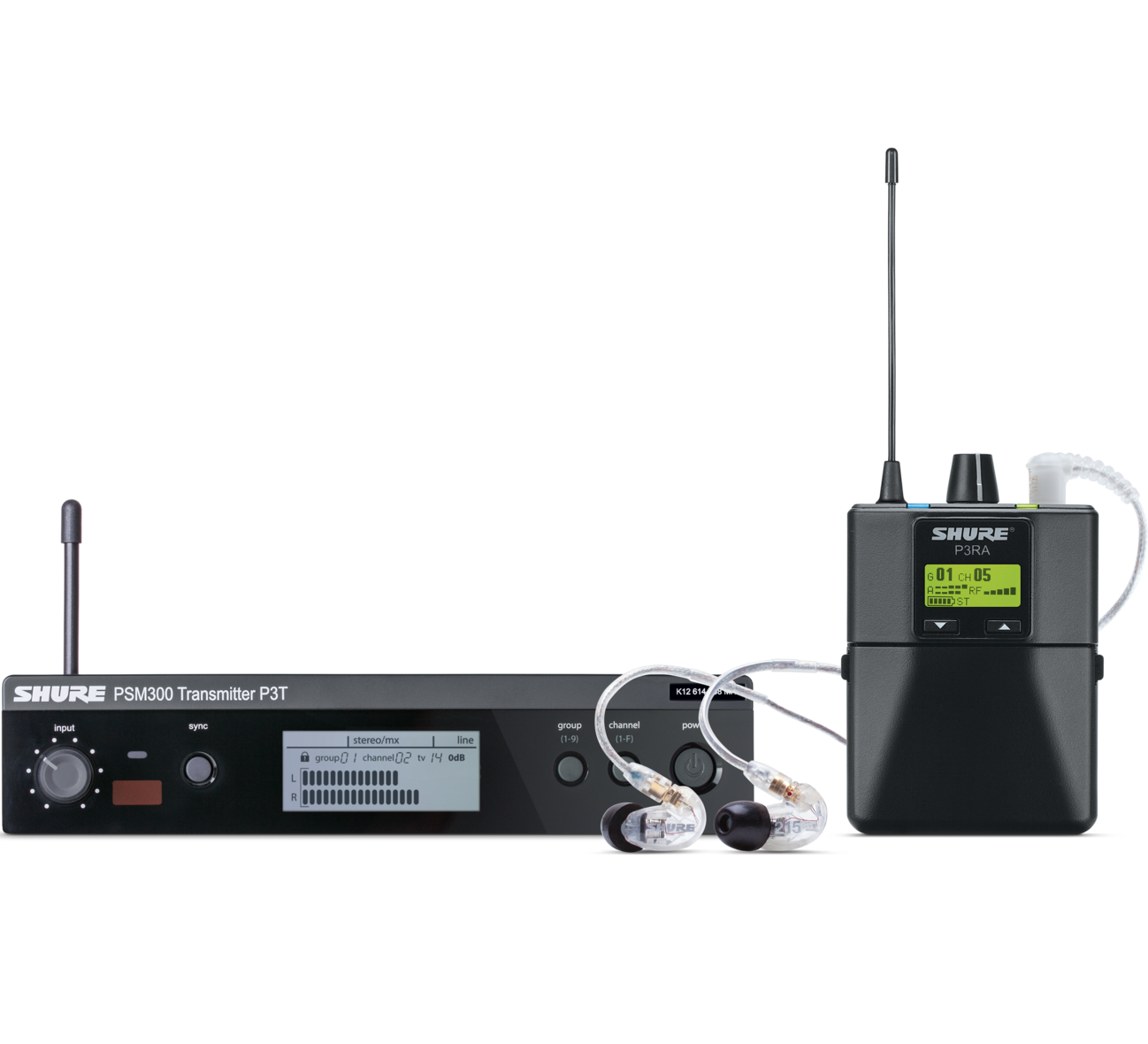

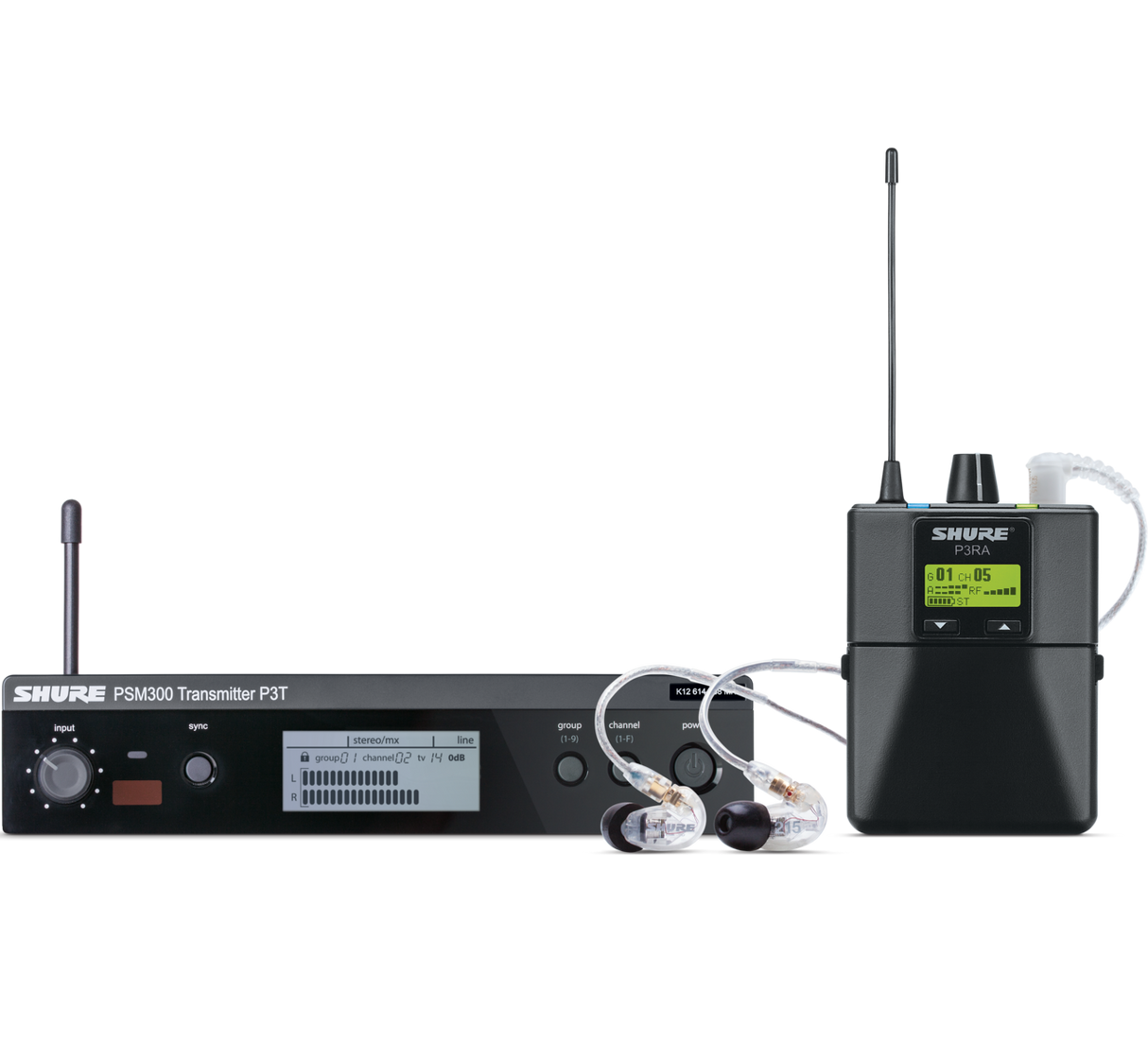

Shure P3TRA215CL-H20 Wireless Monitor System W/ Bodypack & Earphones - H20 Band


  • Our Price
  • $799.00
  • Regular price MSRP: $999.00





*IN STOCK - READY TO SHIP



Hear Everything With The Shure P3TRA215CL-H20 Wireless Monitor System W/ Bodypack and Earphones - H20 Band

-n

The P3TRA215CL is part of the PSM 300 wireless systems family. PSM 300 Stereo Personal Monitor Systems deliver reliable wireless freedom to every corner of the stage. Patented Audio Reference Companding ensures the clearest sound, with ultra-low noise and no artifacts. Easy to setup and operate, PSM 300 systems offer one-touch frequency scan and sync to find and assign a clean wireless channel (frequency band: 518 - 542 MHz). Adjust the volume and use MixMode technology or stereo mode to create a personal mix from two channels of audio. P3TRA215CL features SE215 Sound Isolating Earphones, all-metal components with optional receiver rechargeability, and more advanced receiver controls.


-n-n

SPECIFICATIONS

-n

Product Includes

-n
  • P3RA Bodypack Receiver
  • -n
  • P3T Transmitter
  • -n
  • SE215 Sound Isolating Earphones
  • -n
  • Rackmount and hardware kits
  • -n
  • wave antenna
  • -n
  • BNC bulkhead adapter
  • -n
  • BNC cable
  • -n
  • power supply
  • -n
  • battery adapter kit
  • -n
  • 2 AA batteries
  • -n
  • zipper bag
  • -n
  • user guide
-n-n

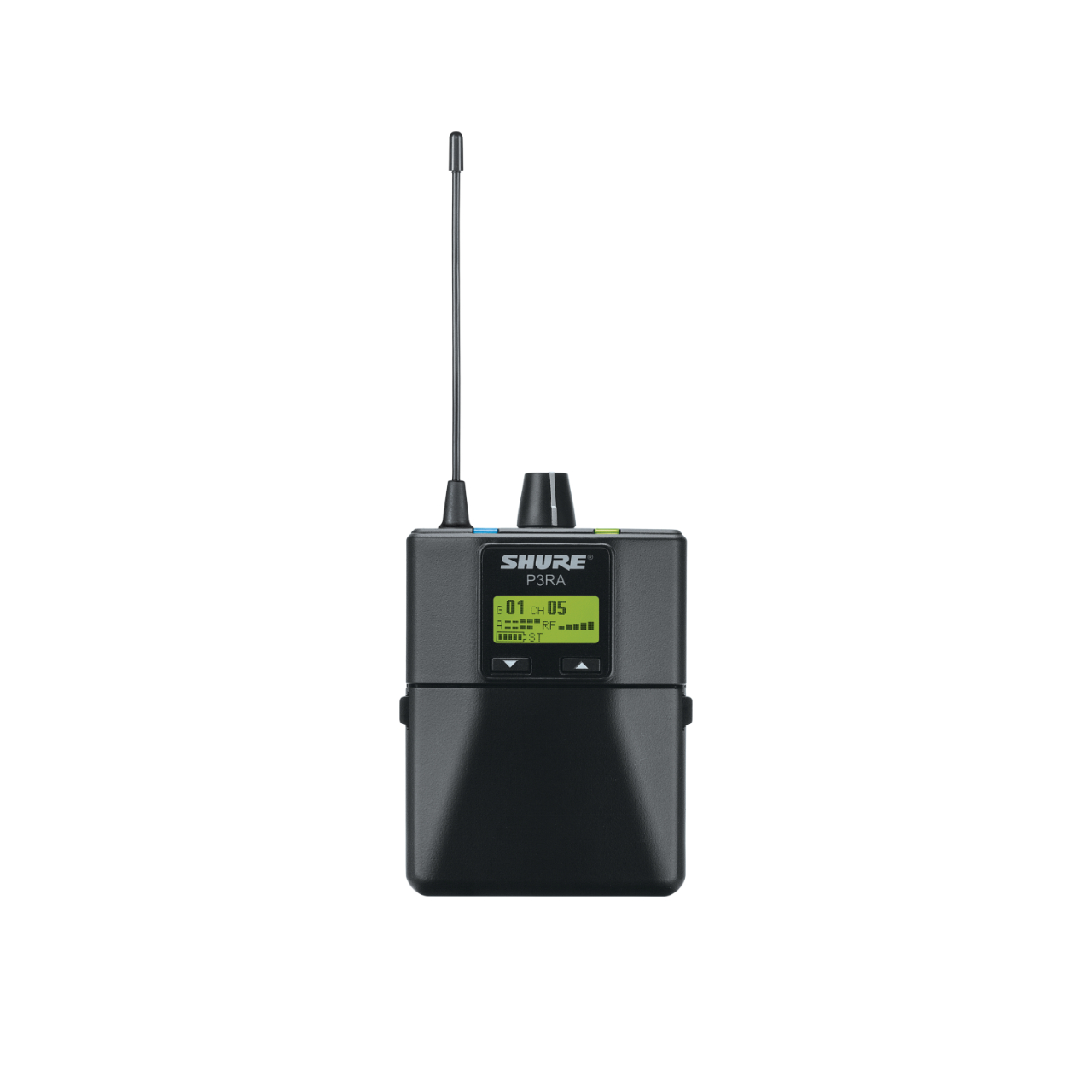

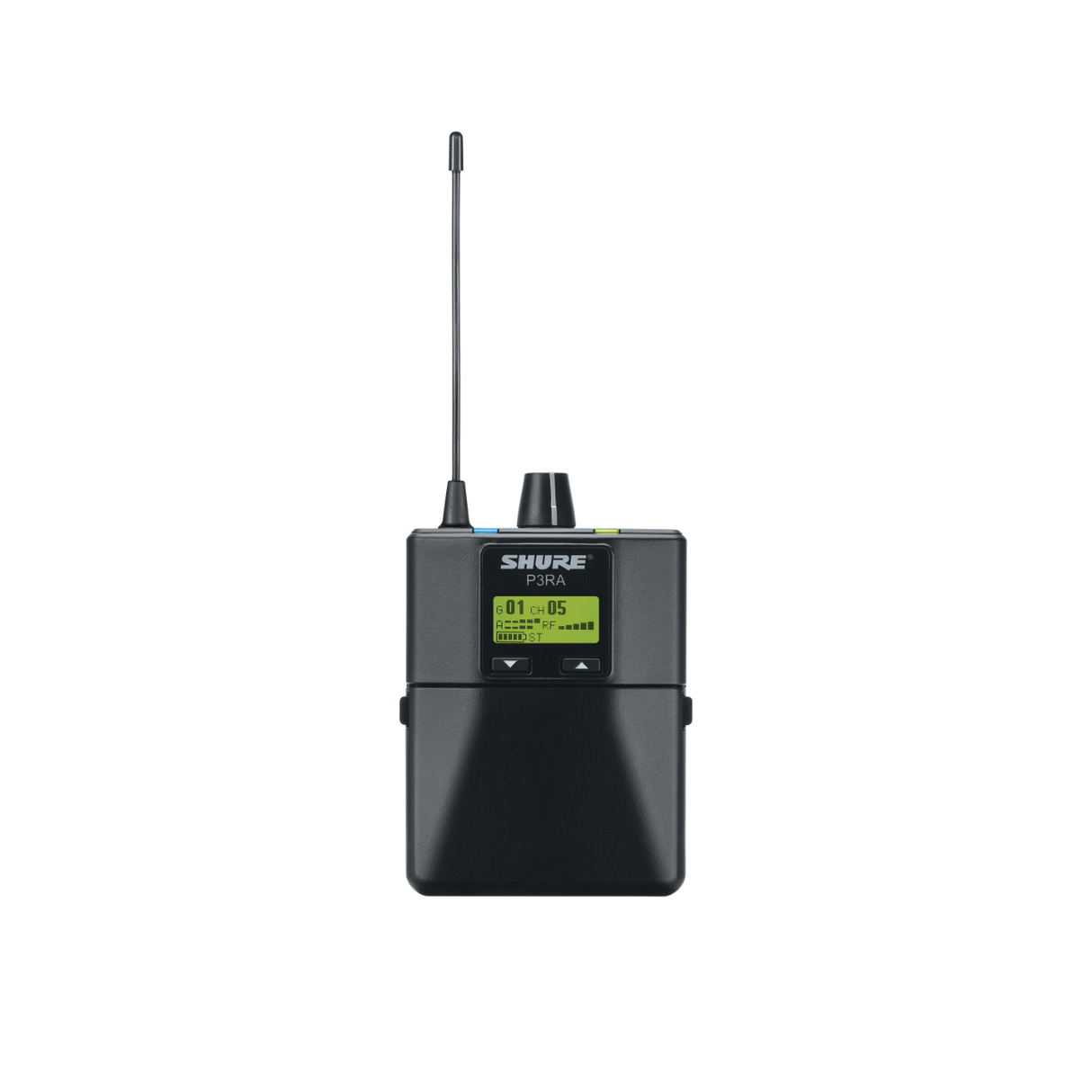

P3RA Professional Wireless Bodypack Receiver

-n
  • Active RF Sensitivity (at 20 dB SINAD): 2.2 microV
  • -n
  • Image Rejection: greater than 90 dB
  • -n
  • Adjacent Channel Rejection: greater than 60 dB
  • -n
  • Intermodulation Attenuation: greater than 50 dB
  • -n
  • Blocking: greater than 60 dB
  • -n
  • Audio Output Power, 1 kHz @ less than 1% distortion, peak power, @32 Ohms: 80 mW (per output)
  • -n
  • Minimum Load Impedance: 16 Ohms
  • -n
  • Headphone output: 3.5 mm (1.8--") stereo
  • -n
  • Net Weight: 196 g (6.9 oz.) (with batteries)
  • -n
  • Dimensions (H x W x D): 99 x 66 x 23 mm (3.9 x 2.6 x 0.9 in.)
  • -n
  • Battery Life: 4 - 5.5 hours (continuous use) AA batteries, 5.5 - 7 hours (continuous use) SB900 Rechargeable Battery
-n-n

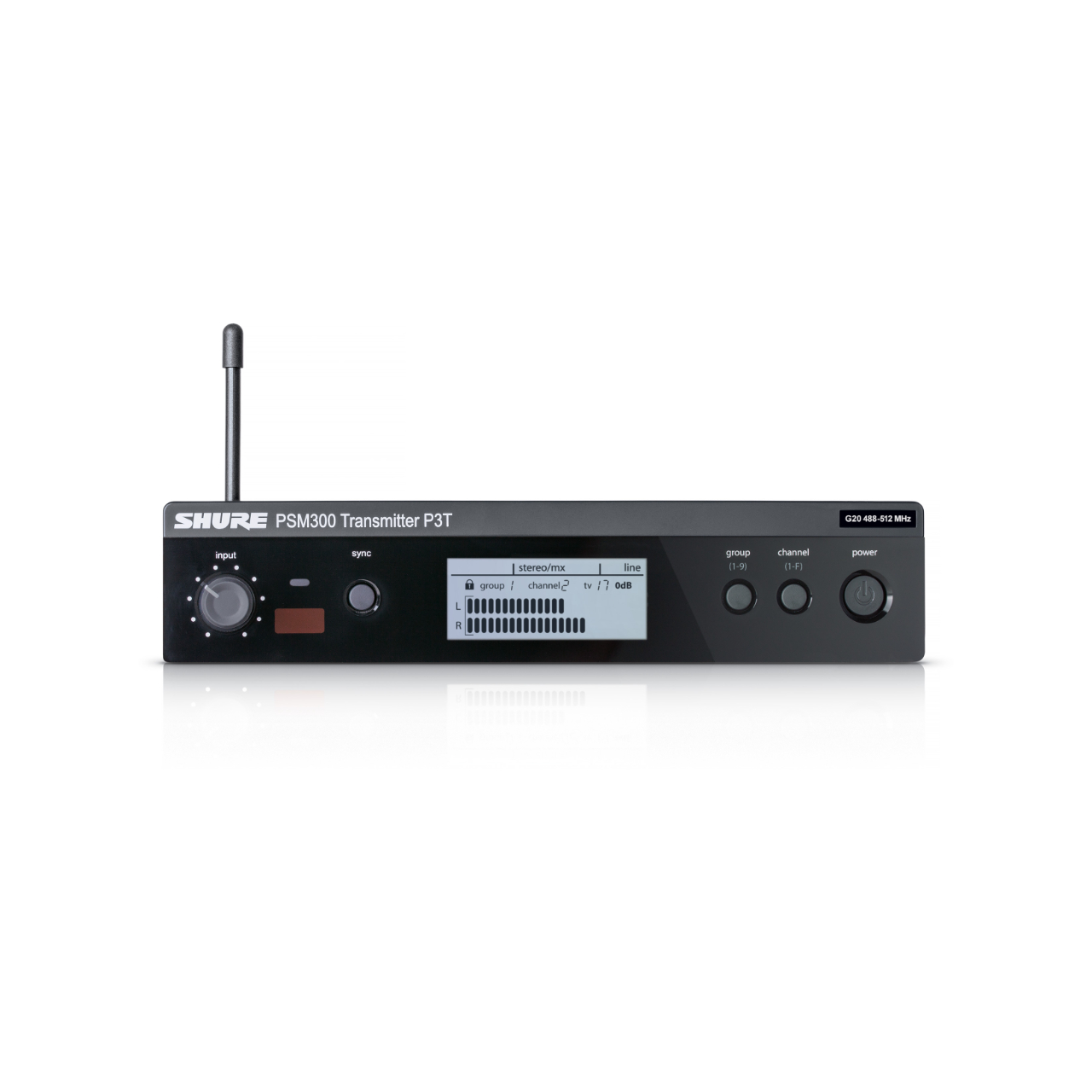

P3T Transmitter

-n
  • RF Output Power: 10, 20, 30 mW
  • -n
  • Note: varies by region
  • -n
  • RF Output Impedance: 50 Ohms (typical)
  • -n
  • Net Weight: 783 g (27.6oz.)
  • -n
  • Dimensions: (H x W x D) 43 x 198 x 172 mm (1.7 x 7.8 x 6.8 in.)
  • -n
  • Power Requirements: 12 - 15 V DC, 260 mA maximum
-n-n

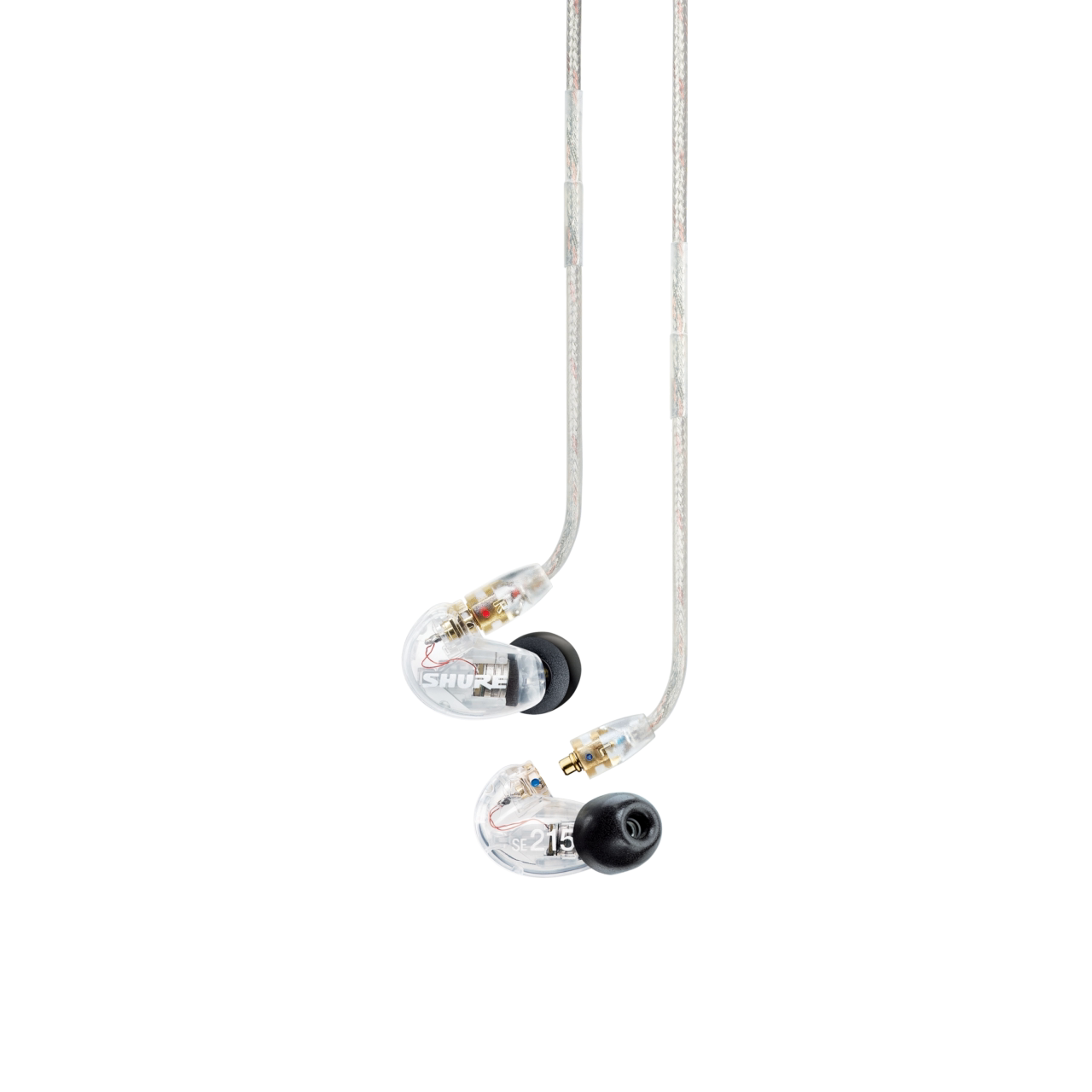

SE215 Sound Isolating Earphones

-n
  • Sensitivity: 107 dB SPL/mW
  • -n
  • lmpedance: 17 Ohms
  • -n
  • Frequency Range: 22Hz - 17.5kHz
  • -n
  • Cable Style: 64--" Detachable (at ear) with wireform fit
  • -n
  • Speaker Type: Dynamic MicroDriver
-n-n

H20 Frequency Band: 518 - 542 MHz


Manufacturer: Shure
Model: P3TRA215CL-H20
Warranty: See manufacturer website for details
SKU: I402950-11-B
