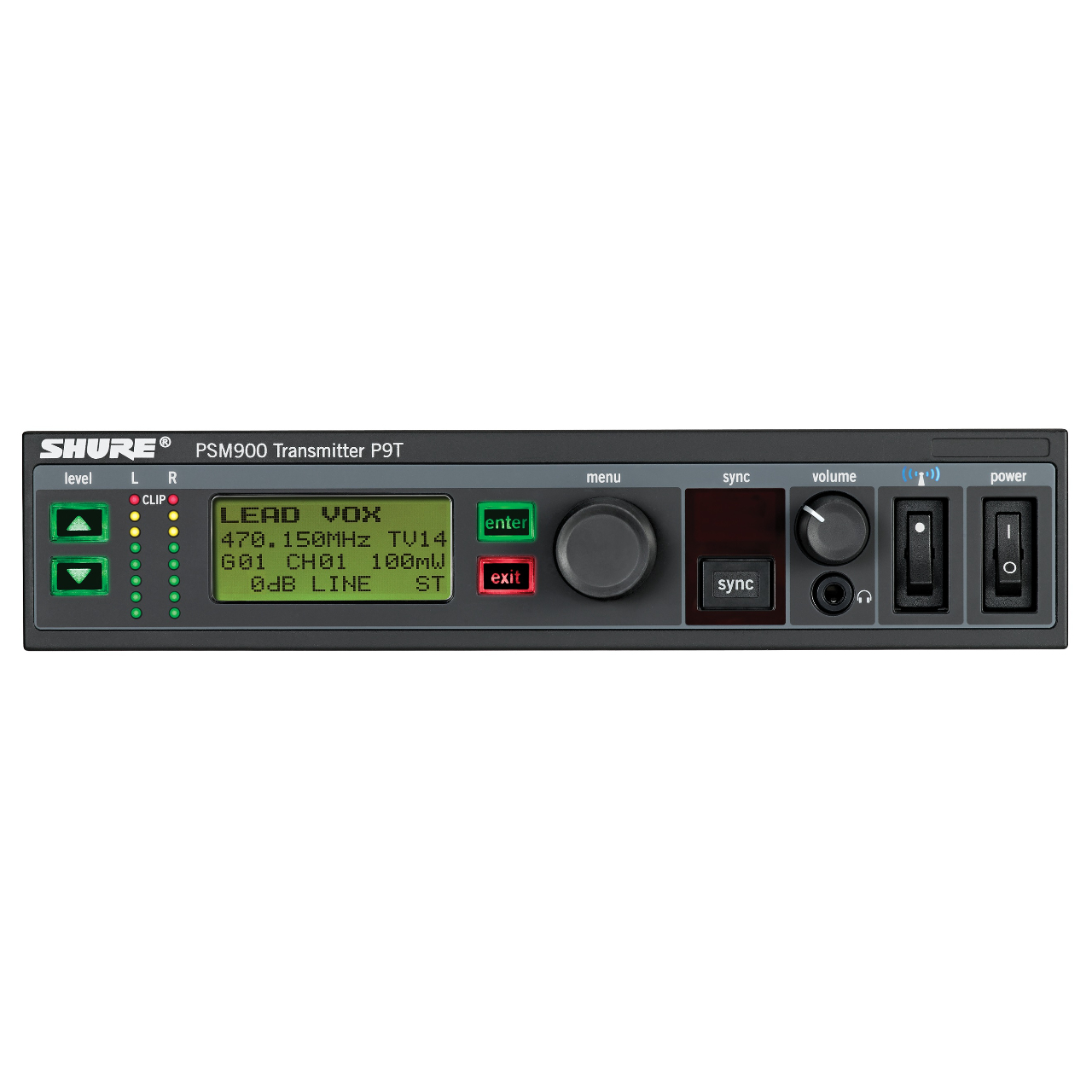

Make Sure Nothing Gets Lost In Transmission With The Shure P9T-G6 PSM 900 Half Rack Wireless Transmitter
The P9T is a half-rack wireless transmitter used in conjunction with the P9R Bodypack receiver as part of the PSM 900 Wireless Personal Monitor System.
It offers state-of-art technology like CueMode (patent pending), Scan and Sync, and RF mute switch for easy setup and operation.

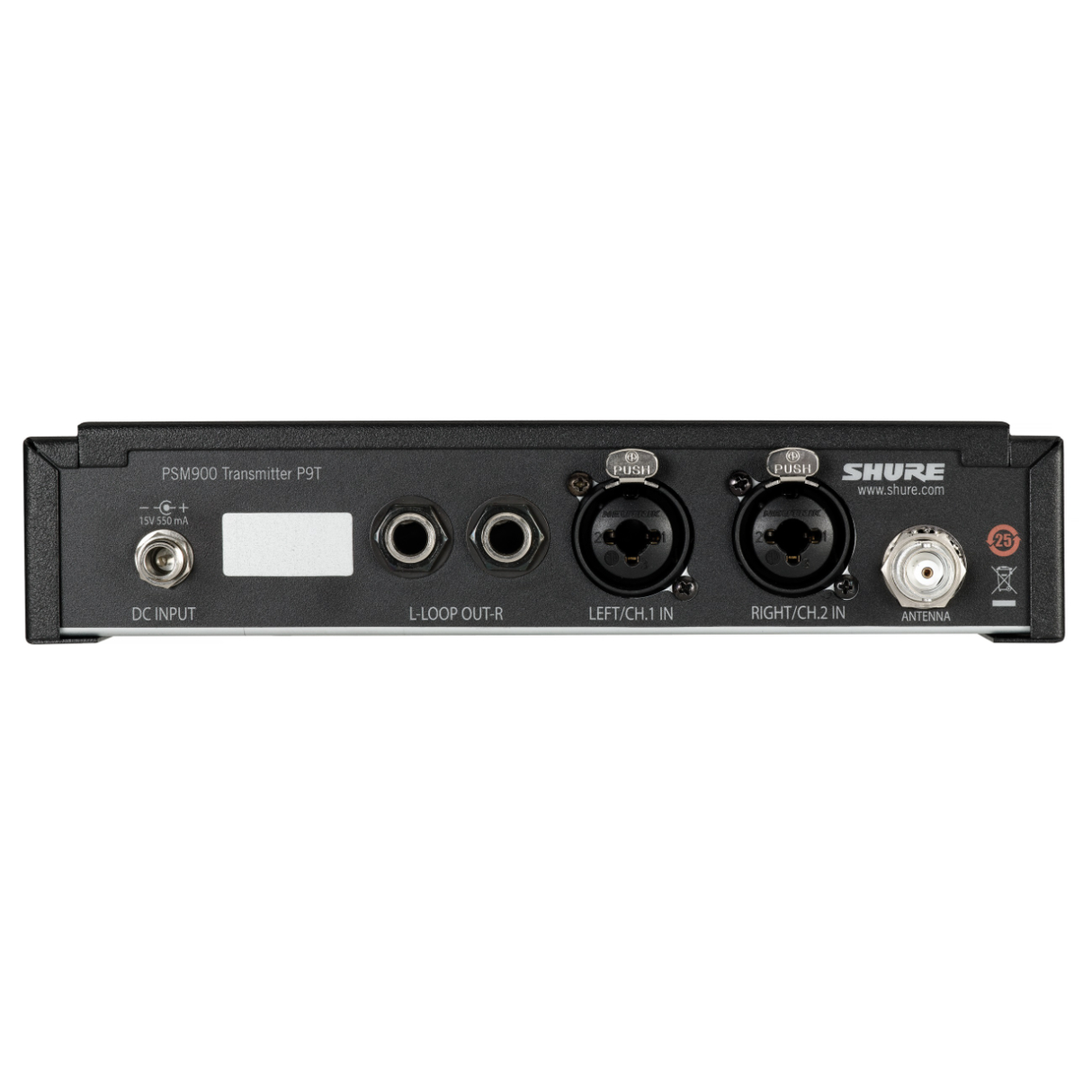

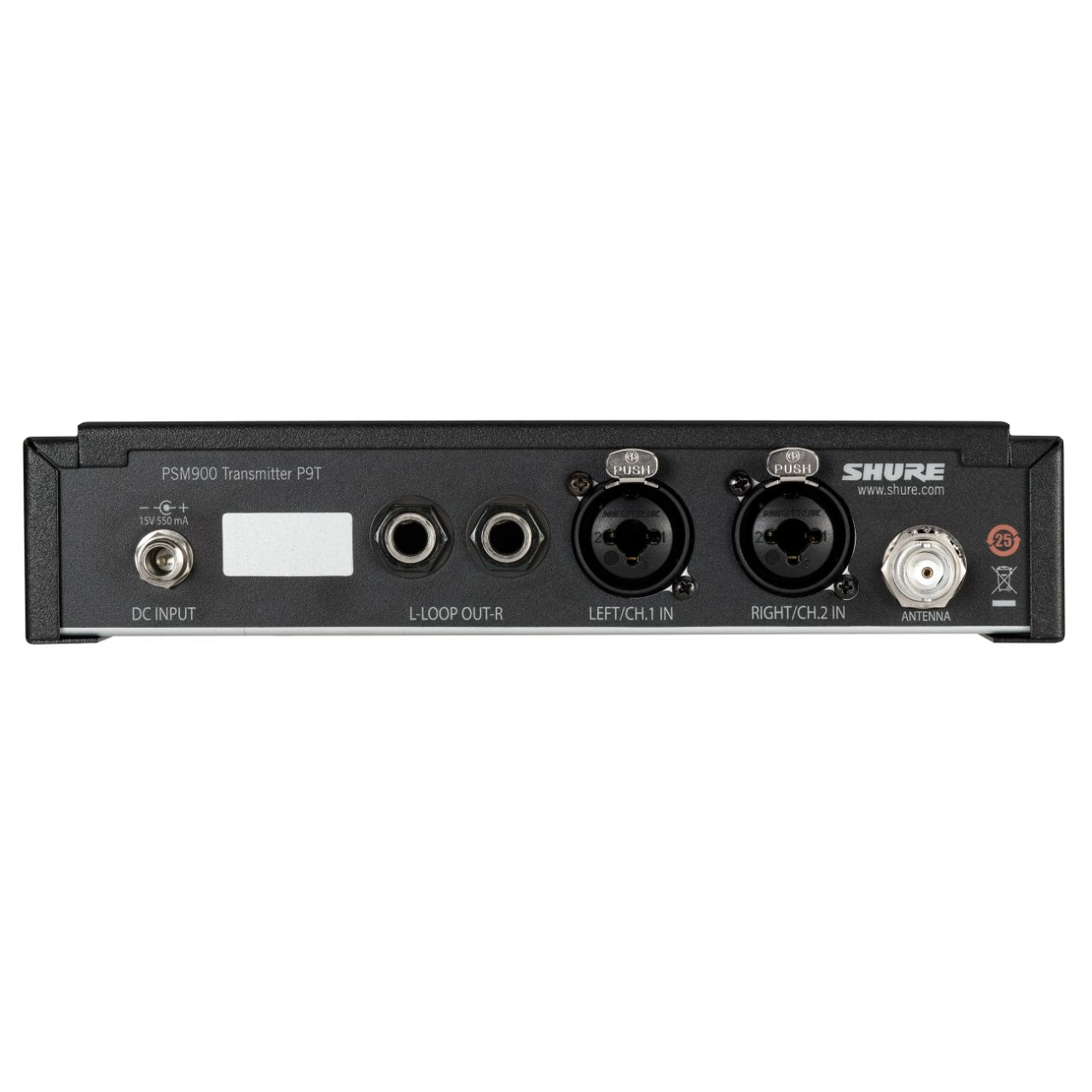

Connections include balanced 1/4†and XLR, loop out, and headphone out. Includes rack-mounting kit, front or back mountable antennas, and power supply.
- RF Mute Switch allows system setup without causing RF interference
- Syncs to a P9R bodypack quickly and easily over IR link using Scan and Sync
- Front panel audio input gain adjustment and LED level meter with clipping indicator
- Front or back mountable antennas
- Compatible with PA421A and PA821A antenna combiners
- Loop out connectors for multiple mix setups and easy installation
- Switchable +4 dBu and -10 dBV input level
- Balanced, 1/4" and XLR connectors
- Bit-mapped, backlit LCD
- Includes rack-mounting hardware
- 1/8" headphone out on the front panel for easy monitoring
- Operates in the G6 frequency band
- RF Carrier Range 470-952 MHz (regionally dependent)
- Compatible Frequencies 20 per band
- Tuning Bandwidth 36 MHz - 40 MHz (regionally dependent)
- Operating Range (environment dependent) 90m (300ft)
- Audio Frequency Response 38Hz - 15kHz
- Stereo Separation 60 dB
- Signal-To-Noise Ratio (A-Weighted) 90 dB (typical)
- Total Harmonic Distortion
- (ref. +/- 34 kHz deviation @1 kHz)
- <0.5% (typical)
- Companding Patented Shure Audio Reference Companding
- Spurious Rejection (ref. 12 dB SINAD) >80 dB (typical)
- Frequency Stability +/- 2.5 ppm
- MPX Pilot Tone 19 kHz (+/- 0.3 kHz)
- Modulation FM, +/- 34 kHz deviation (nominal), MPX Stereo
- Operating Temperature -18 Degrees C - +57 Degrees C
Manufacturer: Shure
Model: P9T=-G6
Warranty: See manufacturer website for details
SKU: I251256-N-5
UPC: 042406170154
