Shure QLXD14 Wireless Bodypack System - H50 Band
🔥On Sale!
👉While supplies last!
Couldn't load pickup availability
About Inventory Status
About Inventory Status
Questions? Call or text us at 301-946-8808.
♫ In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.
📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.
❓ Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.
❔ Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.
█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.
About Item Conditions
About Item Conditions
Questions? Call or text us at 301-946-8808.
New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.
Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.
Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.
Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.
Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.
B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.
Description
Description

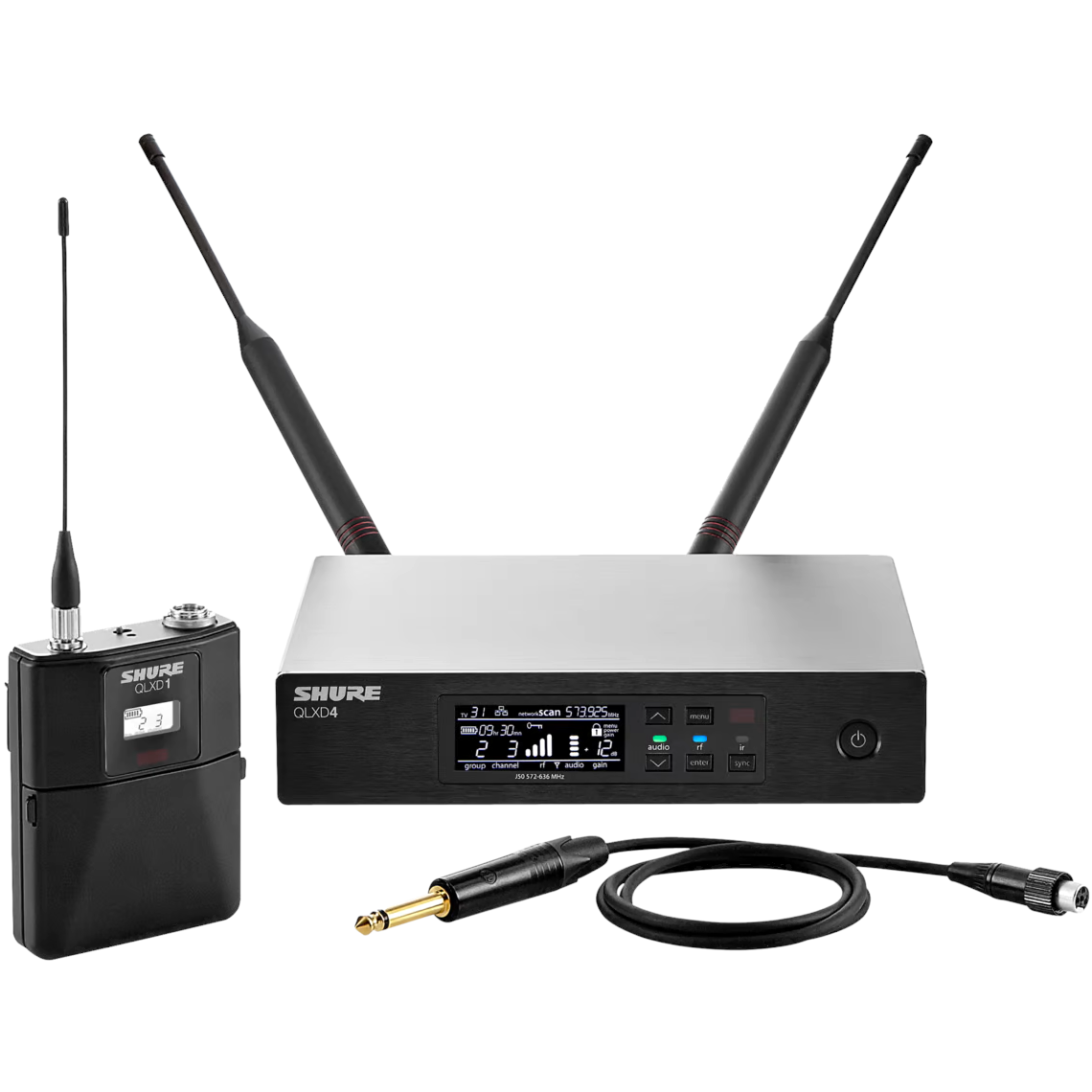

Cut through the Noise with the Shure QLXD14 Wireless Bodypack System - H50 Band
Frequency Band: H50 (534 – 598 MHz)

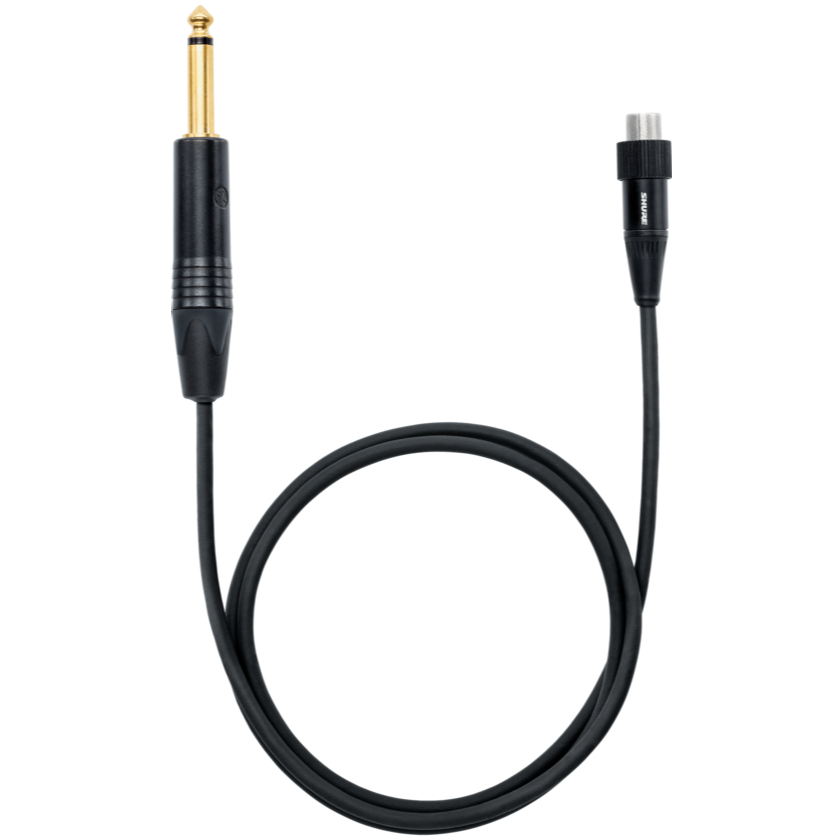

Featuring the WA305 instrument cable and QLXD1 wireless bodypack transmitter, QLXD14 combines professional features with simplified setup and operation. The QLX-D delivers outstanding wireless functionality ideal for mid-size events and installations in businesses, hotels, and government offices with conferencing spaces; schools, houses of worship, and live performance spaces.
- Easy pairing of transmitters and receivers over IR scan and sync
- Automatic channel scan
- Ethernet networking for multiple receiver systems
- Network channel scanning configures open frequencies for networked receivers
- Compatible with Shure Wireless Workbench 6 control software
- Remote control from a mobile device or tablet via ShurePlus Channels app
- AES-256 encryption for secure wireless transmission
- Elegant and easy-to-use interface with high-contrast LCD menu
- Compatible with external control systems such as AMX or Crestron
- Professional-grade all-metal construction
- Transmitters use 2 AA batteries or Shure rechargeable battery
SPECIFICATIONS
General
- RF Carrier Frequency Range: 470 – 937.5 MHz, varies by region
- Working Range: 100 m ( 328 ft)
- RF Tuning Step Size: 25 kHz, varies by region
- Image Rejection: >70 dB, typical
- RF Sensitivity: -97 dBm at 10-5 BER
- Latency: <2.9 ms
- Audio Dynamic Range System Gain @ +10: >120 dB, A-weighted, typical
- Total Harmonic Distortion −12 dBFS input, System Gain @ +10: <0.1%
- System Audio Polarity: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output
- Operating Temperature Range: -18°C (0°F) to 50°C (122°F)
- Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)

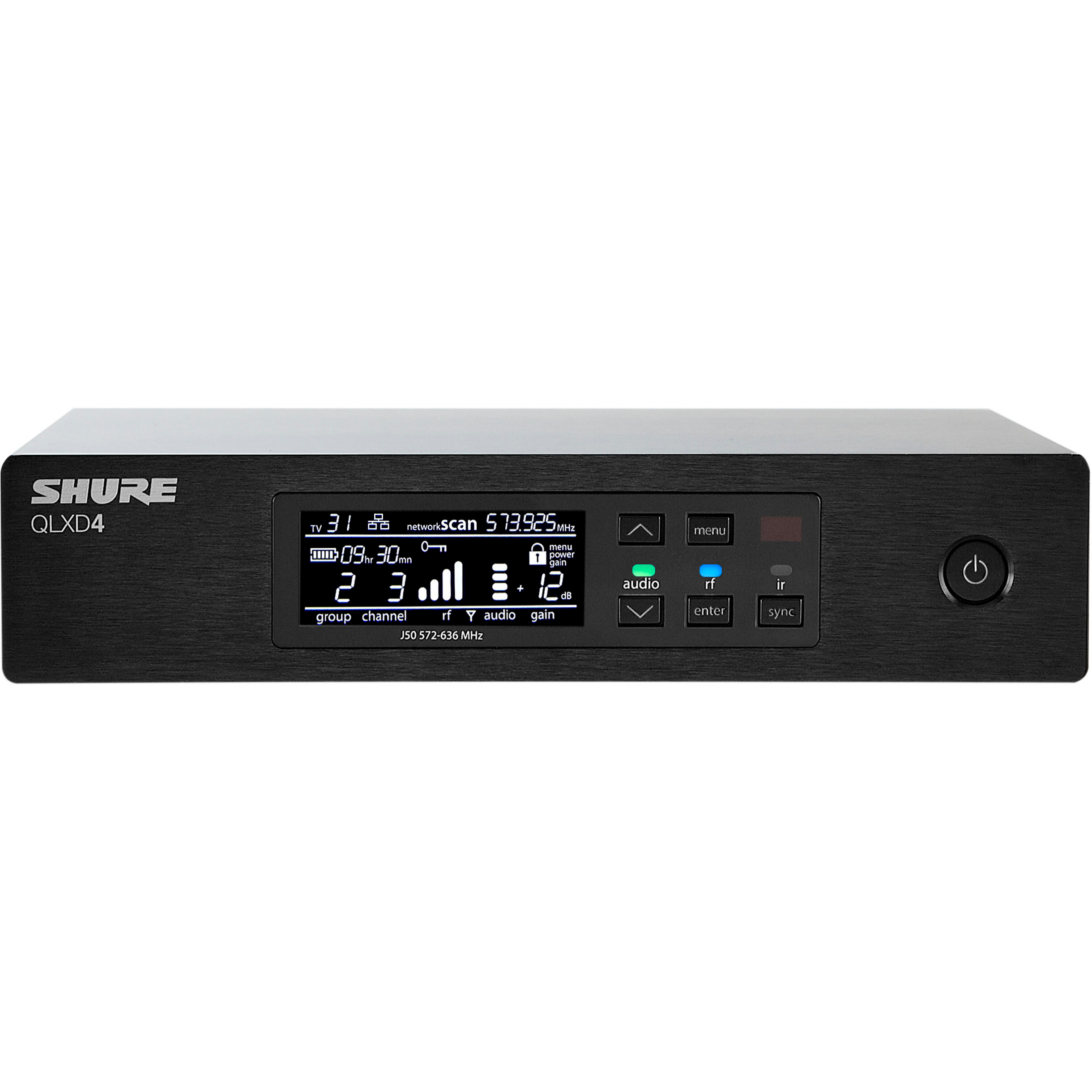

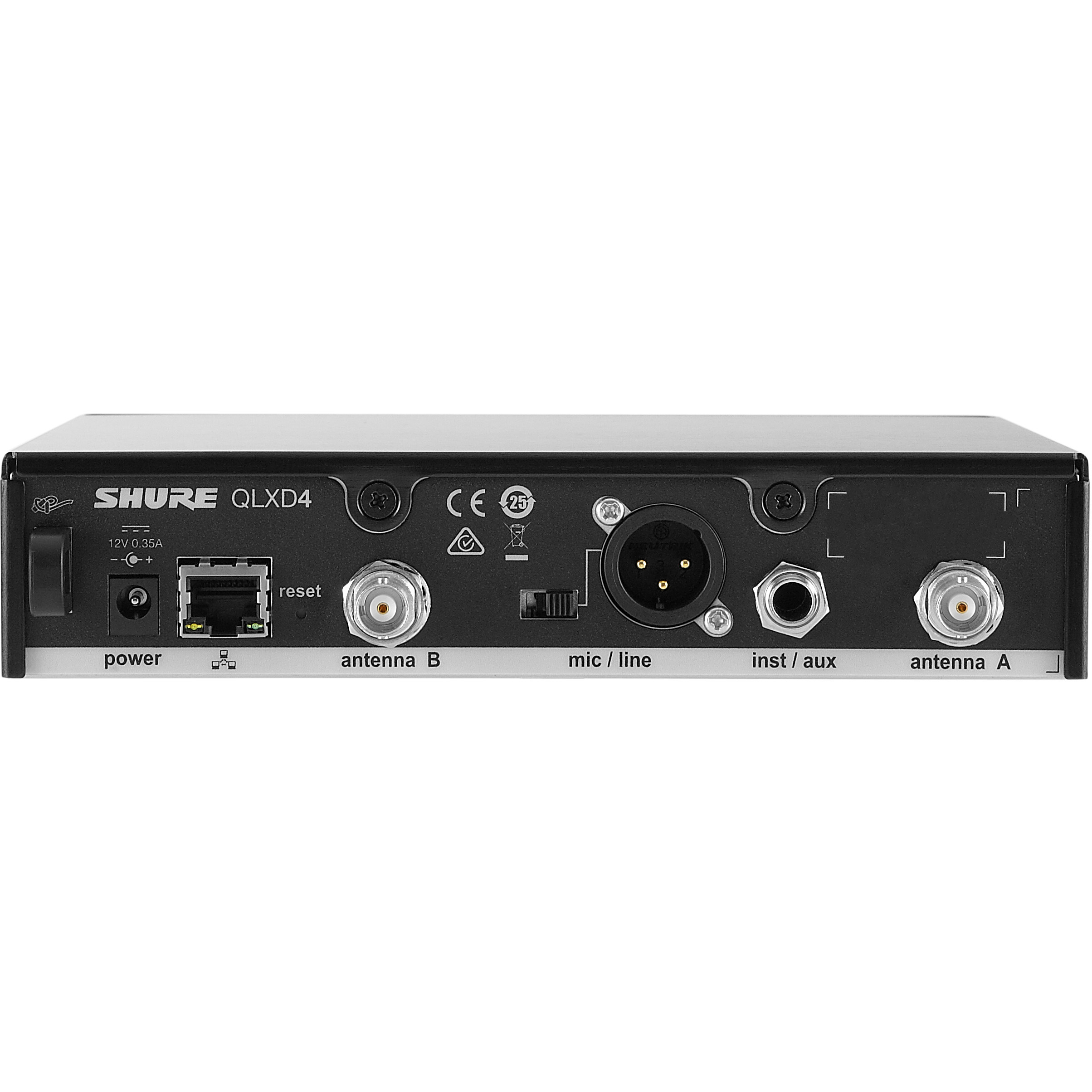

QLXD4
- Dimensions: 41 x 197 x 151 mm (1.63 x 7.75 x 5.94 inches)
- Weight: 777 g (1.71 lbs), without antennas
- Housing: Steel
- Power Requirements: 12 V DC @ 0.4 A, supplied by external power supply (tip positive)
- RF Input Spurious Rejection: >80 dB, typical
- Connector Type: BNC
- Impedance: 50 Ω
- Audio Output Gain Adjustment Range: -18 to +42 dB in 1 dB steps

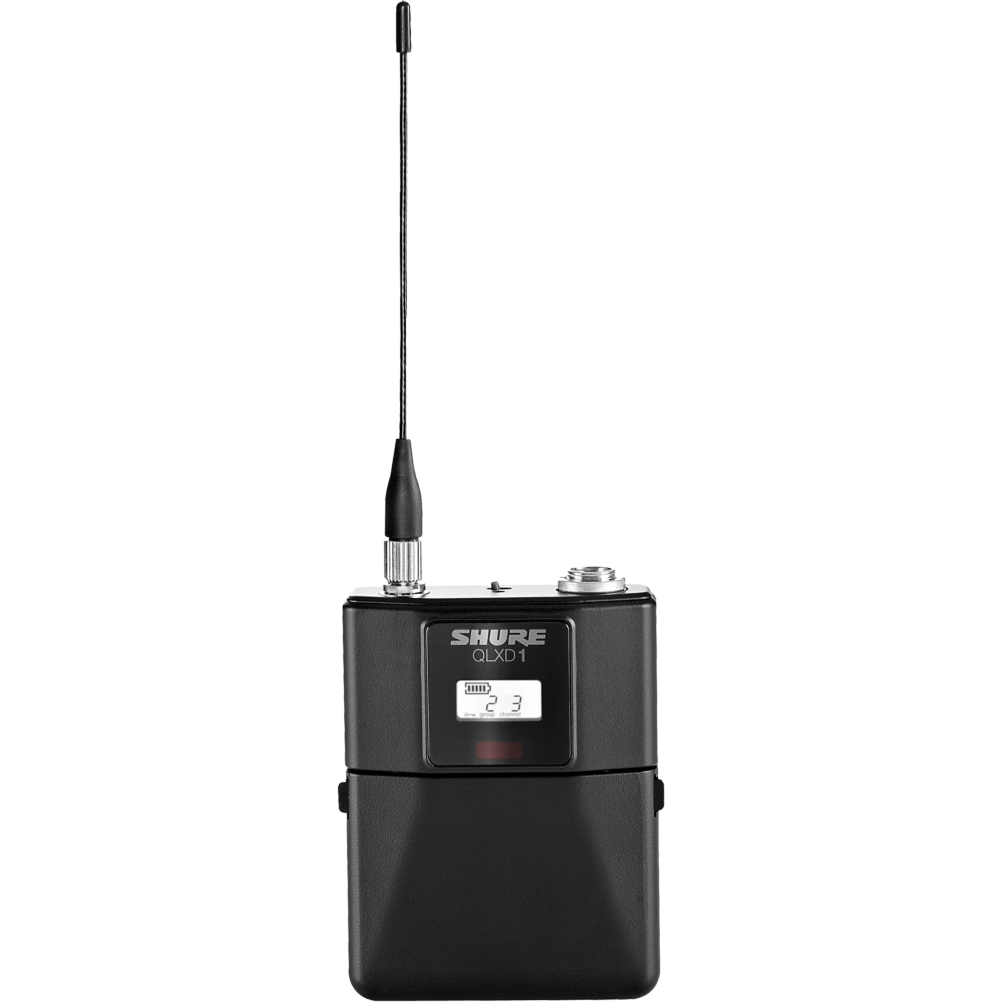

QLXD1
- Mic Offset Range: 0 to 21 dB (in 3 dB steps)
- Battery Type: Shure SB900B Rechargeable Li-Ion or AA batteries 1.5 V
- Dimensions: 86 x 65 x 23 mm (3.38 x 2.57 x 0.92 inches)
- Weight: 138 g (4.9 oz.), without batteries
- Housing: Cast aluminum
- Connector: 4-Pin male mini connector (TA4M), See drawing for details
- Configuration: Unbalanced
- Impedance: 1 MΩ, See drawing for details
- Maximum Input Level: 1 kHz at 1% THD, 8.5 dBV ( 7.5 Vpp)
- Preamplifier Equivalent Input Noise (EIN) System Gain Setting ≥ +20: -120 dBV, A-weighted, typical
- Output Connector: SMA
- Antenna Type: 1/4 wave
- Impedance: 50 Ω
- Occupied Bandwidth: <200 kHz
- Modulation Type: Shure proprietary digital
- Power: 1 mW or 10 mW
Manufacturer: Shure
Model: QLXD14-H50
SKU: I362653-1-WHXX
