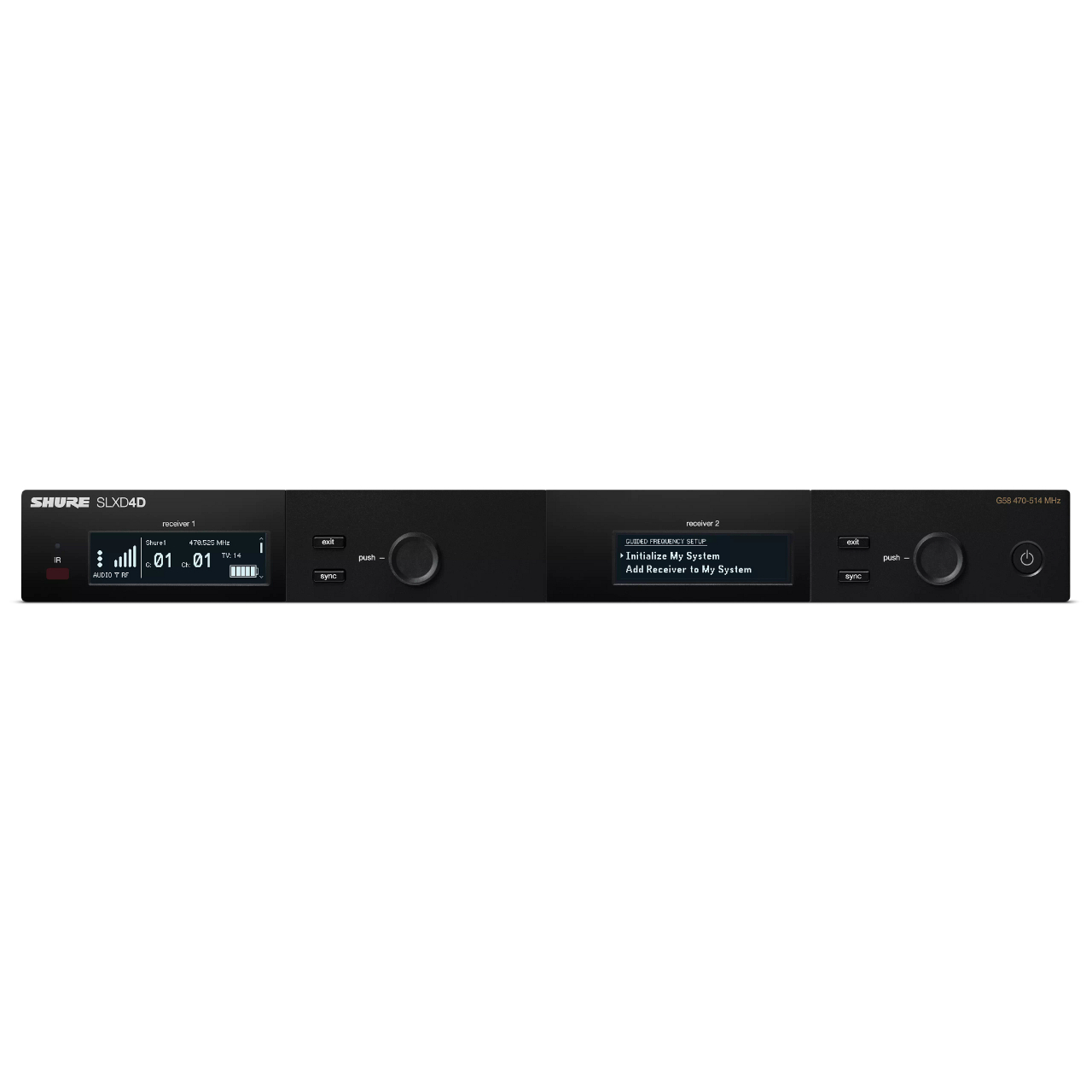

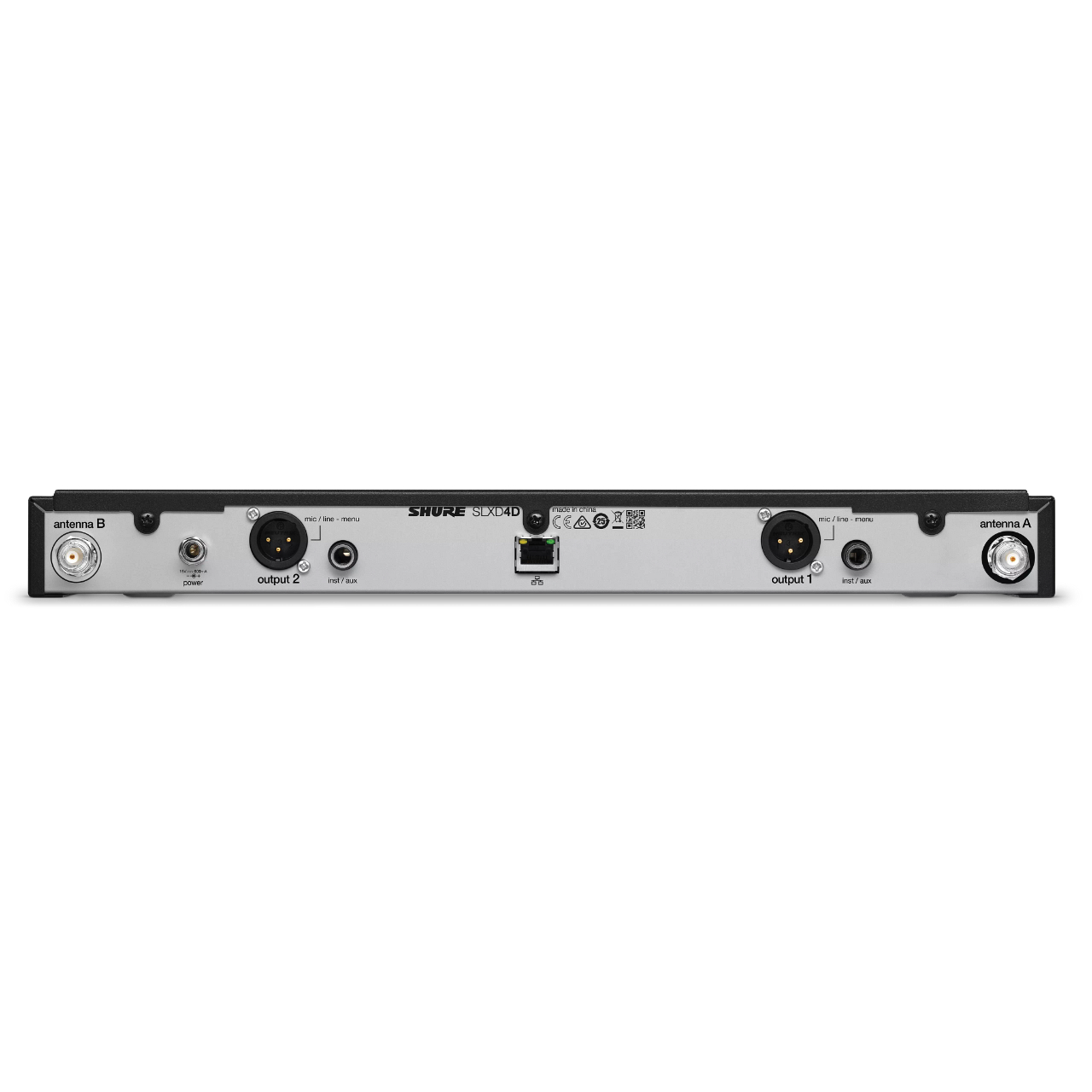

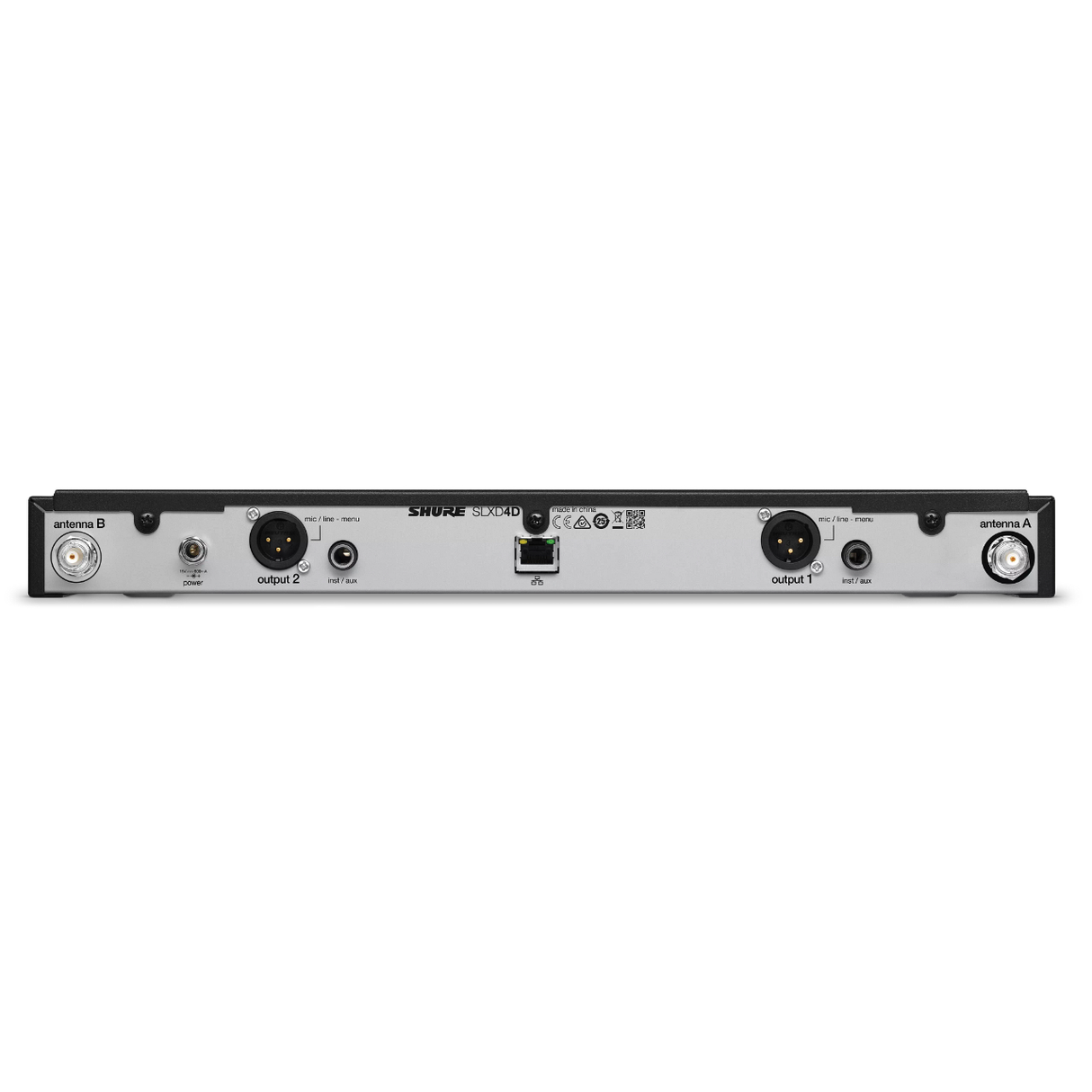

Shure SLXD4D Dual-Channel Wireless Receiver - J52 Band

by Shure
Original price $849.00 - Original price $849.00
Original price
$849.00
Default Title: $849.00
Current price $849.00
♫ In stock
About Inventory Status


Questions?
Call or text us at 301-946-8808.

In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.

📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.

Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.

Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.

█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.

About Item Conditions


Questions?
Call or text us at 301-946-8808.

New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.

Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.

Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.

Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.

Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.

B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.

Educational & Government Sales Quotes

Click here to inquire about an educational or government quote and discover more about our Educational & Government Sales Division.


Get Legendary Performance with the Shure SLXD4D Dual-Channel Wireless Receiver - J52 Band

Frequency Band: J52 (558 - 602; 614 - 616 MHz)

The SLXD4D Dual Channel Receiver is the convenient, streamlining choice for confident speech presentation and vocal performance from lecture halls to live entertainment. The SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry leading digital wireless technology and design, the SLXD4D easily syncs wireless transmitters. A variety of interchangeable vocal microphone choices guarantees the right solution for a wide range of applications, from day-long conference to nighttime performances.


  • Transparent 24-bit digital audio
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 118 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6 MHz TV band; 12 systems per 8 MHz band
  • Easy pairing of transmitters and receivers over scan and IR sync
  • Compatible with Shure Wireless Workbench control software
  • Remote monitoring and control via ShurePlus Channels app
  • Rugged metal construction


SPECIFICATIONS

SLX-D System

  • RF Carrier Frequency Range: 470 – 937.5 MHz (check specific frequency band)
  • Working Range: 100 m (328 ft)
  • RF Tuning Step Size: JB Band: 125 kHz
  • All Other Bands: 25 kHz
  • Image Rejection: >70 dB typical
  • RF Sensitivity: −97 dBm at 10-5 BER

Audio

  • Latency: 3.2 ms
  • High-Pass/Low Cut Filter: 150 Hz, –12 dB/octave
  • Audio Frequency Response: 20 H z– 20 kHz (+1, −2 dB)
  • Audio Dynamic Range A-weighted, 20 Hz–20 kHz, Typical: 118 dB @ 1% THD
  • Total Harmonic DistortionL <0.02%
  • System Audio Polarity
    • XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output
    • TRS: Postive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35 mm (1/4-inch) with respect to the ring of the 6.35 mm output
  • Mic Offset Range: 0 to 21 dB (in 3 dB steps)

Temperature Range

  • Operating Temperature Range: 0 °F to 122 °F (−18 °C to 50 °C)
  • Storage Temperature Range: −20 °F to 165 °F (−29 °C to 74 °C)

SLXD4D

  • Dimensions (H × W × D): 1.65 × 15.5 × 5.98 inches (42 × 393 × 152 mm)
  • Weight: 3.2 lb (1451 g) without antennas
  • Housing: Galvanized Steel
  • Power Requirements: 15 VDC @ 600 mA

RF Input

  • Spurious Rejection: >75 dB Typical
  • Connector Type: BNC
  • Impedance: 50 Ω

Audio Output

  • Gain Adjustment Range: –18 to +42 dB in 1 dB steps
  • Configuration
    • 1/4-Inch (6.35 mm): Balanced (Tip=audio +, Ring=audio –, Sleeve=ground)
    • XLR: Balanced (1=ground, 2=audio +, 3=audio –)
  • Impedance
    • 1/4-Inch (6.35 mm): 1.3 kΩ (670 Ω Unbalanced)
    • XLR (line): 400 Ω (200 Ω Unbalanced)
    • XLR (mic): 150 Ω
  • Full Scale Output
    • 1/4-Inch (6.35 mm): +15 dB differentially (+9 dBV single)
    • XLR (LINE setting): +15 dBV
    • XLR (MIC setting): –15 dBV
    • Mic/Line Switch: 30 dB pad
  • Phantom Power Protection
    • 1/4-Inch (6.35 mm): Yes
    • XLR: Yes

Networking

  • Network Interface: Single Port Ethernet 10/100 Mbps Network
  • Addressing Capability: DHCP or Manual IP address
  • Maximum Cable Length: 100 m (328 ft)


Manufacturer: Shure
Model: SLXD4D=-J52
SKU: I634971-N-6-WHXB
UPC: 042406556576
