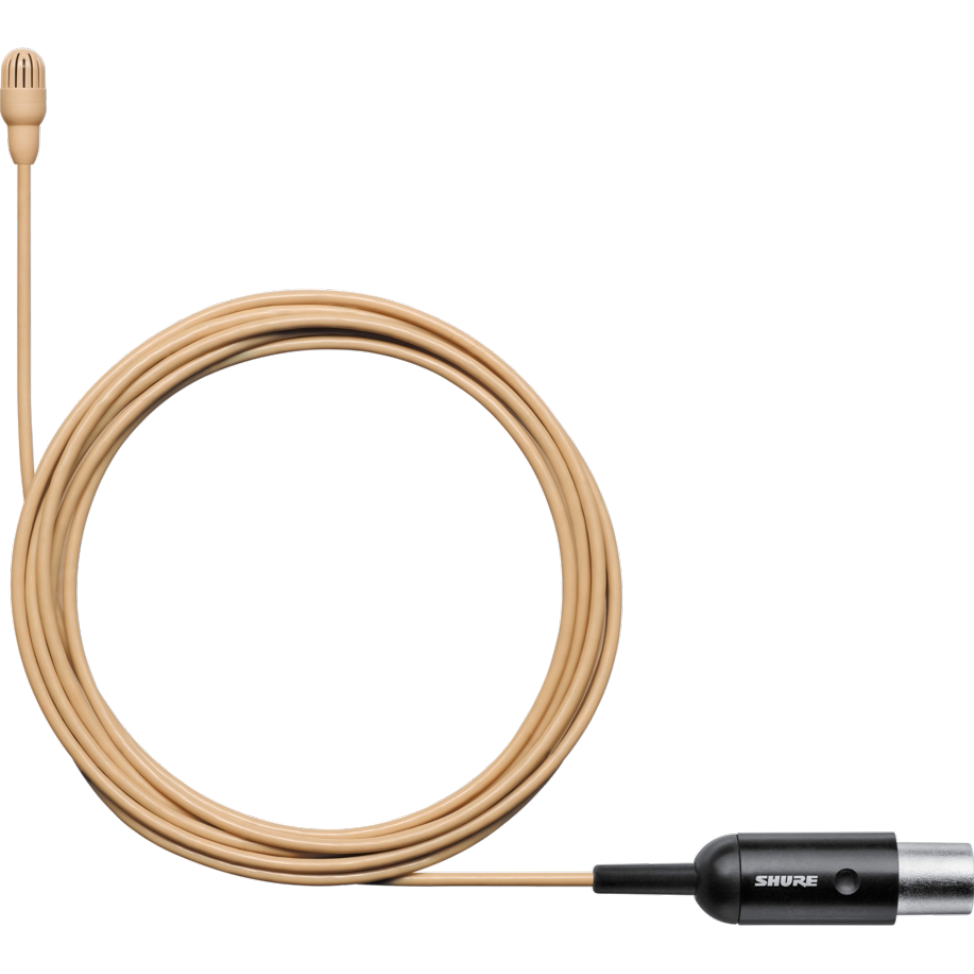

Shure TwinPlex TL46 Omnidirectional Lavalier Microphone - Tan, MTQG

Cut through the Noise with the Shure TwinPlex TL46 Omnidirectional Lavalier Microphone - Tan, MTQG

TwinPlex TL46 offers unmatched signal-to-noise, superior natural sound quality, and a high sensitivity output. Perfect for dialogue and medium SPL applications, the TL46 also features an ultra-durable 1.6 mm paintable cable, interchangeable moisture-resistant frequency caps with both LEMO and TA4F (TQG) connector options. It’s the premium choice when the message needs to rise above the noise.

• The TL46 is ideal for a variety of theater, film, broadcast, and live TV applications when additional output (8-10 dB) is required
• Twice the surface area of other subminiature microphones for pristine, natural response and robust low-frequency response due to the patent pending dual-diaphragm design
• Improved off-axis consistency yields accurate reproduction regardless of vocal source position or movement
• Best-in-class low self-noise and dynamic range for cleaner audio production
• Interchangeable sweat- and moisture-resistant frequency caps prevent sweat-outs due to an invisible syperhydrophobic nanoscopic coating
• Paintable 1.6 mm cable that is immune to memory effect and kinks
• Dual redundant ground in cable serves as secondary shield for longevity

SPECIFICATIONS

• Microphone Capsule: Dual-Diaphragm, Prepolarized Condenser
• Polar Pattern: Omnidirectional
• Frequency Response: 20 Hz to 20 kHz
• Sensitivity at 1 kHz: -45.0 dBV (5.62 mV)Self-Noise, A-Weighted, Equivalent Acoustical 24.5 dB SPL-A
• Signal-to-Noise Ratio: 69.5 dB
• Output Clipping Level: 3.0 dBV, 1 kHz at 1% THD, typical
• Maximum SPL: 142.0 dB SPL 1 kHz at 1% THD, typical
• Dynamic Range: 117.5 dB typical
• Microphone Current Draw: 120 to 240 µA, typical
• Bias Voltage: 5 VDC
• Housing Molded: ABS
• Polarity: Positive pressure at diaphragm leads to negative voltage with respect to ground
• Cable Diameter 1.1 mm
• Cable Length: 66 in. (1.67 m)
• Microphone Length: 13.5 mm
• Microphone Diameter: 5.6 mm
• Net Weight with Cable: 12.0 g (0.42 oz.)
