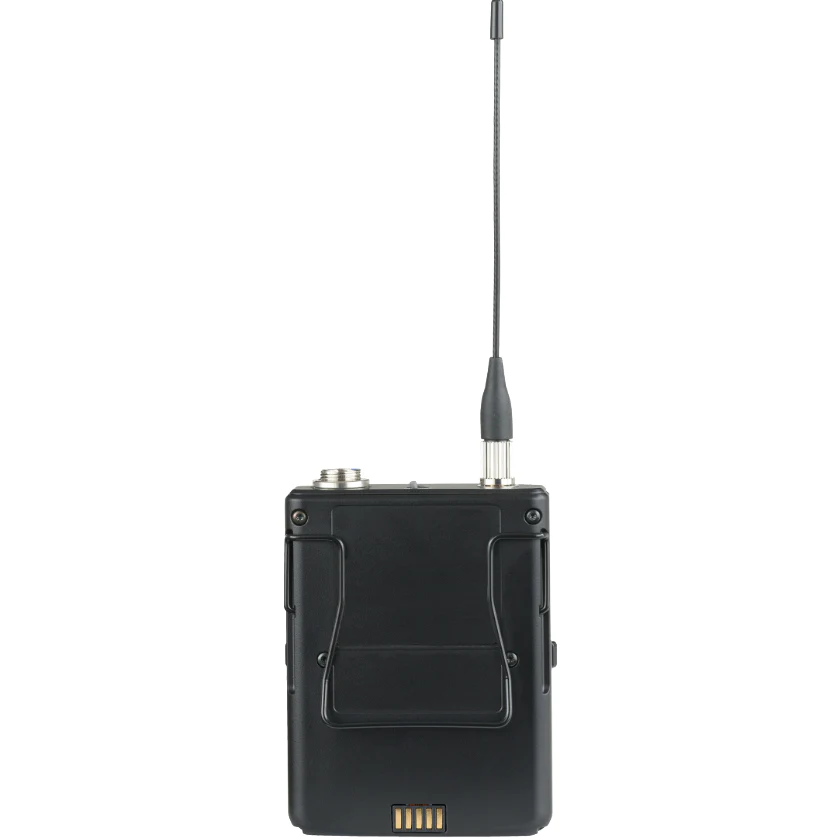

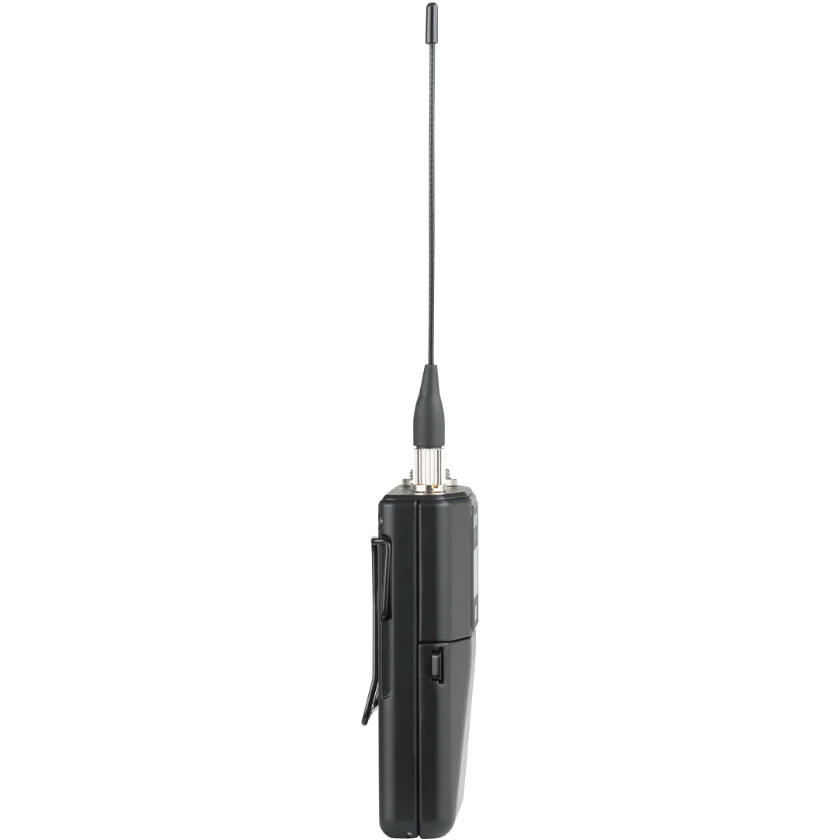

Shure ULXD1 Digital Wireless BodypacK Transmitter - X52 Band

Cut through the Noise with the Shure ULXD1 Digital Wireless Bodypack Transmitter - X52 Band

The ULXD1 is a wireless bodypack transmitter compatible with ULX-D® Digital Wireless Systems. With a rugged yet lightweight aluminum case, the ULXD1 delivers uncompromising audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound reinforcement applications.

• AES 256-bit encryption for applications requiring secure data transmission
• Proprietary Shure Gain Ranging optimizes the system’s dynamic range for any input source, eliminating the need for transmitter gain adjustments
• Optional Shure SB900B lithium-ion rechargeable battery provides over 9 hours of battery life, precision metering in hours and minutes, and zero memory effect
• External charging contacts for docked charging (with the SBC200 Dual Docking Charger)

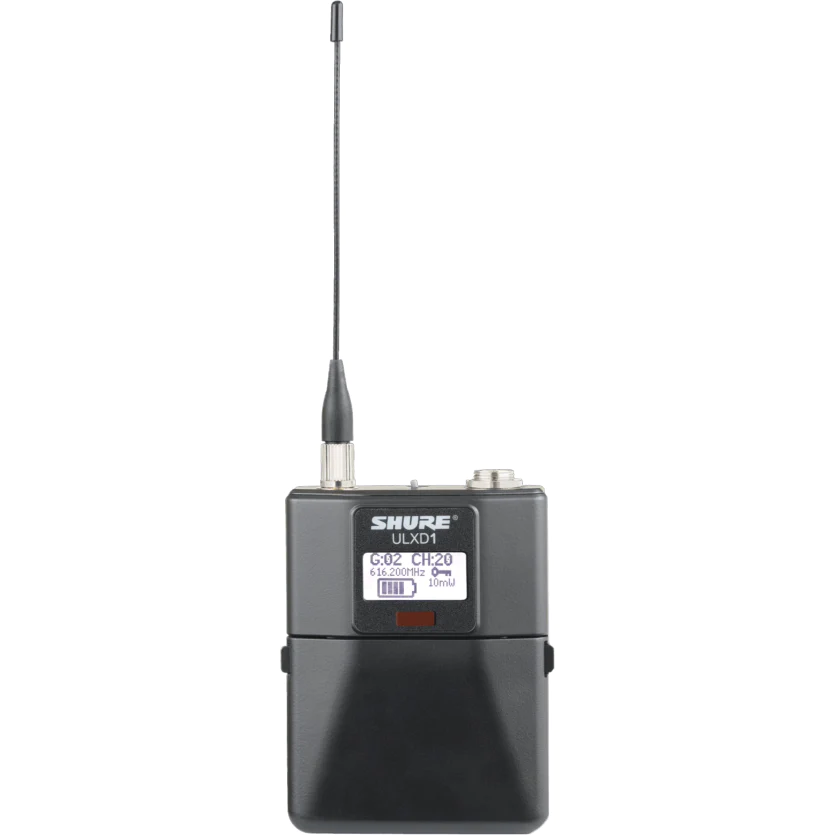

• Backlit LCD with easy to navigate menu and controls
• Rugged metal construction
• Detachable 1/4 wave antenna
• Frequency and power lockout

SPECIFICATIONS

• Working Range: 100 m (330 feet)
• RF Tuning Step Size: 25 kHz, varies by region
• Image Rejection: >70 dB, typical
• RF Sensitivity: −98 dBm at 10-5 BER
• Latency: <2.9 ms
• Total Harmonic Distortion: −12 dBFS input, System Gain @ +10, <0.1%
• Operating Temperature Range: -18°C (0°F) to 50°C (122°F)
• Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
• Mic Offset Range: 0 to 21 dB (in 3 dB steps)
• Audio Frequency Response: 20 – 20 kHz (±1 dB)
• Battery Type: Shure SB900B
• Battery Runtime: @ 10 mW
• Dimensions: 86 x 66 x 23 mm (3.4 x 2.6 x 0.9 inches)
• Weight: 142 g (5.0 oz.), without batteries
• Housing: Cast aluminum

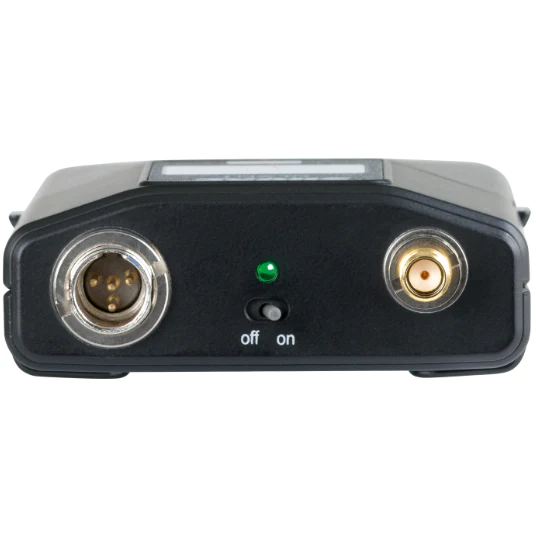

• Connector: 4-Pin male mini connector (TA4M), See drawing for details
• Configuration: Unbalanced
• Impedance: 1 MΩ, See drawing for details
• Maximum Input Level: 1 kHz at 1% THD
• Preamplifier Equivalent Input Noise (EIN)
• System Gain Setting: ≥ +20-120 dBV, A-weighted, typical
• RF Output Connector: SMA
• Antenna Type: 1/4 wave
• Impedance: 50 Ω
• Occupied Bandwidth: <200 kHz
• Power: 1 mW, 10 mW, 20 mW
