Shure ULXD4-G50 ULX-D Series Digital Wireless Receiver - G50 Band

Make Sure Nothing Gets Lost In Transmission With The Shure ULXD4-G50 ULX-D Series Digital Wireless Receiver - G50 Band

The Shure ULXD4 is a half-rack, networkable wireless receiver for use with ULX-D Digital Wireless Systems.

With an expansive set of professional features, including 24-bit / 48 kHz digital audio quality, efficient and intelligent RF performance, and AES 256-bit encryption, ULX Digital offers uncompromising wireless tailored for professional sound reinforcement.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

• Predictive switching diversity
• High Density mode optimizes ULX-D systems to simultaneously operate significantly more channels in applications up to 30 meters
• Intelligent scanning automatically finds and deploys the cleanest frequencies to transmitters over IR sync
• Interference detection and alerts provided on both the receiver and Wireless Workbench 6
• Front panel gain adjustment buttons provide up to 60 dB additional gain
• AES 256-bit encryption-enabled for applications where secure transmission is needed
• Ethernet networking provides streamlined setup across multiple receivers, Wireless Workbench 6 integration, and AMX/Crestron control
• Support for frequency coordination with the Axient® Spectrum Manager
• Rugged metal chassis

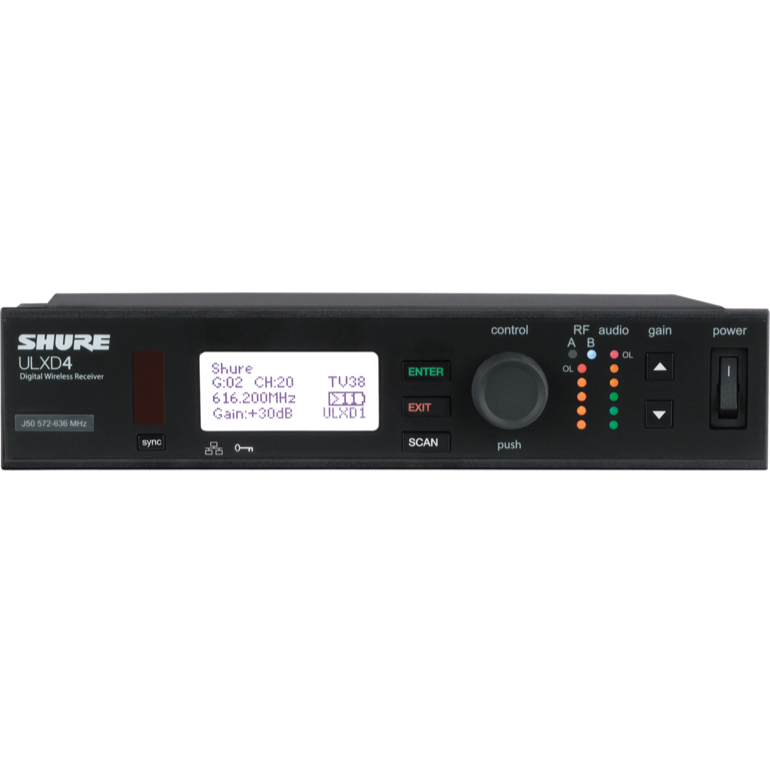

• Intuitive front panel LCD menu and controls with lockout feature
• Upgraded LCD with adjustable contrast and brightness
• Audio and RF LED meters with peak indicator
• Remoteable ½ wave antennas
• Furnished rack hardware

POWER REQUIREMENTS

• 15 V DC @ 0.6 A, supplied by external power supply (tip positive)

GAIN ADJUSTMENT RANGE

• -18 to +42 dB in 1 dB steps (plus Mute setting)

FULL SCALE OUTPUT

• 6,35 mm: +12 dBV
• XLR: LINE setting= +18 dBV, MIC setting= -12 dBV

NETWORK INTERFACE

• Single Port Ethernet 10/100 Mbps

NETWORK ADDRESSING CAPABILITY

• DHCP or Manual IP address, with or without gateway

HOUSING

• Galvanized Steel
