Solid State Logic AWS 948 delta 48-Channel Analog Console


  • Our Price
  • Regular price $106,500.00

OUT OF STOCK - CALL FOR AVAILABILITY
• Inventory changes daily
Contact us for availability | tel: 301-946-8808
• Please allow for additional delivery time due to COVID 19

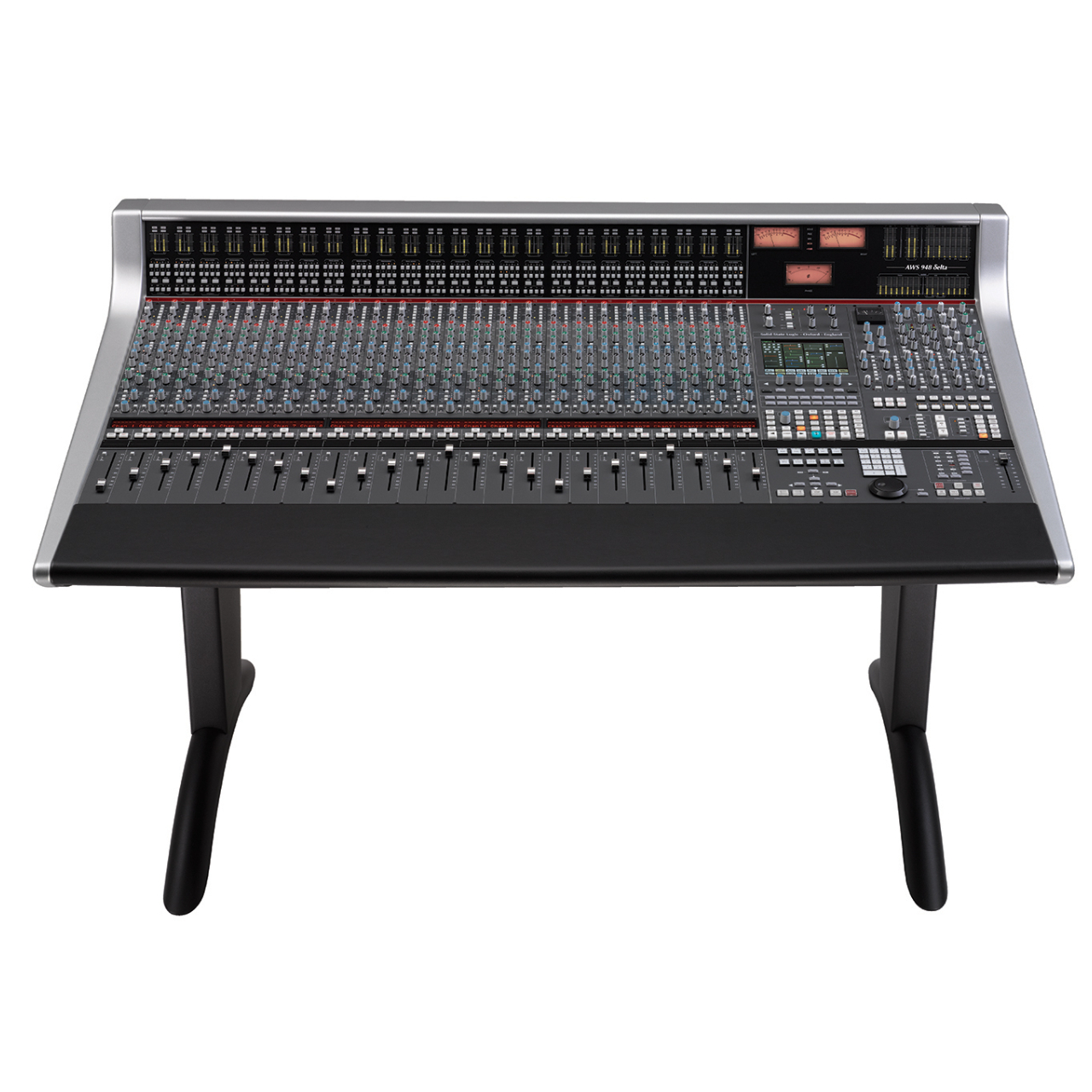

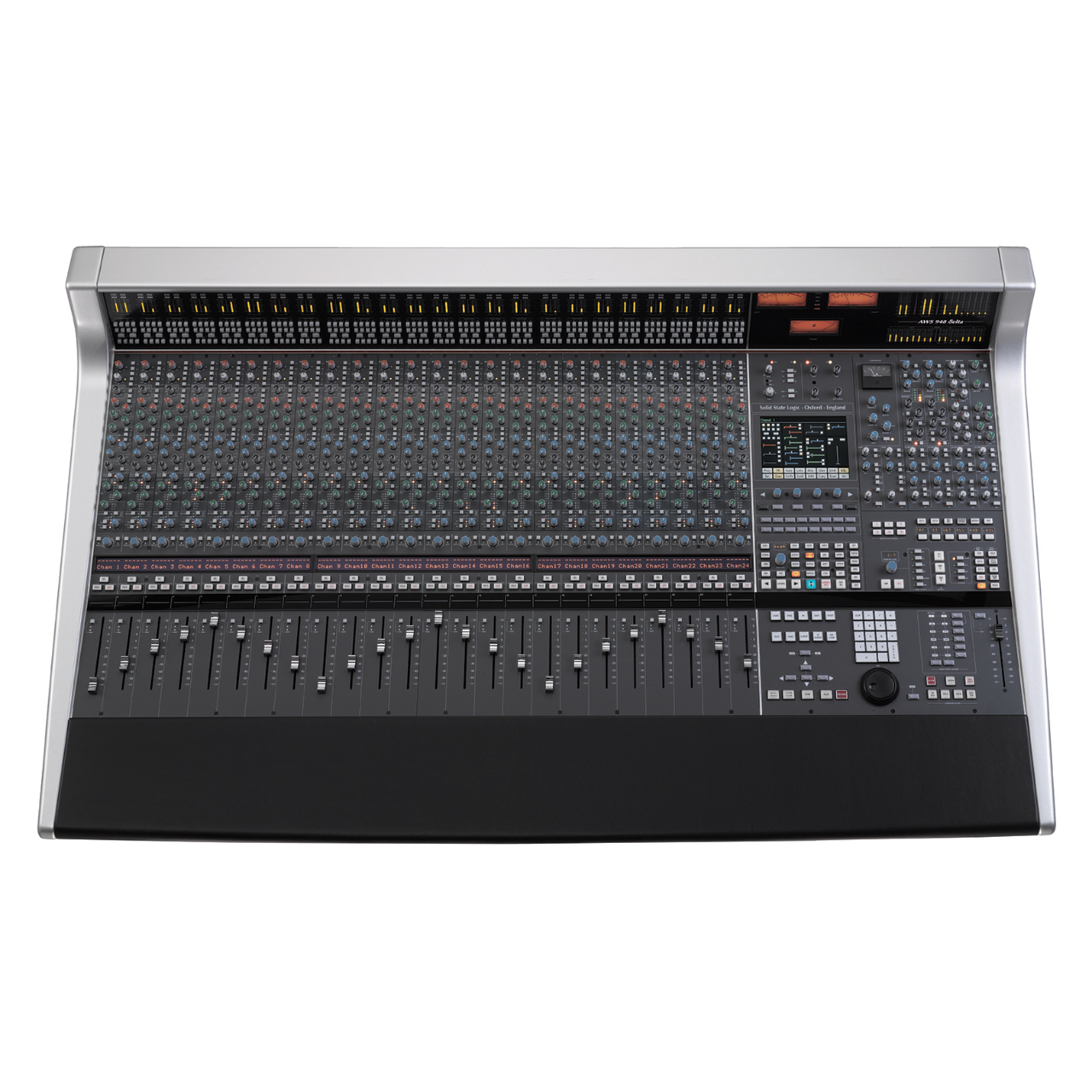

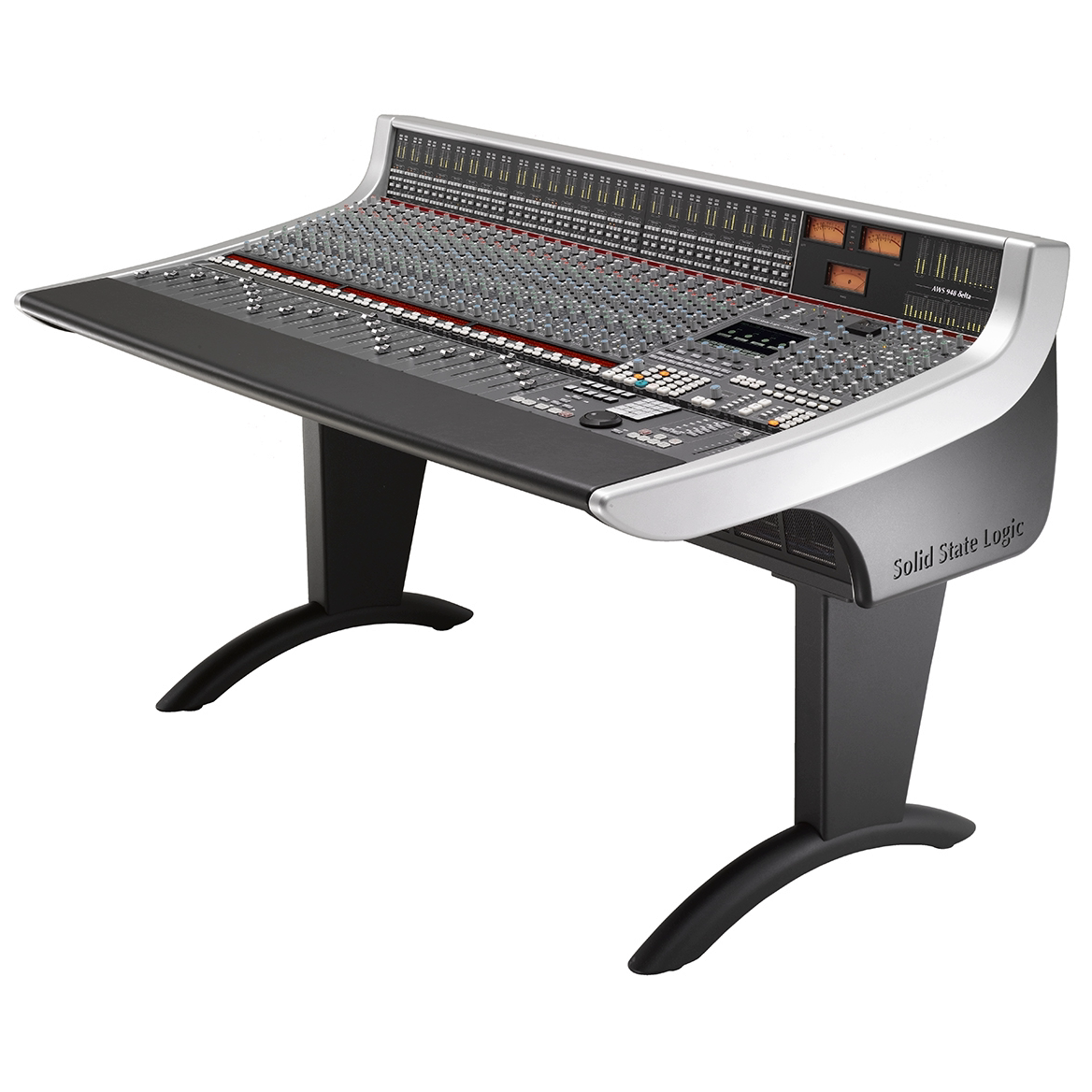

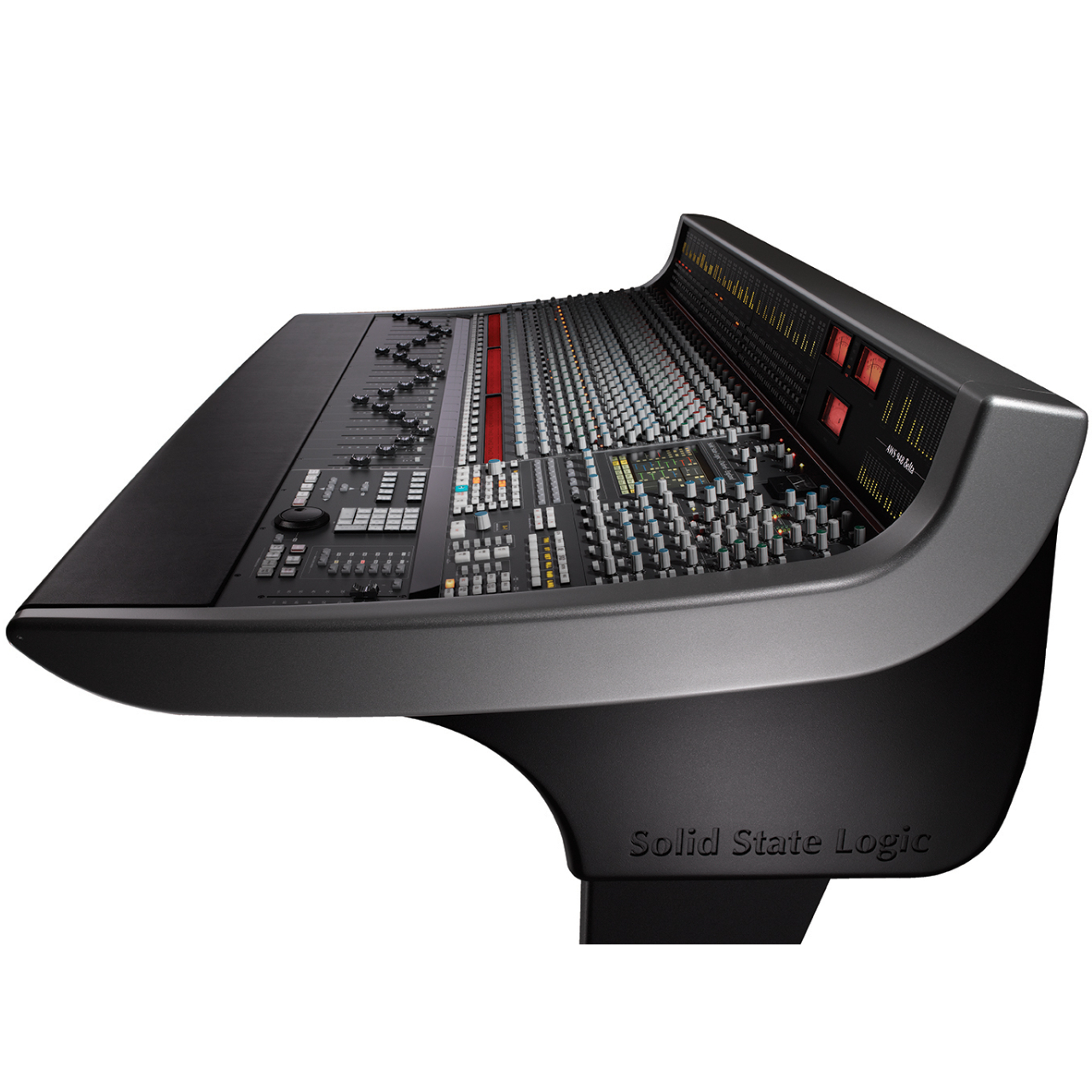

The Solid State Logic AWS 948 48-Channel Analog Console Offers Digital Control for Analogue Souls

The Solid State Logic AWS (Analogue Workstation System) Console reinvented the professional production console by combining classic SSL SuperAnalogue™ console technology with comprehensive DAW control hardware in a single work surface. The Solid State Logic AWS Console is now used by leading international recording artists, producers and engineers and has shaped expectations for session workflow within today's and indeed tomorrows' production environments.

Designed for mid-scale commercial recording and production facilities, the Solid State Logic AWS Console is available with 16 inputs (AWS 916), 24 inputs (AWS 924) or 48 inputs (AWS 948) within a compact 24 fader frame. The Solid State Logic AWS 948 Console has 24 mic pre's and stereo/dual mono channel strips that offer a second line level input per channel to provide 48 summing channels. It delivers pristine SuperAnalogue™ summing, ultra-clean SSL SuperAnalogue mic pre's, classic SSL dual curve EQ on every channel, two assignable SSL Dynamics channels, legendary Stereo Buss Compressor, TotalRecall™ and full 5.1 monitoring. In addition to on board classic SSL Automation, both models also feature SSL's A-FADA system where motorized analogue faders follow DAW Automation data.

The Solid State Logic AWS Console also features Ethernet connectivity for streamlined hardware control over your entire Digital Audio Workstation environment. AWS delivers elegant, ergonomic physical control with dedicated heavy duty DAW transport, V-Pot multifunction encoders with position indicating LED's, Digital Scribble Strips, DAW fader mode, global and channel routing control and built-in TFT display for advanced plug-in editing. Project Session Management is kept simple through SSL's proprietary Logictivity interface.

The AWS is an SSL SuperAnalogue™ console, featuring the audio performance specifications that have established the benchmarks by which other manufacturers are measured. Exceptionally low THD, noise floor, and crosstalk levels keep your audio absolutely pristine, while our legendary headroom carries every nuance of your audio and allows engineers to mix 'hotter' without distortion.

*The Solid State Logic AWS 948 Console is a Special Order Item: Please allow extra time for delivery. This console does not qualify for free shipping; a customer service representative will contact you for shipping options after your order has been placed.*


  • Combination of SuperAnalogue™ console and advanced DAW controller
  • SSL SuperAnalogue™ mix bus provides pristine audio foundations
  • SSL SuperAnalogue mic pre's provide transparent record path
  • IN-LINE TRACKING = 1 mic + 1 line inputs per channel
  • IN-LINE MIX = 2 x mono line inputs per channel
  • STEREO MIX = 1 x stereo line input per channel
  • A-FADA Mode where motorized analogue faders follow DAW automation
  • AWSomation SSL motorized fader mix automation based on the heritage of G and K series Ultimation
  • Versatile 4 band channel EQ, assignable Dynamics and SSL Master Bus Compressor
  • 5.1 Surround monitoring and Monitor calibration including Bass management
  • MIDI over Ethernet multi layer DAW workstation control
  • Digital Scribble Strips for console and DAW data
  • Elegant project setup via SSL Logictivity Remote Browser and SD card storage
  • SSL's unique trademarked TOTAL RECALL™ system with 'TR Autoscan'
  • Responsible 'green' manufacturing and reduced power consumption
  • Compact 24 fader frame ideal for small control rooms


SPECIFICATIONS

Physical

  • Dimensions (H x W x D): 36.4 x 56.9 x 34.4 inch / 925 x 1445 x 873 mm
  • Height Adjustment: 0 - 0.8 inch/ 0 - 20 mm
  • Weight: 238 lb / 108 kg
  • Heat Dissipation: 650 W
  • Voltage: 100 - 230 V ±10%
  • Inrush Current: 4.6 A
  • Power Factor: 0.95
  • Fusing: None
  • Noise: Fanless
  • Connectors
    • Mains Input: IEC male
    • Serial: 9-way D-type female
    • VGA Out: HD 15-way D-Type (640 x 480 60Hz)

Performance

  • Headroom: greater than +26dBu, at onset of clipping
  • Frequency Response
    • Microphone Input - Insert Send: 20Hz - 20kHz ±0.2dB, 0dB applied, Mic gain at minimum
    • Line Input - Direct Out: 20Hz - 20kHz ±0.1dB, 0dB applied, Line gain at detent (unity gain)
    • Line Input - Track / Aux Bus Out: 20Hz - 20kHz ±0.1dB, 0dB applied, Line gain at detent (unity gain)
    • Line Input - Mix / Rec Out: 20Hz - 20kHz ±0.1dB, 0dB applied, Line gain at detent (unity gain)
  • Noise: Microphone Input - Insert Send
    • less than -127dBu, Typical EIN. Max mic gain, 20Hz - 20kHz filter
  • Noise: Line Input - Direct Out
    • less than -89dBu, 20Hz - 20kHz filter
  • Noise: Line Input - Track / Aux Bus Out
    • No channels routed, 20Hz - 20kHz filter: less than -89dBu
    • One channel routed, 20Hz - 20kHz filter: less than -88dBu
    • All channels routed, 20Hz - 20kHz filter: less than -77.5dBu
  • Noise: Line Input - Mix / Rec Out
    • No channels routed, 20Hz - 20kHz filter: less than -91dBu
    • One channel routed, 20Hz - 20kHz filter: less than -88dBu
    • All channels routed, 20Hz - 20kHz filter: less than -77.5dBu
  • THD
    • Line Input - Direct Out: less than 0.002%; +20dBu, 1kHz, 20Hz - 80kHz Filter
    • Line Input - Track / Aux Bus Out: less than 0.005%; +20dBu, 1kHz, 20Hz - 80kHz Filter
    • Line Input - Mix / Rec Out: less than 0.005%;+20dBu, 1kHz, 20Hz - 80kHz Filter

Manufacturer: Solid Stage Logic
Model: AWS 948 DELTA
Warranty: See manufacturer website for details
SKU: I344102-N-0-B
