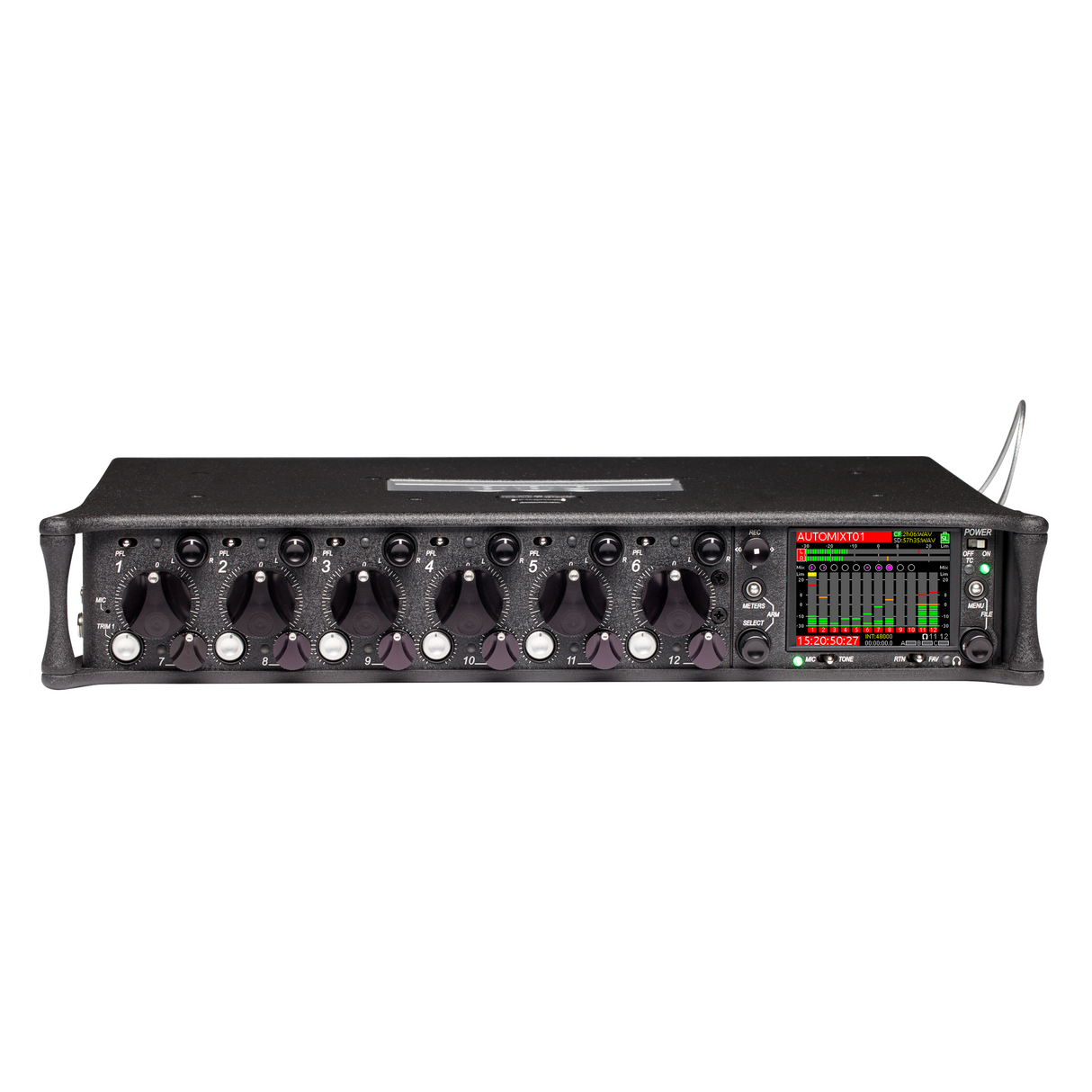

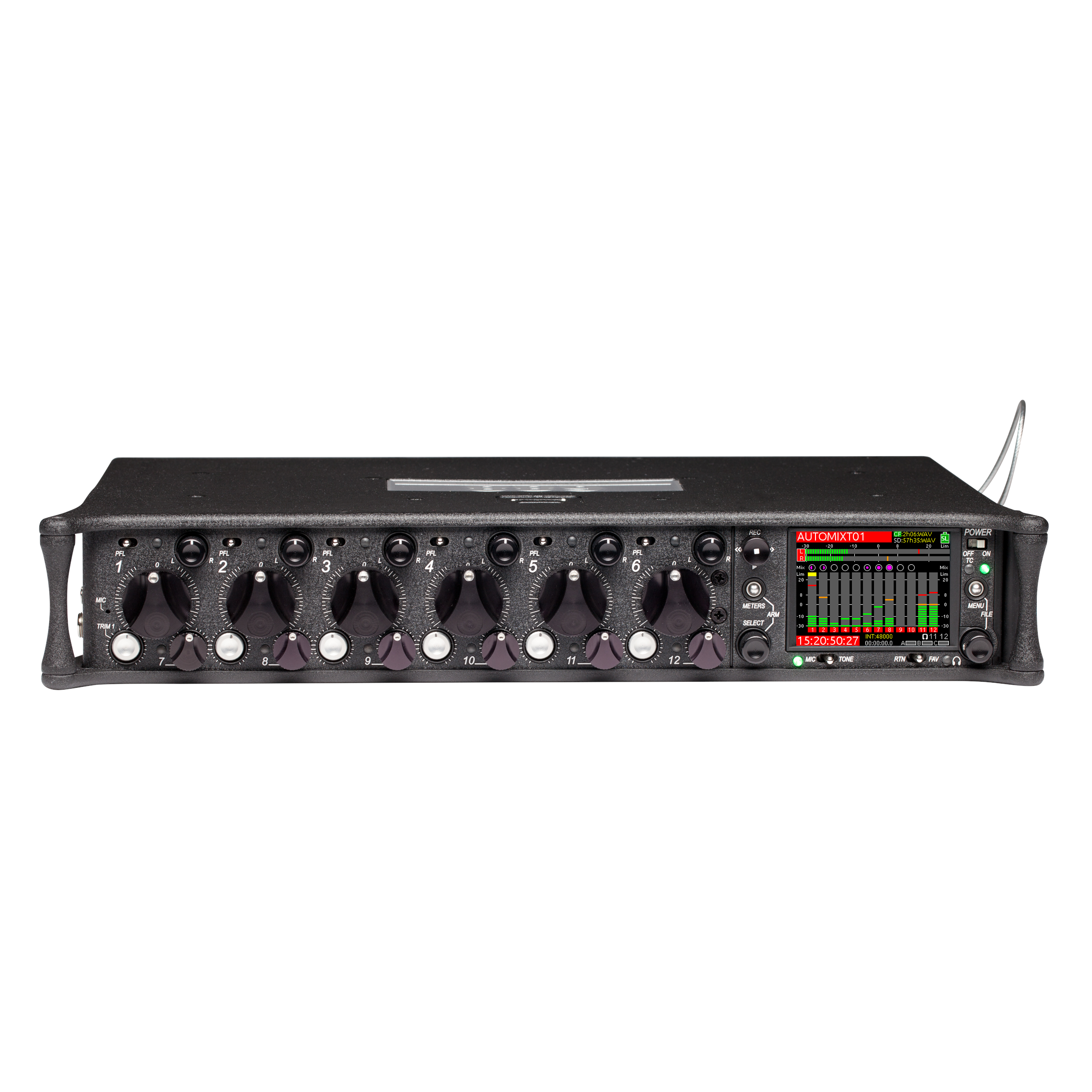

Quality Design - The Sound Devices 688 12-Input Digital Field Mixer
The 688 is a 12-input digital field mixer with 16-track integrated recorder and timecode.
- The A20-Mini transmitter introduces GainForward, a new feature that eliminates the need to adjust microphone preamplifier gain at the wireless transmitter. Audio levels from the transmitter are controlled either directly at the mixer’s trim control or at the wireless receiver. Read more about GainForward
- Support for A20-Mini GainForward. When the A10-RX receiving an A20-Mini signal is slotted into the SL-6, the A10-RX Input menu settings are bypassed and all gain, low cut, and limiter activity are performed and controlled by the 688. Trim gain range is 0 to 60 dB for the 688 channel receiving signal from the A20-Mini
- A10-RX Receiver Setup screens show Limiter, High Pass Filter, and clipping status of the associated 688 channel when receiving signal from the A20-Mini
- A10-RX Receiver screens now display overload, mute, and record status of A10-TX
- SuperSlot Receiver Overview screen now shows record status of the A20-Mini and A10-TX
SPECIFICATIONS
- Frequency Response: 10 Hz to 40 kHz ± 0.5 dB, -3dB @ 65 kHz (192 kHz sample rate, re 1 kHz)
- THD + Noise: 0.09% max (1 kHz, 22 Hz–22 kHz BW, fader at 0, 0 dBu output)
- Equivalent Input Noise: -126 dBu (-128 dBV) maximum. (22 Hz - 22 kHz bandwidth, fl at fi lter, trim control fully up)
- Inputs/li>
- XLR Mic: Active-balanced for use with ≤600 ohm mics, 4k ohm actual; 12V or 48 V phantom power, 10 mA max
- XLR AES: AES3 or AES 42 (10V power), Sample Rate Converted
- XLR Line: Active-balanced for use with ≤2k ohm outputs, 10k ohm actual
- TA3 Line: Active-balanced for use with ≤2k ohm outputs, 10k ohm actual
- RTN A, B, C (3.5 mm/10-pin): Unbalanced stereo for use with ≤2k ohm outputs, 6.5k ohm actual
- Slate Mic (TA3): 6.5k ohms
- Input Clipping Level: 0 dBu minimum (trim control fully down)
- Maximum Input Level
- XLR-3F Mic: 0 dBu (0.78 Vrms)
- XLR-3F Line: +40 dBu (80 Vrms)
- RTN A, B, C (3.5 mm/10-pin): +24 dBu (12.4 Vrms)
- Pre-Fader Input Limiters (Inputs 1-6)
- +16 dBu threshold (fi xed), soft knee/hard knee
- 20:1 limiting ratio
- 1 mS attack time
- 500 mS release time
Manufacturer: Sound Devices
Model: 688
SKU: I641771-N-0-WHXX
UPC: 859108005178
