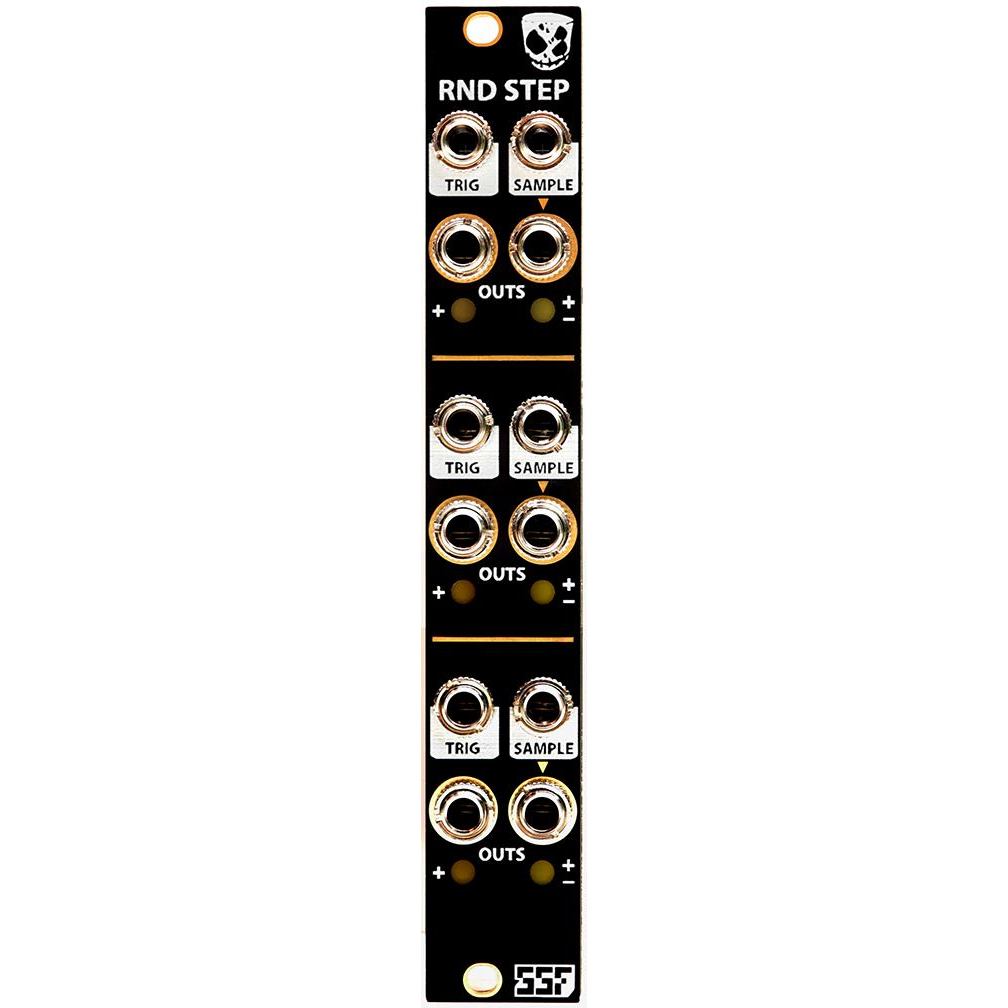

Get High Performance and Accuracy With The RND/SSF STEP Sample and Hold Module
RND STEP is a high performance, 3-channel sample and hold module, comprising of 6 separate noise & SH circuits in just 4HP.
Each channel features two internal analogue pink noise generators, and two sample and hold circuits split across unipolar and bipolar outputs.The unipolar output always samples its own noise source for a stepped random voltage between 0-5V. The bipolar output by default samples
it’s own noise source (for -5V to +5V stepped random). However, you can override that connection with the sample input. This allows for sampling external audio or CV signals, and it can sample voltages anywhere between -10V and +10V with the sample input.
RND STEP will operate at slow trigger rates with highly extended hold times, but it will also operate up through audio rates for destructive downsampling FX for audio. When triggered at audio rates RND STEP outputs downsampled and clocked noise tones from the internal pink
noise generators. These can then be used for modulation, percussion or sound FX.
Trigger input 1 will normalise across all 3 channels, meaning a single trigger can give 6 unique random voltages, of which 3 are bipolar and 3 are unipolar. The combination of both ensures you have the right voltages in the correct ranges for the sources you wish to modulate.
- 6 high performance analogue sample and hold circuits split across 3 channels- a mixture of both unipolar and bipolar outputs
- Highly accurate sampling of external audio and CV sources
- High hold times and low droop rate for holding sampled voltages
- Trigger input normalisation from channel 1
- Only 4HP wide
Manufacturer: Steady State Fate
Warranty: See manufacturer website for details
