Strymon DIG Dual Digital Delay Pedal

by Strymon
Original price $299.00 - Original price $299.00
Original price $299.00
$299.00
$299.00 - $299.00
Current price $299.00
♫ In stock
About Inventory Status


Questions?
Call or text us at 301-946-8808.

In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.

📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.

Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.

Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.

█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.

About Item Conditions


Questions?
Call or text us at 301-946-8808.

New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.

Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.

Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.

Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.

Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.

B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.

Educational & Government Sales Quotes

Click here to inquire about an educational or government quote and discover more about our Educational & Government Sales Division.


Get An Illustrious Delay Pedal with the Strymon DIG Dual Digital Delay Pedal

DIG unearths the true soul of digital delay and doubles it - two simultaneous, integrated delays with the captivating rack delay voicings from the 1980s and today, for incredible expressive potential.

Effortlessly create your own world of intricate and synchronized echoes, along with hypnotic and atmospheric repeats that blur the line between delay and reverb. Stretch your sonic horizons with five musically satisfying rhythmic subdivisions and three dual delay routing options. Go from syncopated, pulsating delay patterns, to evocative, spaced-out echo trails all in a compact, pedalboard-friendly format.

Rack to the Future

Rack-mount digital delays of the '80s ushered in a new era of audio effects. The innovative electronic designs generated the cleanest delays yet to be heard but also created their own special and intriguing sonic characteristics. Thirty-plus years later, these sounds remain as distinctive and inspiring as ever.

Our thorough investigation of digital delay technology reveals the unique personalities that these delays possess. Delve into DIG’s three digital delay voicings: the early ’80s adaptive delta modulation mode, the mid-'80s 12-bit pulse code modulation mode, and the modern high-resolution 24/96 mode.

Multiply these distinct voicings by two and get DIG - your perfect dual delay ally.

Two Simultaneous, Integrated Delays

DELAY 1 The Master Delay

Free-running delay time allows you to easily dial in delays from 20ms to 1.6s with the Time knob or Tap Tempo switch. Longer delay times lend themselves to more ambient soundscapes while doubling and slapback effects can be achieved at short delay times.

DELAY 2 The Companion Delay

Set the ratio between the two delays with one of five rhythmic subdivisions: triplet, eighth note, dotted eighth note, dotted quarter note, and the golden ratio. Don't want synchronization? Engage Free Mode to disable subdivisions and allow Delay 2 to be its own independent, free-running delay. Dial-in short delay times for chorus/flange sounds to run alongside Delay 1.

Series, Parallel, Ping Pong

Set up your two delays in one of three configurations. Series is like setting up pedals in a chain on your board, feeding Delay 2 into Delay 1. Parallel will orient your delay lines so that they remain independent - Delay 1 in the left channel and Delay 2 in the right channel. With Ping Pong, each delay acts as a ping pong delay, interacting together when both Mix knobs are turned up.

Free Mode

Don’t want your delays to be synchronized? Free Mode disables time sync and subdivisions between Delay 1 and Delay 2, giving the Time 2 knob a full delay range from 20ms to 1.6s

Circular Repeats

Holding down the TAP footswitch enables circular repeats, where both delay lines maintain a static volume and repeat continuously until the TAP footswitch is disengaged. At this point, all previous settings will be restored.

Expression Pedal

Input allows for the connection of either an expression pedal, external tap, or Favorite switch. Plug in an expression pedal and control any one knob with your foot. Plug in an external tap pedal to remotely tap in your tempos. Plug in a Favorite switch to save and recall a favorite preset.

TRS Stereo Input

We know that there are some out there that like to run stereo rigs. This is why we’ve added the option of running the input of your DIG in stereo. Flip a jumper inside your pedal, use a TRS splitter cable, and now you’ve got yourself a stereo input.


SPECIFICATIONS

Sound Design

  • Two simultaneous, integrated delays, with unique digital rack delay voicings

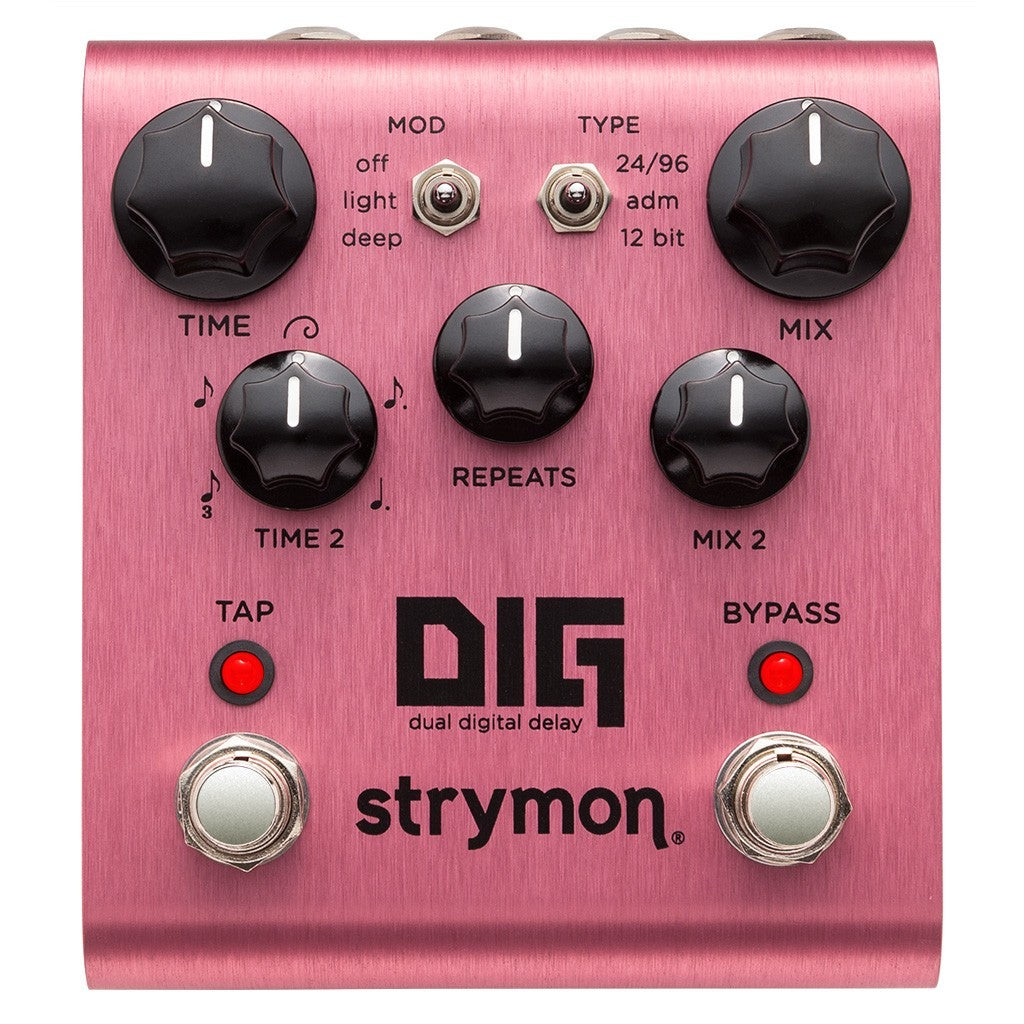

  • Five dual delay adjustment and tone shaping knobs: Time, Time 2, Mix, Mix 2, Repeats
  • One modern and two classic digital delay voicings: 24/96, adm, 12 bit
  • Five rhythmic subdivisions: Triplet, Eighth, Golden Ratio, Dotted Eighth, Dotted Quarter
  • Three choices for delay line modulation: Off, Light, Deep
  • Five "hidden" knobs for deep dual delay control: Delay 1 Subdivision, Sync/Free Mode, Filter, Config, Delay 2 Repeats
  • Selectable Free Mode disables subdivisions and synchronization
  • Press and hold Circular Repeats effect
  • 20ms - 1.6s delay range (40ms - 3.2s with Half Note Delay 1 Subdivision)

Ins, Outs, Switches

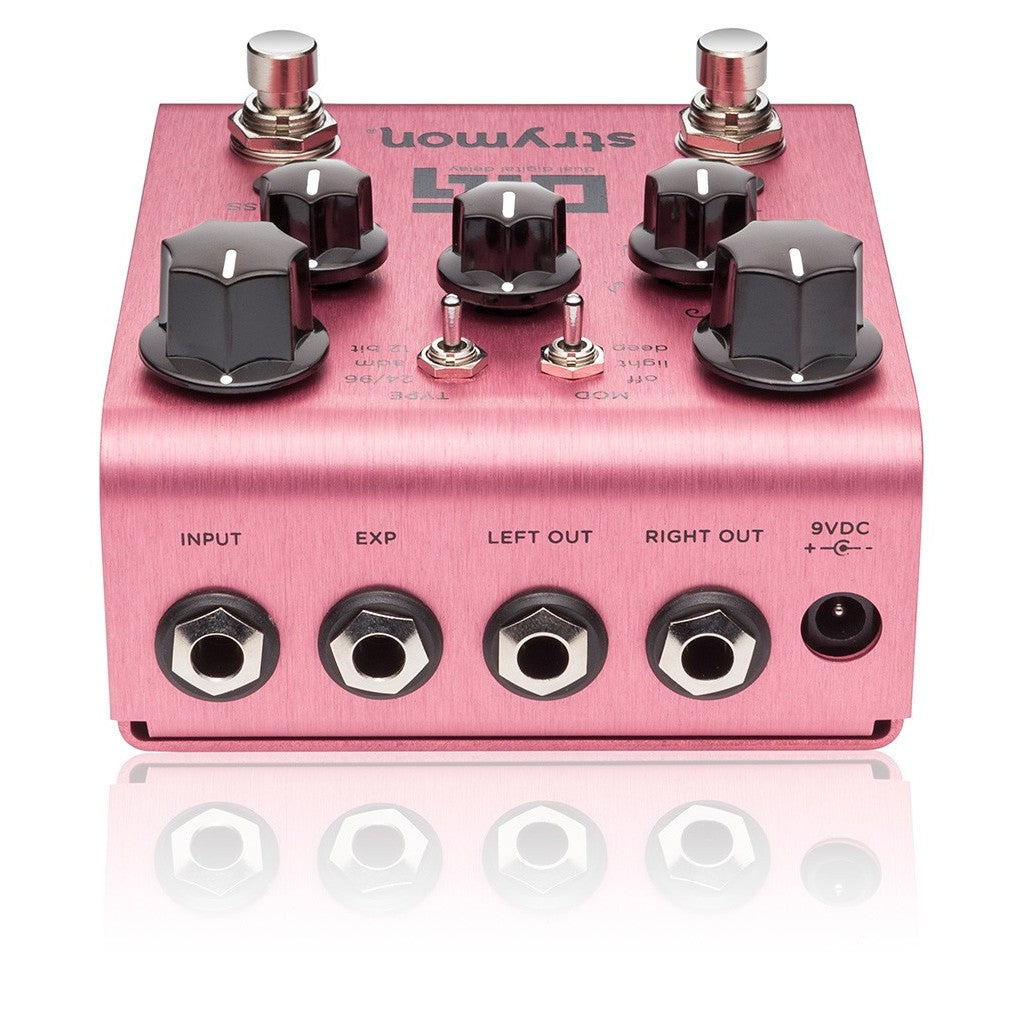

  • High impedance mono input, with selectable TRS stereo input
  • Stereo output
  • Three signal routing configurations: Series, Parallel, Ping Pong
  • Tap tempo and Bypass footswitches
  • Expression pedal input allows the connection of either an expression pedal (for selectable control over any knob parameter), external tap pedal (for remote control of tempo), or Favorite switch (to save a Favorite preset)

Audio Quality

  • Super low noise, high performance 24-bit 96kHz A/D and D/A converters
  • 115db typical signal to noise
  • Analog dry path for a zero latency dry signal that is never converted to digital
  • +8dBu maximum input level easily handles instrument and line signals
  • 20Hz to 20kHz frequency response
  • Premium analog front end and output section
  • Super high-performance SHARC DSP in a compact form factor
  • 32-bit floating-point processing

More

  • True Bypass (electromechanical relay switching)
  • Selectable Trails Mode with high quality, transparent Analog Buffered Bypass mode
  • 9V center negative DC power supply included - 250mA current draw
  • Strong and lightweight anodized carnation pink chassis
  • Designed and built in the USA

Manufacturer: Strymon
Model: Z12A-5DIG
SKU: I607437-N-3-WHXA
UPC: 852636007256
