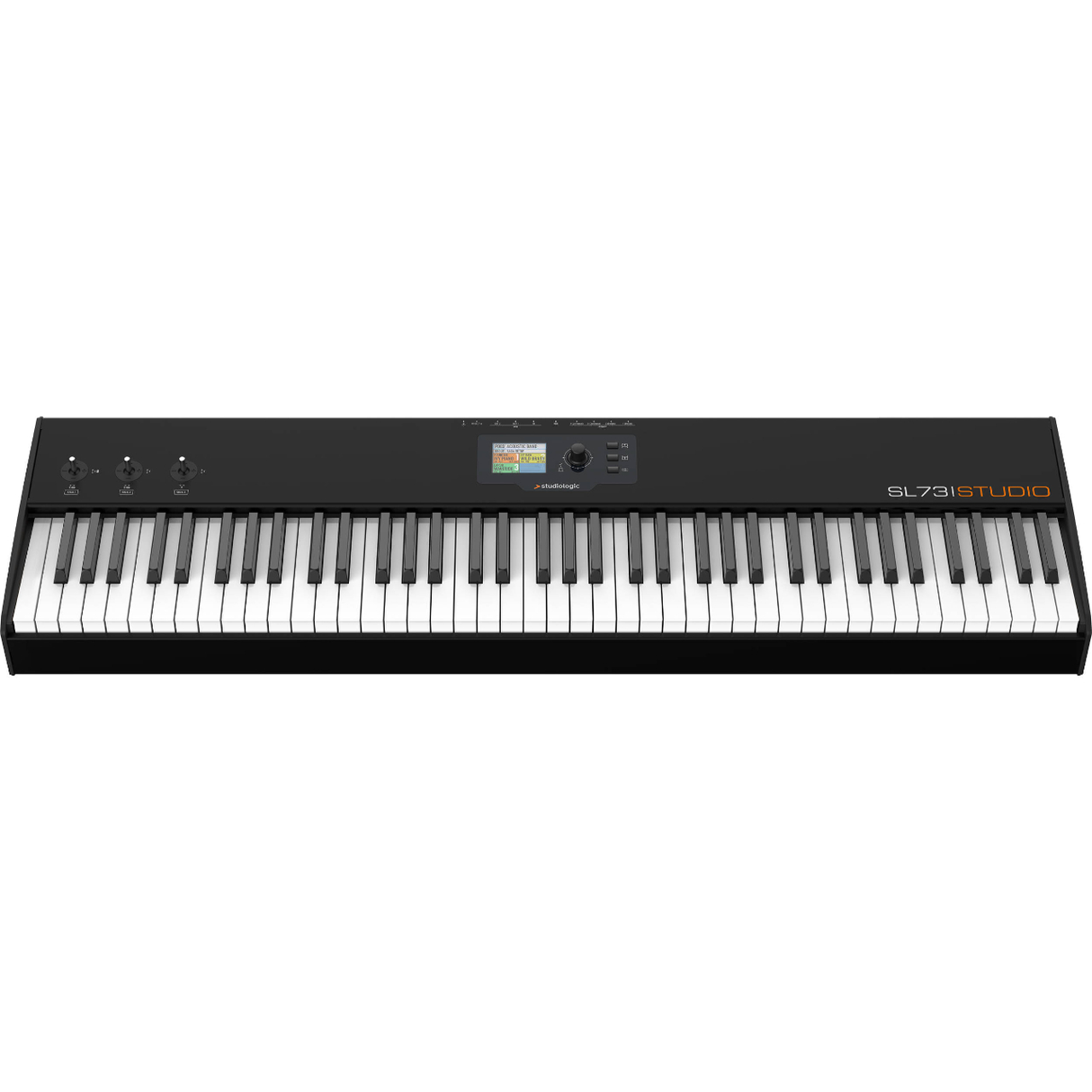

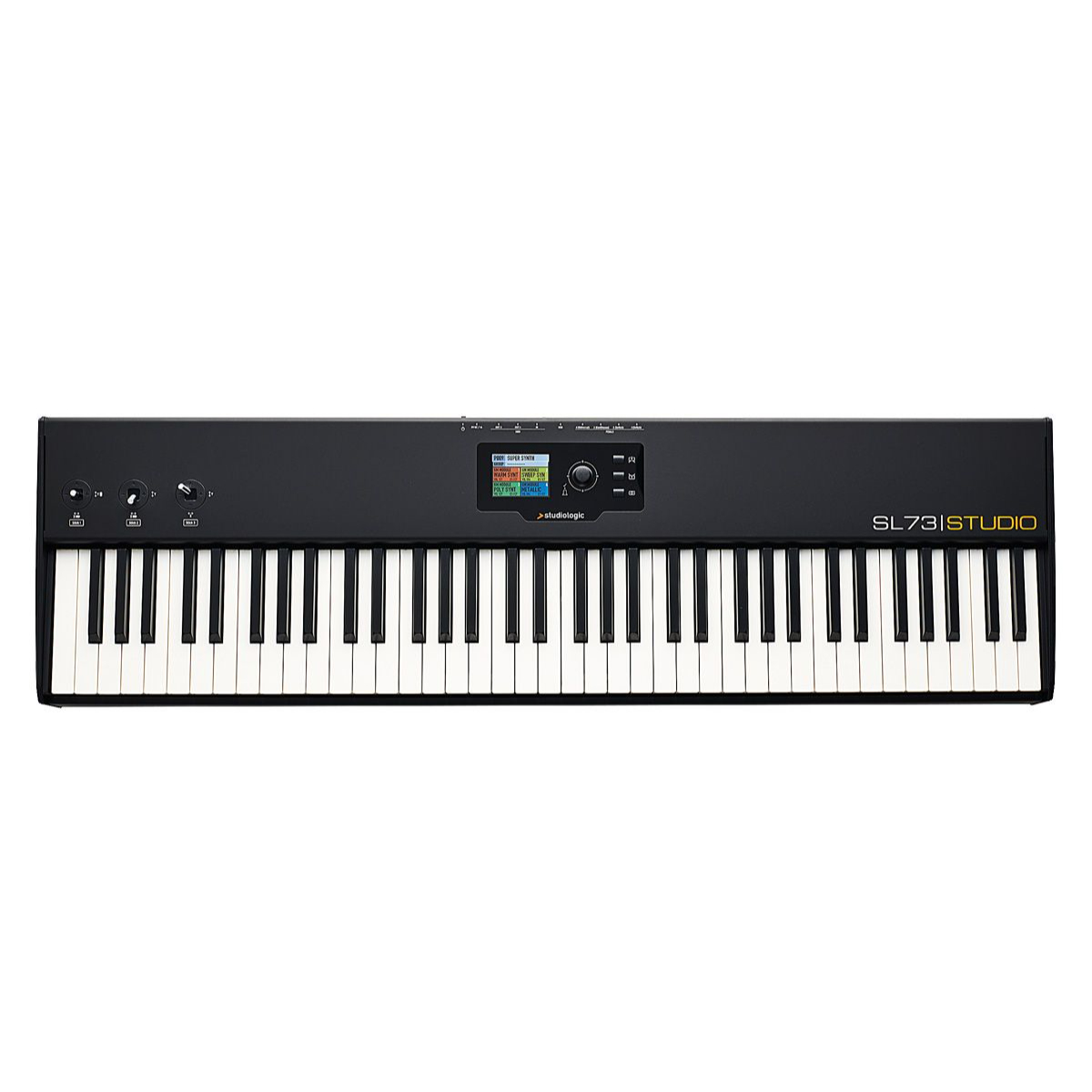

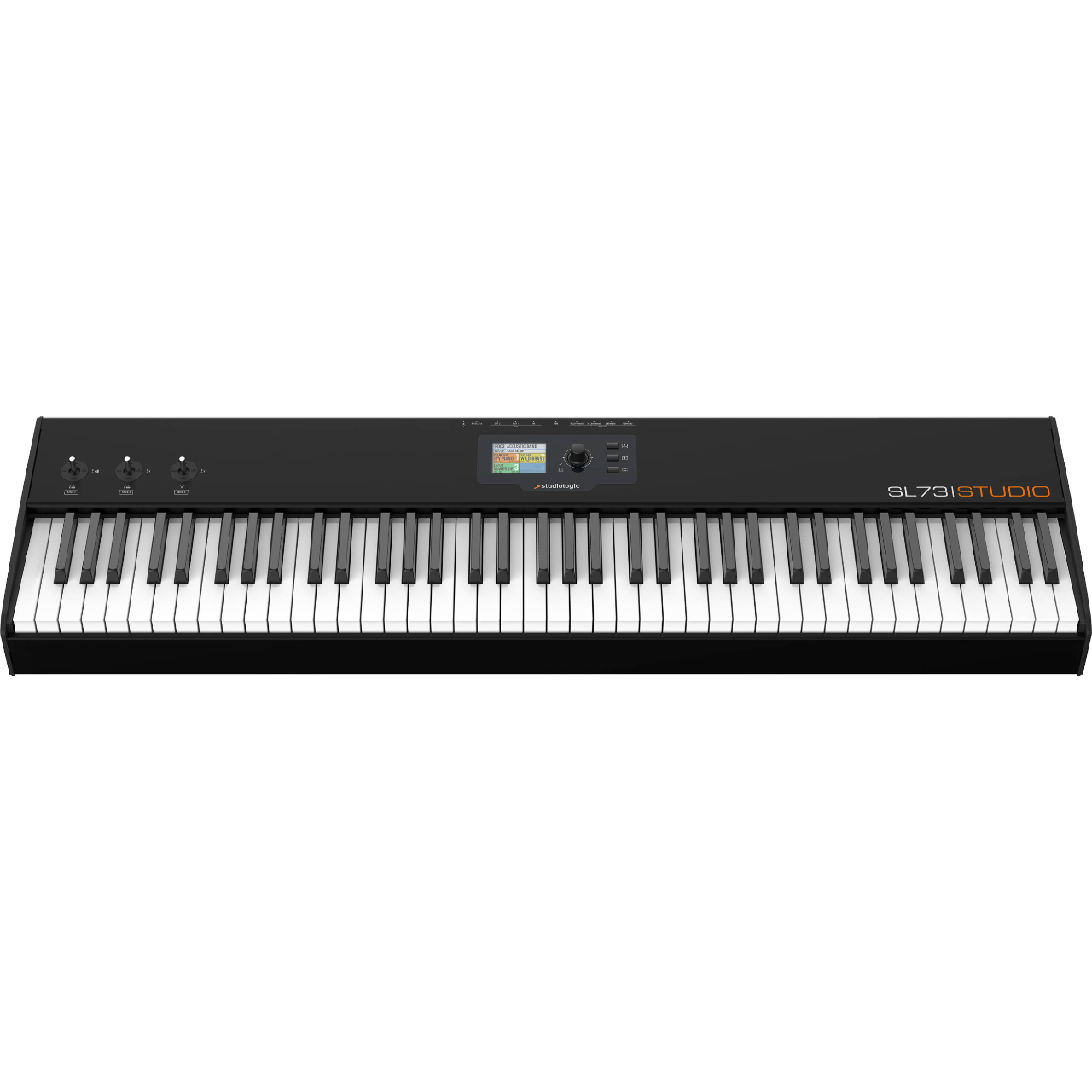

StudioLogic SL 73 Studio Keyboard Controller - 73 Note

The StudioLogic SL73 Studio is Nothing Less than the Reinvention of the High-End Keyboard Controller

More than 30 years' experience in exclusive keybeds meets an all-new, powerful, operating system. Perfect for you to control your hardware and virtual instruments. All provided in a powerful new refreshing way. StudioLogic worked together with musicians to create a user interface which is perfect for quick navigation and setup, but also gives you excellent in-depth control. The SL is ready to be at the very heart of your system.

The SL73 Studio adopts the latest hammer action keybed technology from FATAR giving the best piano touch feeling. TP/100LR is remarkably lighter than any other. Each of the keys provides 3 contacts for superior performance. With the respect of the full weighted touch of the real piano action, the new design guarantees a very fluent and authentic feel. The results of this combination are simply amazing.

With its compact profile, the SL is an extremely portable professional controller. Thanks to a perfect integration with the keyboard, it weighs less than 12 Kg. The SL is studio and stage ready with a rugged full metal casing. Sculptured endcaps made of a highly resistant synthetic material help to shield the premium keybed perfectly and provide a safe grip when handling and transporting.

Total Access and Real-Time Control

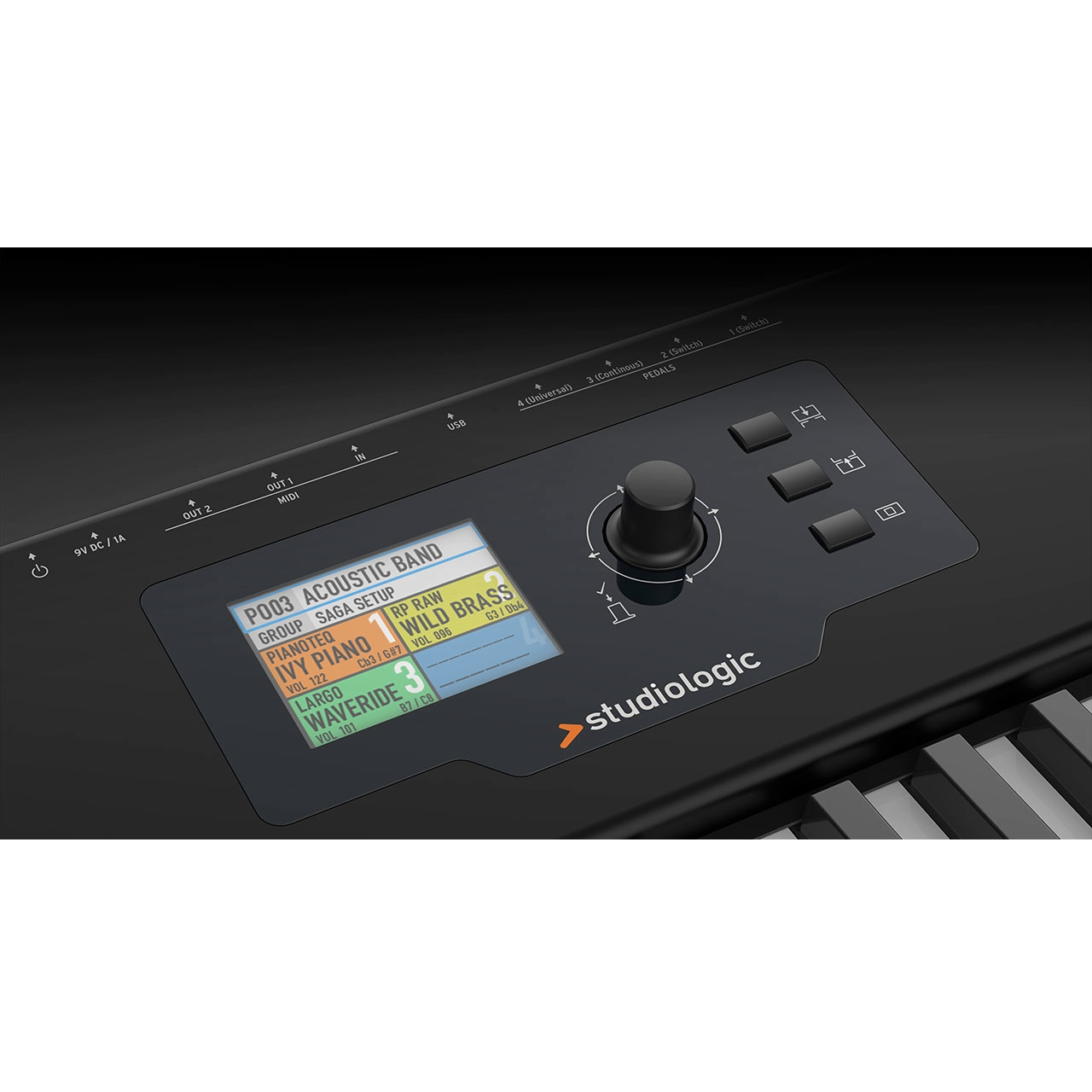

Located in the center of the instrument is a razor-sharp TFT color display. In combination with the high quality six-way controller knob, you can navigate through all SL functions fast and with ease. Functions such as switching through the four zones are achieved by moving the controller, and then by clicking and turning the same knob again, you can select and adjust the desired parameter. Simple, intuitive and fast! Additionally, the three pushbuttons to the right of the control knob bring you back to the top-level from any location in the system with just one push.

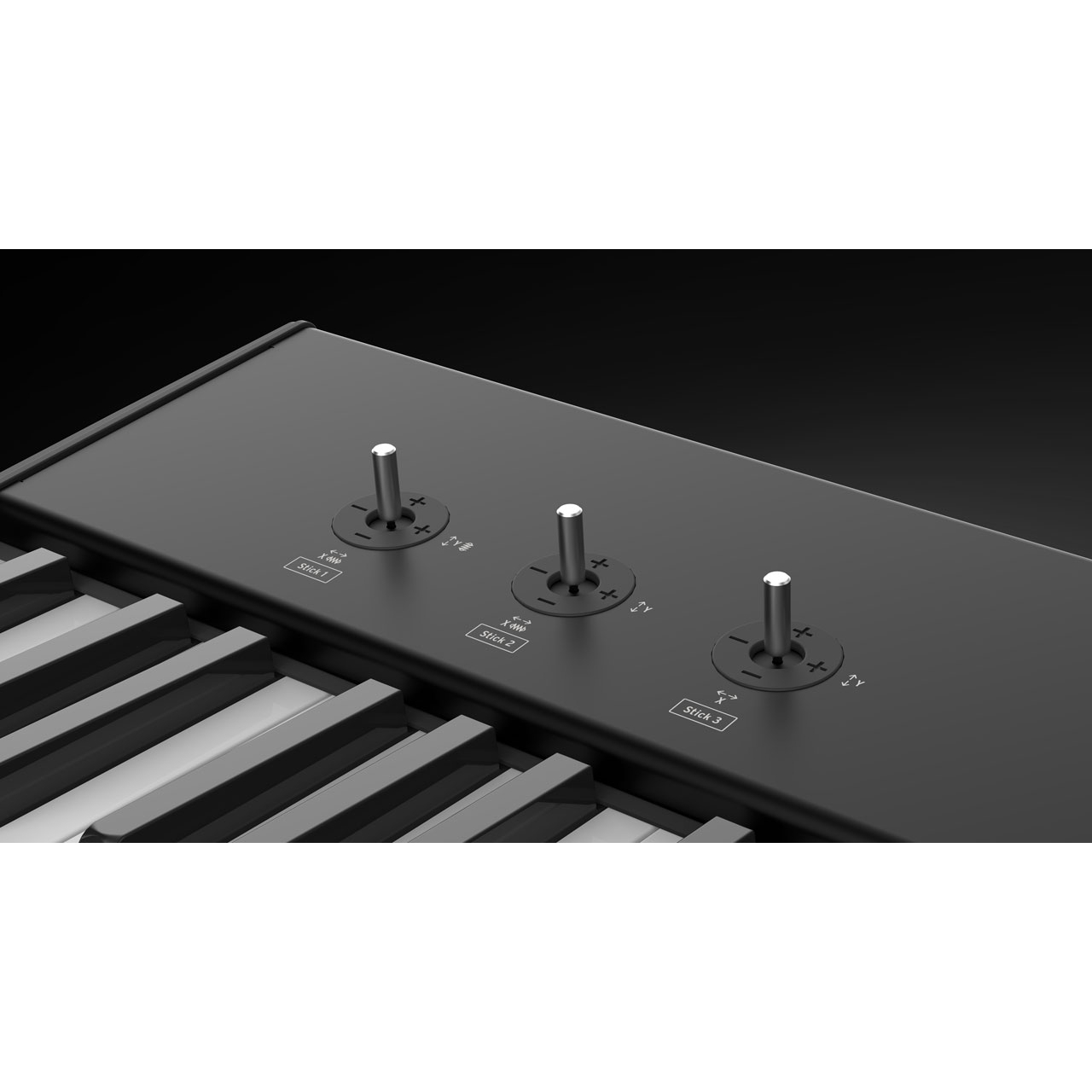

The SL offers three X/Y stick controllers, not just for performance but also for direct control and manipulation of any desired sound parameter. Stick one is spring-loaded for both X/Y directions. The typical use for this stick is pitch and modulation control. Stick 2 is spring-loaded in X direction only. Stick 3 is free in X and Y directions, ideal for panning, cross fading and parameter control. All sticks feature an elegant, aluminum control shaft which feels perfectly balanced and expressive between your fingertips.

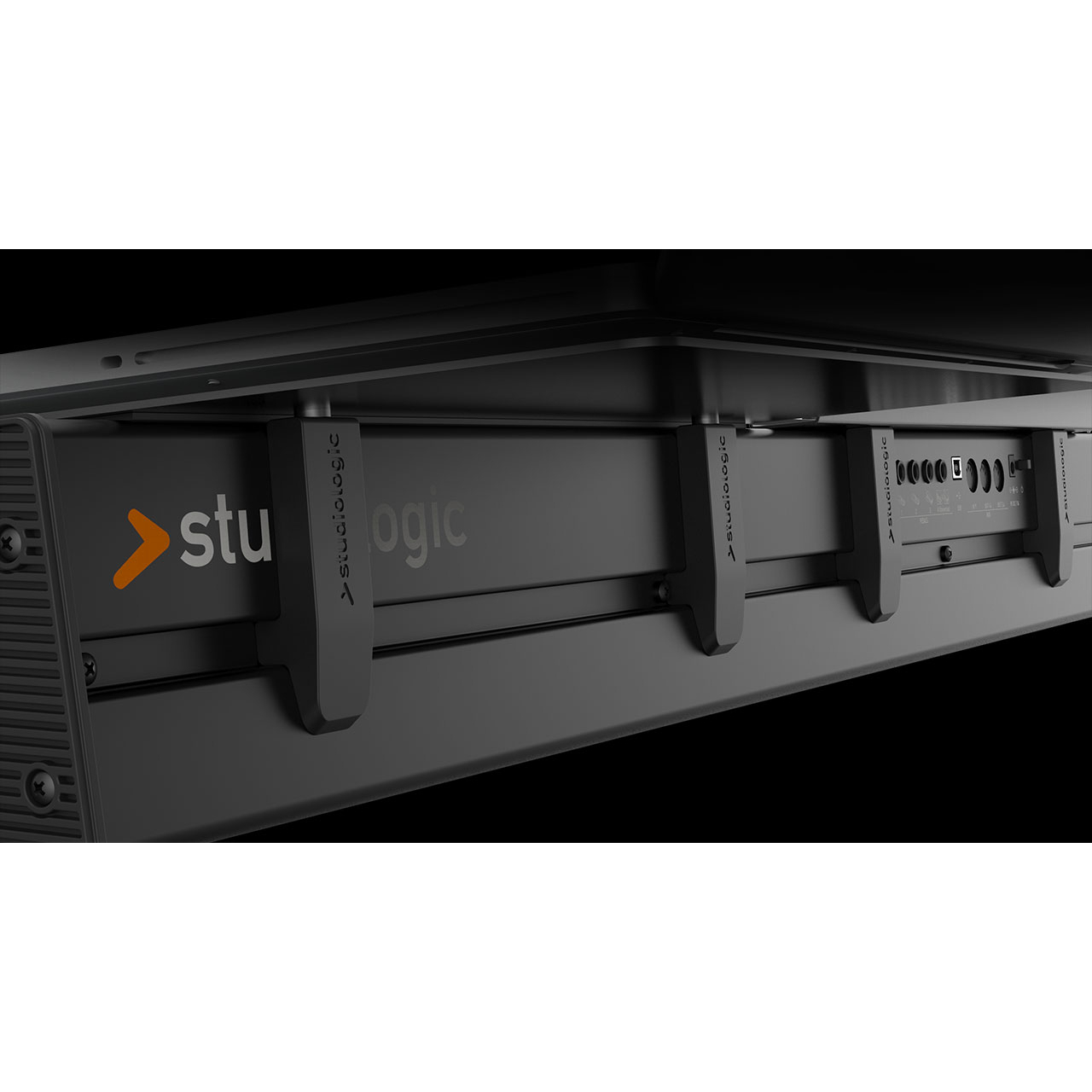

With the innovative Magnetic Rail System at the rear of the SL, you can easily adapt a note stand or an extension plate to hold your written notes, music, laptop or tablet. It works as brilliantly easy as it looks. Just click the brackets into the backrail to match the position you need for your accessory items.

Setup, Backup, Perform

The powerful new software editor helps you to easily setup your virtual keyboard rig. Mirroring the basic functional scheme of the SL operating system, its clear and ergonomic user interface makes creating and editing Splits and Layers a quick and easy job.

• 250 Programs
• 12 Programs Groups
• 4 Programmable Zones
• 2 MIDI Ports separately assignable

SPECIFICATIONS

Keyboard

• 73 Keys, TP/100LR Premium Hammer Action
• Triple switch detection system
• Aftertouch
• Touch
• Soft, Medium, Hard, Fixed (programmable)
• 6 Editable user velocity curves (with SL Editor)

Controls/UI

• 3 Programmable sticks
• Rotating encoder with navigation controls
• 3 Function buttons
• Display
• Color graphic LCD - TFT
• 320 x 240

Connections

• Pedals: 2 switch, 1 continuous, 1 universal
• MIDI: In, Out1, Out2
• USB: USB to Host, MIDI, USB Powered

Power Supply

• DC IN: 9V
• Adapter
• Input: 100-240V
• Output: 9V-1A

Size and Weight

• Dimensions (W x D x H): 104 x 31 x 12.5 cm (41 x 12.2 x 4.9")
• Weight: 11.5 Kg/25.3 lbs

Package Contents

• SL73 Studio
• Studiologic PS100 switch pedal
• Power adapter
