Symetrix Prism 8x8 DSP


  • Our Price
  • Regular price $2,653.50

OUT OF STOCK - CALL FOR AVAILABILITY
• Inventory changes daily
Contact us for availability | tel: 301-946-8808
• Please allow for additional delivery time due to COVID 19





Enjoy High Quality, Professional Audio Performance With The Symetrix Prism 8x8 DSP

The Prism family is included in the Symetrix line of Dante™ enabled DSPs. Symetrix uses Dante, a multi-channel digital media networking technology, to interconnect multiple Symetrix DSPs, Symetrix I/O expanders, and select third-party Dante enabled devices. Prism is ideally suited for applications requiring powerful, extremely cost effective advanced signal processing coupled with a standardized means for future expansion.

Dante in The DNA.  Prism DSPs are equipped with 128 (64×64) Dante channels. The Dante protocol enables ultra-reliable multi-channel audio networking over IP. Together, Symetrix and Dante provide the fastest possible way to implement, control, and maintain a system of networked DSPs and accessories – including third party Dante-enabled microphones, loudspeakers, power amps, and mixing consoles.

Scaling Up.  A Prism system’s analog input and output count may be increased using Symetrix Dante-enabled xIn 4, xIO 4×4, xOut 4, xIn 12, and xOut 12 analog I/O expanders.

Unlimited Programming Flexibility.  Prism is programmed using Composer – Symetrix’ award winning open-architecture CAD application. Unique to Composer is the ability to natively configure Symetrix and select third party Dante hardware – thereby eliminating the confusion of multiple or redundant software applications. Learn more about Composer here.

Control Made Easy.  Multiple control options include low-cost Symetrix ARC wall panels and an easy to generate SymVue Windows virtual GUI. The human readable Composer Control Protocol supports programming of third-party touch screens and control devices.

An Embedded Web Server for Status and Even More Control.  Prism’s embedded web server displays I/O levels, diagnostics data, and hosts ARC-WEB – a browser-based interface for smart phones, tablets, and computers.

Form, Fit and Function.  Prism 8×8, 12×12 and 16×16 have been designed using standard 19” x 1U enclosures. For convenient point-of-use or rack mounting, Prism 0x0 and 4×4 feature 1/2 rack 1U form factors. (Surface and rack mount kits sold separately.)



  • 8 analog in and out, 64x64 Dante and powerful Symetrix DSP reduce overall system costs.
  • Ultra low latency Dante network audio protocol uses standard IT infrastructure.
  • Industry leading analog and A/D/D/A performance, 48 volt phantom mic power.
  • Configured using award winning Composer software. Controlled from ARC wall panels, ARC-WEB and third-party touchscreens. Embedded webserver enables remote metering and diagnostics.

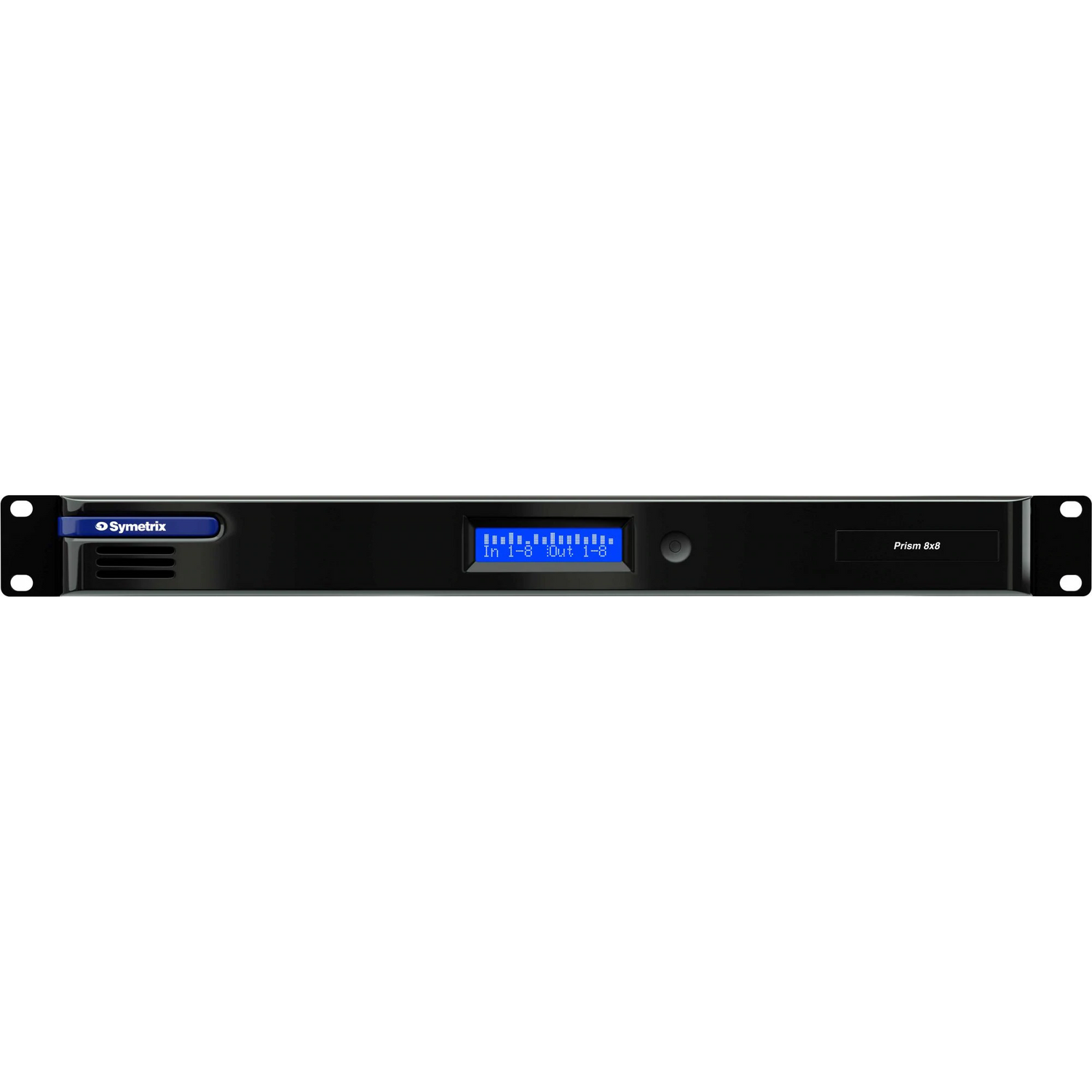

  • Front panel LCD provides configuration information, system status, and analog audio levels.


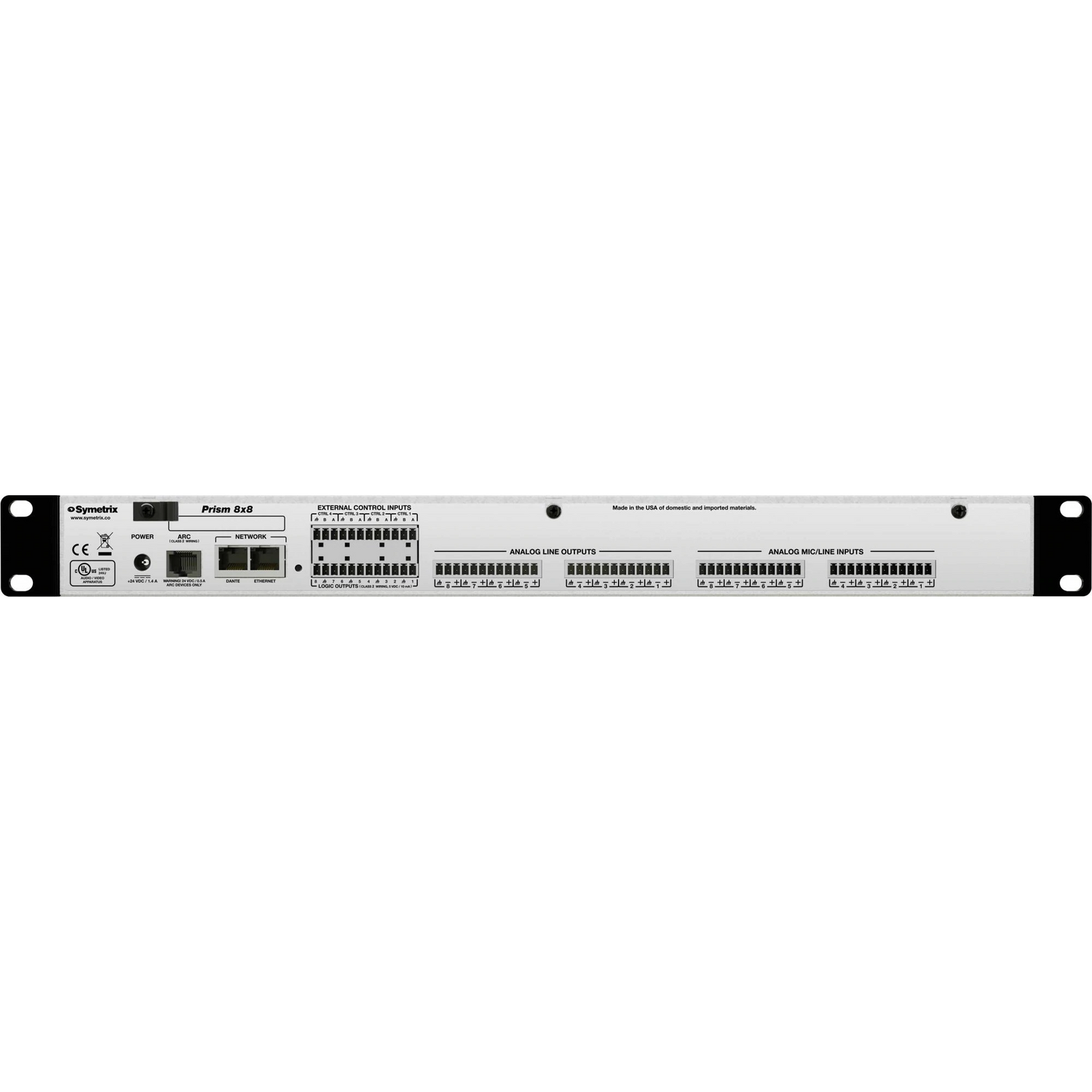

Analog Inputs

  • Number of Inputs: Eight (8) switchable balanced mic or line level.
  • Connectors: 3.81 mm terminal blocks.
  • Nominal Input Level: +4 dBu.
  • Maximum Input Level: +23 dBu.
  • Mic Pre-amp gain: 0, 12, 24, 44 or 54 dB switchable with ± 24 dB trim.
  • Mic Pre-amp EIN: < -125dB with 150 ohm source impedance. 22.4 kHz BW.
  • CMRR: > 79 dB @ 1 kHz, unity gain.
  • Input impedance: 8k Ohms balanced, 4k Ohms unbalanced.
  • Phantom power (per input): +48 VDC, 10 mA maximum.
  • Dynamic range: > 113 dB, A-weighted.
  • THD+Noise: < -100 dB; 22.4 kHz BW, unweighted; 1 kHz @ +15 dBu with 0 dB gain. Course gain is set to +4dBu.
  • A to D Latency: 0.28 mS.

Analog Outputs

  • Number of Outputs: Eight (8) balanced line level.
  • Connectors: 3.81 mm terminal blocks.
  • Nominal Output: Level +4 dBu with 20 dB of headroom.
  • Maximum Output: Level +24 dBu (+22.8 dBu into a 2k Ohm minimum load).
  • Output Impedance: 300 Ohms balanced, 150 Ohms unbalanced.
  • Dynamic Range: > 117 dB, A-weighted.
  • THD+Noise: < -97 dB; 22.4 kHz BW, unweighted; 1 kHz, 0 dB gain +8dBu output.
  • D to A Latency: 0.60 mS.

System

  • Sampling Rate: 48 kHz.
  • Frequency Response (A/D/A): 20 Hz – 20 kHz, ± 0.5 dB.
  • Dynamic Range (A/D/A): > 113 dB, A-weighted.
  • Channel Separation (A/D/A): > 110 dB @ 1 kHz, +24 dBu.
  • THD+Noise: < 95 dB (22.4 kHz BW, un-weighted); 1 kHz @ +15 dBu with 0 dB gain.
  • Latency (A/D/A): 1.04 mS, inputs routed to outputs.
  • Processors: 1 x Analog Devices SHARC 21489 @ 400 MHz SIMD.
  • Raw Processing Capacity: 400 MIPS, 1.6 GFLOPS.
  • Delay Memory: 174 mono seconds.
  • Analog control inputs: 0-3.3 VDC.
  • Recommended External Control Potentiometer: 10k Ohm, linear.
  • Logic Outputs: Low (0V) when active, pulled high (5V) when inactive.
  • Logic Output Maximum External Power Supply Voltage: 24 VDC.
  • Logic Output Maximum External Power Supply Current Sinking: 50 mA.
  • Logic Output Maximum Output Current: 10 mA.
  • RS-485 Serial I/O: 38.4 kbaud (default) 8 data bits, 1 stop bit, no parity, no flow control. May be broken out of ARC port.
  • Ethernet Cable: Standard CAT5e or CAT6, maximum device-to-device length = 100 meters.
  • Dante Cable: Standard CAT6, maximum device-to-device length = 100 meters.
  • ARC Cable: Standard CAT5, distance dependent upon load and number of devices. 8 Watts maximum power available.
  • Maximum Devices: Per System 80 units per Site File.
  • Maximum Stored: Presets 1000.

Mechanical Specifications

  • Space Required: 1U (WDH: 18.91 in. x 9.88 in. x 1.72 in. / 48.02 cm x 25.1 cm x 4.37 cm). Depth does not include connector allowance.
  • Electrical: 24V 1.4A, 34W Maximum.
  • Ventilation: Maximum recommended ambient operating temperature is 30 C / 86 F



Manufacturer: Symetrix
Model: 80-0115
Warranty: See manufacturer website for details
SKU: I441940-N-0-B
