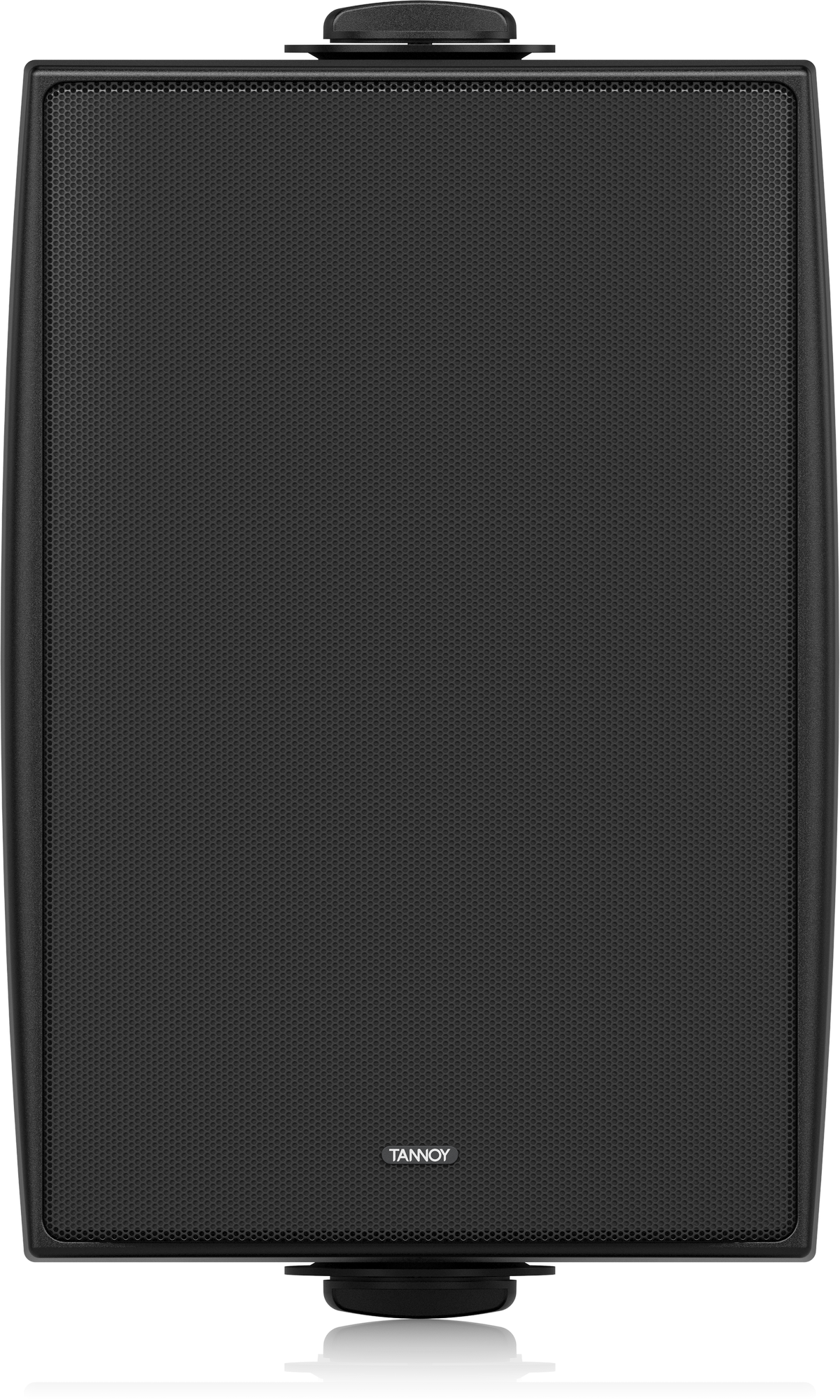

Tannoy DVS6 6" Coaxial Surface-Mount Loudspeaker - Black

Get Superb Point-Source Performance With The Tannoy DVS 6 6" Coaxial Surface-Mount Loudspeaker In Black

Designed to excel in a wide variety of sound reinforcement applications, the full range DVS 6 is an ultra-compact 240-Watt surface mount loudspeaker that provides both exceptional value and inspiring acoustic performance. The DVS 6 is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship.

SPECIFICATIONS

Performance

• Frequency response (-3 dB): 80 Hz - 20 kHz
• Frequency response (-10 dB): 65 Hz - 30 kHz
• System sensitivity (1 W @ 1 m): 88 dB
• Dispersion (-6 dB): 90 degrees conical
• Transducers: Coaxial
• Low frequency: 165 mm (6.5") mineral loaded cone material
• High frequency: 20 mm (0.79)
• Crossover: 4.3 kHz - 2nd order LF, 2nd order HF
• Directivity (Q): 10.6 averaged 1 kHz to 10 kHz
• Directivity (DI): 9.6 averaged 1 kHz to 10 kHz
• Rated maximum SPL: 105 dB (average), 111 dB (peak)

Non Transformer Version

• Maximum wire gauge for connector: 2.5 mm CSA (AWG12)
• Safety Agency Ratings: UL-1480, CE

Power Handling

• Average: 60 W
• Programme: 120 W
• Peak: 240 W
• Recommended amplifier power: 120 W @ 6 Ohms
• Nominal impedance:6 Ohms

Construction

• Enclosure: ABS
• Grille: Aluminium, painted
• Connectors: Euroblock type removable locking connector with screw terminals with “loop through” facility
• Supplied Accessories: Yoke bracket
• Packed quantity: 2
• Dimensions: 340.5 x 212.2 x 216.5 mm(13.41 x 8.36 x 8.52")
