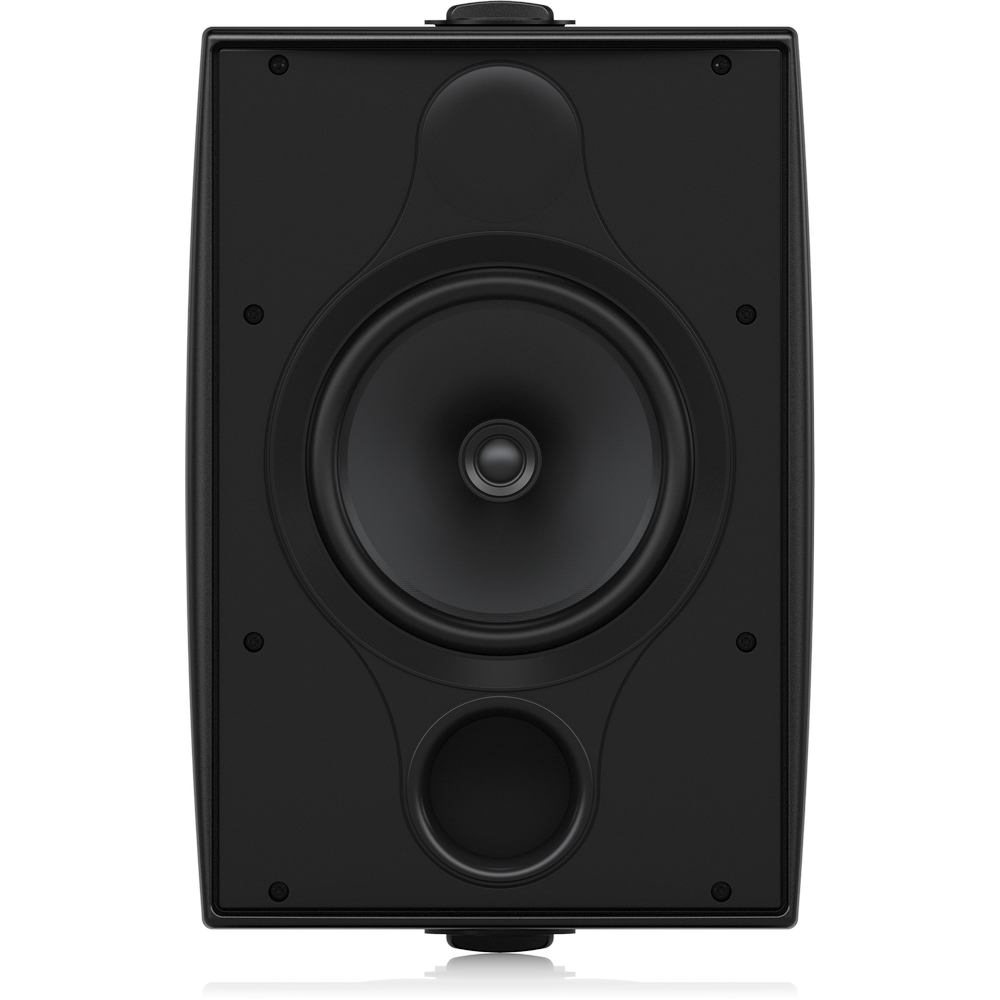

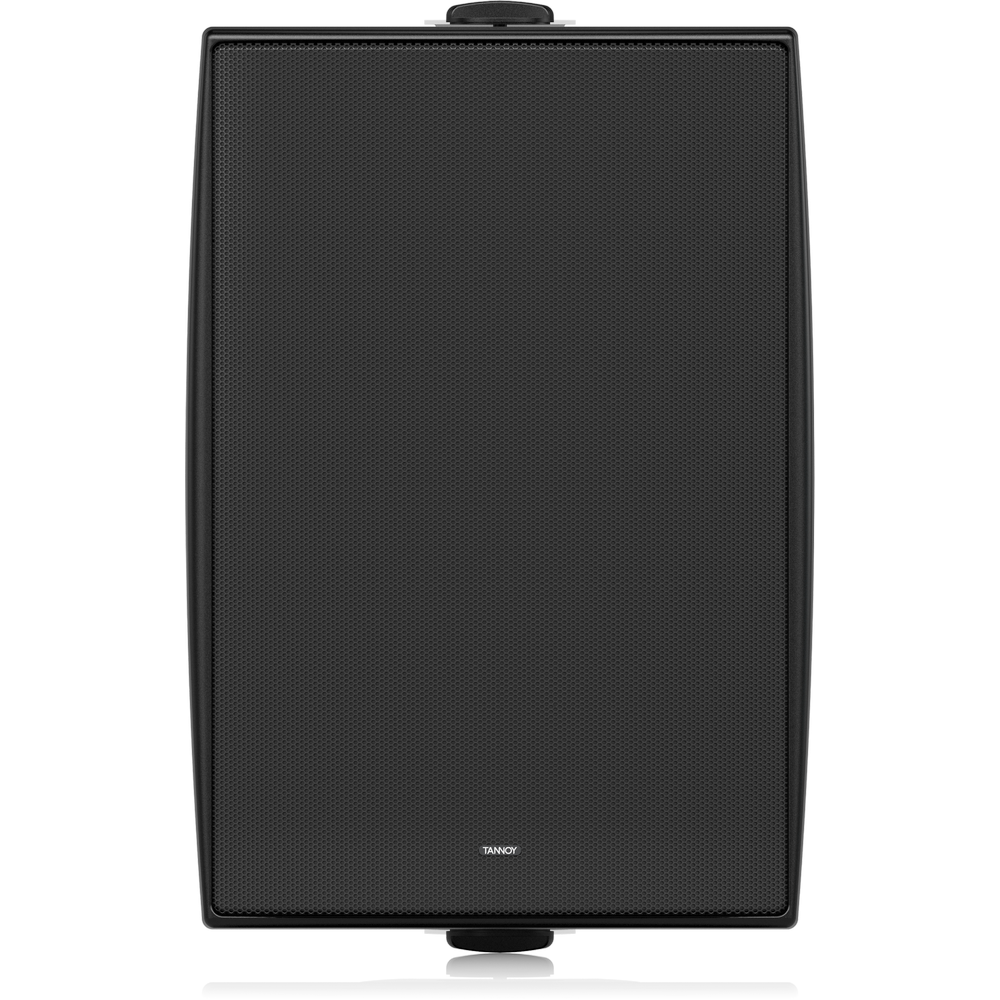

Tannoy DVS8 8" Coaxial Surface-Mount Loudspeaker - Black

Get Superb Point-Source Performance With The Tannoy DVS 8 8" Coaxial Surface-Mount Loudspeaker In Black

Designed to excel in a wide variety of sound reinforcement applications, the full range DVS 8 is an ultra-compact 280-Watt surface mount loudspeaker that provides both exceptional value and inspiring acoustic performance. The DVS 8 is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship.

SPECIFICATIONS

Performance

• Frequency response (-3 dB): 75 Hz - 20 kHz
• Frequency response (-10 dB): 60 Hz - 30 kHz
• System sensitivity (1 W @ 1 m): 90 dB
• Dispersion (-6 dB): 80 degrees conical
• Transducers: Coaxial
• Low frequency: 200 mm (8.00") mineral loaded cone material
• High frequency: 20 mm (0.79)
• Crossover: 3.4 kHz - 2nd order LF, 2nd order HF
• Directivity (Q): 12.3 averaged 1 kHz to 10 kHz
• Directivity (DI): 10.0 averaged 1 kHz to 10 kHz
• Rated maximum SPL: 108 dB (average), 114 dB (peak)

Non Transformer Version

• Maximum wire gauge for connector: 2.5 mm CSA (AWG12)
• Safety Agency Ratings: UL-1480, CE

Power Handling

• Average: 70 W
• Programme: 140 W
• Peak: 280 W
• Recommended amplifier power: 140 W @ 6 Ohms
• Nominal impedance:6 Ohms

Construction

• Enclosure: ABS
• Grille: Aluminium, painted
• Connectors: Euroblock type removable locking connector with screw terminals with “loop through” facility
• Supplied Accessories: Yoke bracket
• Packed quantity: 2
• Dimensions: 451.8 x 290.0 x 296.0 mm(17.79 x 11.42 x 11.65")
