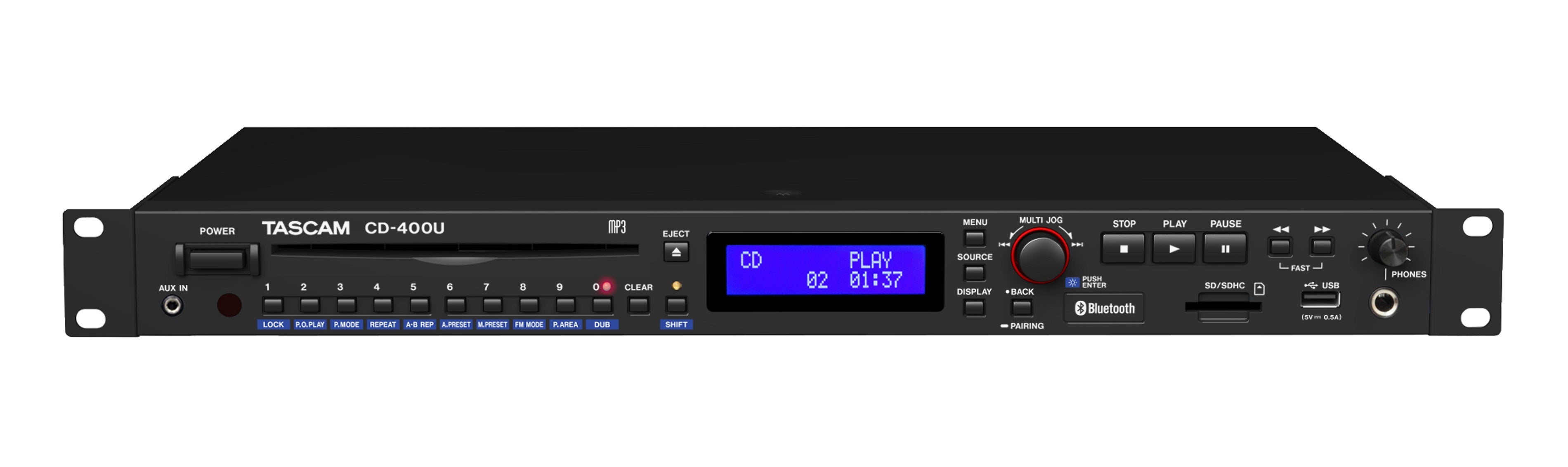

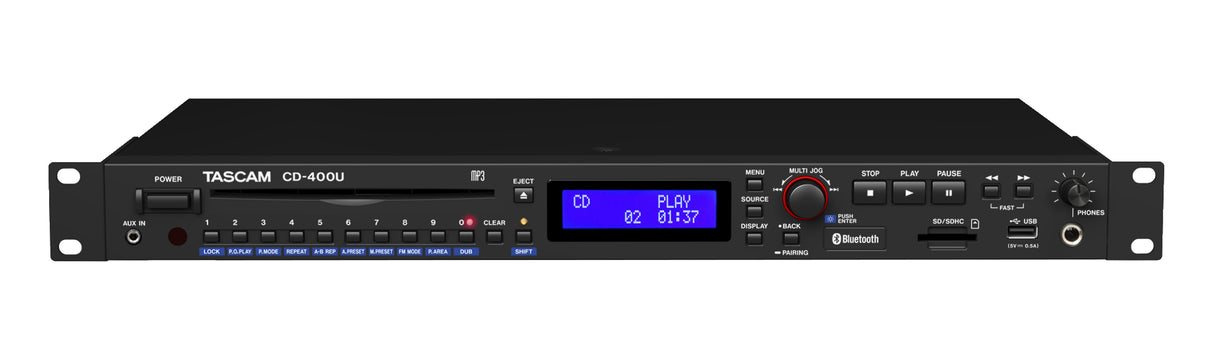

Tascam CD-400U CD Player / Media Player / AM/FM Receiver


  • Our Price
  • $469.99
  • Regular price MSRP: $599.99



Deliver High Quality Sound In A Variety Of Formats With The Tascam CD-400U CD Player / Media Player / AM/FM Receiver

The TASCAM CD-400U: a professional, versatile, and reliable media player offering the latest audio content playback options for institutions, music venues, retail, schools, restaurant applications, and more.

Ideal for a variety of installations, the CD-400U delivers the latest wireless and solid state technology content playback by offering CD, Bluetooth wireless, SD, USB, and AM/FM tuner capability for fast and easy playback of professional quality audio.  Recording from the CD or AM/FM source to SD or USB media is possible.

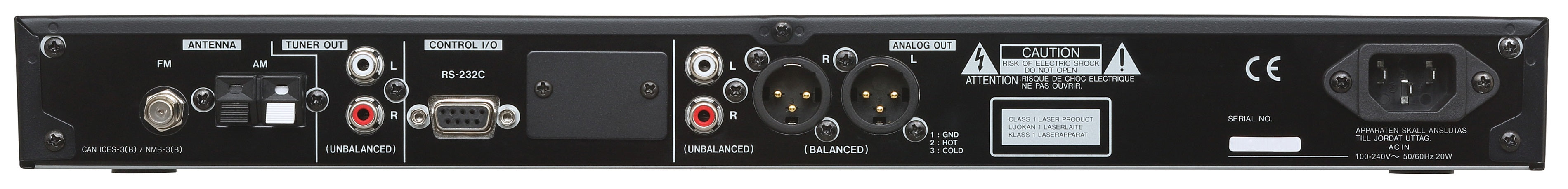

Professional audio connections are provided in the form of XLR balanced outputs, RCA unbalanced outputs, a 2nd set of RCA outputs dedicated to the AM/FM audio, an 1/8” auxiliary input for utilizing audio from any source, and headphones for quick and silent monitoring and confirmation of operation.

The CD-400U has also been designed for full-proof and automatic operation wth the inclusion of a  “panel lock” function which disables the panel buttons, and an automatic playback function which starts playback upon power up.

Lastly, to ensure seamless integration into more comple systems, external control is possible using the standard RS - 232C terminal.


  • CD/SD/USB/and FM/AM tuner realtime audio playback
  • Wireless Bluetooth playback when paired with a Bluetooth-enabled device like a smartphone, tablet, or computer
  • Outputs: XLR, RCA X 2, and headphone
  • 1/8" audio input for playback from any external source
  • "Power on Play" function starts audio playback automatically when powered on
  • "Panel Lock" function disables buttons to avoid unauthorized operation or programming
  • Real time recording from CD or FM/AM tuner to SD or USB media
  • External control via RS-232C
  • Control via ethernet with optional IF-E100 ethernet card is planned in the future


AUX IN JACK

  • Connector: 3.5mm stereo mini jack
  • Nominal input level: -20 dBV (0.1 Vrms)
  • Maximum input level: -4 dBV (0.63 Vrms)
  • Input impedance: 10 k Ohms or higher

ANALOG OUTPUT (UNBALANCED)

  • Connectors: RCA pin jacks
  • Rated output level: -10 dBV (0.316 Vrms, when analog output level setting OFF)
  • Maximum output level (switchable): +6 dBV (2.0 Vrms, when analog output level setting OFF)
  • Output impedance: 200 Ohms

TUNER OUTPUTS (UNBALANCED)

  • Connectors: RCA pin jacks
  • Rated output level: -10 dBV (0.316 Vrms)
  • Maximum output level: +6 dBV (2.0 Vrms)
  • Output impedance: 200 Ohms

ANALOG OUTPUT (BALANCED)

  • Connectors: XLR-3-32 (1: GND, 2: HOT, 3: COLD)
  • Rated output level: +4 dBu (1.23 Vrms, when analog output level setting OFF)
  • Maximum output level (switchable): +20 dBu (7.75 Vrms, when analog output level setting OFF)
  • Output impedance: 100 Ohms

PHONES JACK

  • Connector: 6.3mm (1/4") standard stereo jack
  • Maximum output: 20 mW + 20 mW or higher (THD+N 0.1% or less, into 32 Ohms load)

CONTROL INPUT/OUTPUT

  • RS-232C connector: 9-pin D-sub (female, inch-standard)

AUDIO PERFORMANCE

  • Frequency response: 20 Hz - 20 kHz: +/- 1.0 dB (when 44.1/48kHz sampling frequency, CD/SD/USB playback, JEITA)
  • Distortion: 0.005% or less (when CD/SD/USB playback, JEITA)
  • S/N ratio: 95 dB or higher (when CD/SD/USB playback, JEITA)
  • Dynamic range: 90 dB or higher (when CD/SD/USB playback, JEITA)
  • Crosstalk between channels: 90 dB or higher (when CD/SD/USB playback, JEITA)

BLUETOOTH

  • Bluetooth version: V4.2
  • Output class: 2 (about 10m unobstructed transmission distance)
  • Supported profiles: A2DP, AVRCP 1.0
  • Supported A2DP codecs: SBC, AAC, Qualcomm aptX
  • Supported A2DP content protection: SCMS-T

TUNER

  • US model: FM: 87.5 MHz to 108.0 MHz, AM: 520 kHz to 1,720 kHz
  • Antenna connectors: FM: F-type (female) AM: 2-pin push terminal

OTHER

  • Power: AC100-240V, 50/60 Hz
  • Power consumption: 10W
  • Operating temperature range: 5~35 Degrees C/ 41-95 Degrees F
  • Permitted installation tilt: 30 Degrees or less
  • Accessories: AC power cord, Wireless remote controller, "RC-CD400", a rack-mounting screw kit, FM antenna, AM antenna, Owner's manual/warranty

Manufacturer: Tascam
Model: CD-400U
Warranty: See manufacturer website for details
SKU: I504378-N-0
UPC: #043774033386
Listing ID: NA89852
