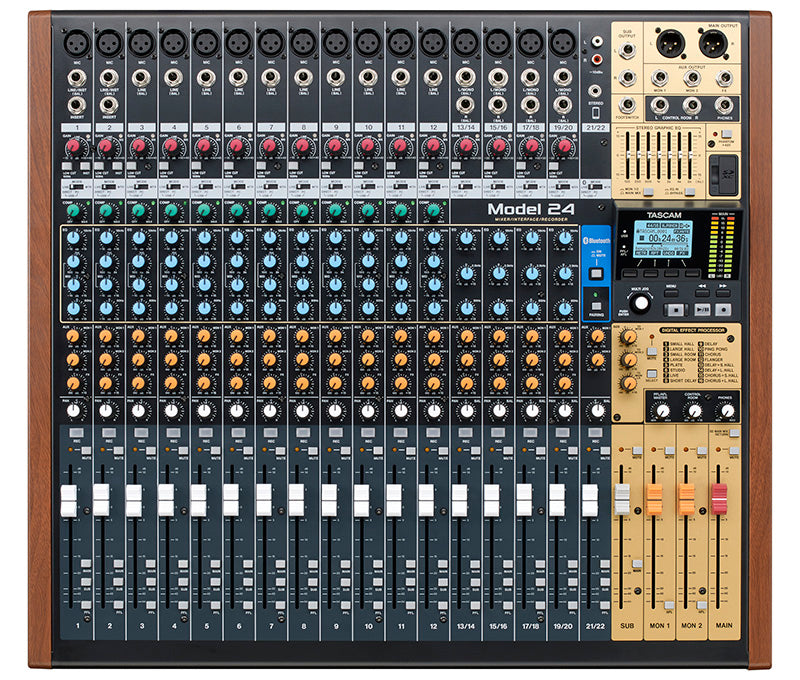

Tascam Model 24 24 Channel Multitrack Recorder with Integrated USB Audio Interface and Analog Mixer

by Tascam
Out of Stock
Original price $1,599.00
Original price $1,599.00 - Original price $1,599.00
Original price $1,599.00
Current price $1,299.00
$1,299.00 - $1,299.00
Current price $1,299.00
Condition: New
About Inventory Status


Questions?
Call or text us at 301-946-8808.

In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.

📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.

Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.

Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.

█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.

About Item Conditions


Questions?
Call or text us at 301-946-8808.

New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.

Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.

Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.

Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.

Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.

B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.

Educational & Government Sales Quotes

Click here to inquire about an educational or government quote and discover more about our Educational & Government Sales Division.


Record, Mix and Connect With The Tascam Model 24 24 Channel Multitrack Recorder with Integrated USB Audio Interface and Analog Mixer

TASCAM has continuously been providing industry-leading recording solutions for decades, such as the TASCAM 38 Open Reel 8-track, the DA-88 Digital 8-track and the legendary Portastudio Cassette and Digital Multitrack recorders. TASCAM now builds on this legacy to deliver a new classic: the Model 24 Multitrack Recorder/Mixer/Interface.

Whether used for rehearsal, live shows or studio production, this triple-function recording console perfectly meets the needs of today’s working and recording musician.

Simple, Intuitive Design

One glance is all you need. The TASCAM Model 24 was developed for easy and immediate operation, with everything you need placed right at your fingertips. 100mm faders allow for precise control over volume. A full set of familiar EQ and Auxiliary knobs remove the need to menu diving, and all input/output connections are all on the surface for quick and easy access.

The Model 24 is truly a modern take on a classic design.

TASCAM’s Revolutionary Recording Technology

Featuring 16 high-grade TASCAM mic preamps in addition to multiple sets of stereo line inputs, the Model 24 delivers studio quality audio performance right from the start. When it’s time to record The TASCAM Model 24 allows musicians and engineers to capture up to 24 tracks simultaneously (at 24bit/48kHz resolution) directly to the SD card, with the ability to support punch in/out 8 tracks at the same time. And once the take is done, the Model 24 can easily playback any or all of the recorded tracks through the console for immediate mixdown.

Flexible Connectivity

In addition to the studio quality mic preamps and powerful EQ and routing options the Model 24 features a dedicated stereo channel 1/8”, dual RCA Bluetooth™ connectivity. This allows users to easily integrate mobiles devices into the mix for rehearsal playback, walk-in music and more. Finally, the TASCAM Model 24 can also act as a powerful audio interface and will connect directly to your PC or Mac for easy integration with your DAW of choice.

Durability and Reliability

Designed to be both lightweight and rugged, the Model 24 can easily be carried from studio to stage with the confidence that TASCAM’s legendary reliability will keep the music going.



  • All-in-One, Multitrack Recorder with 22 channel Mixer and USB Audio Interface
  • WAV 48kHz/24-bit, 24 channel multitrack recording to SD, SDHC and SDXC cards
  • Built-in USB Audio Interface to send/receive audio data to/from DAW
  • 22 Inputs (20 Balanced, 12 Monaural, and 4 Stereo)
  • 16 TASCAM Microphone Preamps
  • Input Mode switch on every input channel
  • TASCAM Ultra-HDDA Mic Pre-amp (Channels 1 to 12)
  • Preamp Gain Controller with Overload indicator (Channels 1 to 12)
  • 3-band EQ with a sweepable mid-range frequency (Channels 1 to 12)
  • 100kHz Low-cut Filter (Channels 1 to 12)
  • 7-band Graphic EQ
  • 16 Pre-set Effects
  • 100mm Long-throw Faders for precise adjustment
  • Mute, Main/Sub, PLF switches on every input channel
  • Bluetooth input supporting both AAC and SBC codecs
  • SUB Outputs via XLR Balanced and RCA Unbalanced connectors
  • LINE Inputs via RCA Pin and â…›" Stereo Mini jacks
  • 3 AUX Outputs (Monitor 1, Monitor 2, FX)
  • 1 Stereo Output for Control Room
  • Phantom Power (+48V)
  • ¼" Stereo Headphone Output
  • Backlit buttons for key operations such as REC and Play
  • Multi Jog-dial for quick menu operation
  • 12-segment LED Output Level Meters


Recording Section

  • Supported Media: SD (512MB to 2GB), SDHC (4GB to 32GB), SDXC (64GB to 128GB), Class 10 or higher required.
  • File System: SD card: FAT16, SDHC card: FAT32, SDXC card: exFAT
  • Recording File Format: WAV
  • Playback Format: WAV
  • Sampling Frequency: 44.1k/48k Hz
  • Bit Depth: 16 / 24-bit
  • Recordable Channel: Max. 24 channels (22ch + 2 stereo mix)

Audio Inputs

  • MIC IN: CH1 to 12, 13/14 to 19/20
  • Connector: XLR 3-31 (1: GND, 2: HOT, 3: COLD)
  • Maximum Input Level: +10dBu
  • Nominal Input Level: –8dBu
  • Minimum Input Level: –58dBu
  • Gain Adjustable Range: 0 to 50dB
  • Input Impedance: 1.8kΩ
  • Phantom Power supply: +48V
  • LINE IN: CH1 to 20
  • Connector: 1/4" (6.3mm) TRS Phone jack (Balanced)
  • Maximum Input Level +22dBu
  • Nominal Input Level: +4dBu
  • Gain Adjustable Range: –10 to +40dB: CH1 to 12, +20 to +30dB: CH13/14 to 19/20
  • Input Impedance: 22kΩ
  • INSERT: CH 1 and 2
  • Connector: 1/4" (6.3mm) TRS Phone jack (T: Send, R: Return, S: GND)
  • Return (Ring)
  • Maximum Input Level: +18dBu
  • Nominal Input Level: 0dBu
  • Input Impedance: 10kΩ
  • Send (Tip)
  • Maximum Output Level: +18dBu
  • Nominal Output Level: 0dBu
  • Output Impedance: 100Ω

RCA Input

  • Connector: RCA Pin jack (Unbalanced)
  • Maximum Input Level: +8dBV
  • Nominal Input Level: –10dBV
  • Input Impedance: 10kΩ

Stereo Input

  • Connector: 1/8" (3.5mm) Stereo Mini jack (Unbalanced)
  • Maximum Input Level: +8dBV
  • Nominal Input Level: â€“10dBV
  • Input Impedance: 10kΩ

Outputs

  • MAIN OUTPUT
  • Connector>: XLR 3-32 (1: GND, 2: HOT, 3: COLD)
  • Maximum Output Level: +22dBu
  • Nominal Output Level: +4dBu
  • Output Impedance: 100Ω

SUB OUT, MONITOR, FX OUT, CONTROL ROOM OUT

  • Connector>: 1/4" (6.3mm) TRS Phone jack (T: HOT, R: COLD, S: GND)
  • Maximum Output Level: +16dBu
  • Nominal Output Level: -2dBu
  • Output Impedance: 100Ω

Phones Out

  • Connector: 1/4" (6.3mm) Stereo Phone jack
  • Output Level: 80mW + 80mW (32Ω loaded)


REMOTE Compatible with TASCAM RC-1F Foot Switch

  • Connector: 1/4" (6.3mm) TS Phone jack

USB

  • Connector: USB B type 4-pin
  • Format: USB2.0 High-Speed, Mass-storage class/USB Audio Class

Bluetooth

  • Output Class: Class 2 (Transmission range: approx. 33ft. / 10 m. Transmission range may vary, depending on surroundings)
  • Bluetooth version: 4.0
  • Supported Profile: A2DP, AVRCP 1.0
  • Supported A2DP Codecs: SBC, AAC
  • A2DP Content Protection: SCMS-T

Channel EQ

  • Low-Cut: 100Hz, –18dB / Octave
  • Hi-Shelving: +15dB / –15dB, Cut off frequency: 12kHz
  • Mid: Peaking
  • (MONO): +15dB / –15dB, 100Hz to 8kHz Variable
  • (STEREO): +15dB / –15dB, Center frequency = 600Hz
  • MID Band Q Fix, 0.55
  • Low-Shelving: +15dB / –15dB, Cut off frequency = 80Hz

Graphic EQ

  • Band: 7-Band
  • Frequency: 125 / 250 / 500 / 1k / 2k / 4k / 8k Hz
  • Gain: +15dB / –15dB

FX

  • Type - 1: SMALL HALL / 2: LARGE HALL / 3: SMALL ROOM / 4: LARGE ROOM / 5: PLATE / 6: STUDIO / 7: LIVE / 8: SHORT DELAY/ 9: DELAY / 10: PING PONG / 11: CHORUS / 12: FLANGER / 13: DELAY + S.HALL / 14: DELAY + L.HALL / 15: CHORUS + S.HALL / 16: CHORUS + L.HALL

<

Manufacturer: Tascam
Model: MODEL 24
SKU: I558347-0-WHXB
