Tascam MZ-372 Industrial Grade Zone Mixer

by Tascam
Original price $749.00
Original price $749.00 - Original price $749.00
Original price $749.00
Current price $559.00
$559.00 - $559.00
Current price $559.00
♫ In stock
About Inventory Status

Call or text us at 301-946-8808.

In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.

📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.

Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.

Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.

█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.

About Item Conditions

Call or text us at 301-946-8808.

New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.

Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.

Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.

Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.

Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.

B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.

Educational & Government Sales Quotes

Click here to inquire about an educational or government quote and discover more about our Educational & Government Sales Division.

Get A Versatile Command Center For Your Audio System With The Tascam MZ-372 Industrial Grade Zone Mixer

Designed for permanent installation, the TASCAM MZ-372 offers versatile routing, mixing, and control of multiple audio sources in an attractive easy-to-operate 3U package. For maximium flexability, source content can include music, spoken word (microphone), turntable, and more - all easily controlled via familiar sliders and assignment controls.


The MZ-372 allows multiple audio sources (19 total) to be mixed, muted, and routed to two (2) redundant outputs, controlled by familiar volume sliders and assignment buttons.  Input signals can be inserted via six (6) audio channels, each consisting of two (2) sets of unbalanced RCA-type stereo pairs, and six (6) XLR inputs for a total of twelve (12) sets of RCA-type inputs and six (6) XLR inputs.  In addition, channels 2/3/4 can be set to accommodate phono-level signals for use with a turntable. Lastly, and located conveniently on the front panel, one additional XLR input is available driving a studio quality mic preamp and ducking circuit for easy voiceover and announcement work.

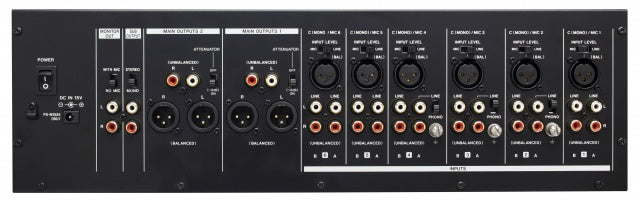

Twin outputs each feature a combination of balanced XLR or RCA unbalanced connectors for easy integration into virtually any audio system. This flexibility allows combinations of microphones, CD/DVD/Blu-ray players, instruments - or any other audio source - to be selected or muted, and sent simultaneously to the dual outputs, each with it’s own volume control. Finally, the convenient “talkover” function will automatically lower any mixed channel source so the microphone connected to the front panel can easily be can be heard in whichever zones you choose.

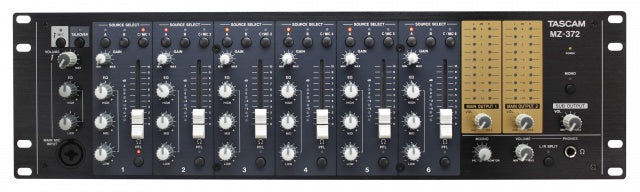

Familiar volume sliders, switches/buttons, EQ knobs, and mute buttons make the MZ-372 simple and fast to operate and set up.  There is even a master recording stereo output, which can send audio to an external recorder which makes event or music performance capturing easy.  The Booth outputs provide another stereo feed with independent control for additional monitoring.

  • Maximum flexibility for audio routing, input selection, and multiple redundant output flow, perfect for integrator, musical instrument, and residential applications
  • Multiple inputs include 12 sets of stereo RCA-type, 6 selectable mic/line XLR, and a dedicated front-panel XLR mic input; 19 total input "sets"
  • Channel audio sources can easily be selected, muted, and contoured via simple volume sliders, toggle switches/buttons, and knobs
  • Two redundant output channels each with stereo XLR balanced and unbalanced RCA-type connectors; each with separate volume control
  • Separate stereo booth, recording, and headphone outputs each with independent control
  • One additional mic-compatible XLR input on the front panel with "Talkover" function automatically lowering source audio
  • Independent three-band EQ per each of the 5 channels and a two-band EQ on the additional front panel microphone input
  • Compact 3U rack mount design



  • Connectors: XLR-3-31 (1 GND, 2 HOT, 3 COLD), 6.3mm (1/4") standard TRS jacks (Tip HOT, Ring COLD, Sleeve GND)
  • Input impedance: 33 kΩ
  • Nominal input level: -65 dBu (VOLUME knob at MAX)
  • Nominal input level: -10 dBu (VOLUME knob at MIN)
  • Gain range: 55 dB


  • Connectors: XLR-3-31 (1 GND, 2 HOT, 3 COLD)


  • Maximum input level: -10 dBu
  • Minimum input level: -65 dBu
  • Input impedance: 33 kΩ


  • Nominal input level: -1 dBu
  • Maximum input level: 20 dBu
  • Input impedance: 22 kΩ


  • Connectors: RCA pin jacks
  • Nominal input level: -10 dBV
  • Maximum input level: 10 dBV
  • Input impedance: 22 kΩ



  • Connectors: RCA pin jacks
  • Rated output level: -10 dBV
  • Maximum output level: 6 dBV
  • Output impedance: 200 Ω


  • Connectors: XLR-3-32 (1 GND, 2 HOT, 3 COLD)
  • Rated output level: 4 dBu
  • Maximum output level: 24 dBu
  • Output impedance: 200 Ω

SUB OUTPUT Connectors

  • Connectors: RCA pin jacks
  • Rated output level: -16 dBV
  • Maximum output level: 0 dBV
  • Output impedance: 200 Ω


  • Connectors: RCA pin jacks
  • Rated output level: -16 dBV
  • Maximum output level: 0 dBV
  • Output impedance: 200 Ω


  • Connectors: 6.3mm (1/4") standard stereo jack
  • Maximum output: 50 mW + 50 mW (into 32 Ω load)


  • Frequency Response: 20 Hz - 20 kHz
  • Distortion: 0.03% or Less
  • Crosstalk: 65 dB



  • Dedicated AC adapter (TASCAM PS-M1524)
  • Input voltage: AC 100–240V ~, 50/60Hz
  • Output voltage: DC 15V
  • Output current: 2.4 A

Manufacturer: Tascam
Model: MZ-372
SKU: I507432-N-1-WHXA
UPC: 043774033508
