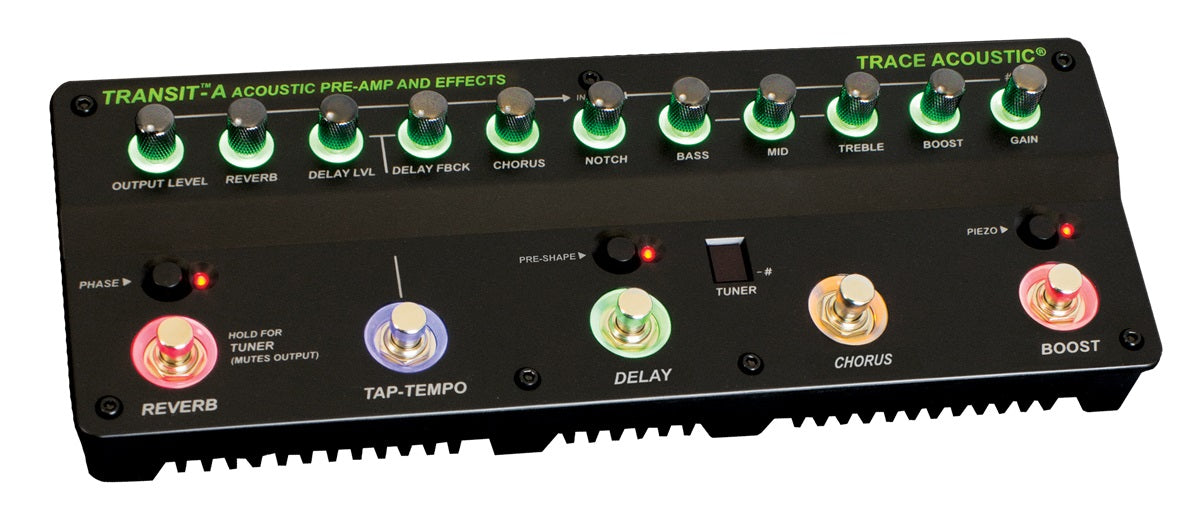

Trace Elliot Transit A Acoustic Preamp And Effects Unit


  • Our Price
  • $329.99
  • Regular price MSRP: $429.99

*IN STOCK - READY TO SHIP





Tune Up Your Tone With The Trace Elliot Transit A Acoustic Preamp And Effects Unit

The Transit A preamp pedal includes the right features for a professional acoustic guitar player without over burdening the user with extra controls that hinder quick and easy tweaking. The built in Compression, Notch Filter, Pre-shape and simple EQ controls ensure great basic tone, while the user-definable Boost, Chorus, Delay and Reverb offer all the tools necessary for artistic expression. The back-lit control panel becomes the chromatic tuner for accurate tuning. Built-in Pre and Post XLR balanced output, dry output and headphone output give the user the ins and outs they need for the best live coverage.



  • Color coordinated backlit controls
  • Built-in chromatic tuner
  • Piezo button increases input impedance
  • User definable boost switch
  • Chorus with simple one knob operation
  • Delay with Level, Feedback and Tap-Tempo
  • Pre-shape switch for classic Trace Acoustic EQ curve
  • Reverb with simple one knob operation
  • Phase reverse switch
  • 3 band active EQ
  • Notch filter
  • Input Gain and Output Level controls
  • Stereo outputs and Dry output
  • Pre and Post balanced XLR outputs with Ground Lift
  • Aux input
  • Phones output


Nominal INPUT Level:

  • NORMAL = 0.00 dBV
  • PIEZO = -10.0 dBV

INPUT Impedance:

  • NORMAL = 110k Ohms
  • PIEZO = >10M Ohms

Nominal DRY OUT Level:

  • 0.00 dBV

DRY OUT Impedance:

  • 150 Ohms

Nominal LEFT/M And RIGHT OUTPUT Level:

  • 2.21 dBV (0 dBu)

LEFT/M And Right Output Impedance:

  • 150 Ohms

Nominal D.I. Pre Level:

  • -6.02dBV

Nominal D.I. POST Level:

  • -2.21 dBV (0 dBu)

Equalization:

  • BASS = +/- 15 dB @ 100 Hz, shelving
  • MID = +/- 15 dB @ 600 Hz
  • TREBLE = +/- 15 dB @ 4.00 kHz, shelving

AUX IN Level:

  • Nominal = 1.78 dBV (+4 dBu)
  • AUX IN input impedance = 10k Ohms

PHONES Output Level:

  • Minimum load impedance = 4 Ohms
  • Maximum output power at minimum load = 500 mW (rms)

Notch:

  • High Q notch filter variable from 30Hz to 330Hz for feedback suppression.

Boost:

  • Volume boost variable from 0-10dB.

Pre-Shape:

  • The classic and proprietary Trace Elliot acoustic EQ curve.

Power Supply (Included):

  • 9V DC (negative tip) @ 1A

Manufacturer: Peavey
Model: 03616150
Warranty: See manufacturer website for details
SKU: I451684-N-2-B
UPC: 014367655582
