Universal Audio Apollo X16 Audio Interface - Heritage Edition


  • Our Price
  • $3,899.00
  • Regular price MSRP: $4,879.00

*IN STOCK - READY TO SHIP





The Apollo X16 Equips You with 16 Channels of Elite Audio Conversion, HEXA Core Processing, and Surround Sound Monitoring

The flagship Apollo x16 allows music producers, project, and post-production studios to track, overdub, and mix with elite-class A/D and D/A conversion, HEXA Core UAD plug-in processing, Dual-Crystal clocking, and 7.1 surround sound monitoring — all in a sleek rackmount Thunderbolt 3 audio interface for Mac or Windows.

Built upon UA's 60-year heritage of audio craftsmanship, this 18 x 20 interface delivers the widest dynamic range (133 dB) and lowest THD+N (-129 dB) of any integrated audio interface on the market, all-new HEXA Core processing — yielding 50% more DSP for running acclaimed UAD Powered Plug-Ins in real time — plus it includes LUNA Recording System, giving you a fully-integrated music production application.

UA's Flagship A/D and D/A Conversion

With thousands of chart-topping songs and hundreds of Grammy-winning albums under their belt, Apollo interfaces are no strangers to tracking stellar-sounding records. To improve on the previous generation Apollo interface's class-leading audio conversion, UA engineers obsessively auditioned the latest A/D and D/A converters — ultimately pairing elite-class 24-bit/192 kHz converters with all-new analog circuitry for an ultra-pristine signal path.

The Apollo X series also introduces new Dual-Crystal clocking — featuring dedicated crystals for 44.1/88.2/176.4k and 48/96/192k sample rates — resulting in stunningly low jitter, measured at less than 10 picoseconds. This translates into pure, artifact-free recordings and solid stereo imaging you can trust.

With 133 dB dynamic range and THD+N of -129 dB, the Apollo X16's open, natural sound quality bests every interface in its class — regardless of price — and is the perfect starting point for applying UAD processing.

Realtime UAD HEXA Core Processing

Apollo x16 features new HEXA Core processing, with six DSP chips and 50% more UAD plug-in processing power than previous Apollos. This lets you run more UAD plug-ins, whether you’re tracking in real time with channel strips from Neve,® Manley,® or API,® or running high UAD plug-in counts when mixing in your DAW.

From the tube warmth of Pultec EQs on guitars to the musical tube limiting of the LA-2A on vocals, or the pump of a genuine 1176 or Fairchild 670 tube compressor on drums, your recordings will take a giant leap forward with a rich, three-dimensional analog sound that UAD plug‑ins provide.

A Full Suite of Classic Analog Processing Onboard

Of course, a hallmark feature of Apollo is its Realtime UAD Processing, letting you run the full library of UAD plug-ins with near-zero latency. Apollo x16 includes the Realtime Analog Classics Plus plug-in bundle, so you can record and mix with the world's only authentic Teletronix LA-2A, 1176LN, and Fairchild compressors, Pultec EQs, and many more.

Access the World of UAD Powered Plug-Ins

Going beyond the included Realtime Analog Classics Plus plug-ins, Apollo X16 lets you tap into the full UAD Powered Plug-In library of legendary vintage EQs, compressors, reverbs, tape machines, channel strips, and more — at near-zero latency, regardless of your audio software's buffer size and without taxing your computer's CPU.

With exclusive emulations from SSL, Neve, Studer, Manley, Helios, API, Ampex, Lexicon, Fender, and more, it's like having a studio full of iconic analog gear, in a single rack space. And unlike competing interfaces, these award-winning DSP-powered plug-ins are also available in your DAW for mixing.

LUNA Recording System- Deep Apollo Integration with a Fast, Natural Workflow

Apollo X series interfaces work with all major DAWs. But they become a fully integrated recording system with LUNA, Universal Audio's groundbreaking music production application for Mac. Harness LUNA's Accelerated Realtime Monitoring™ and power your workflow with a host of built-in features and optional extensions — from genuine Neve summing and integrated Studer tape, to inspiring LUNA instruments, and more.

Surround Sound, Talkback, and More

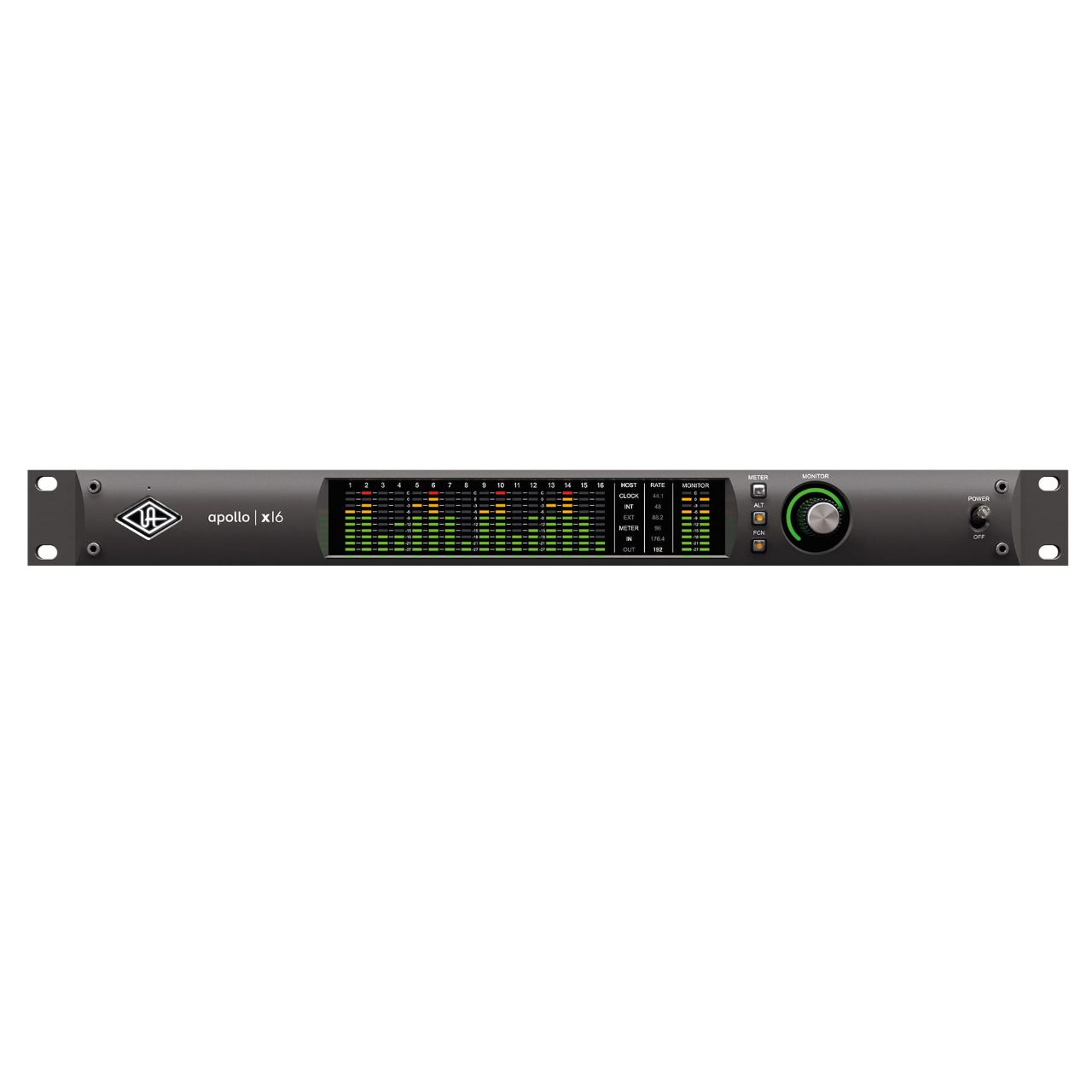

The Apollo X16 features built-in front-panel monitoring functions including a Talkback mic, Alt Speakers, and assignable Dim or Mono control. Plus, with its comprehensive 7.1 surround monitoring support, Apollo X16 is a boon for engineers and producers working on audio and music for video games, television, and the web. In addition, Apollo X16 offers selectable +24 dBu operation for out-of-the-box compatibility with professional mixing consoles and other high-end pro audio equipment.

Build an Expanded Studio System Over Thunderbolt

Apollo X16 offers 18 x 20 simultaneous inputs/outputs (16 x 16 analog I/O) and two built-in Thunderbolt 3 ports. This allows users of any Thunderbolt-equipped Apollo Twin or Apollo rackmount audio interfaces to easily combine up to four Apollos and six total UAD-2 devices — adding fast, high-bandwidth I/O and DSP as your studio grows.

Apollo: The Choice of New-School Professionals

Apollo is the confirmed choice of hit-making professionals, used to record landmark albums by Kendrick Lamar (DAMN.), Chris Stapleton (From A Room: Volume 1), Arcade Fire (Everything Now), Post Malone (Beerbongs and Bentleys), and many more. The Apollo range of interfaces has earned numerous industry awards from Sound on Sound, Future Music, and Electronic Musician — as well as the prestigious TEC Award for computer audio hardware five years running.


  • 18 x 20 Thunderbolt 3 audio interface with class-leading 24-bit/192 KHz conversion (backwards compatible with Thunderbolt 1 and 2 on Mac)
  • HEXA Core Realtime UAD Processing for tracking through UAD plug-ins at near-zero latency, regardless of audio buffer size
  • Produce with LUNA Recording System — a fully-integrated recording application made for Apollo (Mac/Thunderbolt)
  • Surround monitor controller up to 7.1 format
  • Includes the "Realtime Analog Classics Plus" UAD plug-in bundle. Other UAD plug-ins sold separately.
  • UAD-2 HEXA Core processing onboard for additional mixing horsepower for Pro Tools, Logic, Cubase, Ableton, and other major DAWs
  • Combine up to 4 Thunderbolt-equipped Apollos and 6 total UAD devices
  • Selectable +24 dBu operation for easy compatibility with professional mixing consoles and tape machines
  • Convenient front panel monitoring functions including Alt Speakers, Talkback mic, and assignable Dim or Mono
  • Uncompromising UA analog design, superior components, and premium build quality
  • Free, industry-leading technical support — on the phone and online — from knowledgeable audio engineers


System Requirements

All

  • Thunderbolt 3 cable (not included)
  • Internet connection to download software and authorize UAD plug-ins
  • 6 gigabytes available storage
  • Quad Core i7 or better processor recommended
  • For additional compatibility information, visit help.uaudio.com

Mac

  • Available Thunderbolt 1, 2, or 3 port
  • Thunderbolt 1 and 2 connections require an Apple Thunderbolt 3 to Thunderbolt 2 Adapter (not included)
  • macOS 10.12 Sierra, 10.13 High Sierra, 10.14 Mojave, 10.15 Catalina, or 11 Big Sur

PC

  • Available Thunderbolt 3 port
  • Windows 10 (64-Bit Edition)


SPECIFICATIONS

Inputs

  • Line Inputs (DB25): 16 Balanced via (2) 25-pin D-sub
  • Digital Inputs (XLR): AES/EBU: 2 channels @ 44.1 – 192 kHz

A to D Conversion

  • Line Inputs
    • Dynamic Range: 124 dB (A-weighted)
    • THD+N: -115 dB (0.00018%)
    • Frequency Response: 20 Hz – 20 kHz, ±0.05 dB

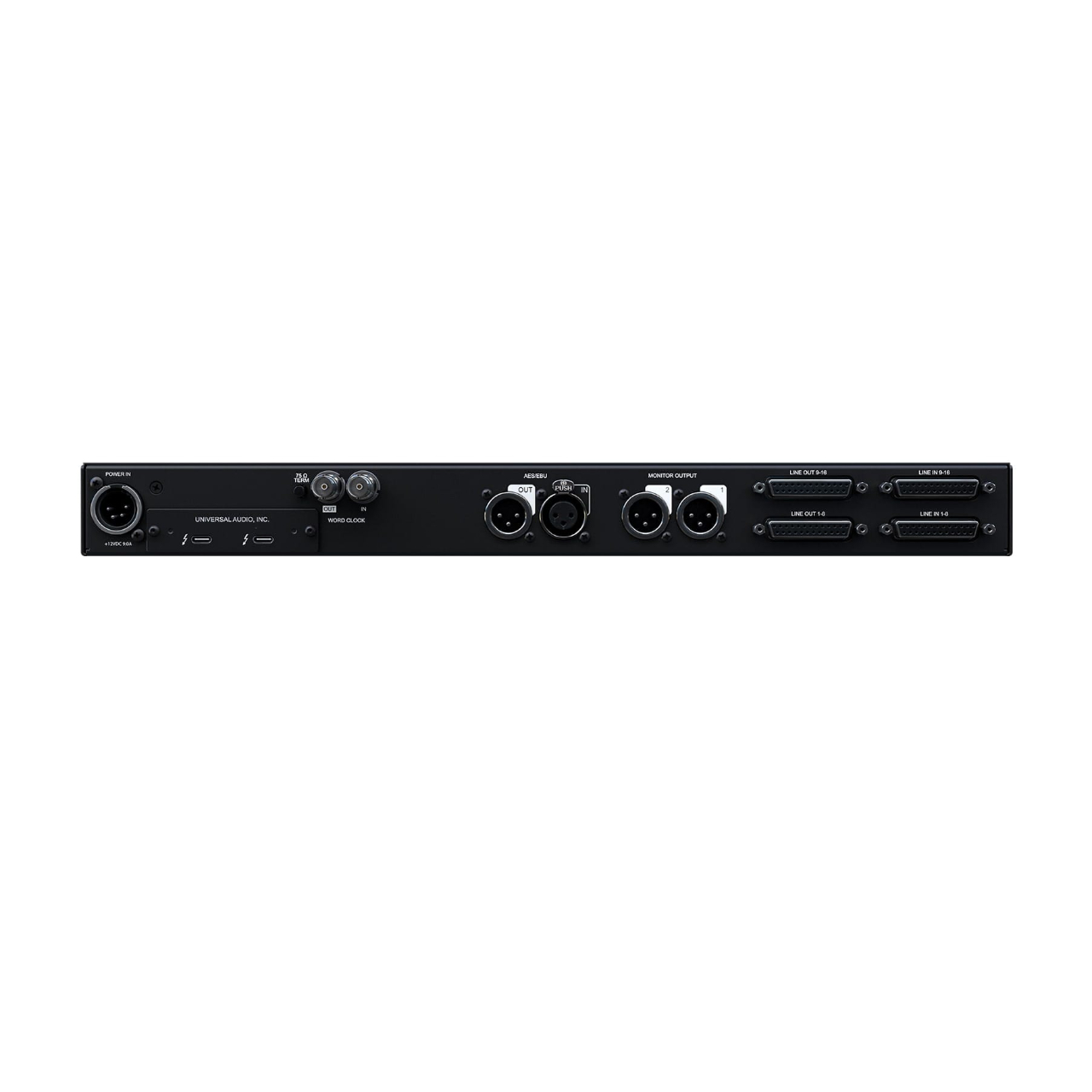

Outputs

  • Line Outputs (DB25): 16 Balanced via (2) 25-pin D-sub
  • Monitor Outputs (XLR): 2 Balanced (Left/Right)
  • Digital Outputs (XLR): AES/EBU: 2 channels @ 44.1 – 192 kHz

D to A Conversion

  • Line Outputs
    • Dynamic Range: 127 dB (A-weighted)
    • THD+N: -123 dB (0.00007%)
    • Frequency Response: 20 Hz - 20 kHz, ±0.02 dB
  • Monitor Outputs
    • Dynamic Range: 133 dB
    • THD+N: -129 dB (0.00004%)
    • Frequency Response: 20 Hz - 20 kHz, ±0.02 dB

Manufacturer: Universal Audio
Model: APX16-HE
Warranty: See manufacturer website for details
SKU: I649836-N-2-B
UPC: 819937003080
