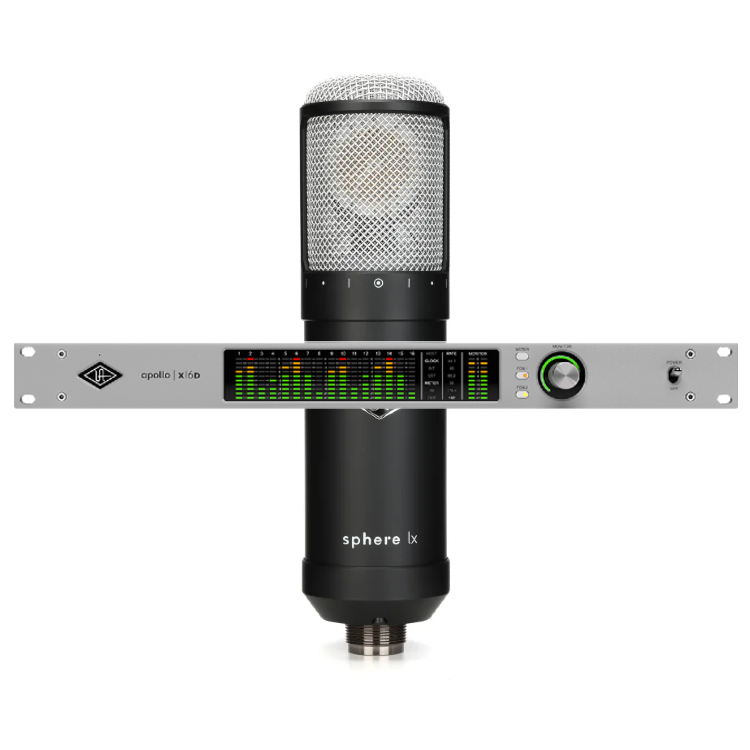

Universal Audio Apollo x16D Essentials+ 18 x 20 Audio Interface with Dante I/O and UAD DSP - *FREE* UA LX Microphone Included
🔥Free Sphere LX Microphone Included with Purchase!
👉Promotion Available While Supplies Last
Couldn't load pickup availability
About Inventory Status
About Inventory Status
Questions? Call or text us at 301-946-8808.
♫ In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.
📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.
❓ Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.
❔ Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.
█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.
About Item Conditions
About Item Conditions
Questions? Call or text us at 301-946-8808.
New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.
Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.
Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.
Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.
Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.
B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.
Description
Description

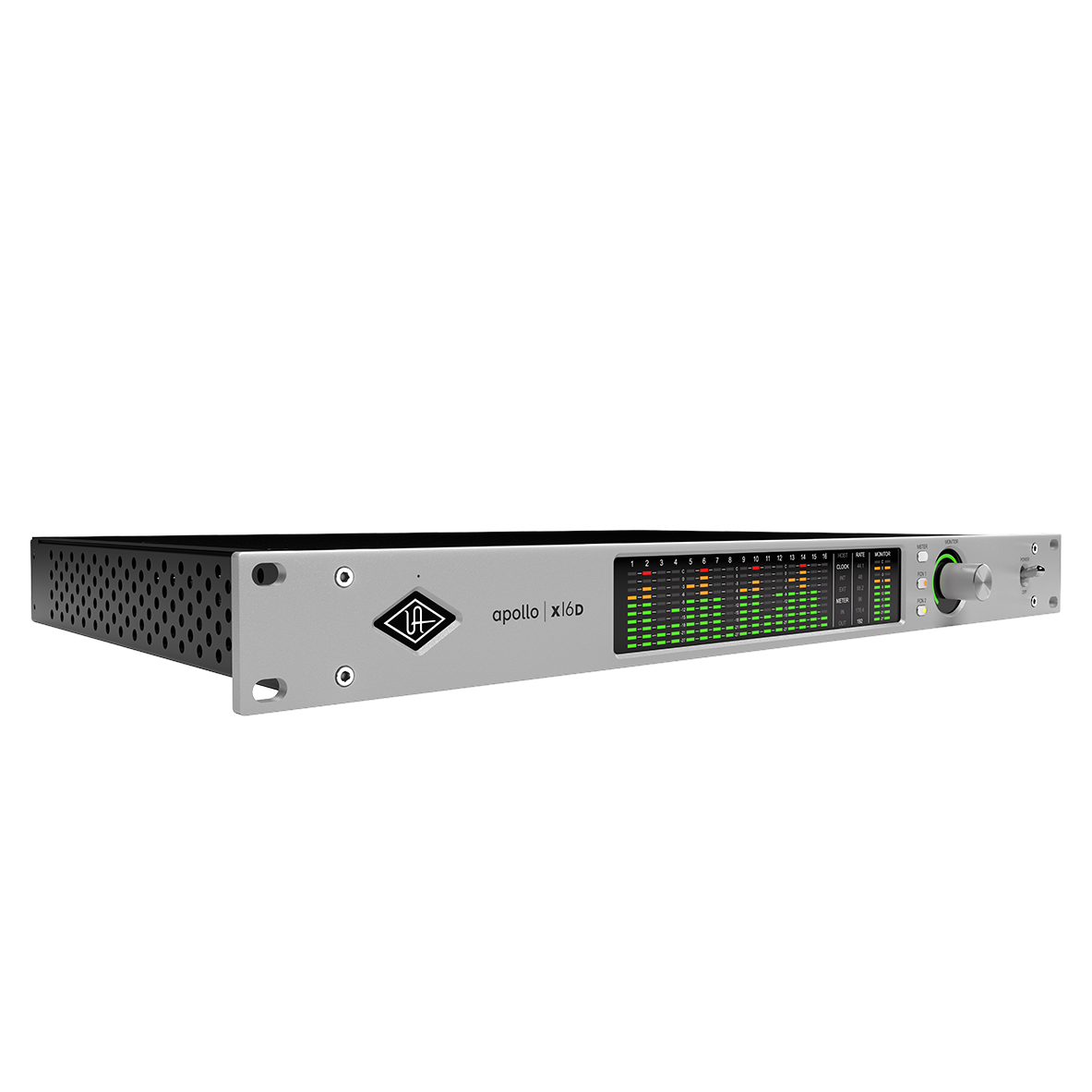

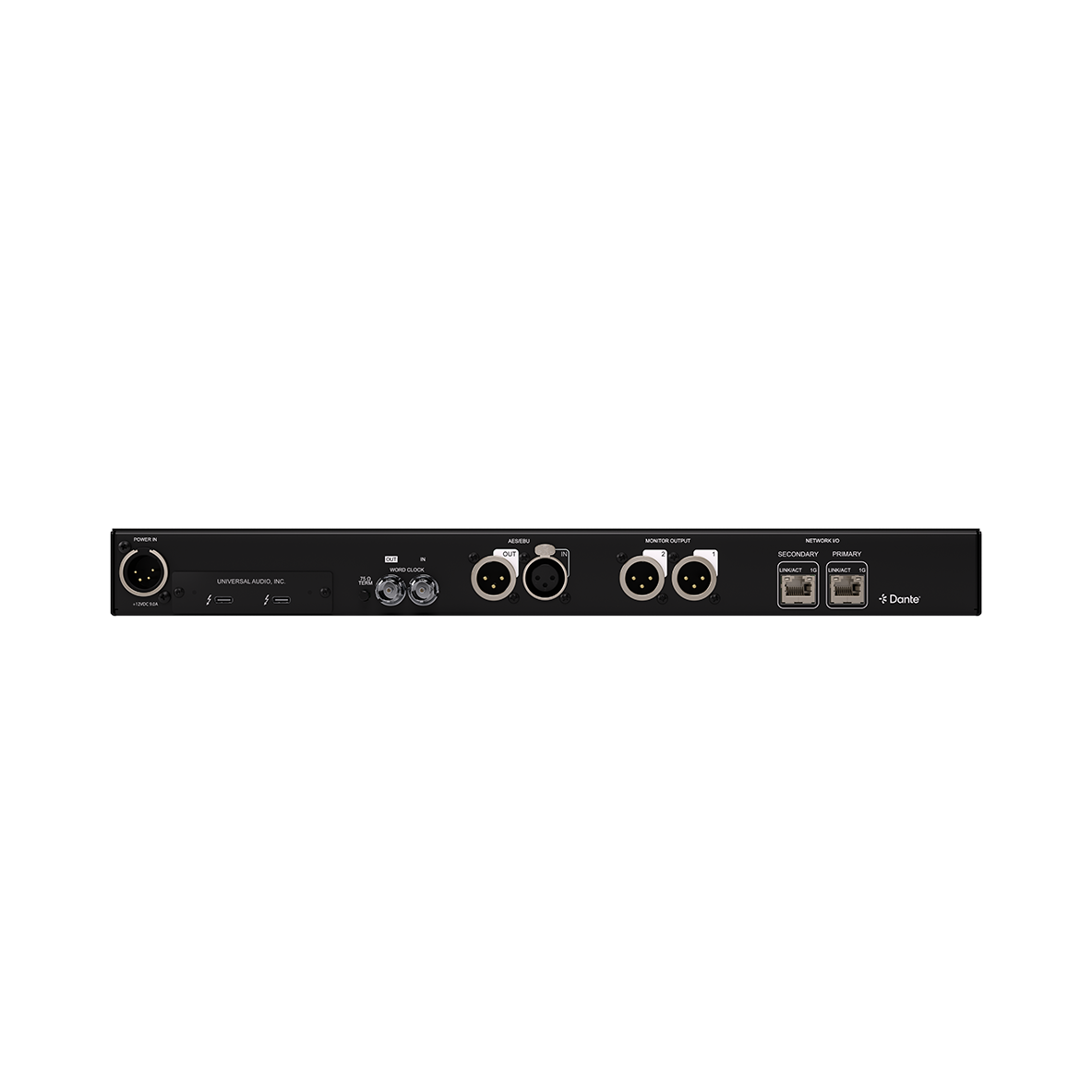

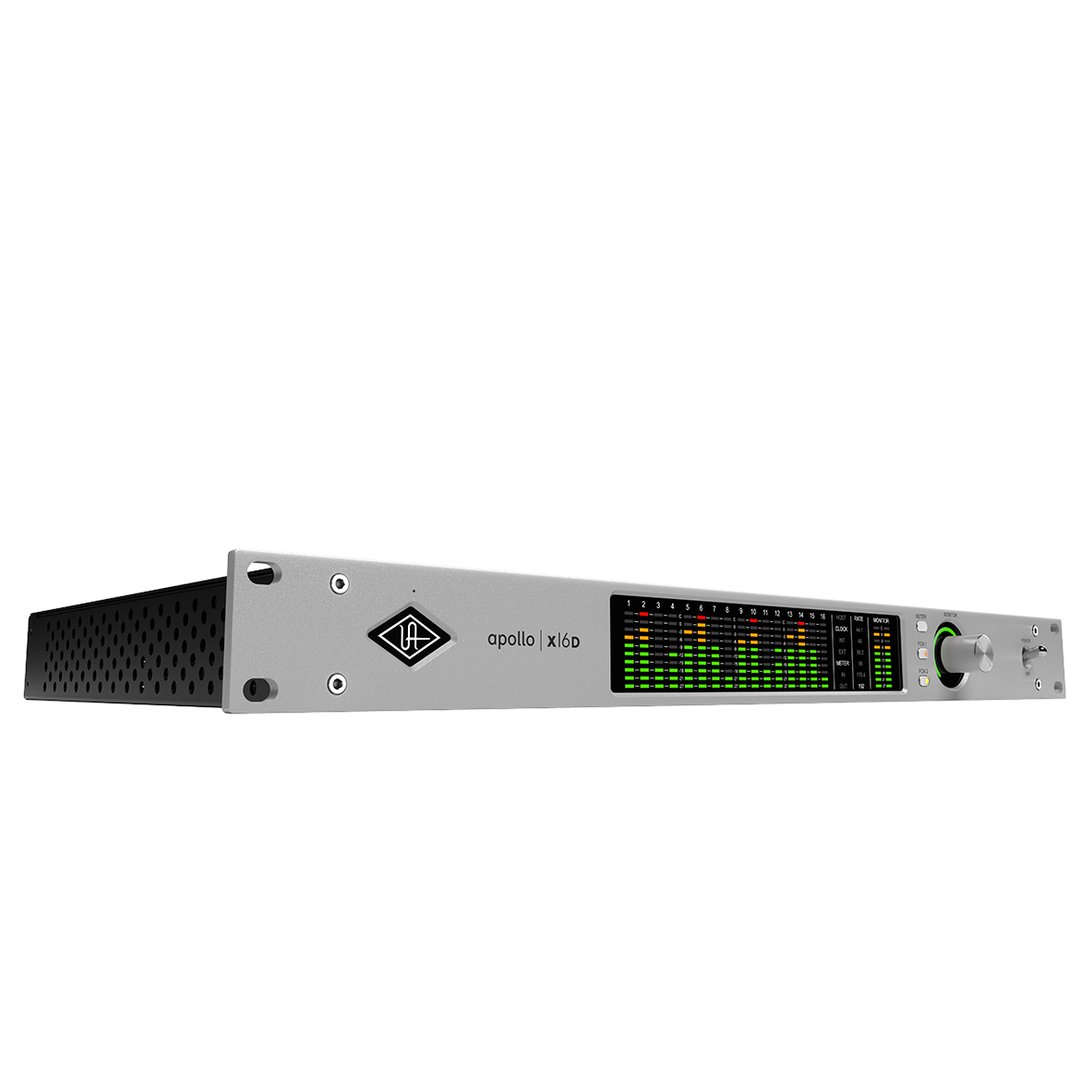

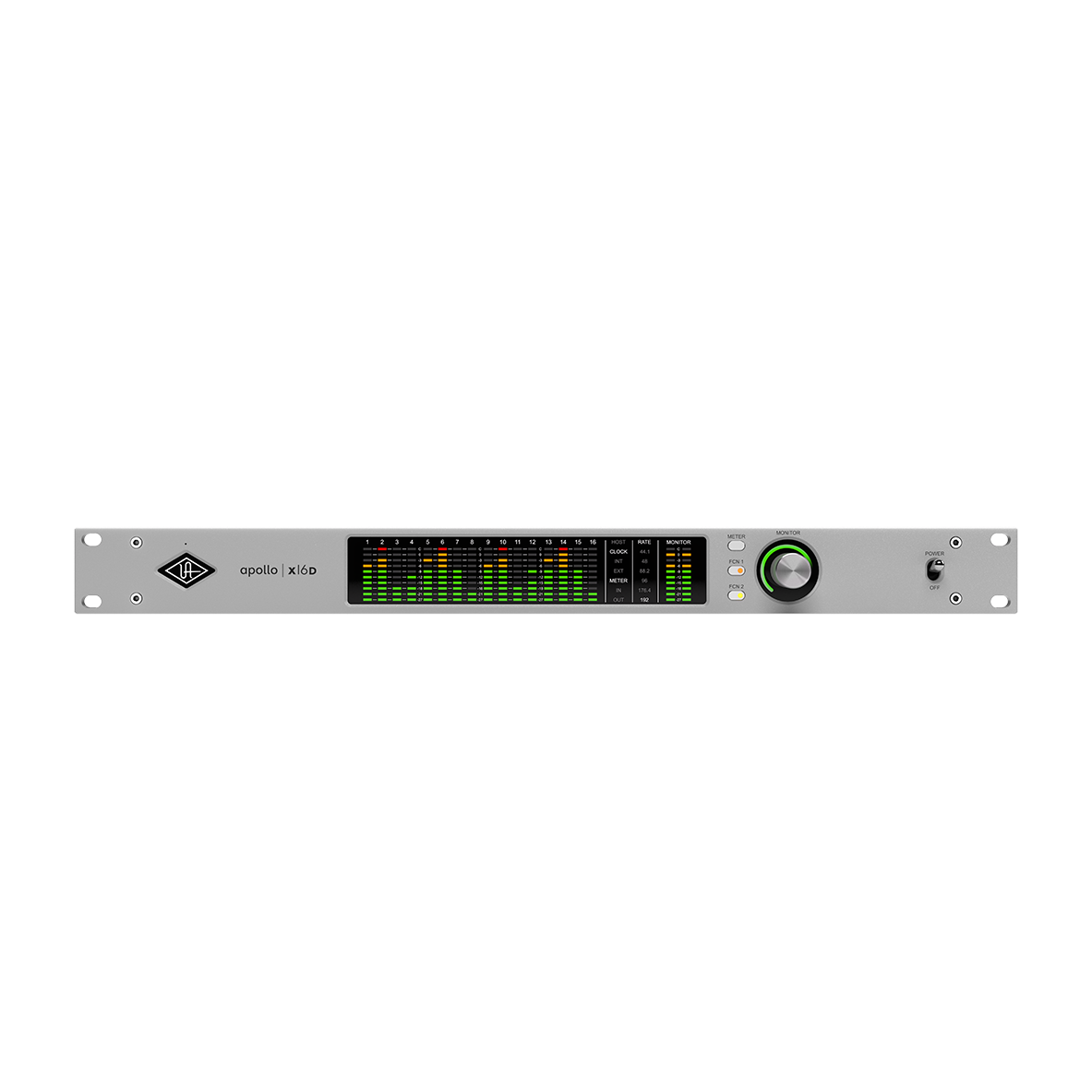

Experience the Gold-Standard in Pro Audio Recording - The Universal Audio Apollo x16D Essentials+ 18 x 20 Audio Interface with Dante I/O and UAD DSP
Perfect for live sound venues or networked recording studios, Apollo x16D gives you elite - class Apollo X sound and realtime UAD plug - in processing over Thunderbolt and Dante. With Apollo x16D, you can mix and record live performances with over 200 UAD plug - ins from Neve, SSL, and Auto-Tune, plus classic LA-2A and 1176 compressors,and more.
- 18 x 20audio interface featuring Dante I/O (supports AES67 mode @ 48 kHz)
- 24-bit / 192 kHz elite-class Apollo X D/A conversion
- Stereo AES I/O for connection to professional digital outboard hardware
- Includes up to 100+ UAD plug-ins with Ultimate+ or Essentials+ editions
- Recall plug-in settings over MIDI, even in the middle of a performance
- Onboard HEXA Core Processing for mixing with UAD plug-ins at near-zero latency
- Compatible with Thunderbolt Apollo interfaces to expand systems over Dante*
- Create 16-channel immersive audio mixes for Dolby Atmos, Auro-3D, Sony 360 RealityAudio, and others
- ALT monitoring support in all monitor modes (2 x ALT mon for stereo, 1 x ALT mon forall)
- Free industry-leading technical support from knowledgeable audio engineers
SPECIFICATIONS
Apollo x16D Audio Interface
- Analog Line Inputs: 16
- Analog Line Outputs (DC coupled): 16
- Analog Monitor Outputs (DC coupled): Two (one stereo pair)
- AES/EBU: Two (One stereo input, one stereo output)
- Thunderbolt 3 Ports: One input, one output
- Word Clock: A/D – D/A Conversion
- Simultaneous A/D conversion: 16 channels
- Simultaneous D/A conversion: 18 channels
- Supported Sample Rates (kHz): 44.1, 48, 88.2, 96, 176.4, 192
- Bit Depth Per Sample: 24
- Analog Round-Trip Latency: 1.1 milliseconds @ 96 kHz sample rate
- Analog I/O Line Inputs 1 – 16:
- Frequency Response: 20 Hz – 20 kHz, ±0.05 dB
- Dynamic Range: 124 dB (A–weighted)
- Total Harmonic Distortion + Noise Ratio (1 kHz @ 23 dBu): -115 dB (0.000180%)
- Maximum Input Level (Reference Level @ +4 dBu): 24 dBu, Balanced
- Maximum Input Level (Reference Level @ -10 dBV): 6.2 dBV (8.4 dBu), Balanced
- Input Impedance: 10k Ohms
- Connector Type: Two Female DB25, Tascam wiring
- Line Outputs 1 – 16:
- Frequency Response: 20 Hz – 20 kHz, ±0.02 dB
- Dynamic Range: 127 dB (A–weighted)
- Total Harmonic Distortion + Noise Ratio (1 kHz @ -1 dBFS): -123 dB (0.000068%)
- Maximum Output Level (Reference Level @ +4 dBu): 24 dBu (21.8 dBV)
- Maximum Output Level (Reference Level @ -10 dBV): 10 dBV (12.2 dBu)
- Output Impedance: 100 Ohms
- Monitor Outputs 1 – 2:
- Frequency Response: 20 Hz – 20 kHz, ±0.02 dB
- Dynamic Range: 133 dB (A–weighted)
- Total Harmonic Distortion + Noise Ratio (1 kHz @ -1 dBFS): -129 dB (0.000037%)
- Maximum Output Level (Reference Level @ +4 dBu): 24 dBu (21.8 dBV)
- Maximum Output Level (Reference Level @ -10 dBV): 10 dBV (12.2 dBu)
- Output Impedance: 100 Ohms
- Connector Type: Balanced Male XLR (pin 2 hot)
- Connector Type: XLR
- Format: IEC 60958 Type I
- Word Clock:
- Connector Type: BNC
- Lock Range: ±4% of any supported sample rate
- Word Clock Input Termination: 75 Ohms, switchable
- Synchronization Sources: Internal, Word Clock, AES/EBU
- Power Supply: External AC-to-DC Power Supply, Level VI compliant
- AC Input Connector Type: IEC Male
- AC Requirements: 100V – 240V AC, 50 – 60 Hz
- DC Connector Type: XLR 4-Pin Locking Male (Neutrik P/N NC4MDM3-H)
- DC Requirements: 12 VDC, 6A
- Maximum Power Consumption: 72W (30W typical)
- Ambient Temperature Range: 32º to 104º F (0º to 40º C)
- Dimensions Width: 19 in (48,26 cm)
- Height (1U rack space): 1.75 in (4,45 cm)
- Depth, Chassis Only: 12.125 in (30,80 cm)
- Depth, Including Knob & Jack Protrusions: 13.5 in (34,29 cm)
- Shipping Box (Width x Depth x Height): 23.5 in x 17 in x 7.5 in (59,69 cm x 43,18 cm x 19,05 cm)
- Shipping Weight (with box & accessories) USA: 16.6 lbs (7.52 kg) EU & UK: 16.9 lbs (7.64 kg)
- Weight (bare unit): 9 lbs (4.08 kg)
- Package Contents: Apollo x16 Audio Interface Unit, External Power Supply, AC Power Cable (IEC), Region Specific, Set of (4) Rack-Mount Screws, Getting Started URL Card

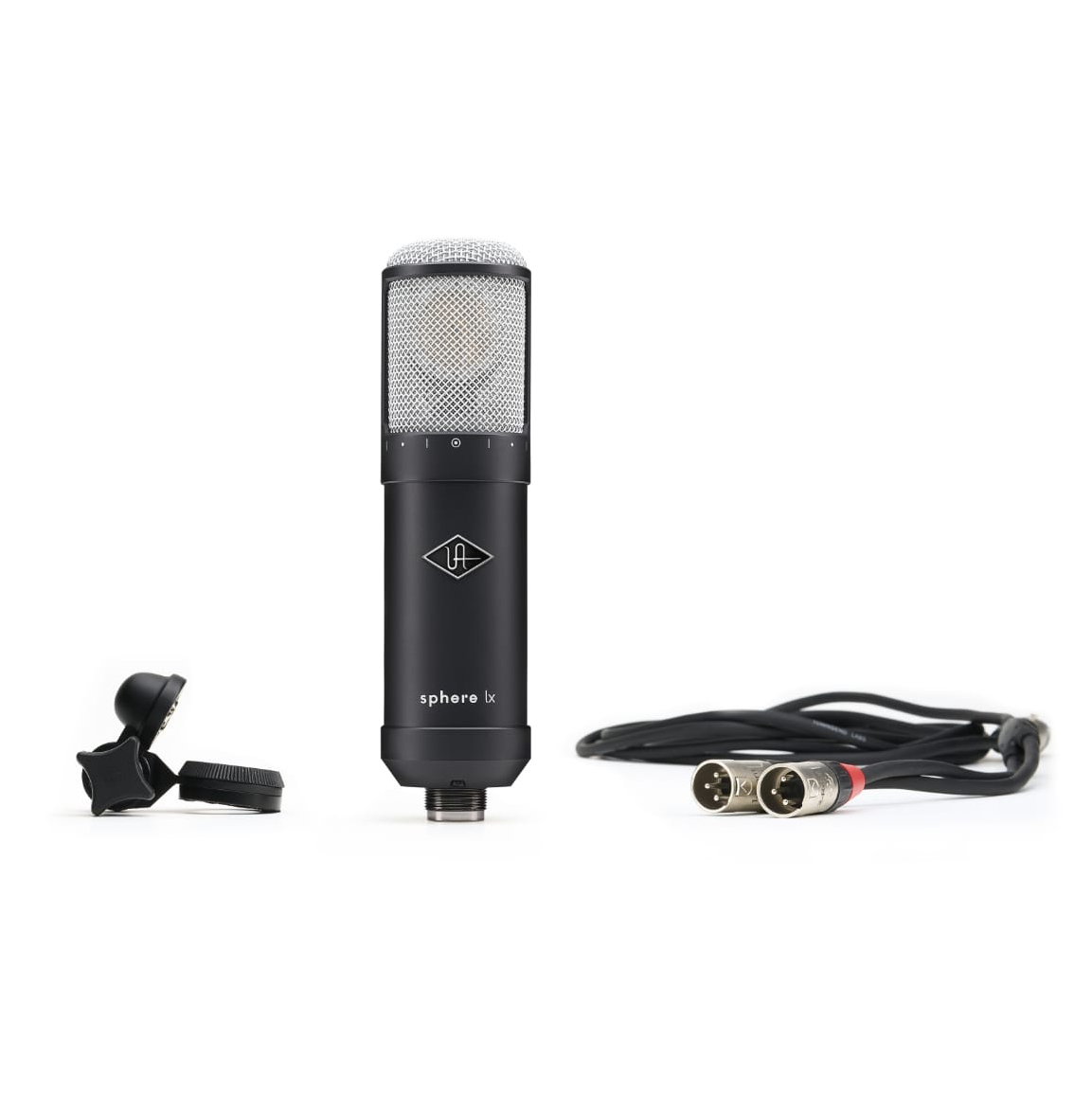

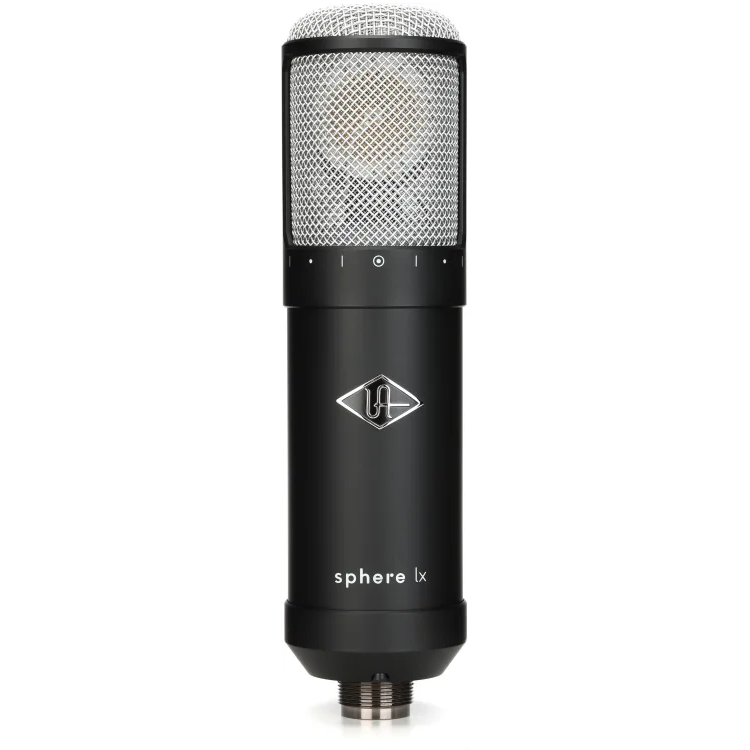

Sphere LX Modeling Microphone
- Microphone Type: Modeling Condenser
- Polar Pattern: Variable Dual Output
- Diaphragm Size: 1" (25.4mm)
- Frequency Response: 20Hz-20kHz
- Max SPL: 145dB SPL (1% THD @ 1kHz)
- Output Impedance: 200 ohms
- Signal to Noise Ratio: 84dB A weighted
- Self Noise: 10dB A weighted
- Connector: 5-pin XLR
- Features: 20 Virtual Modeled Microphone available
- Color: Black
- Power Source: 48V phantom power
- Dimensions: 7.7" x 2"
- Weight: 1.2 lbs.
- Included Accessories: Mic Stand Mount, 10' Cable, Hardshell Case
- Manufacturer Part Number: MIC-UALX
Manufacturer: Universal Audio
Model: APX16DG2ESSBOM
SKU: I829582-N-1-WHXE
