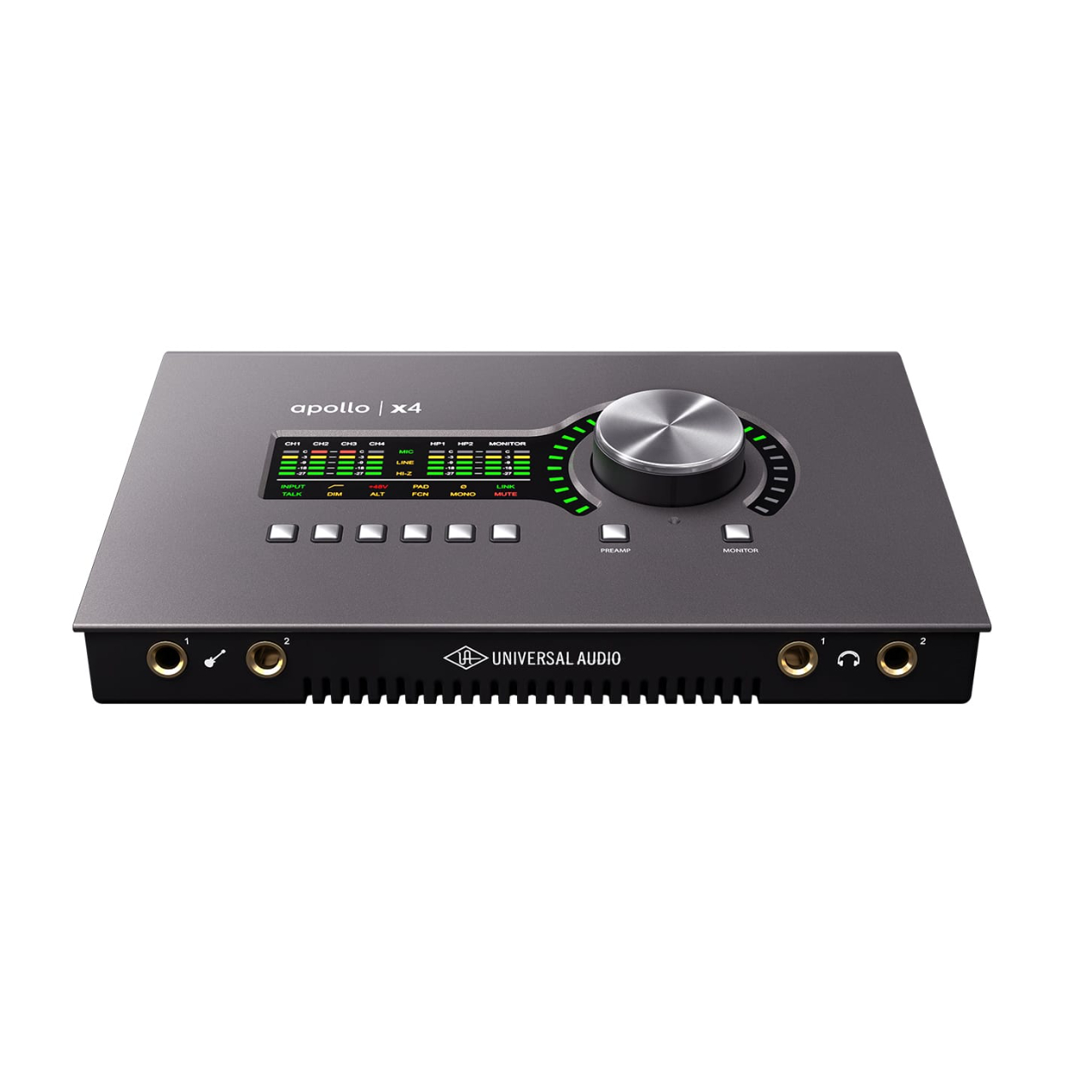

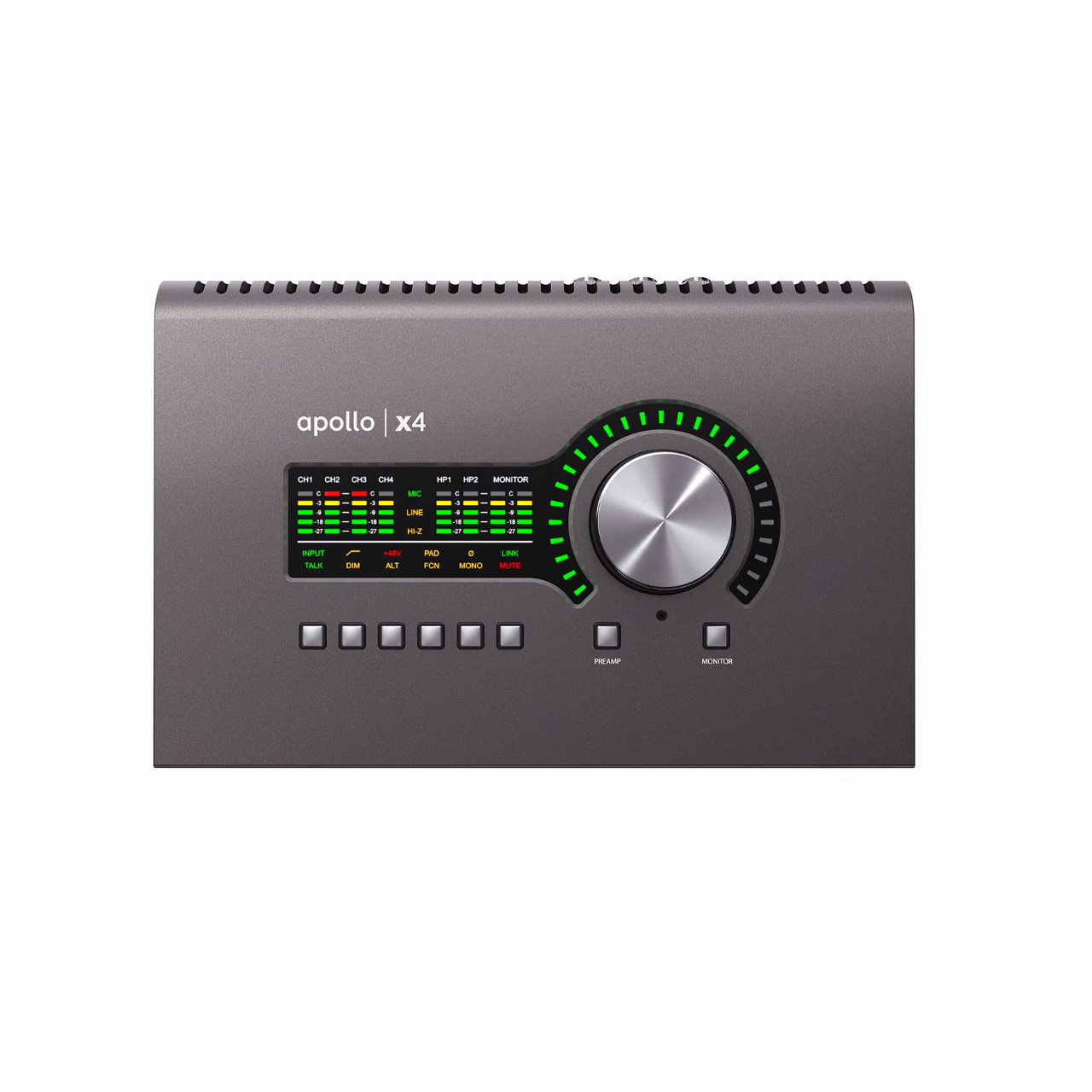

Universal Audio Apollo X4 Audio Interface - Heritage Edition

The Apollo X4 Equips You with Elite Audio Conversion and Unison Preamps, On Your Desktop

Apollo X4 allows musicians and producers to easily track, overdub, and mix with elite-class A/D and D/A conversion, two Unison-enabled preamps, and QUAD Core realtime UAD plug-in processing - all in a desktop Thunderbolt 3 audio interface for Mac and Windows.

Built upon UA's 60-year heritage of audio craftsmanship, Apollo X4 confidently outperforms everything in its class with 127 dB D/A dynamic range, along with an included bundle of UAD analog emulation plug-ins and LUNA Recording System, giving you a fully-stocked analog studio, right on your desktop.

Four Unison Preamps: Get the Genuine Sound of Neve®, Helios, API, Manley and More

Apollo X4 features four Unison-enabled mic preamps, letting you track through exacting mic preamp emulations from Neve®, Helios, API, Manley, Universal Audio and many more. Exclusive to UA Audio Interfaces, Unison technology nails the tone of these sought-after tube and solid state mic pres - including their input impedance, gain stage “sweet spots,” and the component-level circuit behaviors of the original hardware.

The secret to Unison is its hardware-software integration between Apollo's mic preamps and its onboard UAD QUAD Core DSP Acceleration. Simply place a Unison preamp plug-in on your mic input in Apollo Console software, and it physically reconfigures the Apollo interface's impedance - so you can tap into the classic sounds of the world's most recorded mic preamps.

Elite-Class A/D and D/A Conversion

With thousands of hit songs and hundreds of Grammy-winning albums under their belt, Apollo interfaces are used to track exceptional-sounding records every day. To improve on the previous generation of desktop Apollo interfaces' class-leading audio conversion, UA engineers redesigned the X4's audio conversion to deliver a striking 127 dB dynamic range and -117 dB THD+N, giving Apollo X4 a spacious, organic sound that easily rivals dedicated high-end converters.

Apollo: The Choice of New-School Professionals

Apollo is the confirmed choice of hit-making professionals, used to record landmark albums by Kendrick Lamar (DAMN.), Chris Stapleton (From A Room: Volume 1), Arcade Fire (Everything Now), Post Malone (Beerbongs and Bentleys), and many more. The Apollo range of interfaces has earned numerous industry awards from Sound on Sound, Future Music, and Electronic Musician - as well as the prestigious TEC Award for computer audio hardware five years running.

A Full Suite of Classic Analog Processing Onboard

Right out of the box, Apollo X4 offers a suite of incredible analog emulation plug‑ins including the world's only authentic Teletronix LA-2A, 1176LN, Pultec EQs, and the UA 610-B Tube Preamp and EQ. Developed by UA's world-renowned team of algorithm engineers, these Realtime Analog Classics plug-ins set the standard by which all other hardware emulation plug-ins are judged.

From the tube warmth of the Pultec EQ on guitars, to the gentle limiting of the LA-2A on vocals, your recordings will take a giant leap forward in rich, sonically complex analog sound.

Access the World of UAD Powered Plug-Ins

Beyond the included Realtime Analog Classics plug-ins, Apollo X4 lets you tap into the full library award-winning UAD Powered Plug-Ins - including vintage EQs, Compressors, Reverbs, Tape Machines and more - at near-zero latency, regardless of your audio software's buffer size and without taxing your computer's CPU.

With exclusive emulations from Neve, Lexicon, Capitol Studios, API, Manley, Ampex, Fender, and more, it's like having an endless analog studio, right on your desktop. And unlike competing interfaces, these DSP-powered plug-ins are also available in your DAW for mixing.

Record with Vintage Amps

Apollo X4 also includes Unison technology on its front panel instrument input, giving you access to dead-on emulations of guitar and bass amps like the Fender '55 Tweed Deluxe, Marshall Plexi Super Lead 1959, and the Ampeg B-15N Bass Amplifier.

LUNA Recording System Deep Apollo Integration with a Fast, Natural Workflow

Apollo X series interfaces work with all major DAWs. But they become a fully integrated recording system with LUNA, Universal Audio’s groundbreaking music production application for Mac. Harness LUNA’s Accelerated Realtime Monitoring™ and power your workflow with a host of built-in features and optional extensions - from genuine Neve summing and integrated Studer tape, to inspiring LUNA instruments, and more.

Expanded I/O and Built-in Talkback Mic

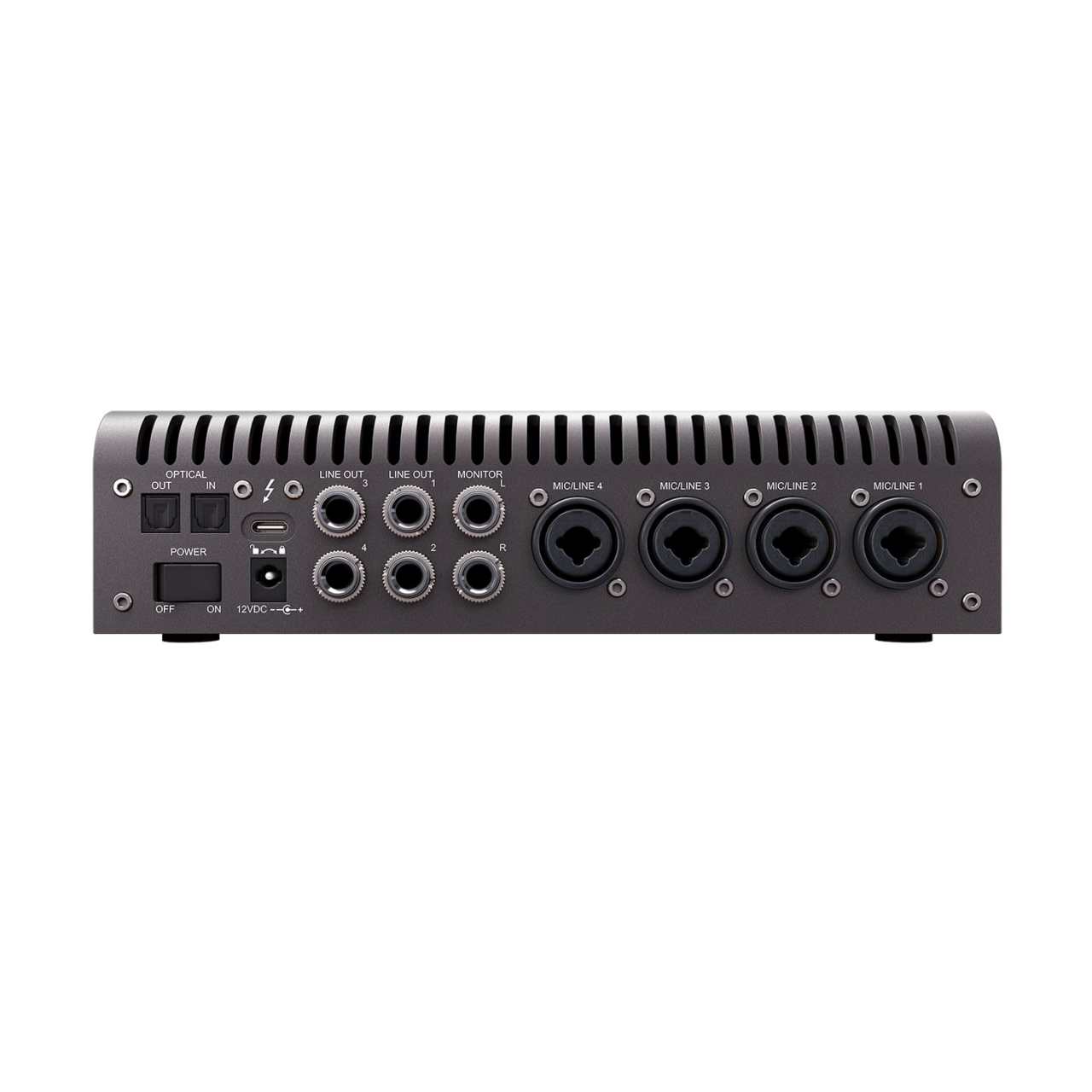

In addition to its four onboard Unison-equipped preamps, Apollo x4 offers two headphone outs and two Hi-Z instrument inputs - greatly enhancing your collaborative process. Plus, with a total of four line outs, optical ADAT/SPDIF input and output, plus dedicated monitor remote controls and a built-in Talkback mic, the 12 x 18 Apollo x4 can serve as the powerful centerpiece of your professional desktop studio.

Build a Networked Studio

Users of most Thunderbolt-equipped Apollo interfaces can combine up to four Apollos and six total UAD-2 devices - adding I/O and DSP as your studio grows. Once you expand your studio with an Apollo x6, x8, x8p, or x16 rackmount unit, you can use Apollo X4 as a desktop monitor control while still tapping its additional I/O and DSP power.

• Desktop 12 x 18 Thunderbolt 3 audio interface for Mac and Windows with elite A/D and D/A conversion inherited directly from the acclaimed Apollo X rackmount interfaces
• 4 Unison mic preamps offer stunning models of classic tube and transformer-based mic preamps and guitar amps
• UAD-2 QUAD Core Processing for tracking through vintage compressors, EQs, tape machines, mic preamps, and guitar amp plug-ins with near-zero latency
• Produce with LUNA Recording System - a fully-integrated recording application made for Apollo (Mac/Thunderbolt)
• Front-panel Unison™-enabled Hi-Z instrument input and headphone out
• Built-in Talkback mic for communication with studio talent and recording slate cues
• Improved monitor functionality including monitor remote functions and Mono, Mute, DIM, and ALT monitor controls
• Up to 8 channels of additional digital input via Optical ADAT or S/PDIF
• Includes the "Realtime Analog Classics" UAD plug-in bundle featuring the Teletronix LA-2A and 1176 compressors, Pultec EQs, UA 610-B Tube Preamp and EQ, and more. Other UAD plug-ins sold separately
• Runs UAD Powered Plug-Ins via VST, RTAS, and AAX 64 in all major DAWs
• Uncompromising analog design, superior components, and premium build quality
• Free, industry-leading technical support - on the phone and online - from knowledgeable audio engineers

System Requirements

All

• Thunderbolt 3 cable (not included)
• Internet connection to download software and authorize UAD plug-ins
• 6 gigabytes available storage
• Quad Core i7 or better processor recommended
• For additional compatibility information, visit help.uaudio.com

Mac

• Available Thunderbolt 1, 2, or 3 port
• Thunderbolt 1 and 2 connections require an Apple Thunderbolt 3 to Thunderbolt 2 Adapter (not included)
• macOS 10.12 Sierra, 10.13 High Sierra, 10.14 Mojave, 10.15 Catalina, or 11 Big Sur

PC

• Available Thunderbolt 3 port
• Windows 10 (64-Bit Edition)
