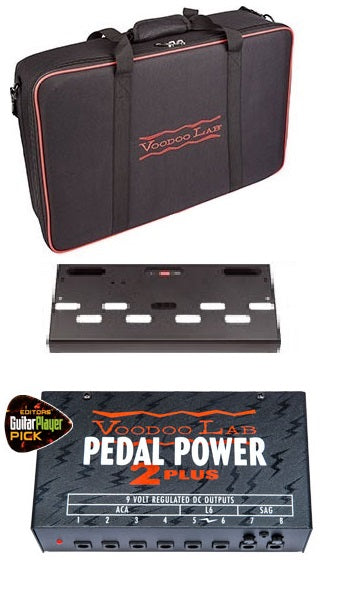

Get A Powered Maximum Surface Area To Manage Your Pedal Assortment - The Voodoo Lab Dingbat Aluminium Pedalboard W/ Pedal Power 2 Plus


The Voodoo Labr Dingbat series of pedal boards are the first guitar pedal boards to feature fully-integrated mounting. Crafted entirely in Sonoma County, California from superior American 6061-T6 aluminum, Dingbat pedal boards are extremely durable and lightweight. Dingbat provides guitar and bass players maximum surface area to manage their pedal assortment while keeping cabling and power supplies tucked neatly beneath the board and out of view. Dingbat is available in three distinct sizes to meet each player's needs. Each Dingbat pedal board ships with a padded carrying bag that features high-quality YKK zipper hardware and both a shoulder strap and backpack straps for easy transportation.

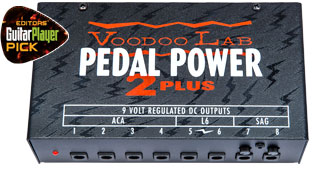

About the Pedal Power 2 Plus Power Supply:

Filter, regulate, isolate, and protect! Pedal Power 2 Plus does it, and does it well, because any less will degrade your pedal’s performance. Players everywhere upgrade to Pedal Power 2 Plus because it powers what conventional power supplies can’t. Pedal Power 2 Plus is hand made in the U.S.A., comes complete with cables, detachable AC power cord, a 5-year warranty, and simply makes you sound better!

*Includes Voodoo Lab Pedal Power 2 Plus Power Supply

*Pedals Sold Separately



  • Lightweight American 6061-T6 aircraft-grade Aluminum chassis
  • Mounting brackets for Voodoo Lab Pedal Power power supplies
  • Plenty of room for mounting up to two Pedal Power units below pedalboard
  • Adhesive-backed hook-and-loop pedal mounting fasteners
  • UV-resistant cable ties and 4-way tie mounts
  • Professional tour grade padded gig bag w/premium YKK Zippers – Shoulder strap and backpack straps included
  • Made in the U.S.A.

Pedal Power® 2 Plus Features:

9/12V (x4) – Standard 9V and 12V Boss ACA - With each one of these four outputs delivering 100mA, you can easily power any 9V battery-operated pedals. Boss pedals that specify the PSA adapter operate at 9V like most other pedals. Boss pedals that require the ACA adapter operate at 12V which can be selected via switches underneath the Pedal Power 2 Plus. Any one of these outputs can be individually selected to run at 9V or 12V.

9V (x2) – High Current 9V and Line 6 Modelers - These two outputs each deliver 250mA allowing you to run high current draw effects like the Boss DD-20 Giga Delay or Line 6 DL4 Delay Modeler. Via switches underneath the Pedal Power 2 Plus, these two outputs can be separately configured for regulated (Boss Twin Pedals) or unregulated (Line 6 Modelers) power allowing you to run both units if so desired. These outputs can also power any standard 9V effects as well.

9V (x2) – Standard 9V With Battery Sag Control - These outputs each have an available 100mA of power, but also allow you to SAG the voltage from roughly 4V to 9V. This feature can be enabled via the bottom panel switches. The SAG control is mostly useful for transistor-based fuzz, octavia, and distortion circuits, as most modern opamp designs are minimally affected by variations in supply voltage. We recommend turning SAG off if you’re going to run digital pedals like delay, chorus, and reverb.

18V/24V – Using Custom Cables - All of the outputs on the Pedal Power 2 Plus (and the original Pedal Power) are completely isolated allowing you to create different voltages. You can run effects like the current MXR Flanger by combining two 9V outputs to create a single 18V supply. By switching two outputs into 12V ACA mode, you can join them together to create a 24V output for powering numerous Electro-Harmonix stompboxes including the Deluxe Memory Man.



PEDAL POWER 2 PLUS POWER SUPPLY: SPECIFICATION

INPUT

  • IEC connector:
  • 120V 50/60Hz (North America model)
  • 100V 60Hz (Japan model)
  • 230V 50/60Hz (Europe/Australia model)
  • Model and input power are marked on the bottom of unit.

OUTPUT

  • 5.5x2.1mm barrel connectors - center negative
  • Short circuit protected

DIP Switch "NORMAL" - Output: 1-4 (ACA)

  • DC Voltage: 9v
  • Max current: 100mA

DIP Switch "NORMAL" - Output: 5-6 (L6)

  • DC Voltage: 9v
  • Max current: 250mA

DIP Switch "NORMAL" - Output: 7-8 (SAG)

  • DC Voltage: 9v
  • Max current: 100mA

DIP Switch "ON" - Output: 1-4 (ACA)

  • DC Voltage: 12.3V
  • Max current: 60mA

DIP Switch "ON" - Output: 5-6 (L6)

  • DC Voltage: 14.5V / 12V (unregulated)
  • Max current: 50mA / 200mA+

DIP Switch "ON" - Output: 7-8 (SAG)

  • DC Voltage: Adjustable 4V - 9V
  • Max current: 100mA

INCLUDED CABLES:

  • 5.5x2.1mm right angle barrel connectors (6)
  • 5.5x2.1mm straight barrel connectors (2)
  • 5.5x2.5mm “red” barrel for L6 (1)
  • 3.5mm mini plug for vintage MXR or Electro-Harmonix (1)
  • 9V battery snap for pedals without a power jack (1)

PHYSICAL

  • 6" wide x 3.4" deep x 1.8" tall (152 x 86 x 44 mm)
  • Weight: 2 lbs. (0.9 kg)

SPECIAL

  • Toroidal power transformer
  • Rear Courtesy Auxiliary AC outlet, 200 watts max

Manufacturer: Voodoo Lab
Model: DBSP
SKU: I467019-N-0-WHXA
UPC: 813140004124
