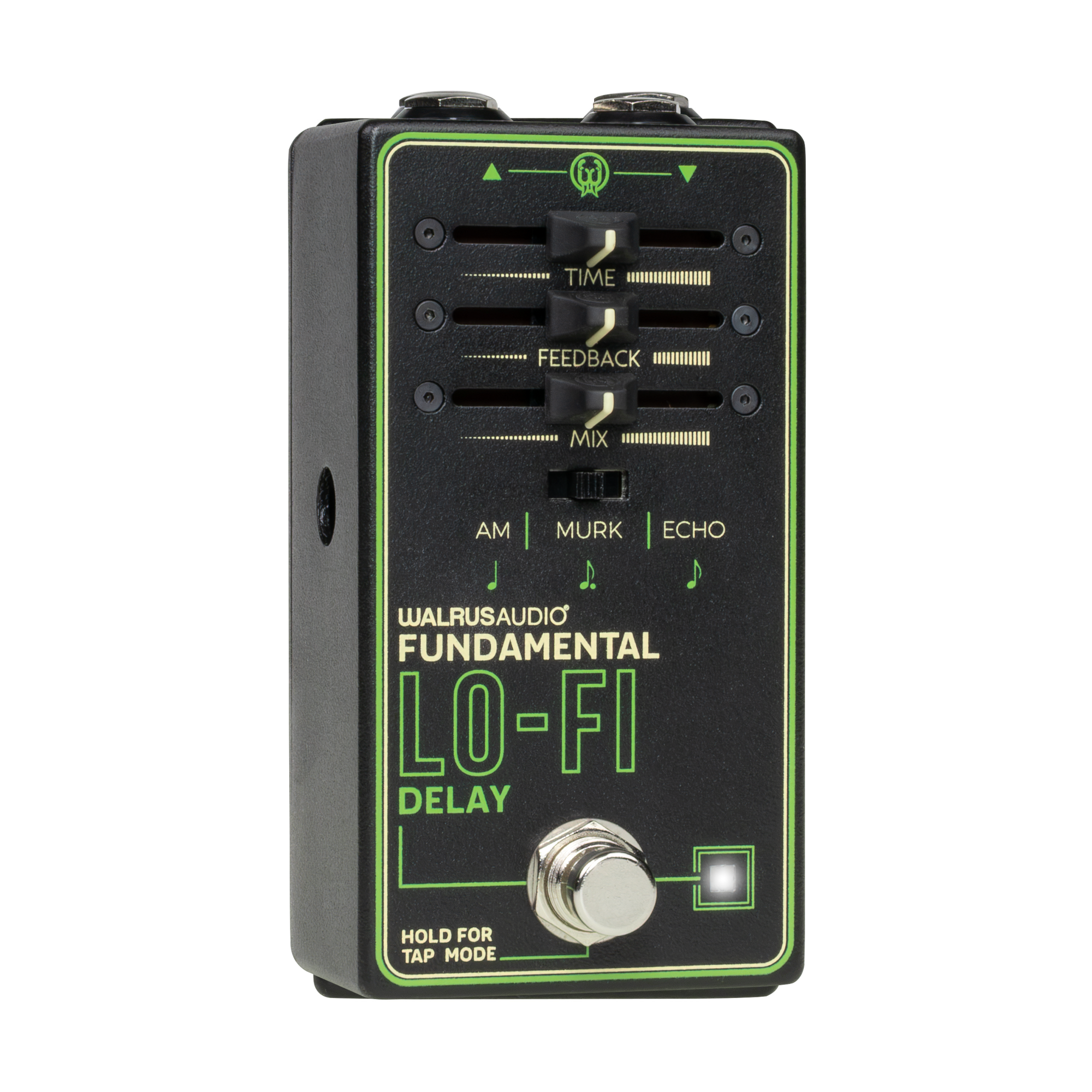

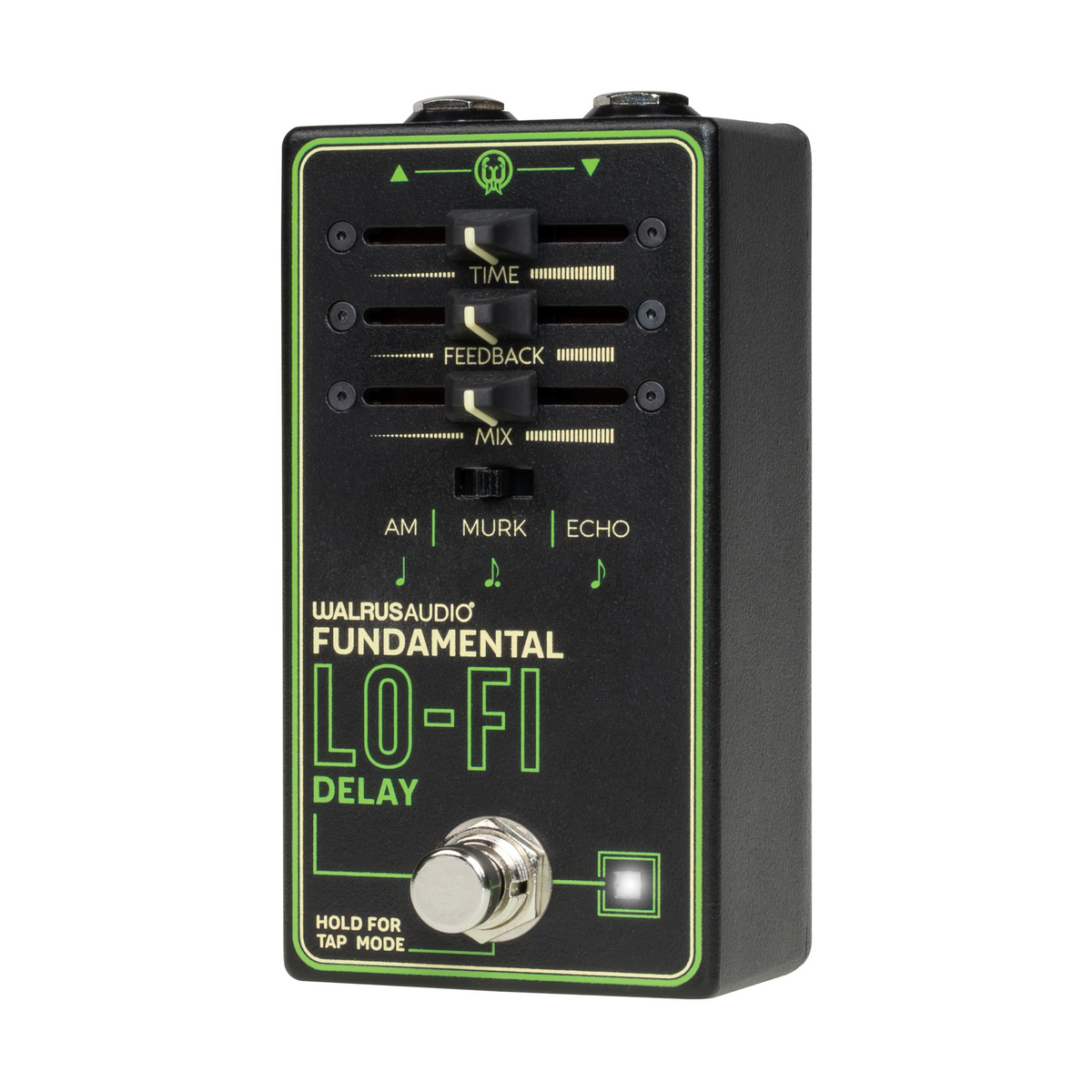

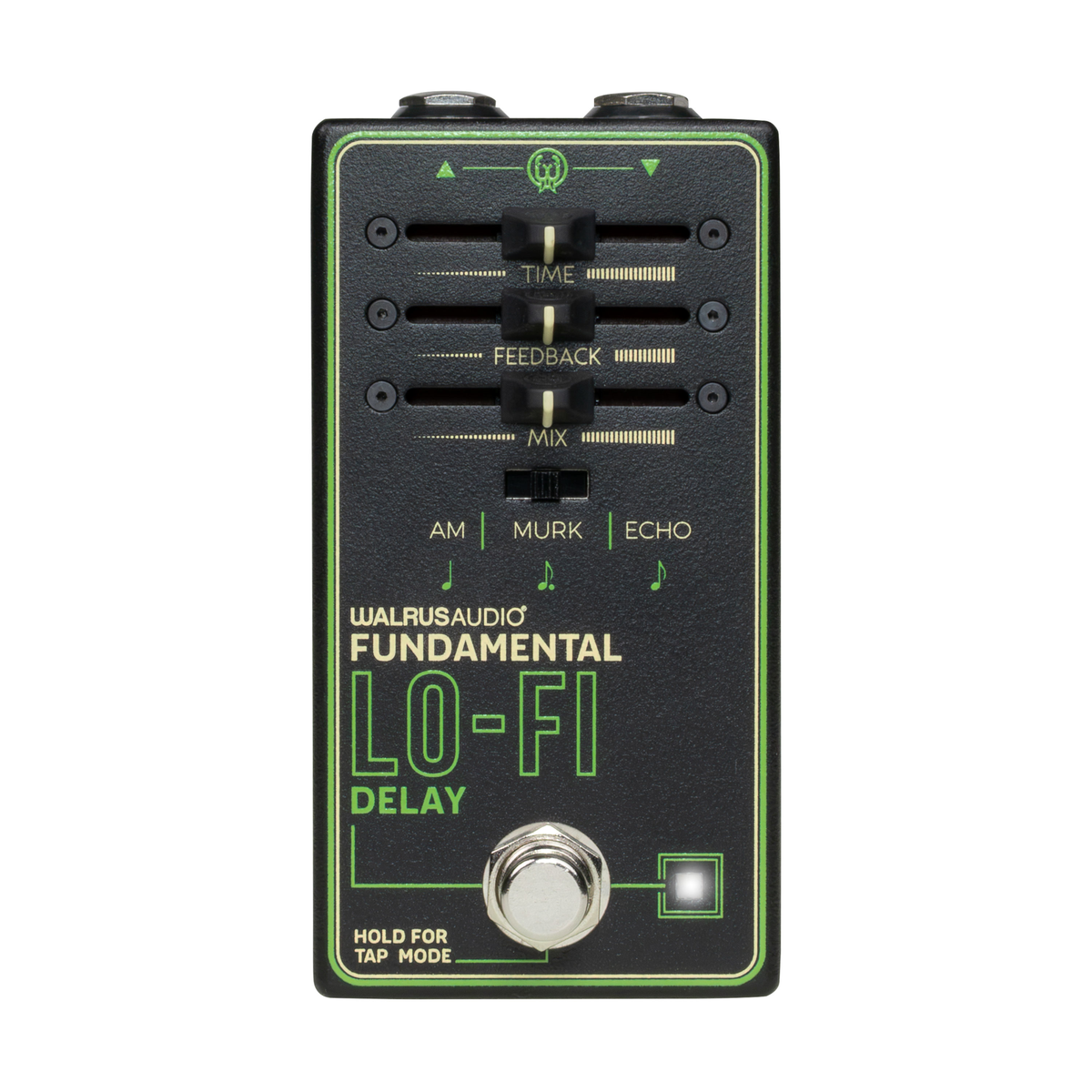

Walrus Audio Fundamental Series Lo-Fi Delay Pedal

Textured Haze - The Walrus Audio Fundamental Series Lo-Fi Delay Pedal

The Fundamental Lo-Fi Delay turns familiar echoes into shifting, imperfect textures. Move from bright, wow-and-flutter-soaked chimes to dark, undulating clouds, or build rhythmic, multi-tap echoes with analog-style character. Whether the goal is subtle movement, hazy ambience, or shifting rhythmic patterns, three sliders and a three-way switch make it easy to find the right sound.

Time

Sets the time between delayed repeats. Move the slider left to bring the echoes closer together, or right to add more space between each repeat. Max delay time is one second.

Feedback

Controls the number of delay repeats. Move the slider left for a single echo, or right for long, evolving trails that approach infinite repeats.

Mix

Controls the balance between the delay effect and the original clean signal. All the way to the left outputs a fully clean signal, and all the way to the right outputs only the delay repeats at 100% wet.

Slide Switch

The slide switch allows players to change between three distinct delay algorithms.

AM

A bright delay with a high-pass filter, light harmonic distortion, and dual wow and flutter modulation on the repeats that melt away into a hazy backdrop full of character and gentle pitch movement. Echoes degrade and thin almost like they're coming through a fading AM radio signal, creating a texture that works well for dreamy leads, open chords, and washy backdrops.

Murk

Dark, dense, and responsive. Murk rolls off the high end and adds heavy distortion with dual low-frequency modulation to push repeats into a thick, undulating cloud. Slow modulation makes the delay compress and expand with the dynamics of the playing, making it ideal for shadowy ambience, brooding melodies, and worn lo-fi textures. Keep Feedback low to add shadowy movement under riffs. Push it higher to build repeats into a pulsing cloud that swells and shifts around every note.

ECHO

A rhythmic, multi-tap delay with analog-style tone shaping. At short delay times, the taps gather into dense, lo-fi ambience that sits between an echo and a reverb. At longer delay times, they spread into syncopated, hypnotic patterns that can add movement and cascading trails that weave around the playing, or help players lock into a new groove.

Slide Switch Secondary Control

Controls the tap division when tap mode is engaged.

• Quarter Note

• Dotted Eighth Note

• Eighth Note

Tap Mode

Enter tap mode by holding the bypass switch until the LED begins flashing. Once the LED is flashing, tap mode is engaged, and the bypass switch functions as a tap tempo switch.

Trails Mode

The Lo-Fi Delay comes with trails mode active by default. To turn trails mode off, hold down the bypass switch while applying power to the pedal. The LED will flash to confirm that trails mode is off. To turn trails mode back on, repeat the process and wait for the LED to turn dark. With trails mode active, delay repeats will fade naturally after the pedal is bypassed. With trails mode inactive, the repeats will stop immediately when the pedal is bypassed.

SPECIFICATIONS

• Color: Black finish with green and off-white ink
• Dimensions: H: 2.23" x W: 2.42" x D: 4.57"
• Power Requirements: 9 VDC Center Negative (100mA minimum)
