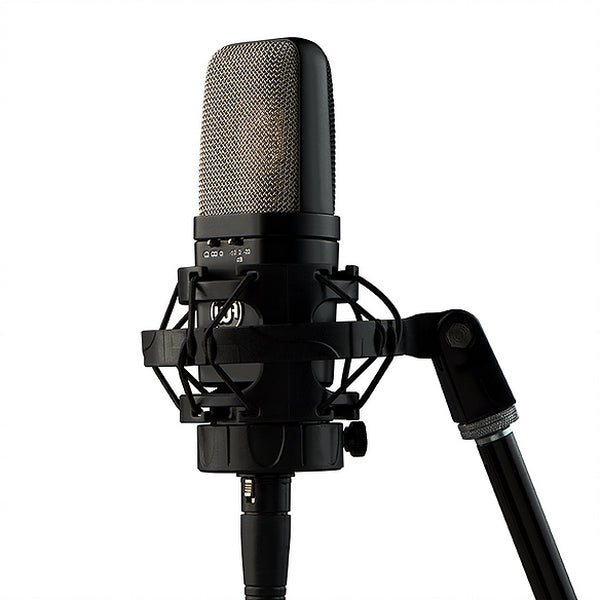

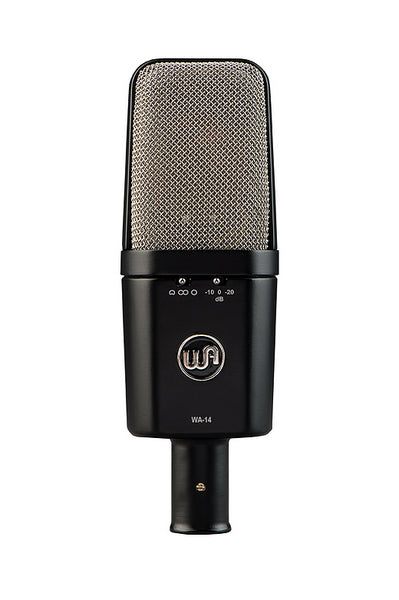

Warm Audio WA-14 Large Diaphragm Condenser Microphone

Get Realism And Thickness That Is True To The Vintage Sonics, Now At An Affordable Price - The Warm Audio WA-14 Large Diaphragm Condenser Microphone

Introducing the WA-14 Large Diaphragm Brass Capsule Condenser Microphone. Based on the classic condenser microphone that has been used on countless hit records. The WA-14 utilizes classic circuit topology, including the coveted all-brass CK12 capsule design and a custom premium CineMag USA transformer. The WA-14 can be used on an array of sources, which includes: punchy warm and intimate lead vocals, aggressive guitars and heavy percussion. The WA-14 provides a realism and thickness that is true to the vintage sonics, but now at an affordable price.

Quality Components Make A Better Mic

Featuring a custom wound transformer by boutique CineMag USA transformers and an all discrete signal path featuring polystyrene, tantalum and WIMA capacitors. The WA-14 also features our high quality Lens Kondensator LK-12-B-60V capsule, which is a reproduction of the vintage, all-brass, edge-terminated CK12 dual backplate/dual membrane capsule.

Pattern Select Switch

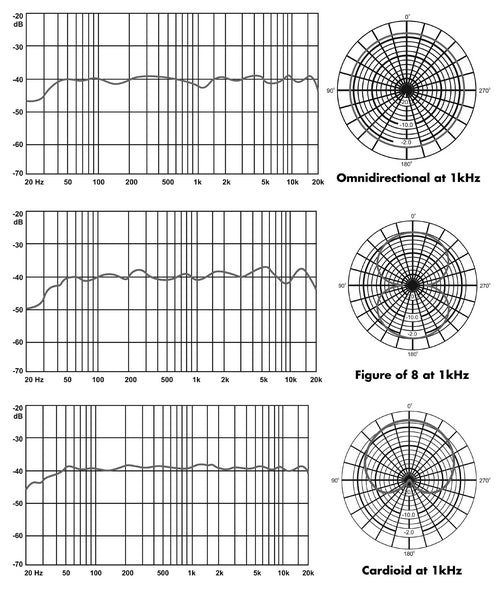

This switch selects the polar pattern for the WA-14. The three polar pattern options are (from left to right) Cardioid, Figure Of Eight, and Omnidirectional.

Adjustable Pad

This switch pads the microphone's output. The three available positions are (from left to right) -10, 0, -20db.

XLR Output

The WA-14's output is a balanced, gold-contact 3-pin XLR which accepts a standard XLR to XLR shielded microphone cable.

SPECIFICATIONS

• Large diaphragm condenser microphone with variable pad and three polar patterns
• Features our own “Lens Kondensator” LK-12-B-60V reproduction of the edge-terminated, dual-backplate, all-brass
• Vintage CK12 capsule
• Custom CineMag USA transformer
• Includes shock mount
• Frequency range: 20Hz to 20kHz
• Output pad: 0dB, -10dB, -20dB
• Cardioid, figure of eight and omnidirectional patterns
• Impedance: 150 ohms
• Connector: 3-pin XLR
• Requires +48V phantom power
• Color: black (painted)
• 1 year warranty
