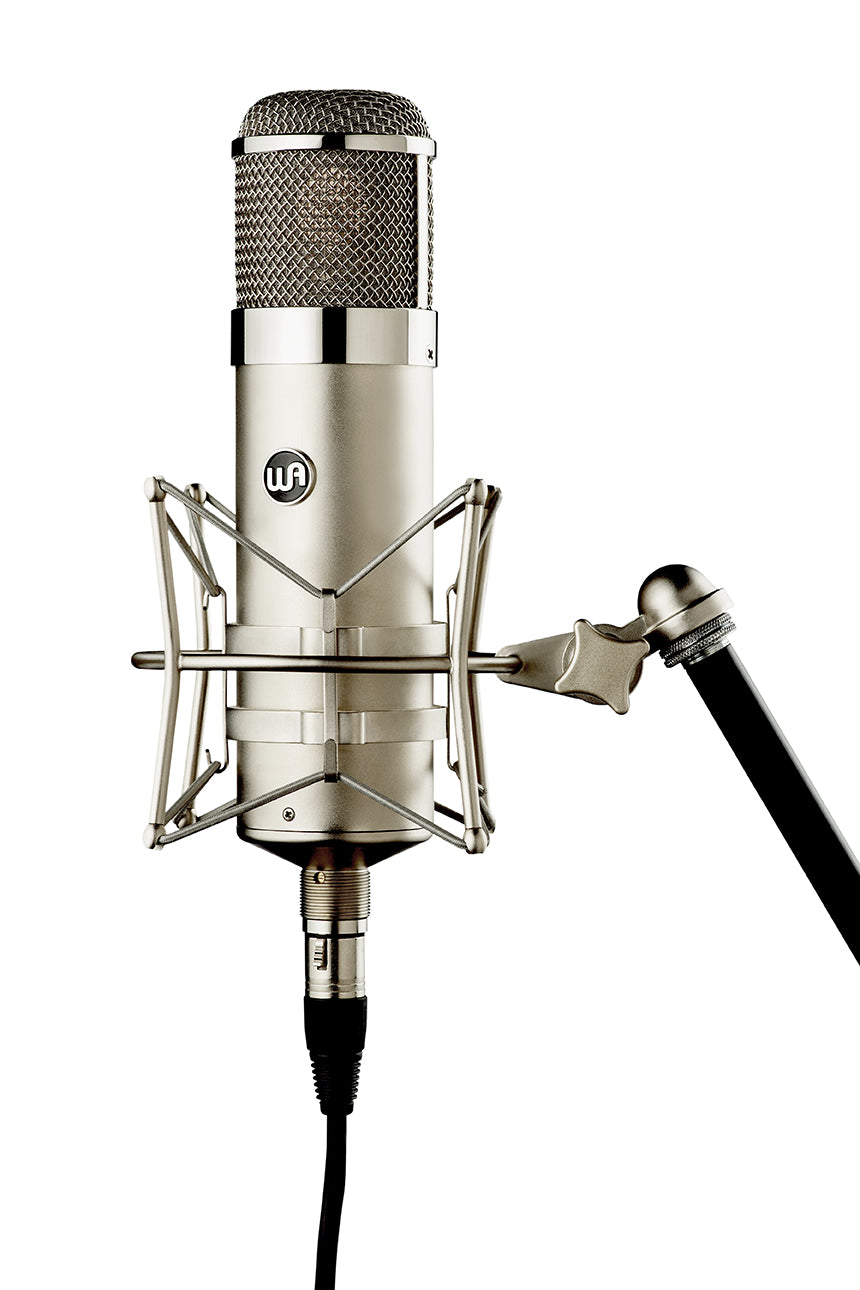

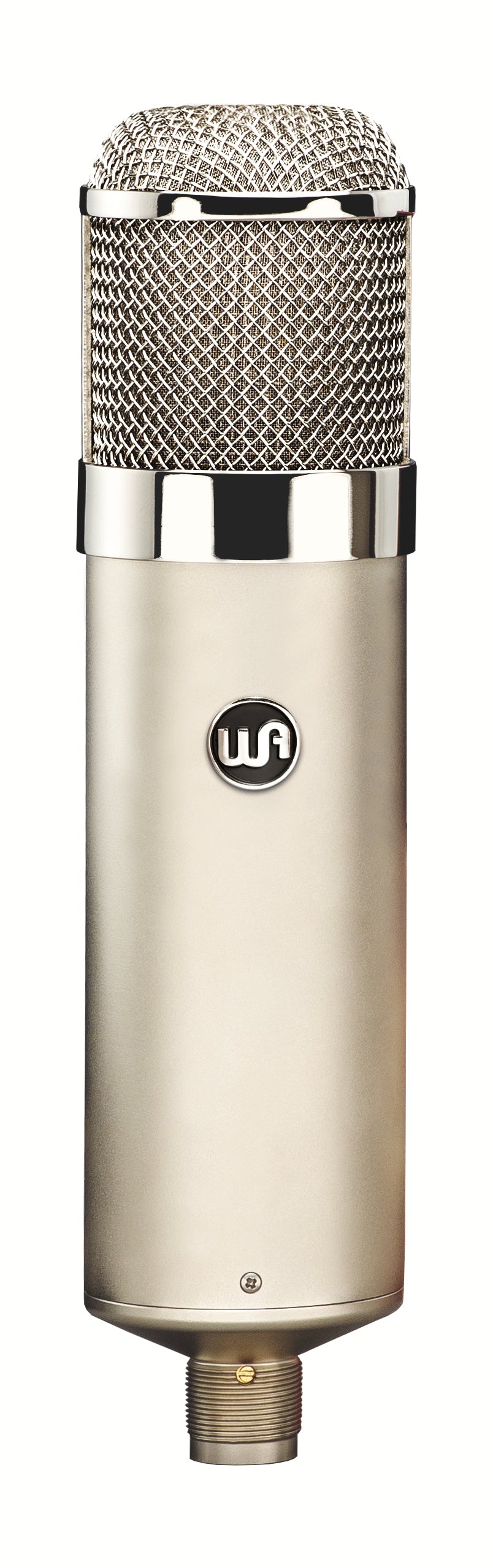

Warm Audio WA-47 Tube Condenser Microphone

Get Carefully Reproduced Vintage Specs With The Warm Audio WA-47 Tube Condenser Microphone

The WA-47 is an all vacuum tube, large diaphragm, transformer balanced, multi-pattern (9), large condenser microphone, based on the classic wa-47 that has been used on countless hit records for the last 50+ years. The WA-47 is designed for pro studio, home studio, live, and broadcast applications and sounds great on vocals, acoustic/electric guitars, acoustic/electric bass, drums, piano, strings, brass/woodwind instruments, and an array of other sources. The classic 47 became extremely popular in the 1960 and is now considered one of the greatest microphones every made. The classic 47 is still widely used today in professional recording studios but have become extremely rare and expensive to acquire.

Designing the WA-47 to sound like the classic 47 was no easy task, especially considering that some of the vintage components are no longer available. Warm Audio compared and listened to 2 different vintage 47 mics and found that they both sounded amazing but also sounded a little different from each other. These comparison tests became the benchmark for tailoring the WA-47 sonics to sit right in with these 2 vintage47 mics. Warm Audio are pleased to release such a gorgeous sounding classic to the market at a price that's reachable to more people than ever before. They are also proud to mention that the WA-47 sounds legitimately indistinguishable to the vintages Warm Audio auditioned on several sources.

Warm Audio focuses heavily on quality components to ensure that they release the best sounding product possible. The WA-47 is packed with top end components that are carefully sourced from many of the top pro audio component suppliers in the world.

The Capsule

The WA-47 utilizes a custom reproduction of the vintage 47-style capsule that was used in the classic 47 microphone - designed with the same hole pattern and frequency response. Warm's version of this capsule (model# WA-47-B-80v) is carefully manufactured by an Australian capsule manufacturer, and its precision allows them to nail the sonics for the most important sonic piece of the microphone.

The Tube

A Slovak Republic JJ 5751 vacuum tube is a lower gain, low noise tube that forces much of the sonics of the capsule and transformer to be heard more significantly than some higher gain tubes might allow. Warm auditioned 4 different tube brands and fell in love with the JJ 5751. The frequency response of the JJ and the way it contributes to the circuit is tonally smooth and vintage in nature.

The Transformer

An American made TAB-Funkenwerk (AMI) USA transformer with large core imported German laminations is used in the WA-47. This transformer helps provide the creamy smooth top end, and the LARGER THAN LIFE bottom end one would expect from a 47-style condenser microphone.

The Cable

One component of a tube microphone that is often overlooked is the 7 pin cable that connects the microphone to its power supply. When auditioning the WA-47 and other tube microphones Warm learned quite a bit about 7 pin cables and how the shielding and wire gauge size can drastically change the sonics of a tube microphone. Warm have partnered with Gotham Cable in Switzerland to use their very carefully built top-end 7 pin GAC-7 cable. Using this cable increases top end presence and the overall size of the recorded image in the stereo field, by reducing phase shift and the parasitic effect of poorly built cables. Gotham Cabling is very expensive and boutique in nature and should be considered no small addition to the WA-47 package.

The Capacitors

The WA-47 proudly uses a polystyrene coupling capacitor for uncompressed top-end response from the capsule, wima film capacitors throughout, and an imported Solen French capacitor on its output.

SPECIFICATIONS

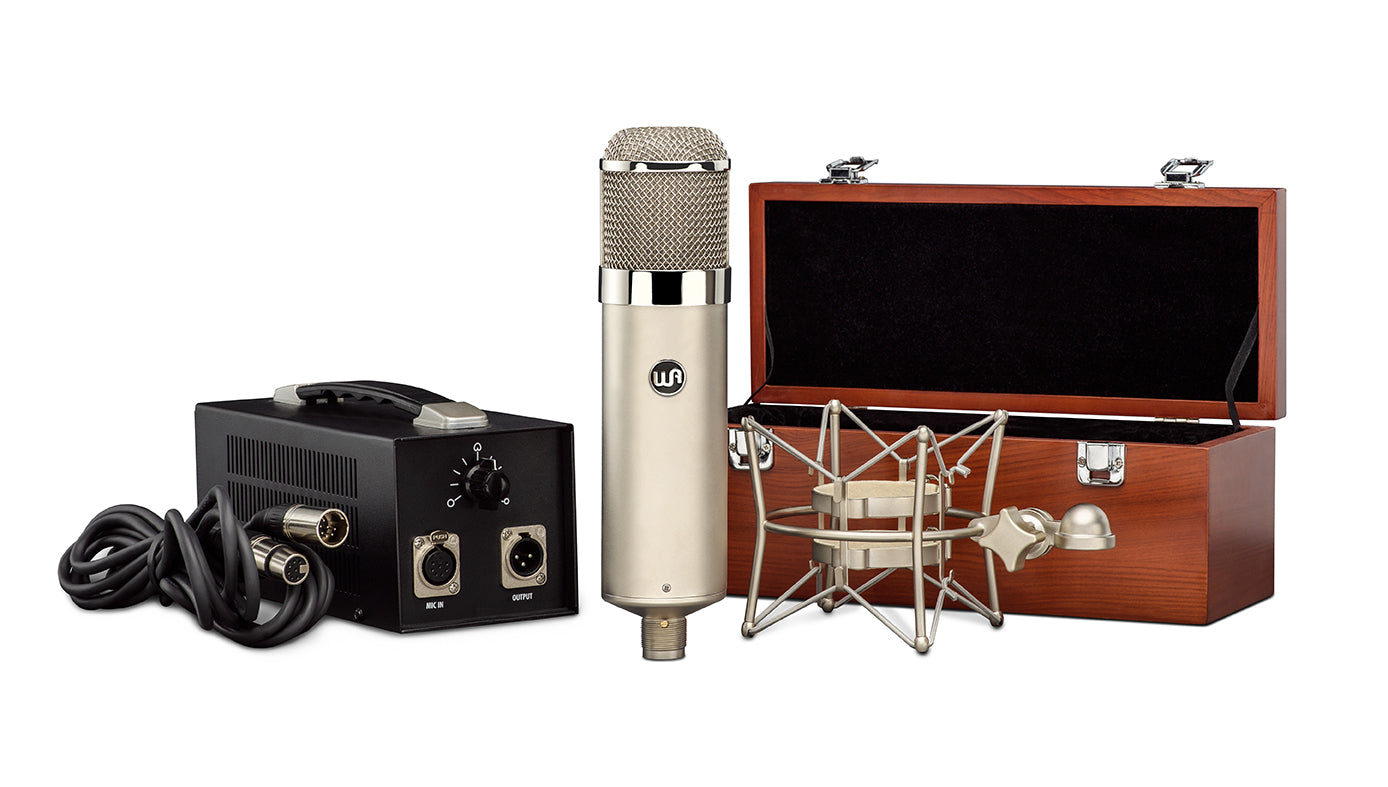

• Includes: Microphone, Wood box, PSU, Shockmount, Gotham 7 pin GAC-7 cable, IEC power cable
• Custom true '47 capsule reproduction (k47 style) - Model# WA-47-B-80v
• Capsule makeup: Gold sputtered, dual large diaphragm, single backplate, 6 microns NOS mylar (PET film)
• TAB-Funkenwerk (AMI) USA output transformer
• JJ Slovak 5751 vacuum tube
• Gotham 5 meter GAC-7, 7-pin tube microphone cable
• Wima, Solen French, and Polystyrene capacitors
• Polar Patterns: 9 patterns - Cardioid, Omni, figure-of-eight + 6 mixed patterns
• Self-noise: 11dBA
• Dynamic range: 130dBA
• Maximum SPL: 140dB (<0.5% THD)
• Frequency Range: 20 Hz~20 kHz
• Output Impedance: 200 ohms
• Rated Load Impedance: Greater than or equal to 2k Ohms
• S/N Ratio: 82dBA
• Equivalent Noise: 10dBA (IEC651)
• External IEC grounded PSU
• Total Weight - 9 lbs
• Mic Diameter: 90mm
• Mic Length: 254mm
