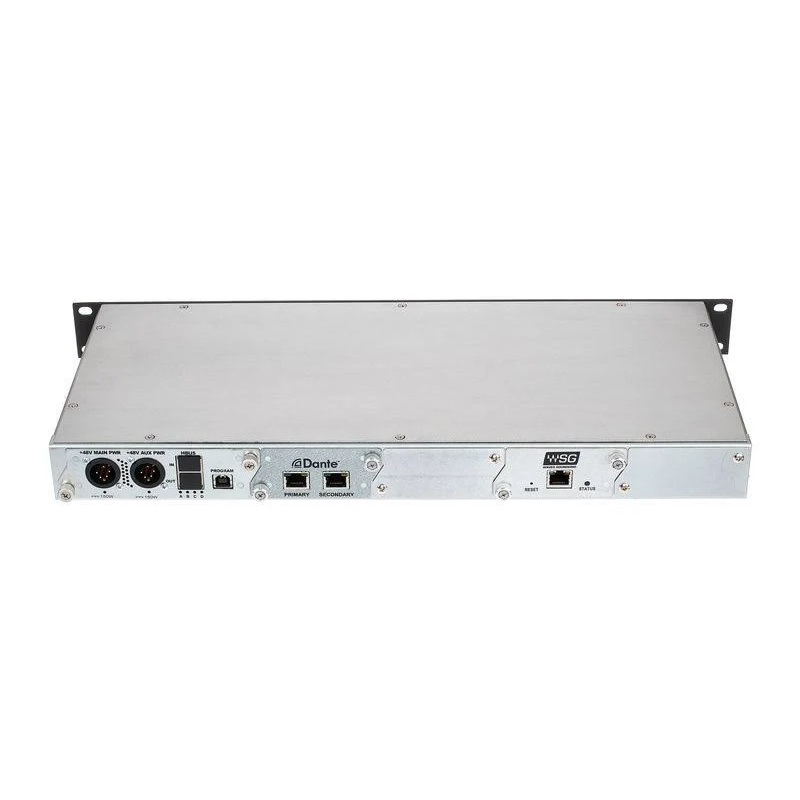

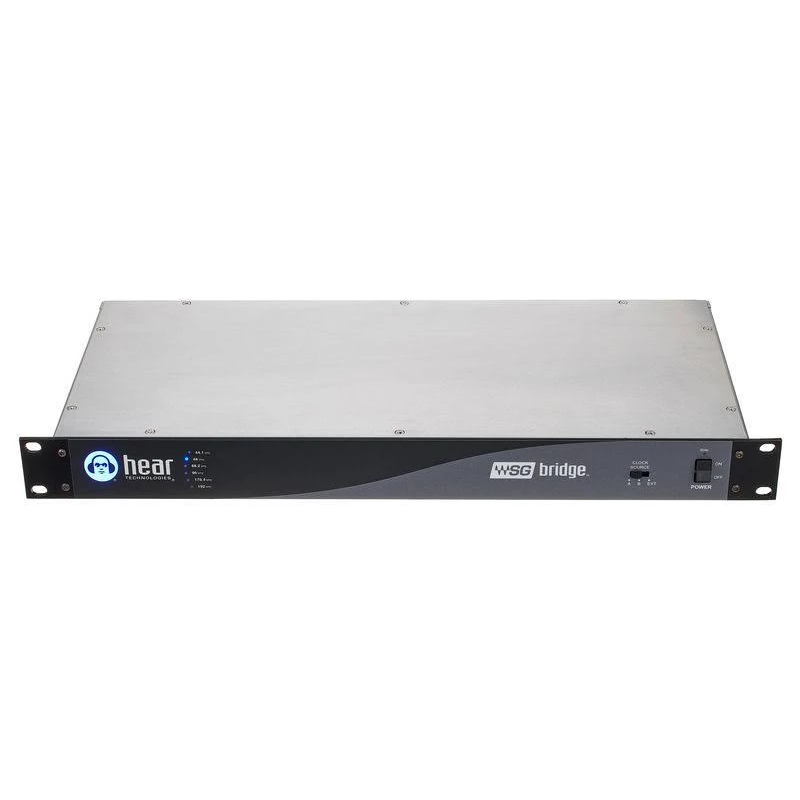

Waves Hear Technologies WSG Bridge for Dante
MSRP: $249900
Couldn't load pickup availability
About Inventory Status
About Inventory Status
Questions? Call or text us at 301-946-8808.
♫ In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.
📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.
❓ Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.
❔ Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.
█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.
About Item Conditions
About Item Conditions
Questions? Call or text us at 301-946-8808.
New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.
Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.
Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.
Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.
Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.
B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.
Description
Description
Bridge SoundGrid and Dante Networks with the Hear Technologies WSG Bridge for Dante
The Hear Technologies WSG Bridge for Dante is a rackmountable audio bridge designed to route audio between Waves SoundGrid and Dante networks. With up to 64 channels of bidirectional audio, low-latency performance, and support for Waves real-time plugin processing through a SoundGrid system, the WSG Bridge helps integrate Dante-based live sound, broadcast, and installed audio systems with Waves SoundGrid workflows.
- Bridges Waves SoundGrid and Dante audio network protocols
- Routes up to 64 channels of bidirectional audio between Dante and SoundGrid networks
- Enables Waves and third-party SoundGrid plugin processing in Dante-based systems
- Typical one-way latency as low as 0.520 ms at 96 kHz
- Supports sample rates from 44.1 kHz to 96 kHz for Dante and SoundGrid card operation
- Clock source options include Dante, SoundGrid, and future external clock input
- Standard 1U rackmount enclosure for professional system integration
- USB 2.0 port for firmware updates and future connectivity
- Port for optional redundant power supply
- Requires SoundGrid audio interface driver installation to function
Add Waves Real-Time Processing to Dante Networks
The WSG Bridge for Dante allows engineers to bring Waves plugin processing into Dante network environments. When paired with a Waves SoundGrid Server, the bridge enables low-latency processing for up to 64 channels, making it useful for live sound, broadcast, theater, worship, and installed audio systems.
Bidirectional Dante and SoundGrid Routing
Fluent in both SoundGrid and Dante, the WSG Bridge can route audio in either direction between the two protocols. This makes it possible to connect Dante network audio to SoundGrid processing, SoundGrid interfaces, or Waves eMotion LV1-style workflows.
Low-Latency Network Performance
The bridge is designed for fast network audio transfer, with typical one-way latency under 1 ms at supported sample rates. For round-trip routing, latency is exactly double the listed one-way values, not including A/D conversion, D/A conversion, or plugin processing time.
Rackmount Integration and Power Redundancy
The 1U rackmount enclosure fits into standard professional racks for clean installation. A redundant power supply port is included, with the secondary power supply available separately for systems that require additional power reliability.
SPECIFICATIONS
General
- Product Type: Dante to SoundGrid audio bridge
- Model: Hear Technologies WSG Bridge for Dante
- Function: Bridges Waves SoundGrid and Dante network protocols
- Rack Size: 1U
- Mounting: Standard rack mount
- Status: Product discontinued
- Recommended Replacement: Hear Technologies Dante-WSG XS
System I/O
- Bidirectional Audio Channels: Up to 64 channels between Dante and SoundGrid
- Clock Source A: Input A as clock master, Dante
- Clock Source B: Input B as clock master, SoundGrid
- Clock Source EXT: Future external clock input with optional future external word-clock I/O card
- System Sampling Rates: 44.1, 48, 88.2, 96, 176.4, and 192 kHz
- USB Port: USB 2.0 for firmware updates and future connectivity
- Card Slots: Accepts analog input cards, digital input cards, output cards, or 8-port Mixer network card
- HBUS Input: 8-pin RJ45 jack for future expansion
- HBUS Output: 8-pin RJ45 jack for future expansion
Latency
- Typical Dante to SoundGrid or SoundGrid to Dante Latency at 44.1 kHz: 0.787 ms
- Typical Dante to SoundGrid or SoundGrid to Dante Latency at 48 kHz: 0.778 ms
- Typical Dante to SoundGrid or SoundGrid to Dante Latency at 88.2 kHz: 0.580 ms
- Typical Dante to SoundGrid or SoundGrid to Dante Latency at 96 kHz: 0.520 ms
- Round-Trip Latency: Exactly double the one-way latency values
Waves SoundGrid Card
- Audio Inputs: 64
- Audio Outputs: 64
- Connection: 8-pin RJ45 jack, 1000BaseT Ethernet for SoundGrid audio network
- Supported Sampling Rates: 44.1, 48, 88.2, and 96 kHz
Dante Card
- Audio Inputs at 44.1 kHz or 48 kHz: 64
- Audio Inputs at 88.2 kHz or 96 kHz: 32
- Audio Outputs at 44.1 kHz or 48 kHz: 64
- Audio Outputs at 88.2 kHz or 96 kHz: 32
- Connection: 8-pin RJ45 jack, 100BaseT or 1000BaseT Ethernet for Dante audio network
- Supported Sampling Rates: 44.1, 48, 88.2, and 96 kHz
Power
- Main Power Requirement: 48 VDC, 400 mA
- Secondary Redundant Power Requirement: 48 VDC, 400 mA
- External Power Supply Input Voltage: 100 VAC to 240 VAC, 50/60 Hz
- Redundant Power Supply: Optional, available separately
Dimensions
- Dimensions: 1.75 x 19 x 8.5 inches / 44.5 x 483 x 216 mm
Weight
- Unit Weight: 6.3 lb / 2.8 kg
Manufacturer: Waves
Model: BRDG
SKU: I939465-N-0-WHX
