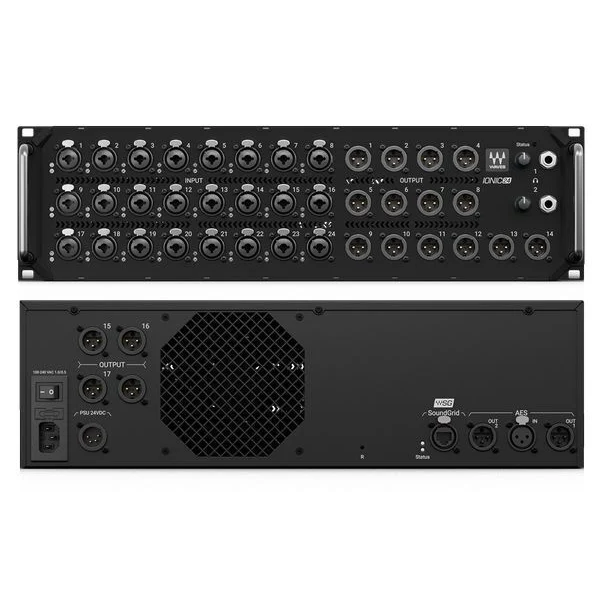

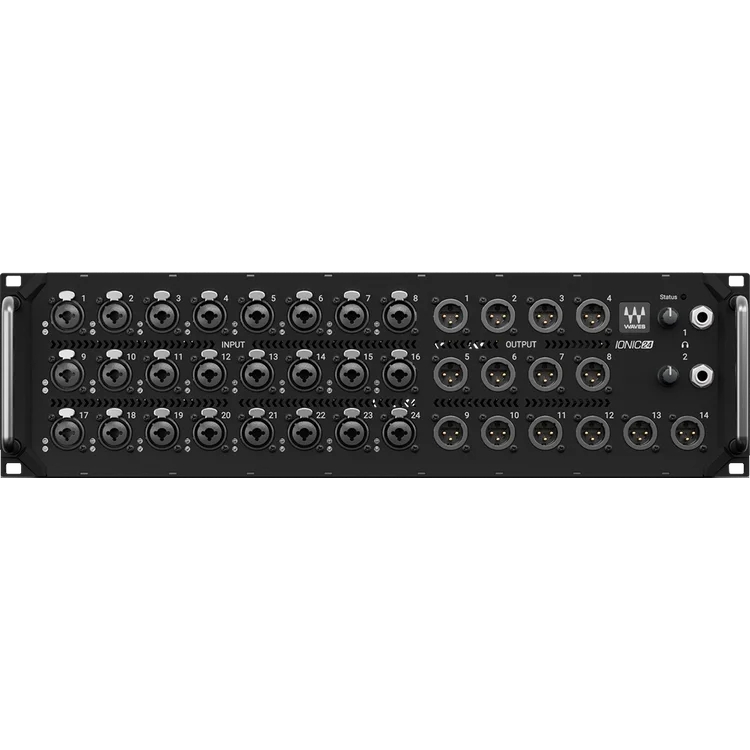

Experience Unparalleled Punch and Clarity - The Waves Ionic 24 Digital Stagebox
Experience unparalleled punch and clarity, ensuring your sound stands out in any scenario. Engineered for excellence, IONIC 24 is crafted to enhance every input, from vocals to snare drums, delivering superb sound quality with uncompromising precision. At the heart of IONIC 24 are Waves Signature Preamps—originally designed preamps with fully discrete analog circuits. Waves Signature Preamps deliver maximum headroom, lightning-fast transient response, and an incredibly low noise floor, plus your choice between transparent preamp sound and added rich harmonic enhancement per input.
- 24 in / 18 out SoundGrid stage box with superior audio quality
- Seamless integration with the console
- 24 mic/line inputs with original-design Waves Signature Preamps
- 18 crystal-clear line outputs (selectable between 18/24 dBu)
- Stereo AES: 1 in / 2 out, two independent headphone outputs
- Analog-modeled harmonic enhancement per input (optional)
- Sample Rates: 44.1, 48, 88.2, 96 kHz
- Analog input impedance selector: classic 2kΩ / modern 7kΩ
- Road-ready 3U chassis: rugged build, rack-mountable
- 2-year warranty upon registration
- Optional external power supply available separately
SPECIFICATIONS
- Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
- Microphone/Line Inputs:
- Input Gain: adjustable from -3 dB to 60 dB in steps of 1dB
- Frequency response: +/- 0.1 dB, 20 Hz to 20 kHz; +/ -1.0 dB, 10 Hz to 40 kHz
- Dynamic range: >110 dB
- EIN: -130 dBu
- THD+N: -100 dB
- Input impedance: XLR: 2k ohms / 7k ohms, selectable; TRS: 14.6K ohms
- Input Sensitivity: XLR: -33 dBu to +27 dBu; TRS: -27 dBu to +33 dBu
- CMRR: 50 dB
- Crosstalk: > 90 dB
- 48V phantom power, switchable per input
- Input transformer simulation, switchable per input
- Signal presence and clip indicator per channel
- Line Output:
- Maximum output level: +18 dBu or + 24 dBu, switchable
- Frequency Response: +/- 0.1 dB, 20 Hz to 20 kHz @ 48 kHz SR
- THD+N: -100 dB
- Crosstalk: > 90 dB
- Residual output noise: -87 dBu
- Output impedance: 150 ohms
- Headphones Output:
- Adjustable output-gain up to 6V
- Frequency Response: +/- 0.1 dB, 20 Hz to 20 kHz @ 48 kHz SR
- THD+N: -80 dB
- Output impedance: 20 ohms
- AES3:
- Input / Output impedance: 110 ohms
- Input SR with auto conversion
- Output SR support: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
- SoundGrid: Ethernet 1GB
- Power: 100 V–240 V auto-switching PSU, Redundant PSU external input
- Operating Temperature: 0 to 35 degrees Celsius (32 to 95 degrees Fahrenheit)
- Dimensions: 19 x 12.2 x 5.17 inches (482.1 x 310.8 x 131.4 mm)
- Weight: 14.77 lbs (6.7 kg)
Manufacturer: Waves
Model: IONIC24
SKU: I811097-N-5-WHXC
