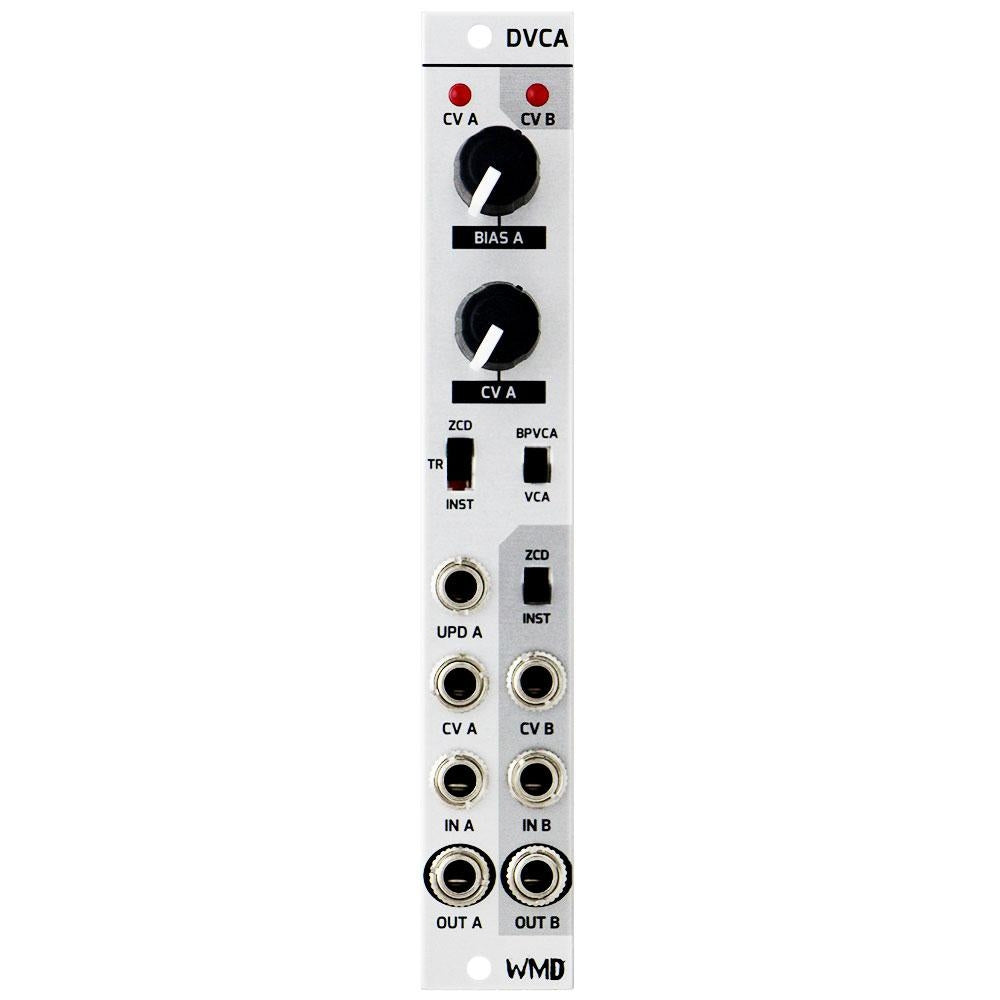

WMD DVCA Digital Voltage Controlled Amplifier Module


  • Our Price
  • Regular price $199.00





CALL FOR AVAILABILITY
• Inventory changes daily and this item may be out of stock
Contact us for availability | tel: 301-946-8808
• Please allow for additional delivery time due to COVID 19


Get The Newer, Better Version Of A Classic With The WMD DVCA Digital Voltage Controlled Amplifier Module

DVCA is a redux of WMD's classic Digital VCA module, giving it more features while reducing its size and power consumption.

Channel A is now unipolar/bipolar switchable, allowing for use as a bipolar VCA.

With control parameters for bias and CV, users can create classic ring modulation and attenuversion effects. Channel B still has the character and features of the Digital VCA.



  • Now in 4HP!
  • Dual VCA design
  • Channel A is a bipolar VCA
  • Channel A has bias and CV attenuversion
  • Low distortion/noise
  • VCA closes completely
  • Zero crossing detector
  • Gate/trigger detector
  • 8 bit CV resolution
  • Analog signal path
  • Great for ultra fast envelopes


  • Power: +12V = 72mA; -12V = 45mA
  • Size: 4 HP
  • Depth: 39mm
  • Absolutely No Bleed!

Manufacturer: WMD
Model: DVCA
Warranty: See manufacturer website for details
SKU: I553374-N-0
UPC: 857393003626
