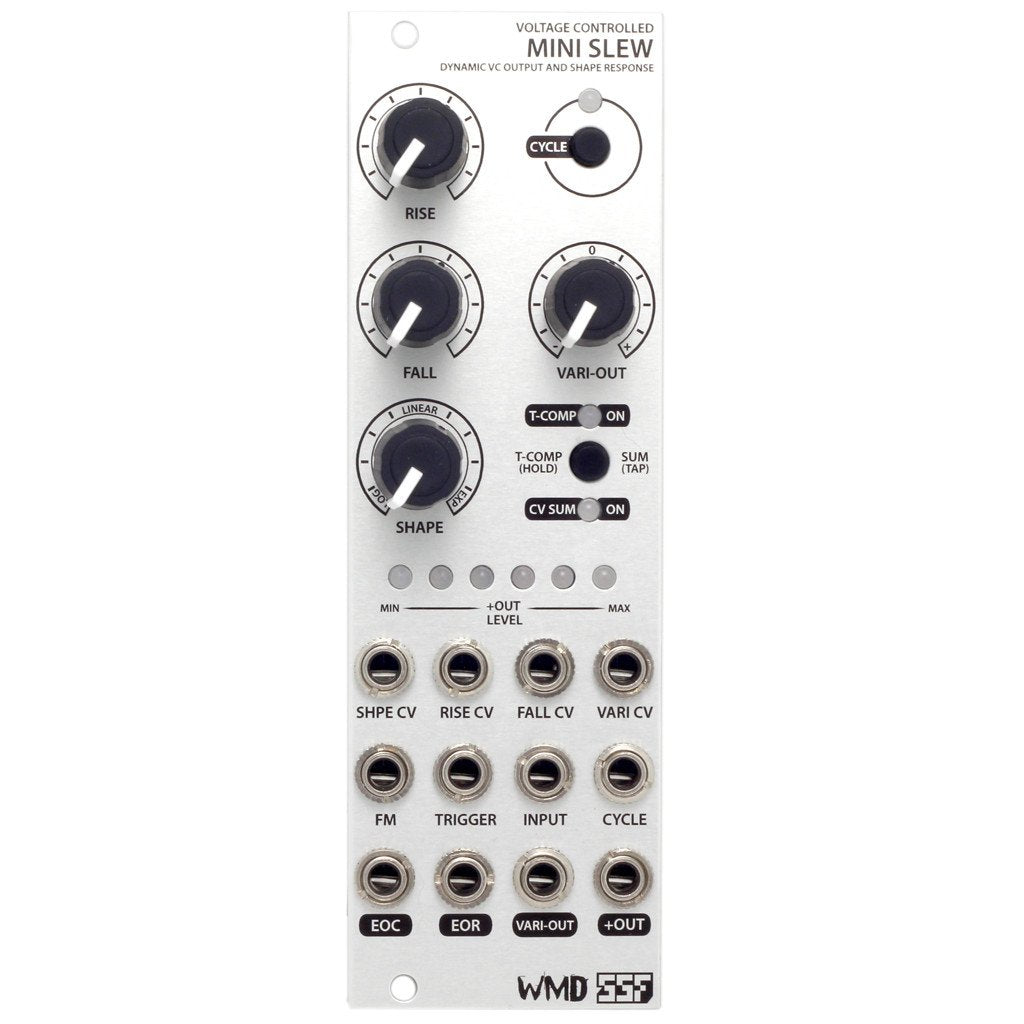

WMD/SSF VC Mini Slew Voltage Controlled Function Generator/Envelope

Get Extra Control Over Your Signal With The WMD/SSF VC Mini Slew Voltage Controlled Function Generator/Envelope

MINI SLEW is a feature packed function generator and voltage controlled slew limiter.

WMD collaborated with Andrew Morelli of Steady State Fate to create an entire line of versatile yet affordable modules.

• Generates transient functions using the rise, fall and shape controls.
• Generates complex functions using the voltage controlled shape and vari-out via direct CV inputs.
• Novel time compensation mode permits the timing of the transient to remain relatively constant while the shape parameter is adjusted.
• CV SUM mode permits a single CV patched into rise or fall to process both parameters or two CVs patched into rise and fall to be summed and applied to both parameters.
• VC cycle (toggle on/off)
• end of rise and end of fall outputs
• FM input and an LED voltmeter for monitoring the amplitude of the direct positive output.

SPECIFICATIONS

• Power: +12V = 70mA; -12V = 50mA
• Size: 8HP
• Depth: 25mm
