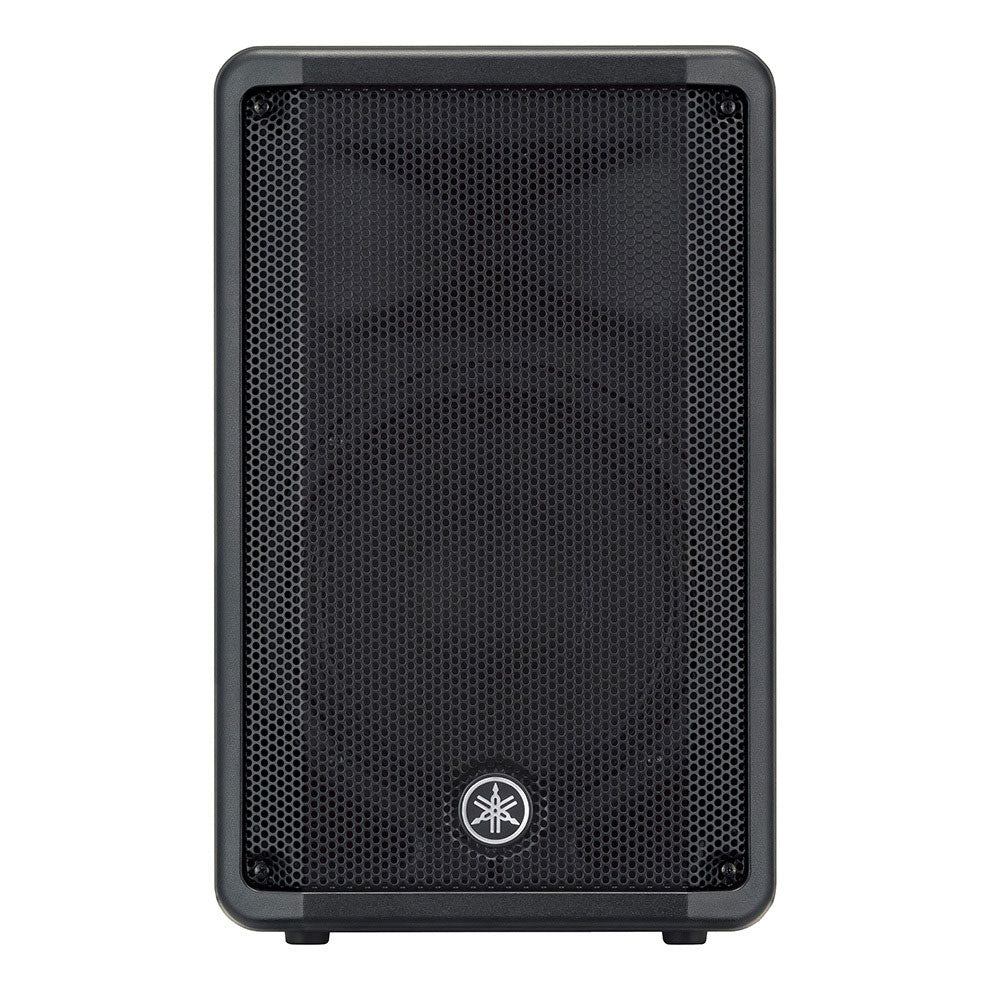

About the Yamaha CBR 10 Passive Loudspeaker
The Yamaha CBR Loudspeaker Series is a new lineup of passive loudspeakers developed by adopting the extensive knowledge of speaker design and acoustic technologies that Yamaha has accrued over a long and storied history of making speakers of every kind.
Combining a meticulous materials selection process, thorough customization of the audio components, and a fresh, innovative approach to speaker design, their engineering team's primary focus was to deliver high-power, high-definition sound in a highly portable and versatile design that is equally at home in front-of-house, floor monitoring, or rigged configurations.
The Yamaha CBR10 Loudspeaker is the most compact model in its series. While delivering astonishing power for its size and weight, the Yamaha CBR10 speaker is ideal for both portable and installed applications.
- Speaker type: 2-way Speaker, Bass-reflex Type
- Frequency range: (-10dB) 50 Hz - 20 kHz
- Components: LF 10" Cone, 2" Voice Coil (Ferrite Magnet) HF 1" Voice Coil, Compression Driver (Ferrite Magnet)
- Crossover: 2.8 kHz
- Power rating: Noise 175W,PGM 350W,Peak 700W
- Nominal impedance: 8Ω
- SPL: Sensitivity (1W; 1m on axis) 94dB SPL, Peak (Calculated) 123 dB SPL
- I/O connectors:1/4" Phone x 1, speakON NL4MP x 1
- Cabinet material: Plastic
Warranty: See manufacturer website for details
