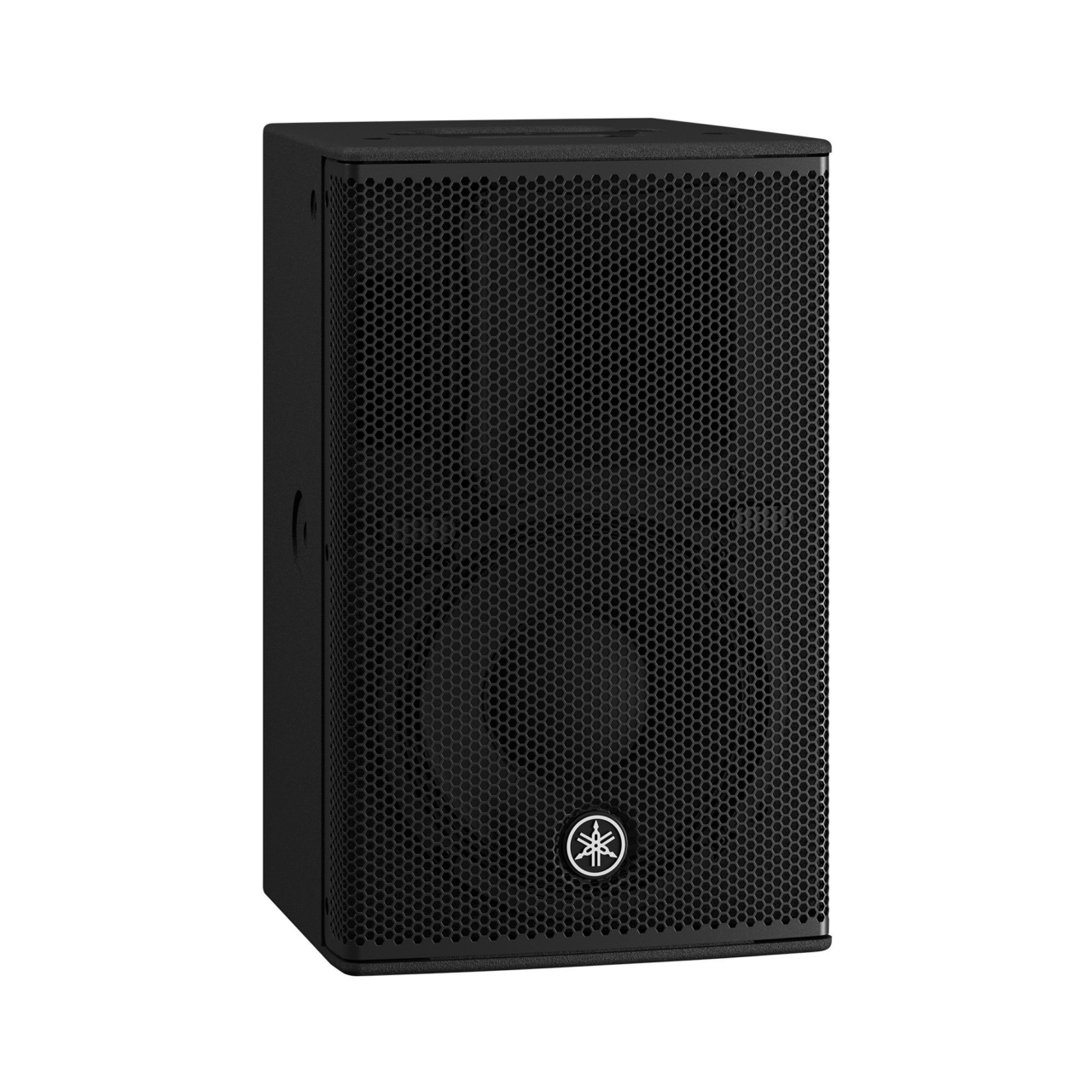

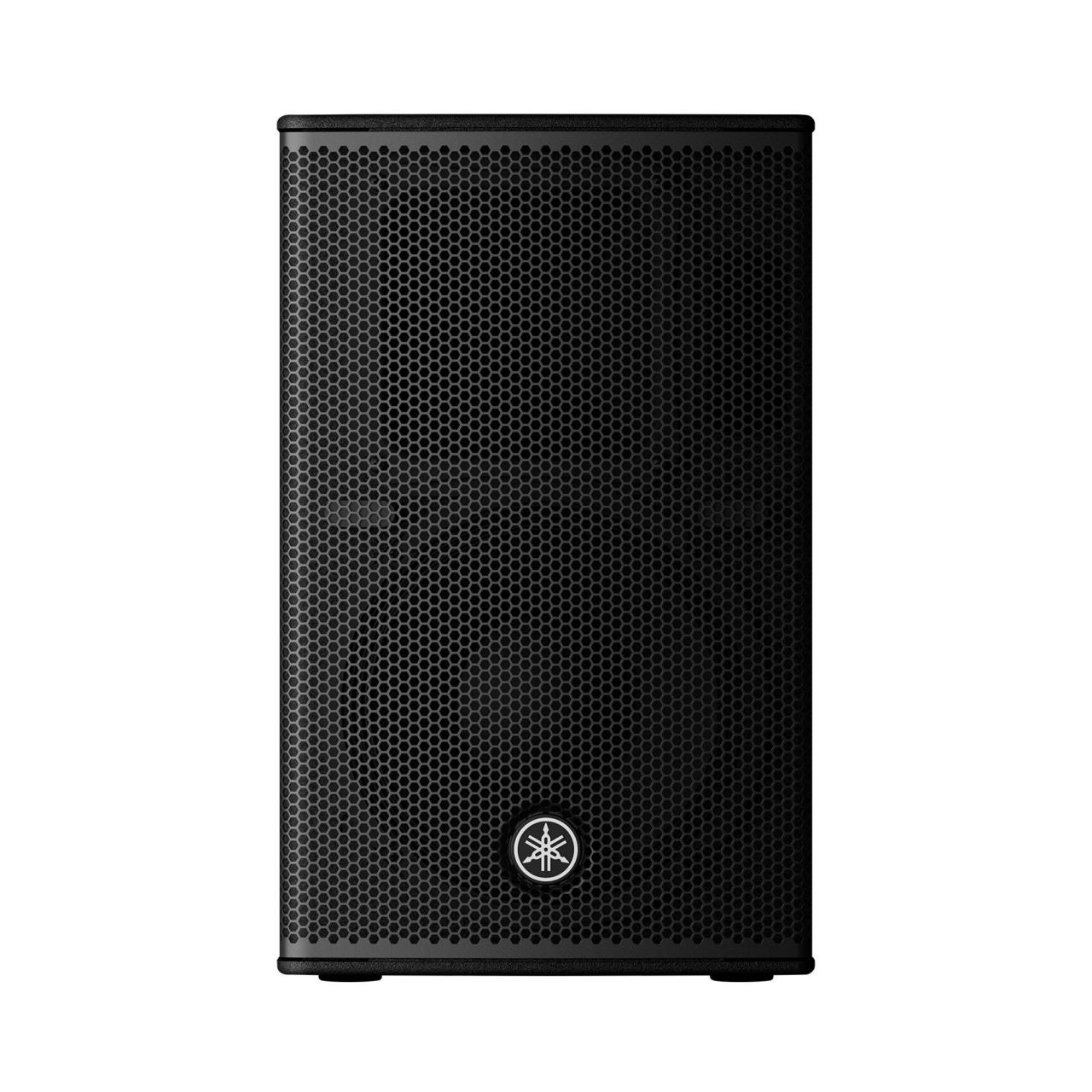

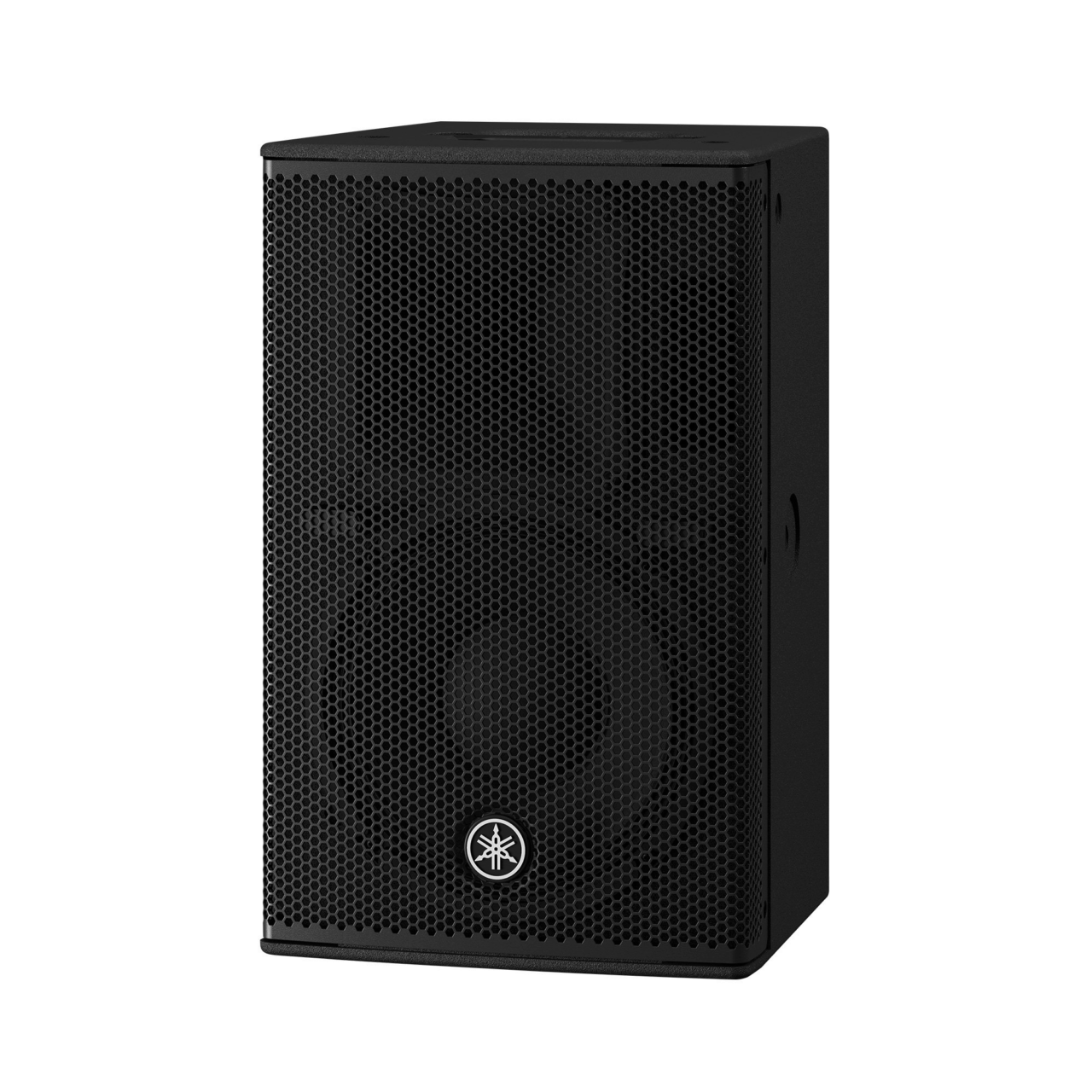

Yamaha CHR10 10-Inch Passive PA Speaker

The Yamaha CHR10 Offers an Ideal Solution for Anyone Ready to Step Up Their Sound Reinforcement Game to a New Level of Professional Quality, Accuracy, and Performance

The CHR10 is a 2-way loudspeaker, equipped with a 10-inch woofer and a 1.4-inch HF driver, and perfect for use in fixed installations. Combining carefully selected and customized transducers with the same high-grade plywood construction found on Yamaha’s high-end CZR Series, the CHR10 offers best-in-class sound quality and durability.

• Plywood cabinet that delivers a clear sound with minimal vibration
• Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
• Compact appearance thanks to the 10-inch LF driver that provides excellent low frequency response
• Can be installed in a horizontal or vertical configuration with a rotatable HF horn offering the flexibility needed for installation in a wide range of environments
• Optional UB-DXRDHR10 U-bracket allows both for vertical or horizontal use
• A pole socket for use on a stand
• Rigging points for use with eye bolts
• Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance

SPECIFICATIONS

• Speaker Type: 2-way Speaker, Bass-reflex
• Frequency Range (-10 dB): 55 Hz - 20 kHz
• Coverage Area: H90° x V60° (Rotatable)
• Crossover: 2.5 kHz
• Nominal Impedance: 8 Ω
• SPL
• Sensitivity (1W; 1m on axis): 93 dB SPL
• Peak (Calculated): 122 dB SPL
• Components

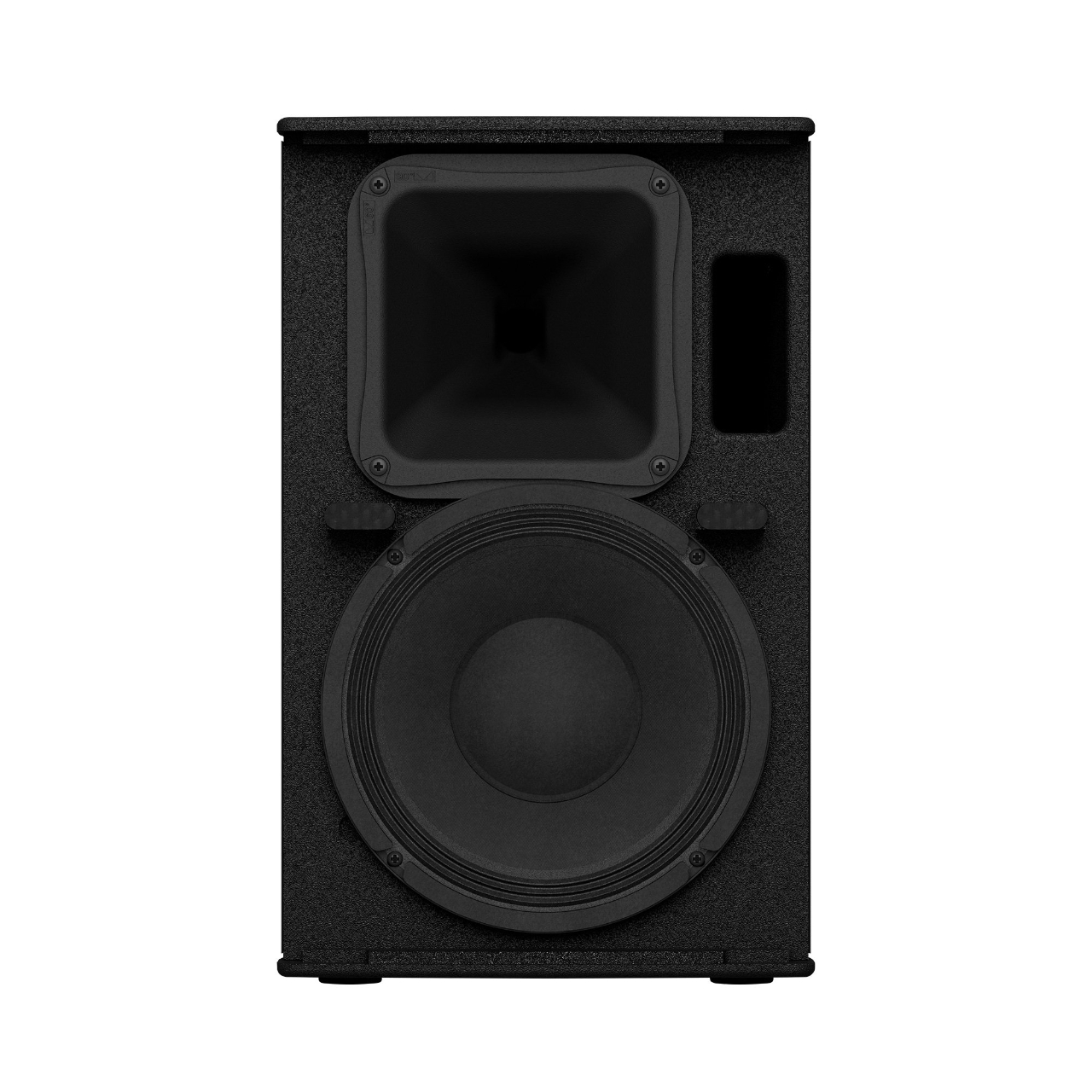

• LF: Diameter: 10" cone, Voice Coil: 2", Magnet: Ferrite
• HF: Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite
• Power Rating
• NOISE: 175 W
• PGM: 350 W
• PEAK: 700 W

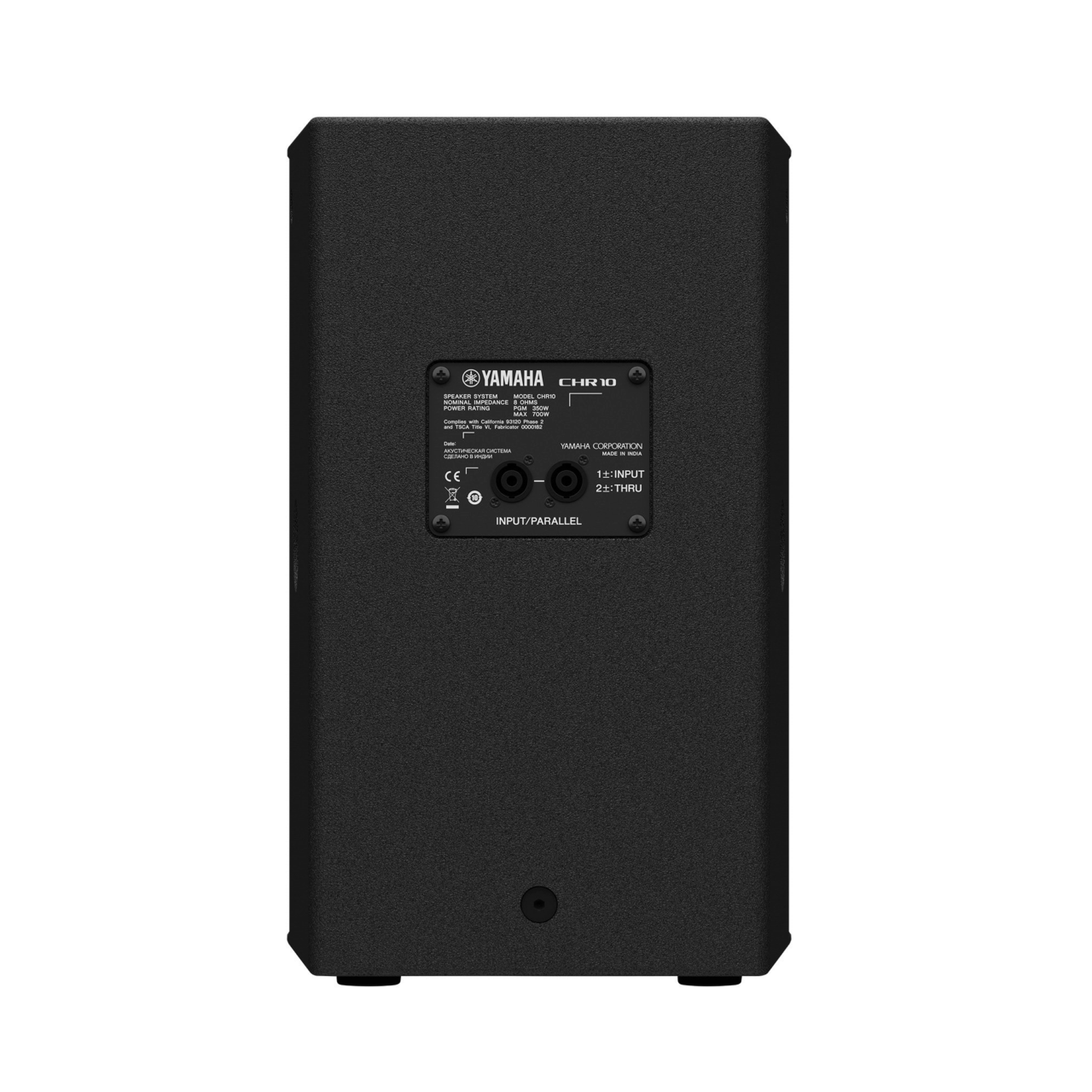

• I/O Connectors: SpeakON NL4MP x 2 (Parallel)
• Handle: Top x1
• Pole Socket: Φ35 mm x1 (Bottom)
• Rigging
• Top x 2
• Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts)
• Dimensions (W x H x D): 12 x 19.5 x 11.8 inch / 305 x 494 x 300 mm
• Weight: 30.2 lb / 13.7 kg
• Options: U-bracket: UB-DXRDHR10
