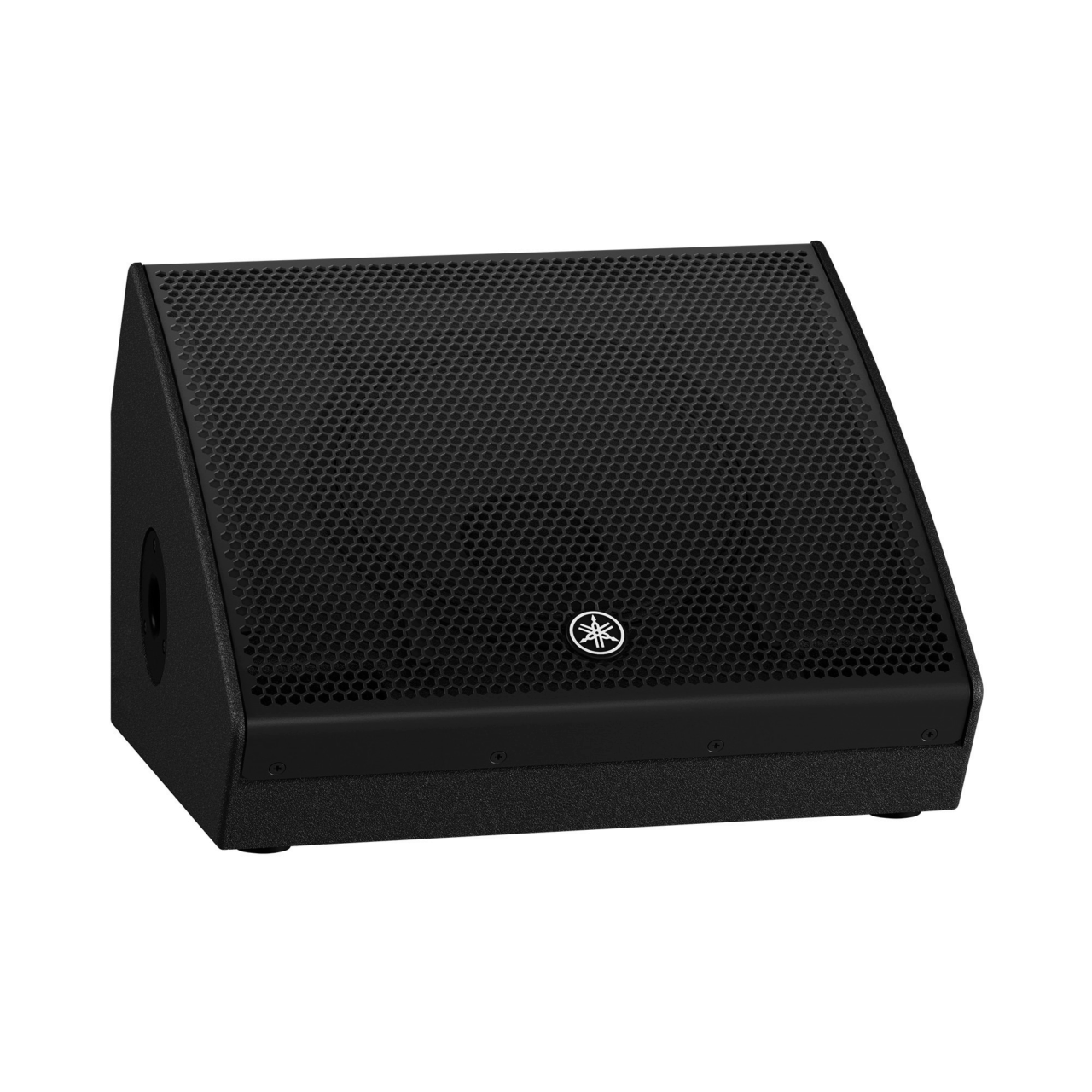

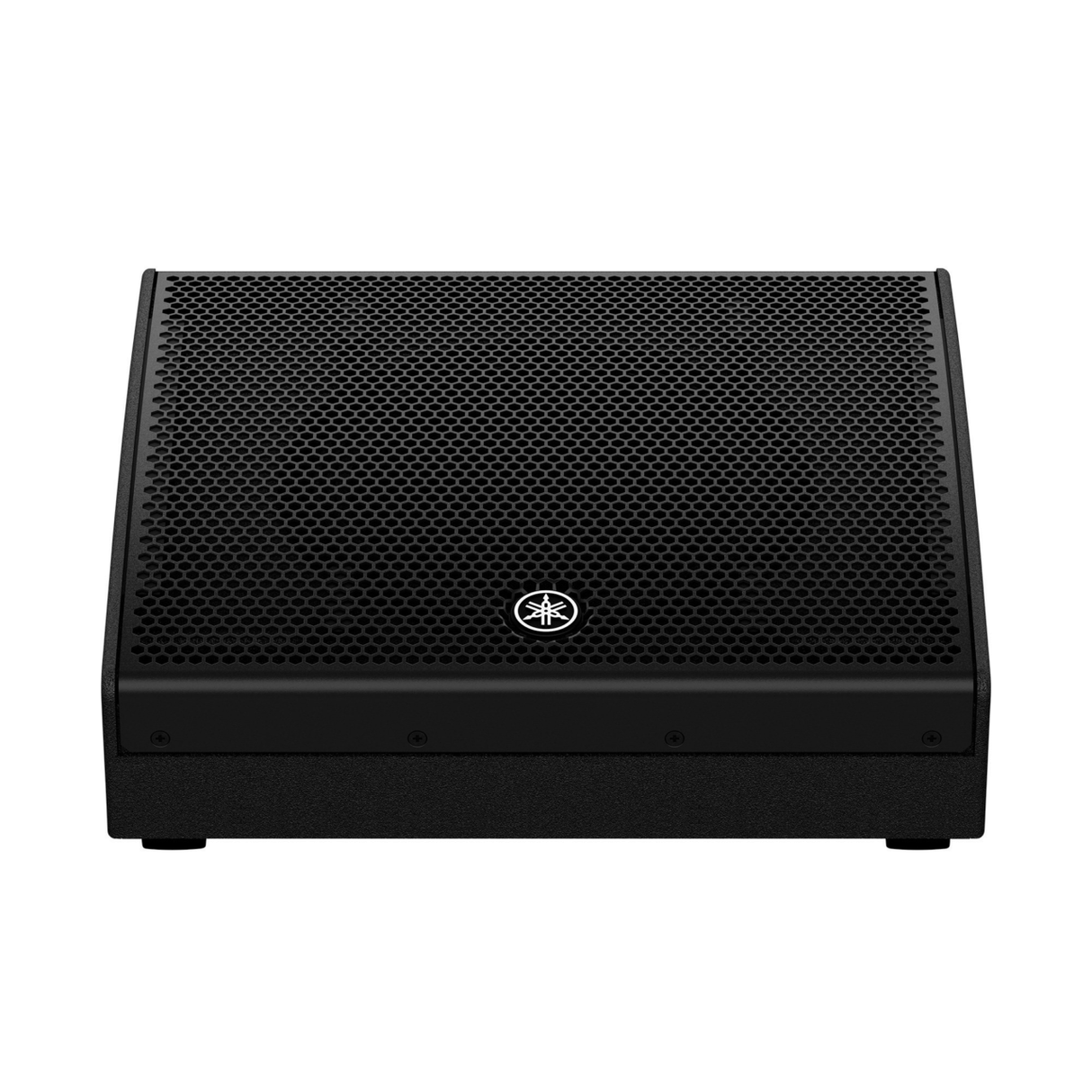

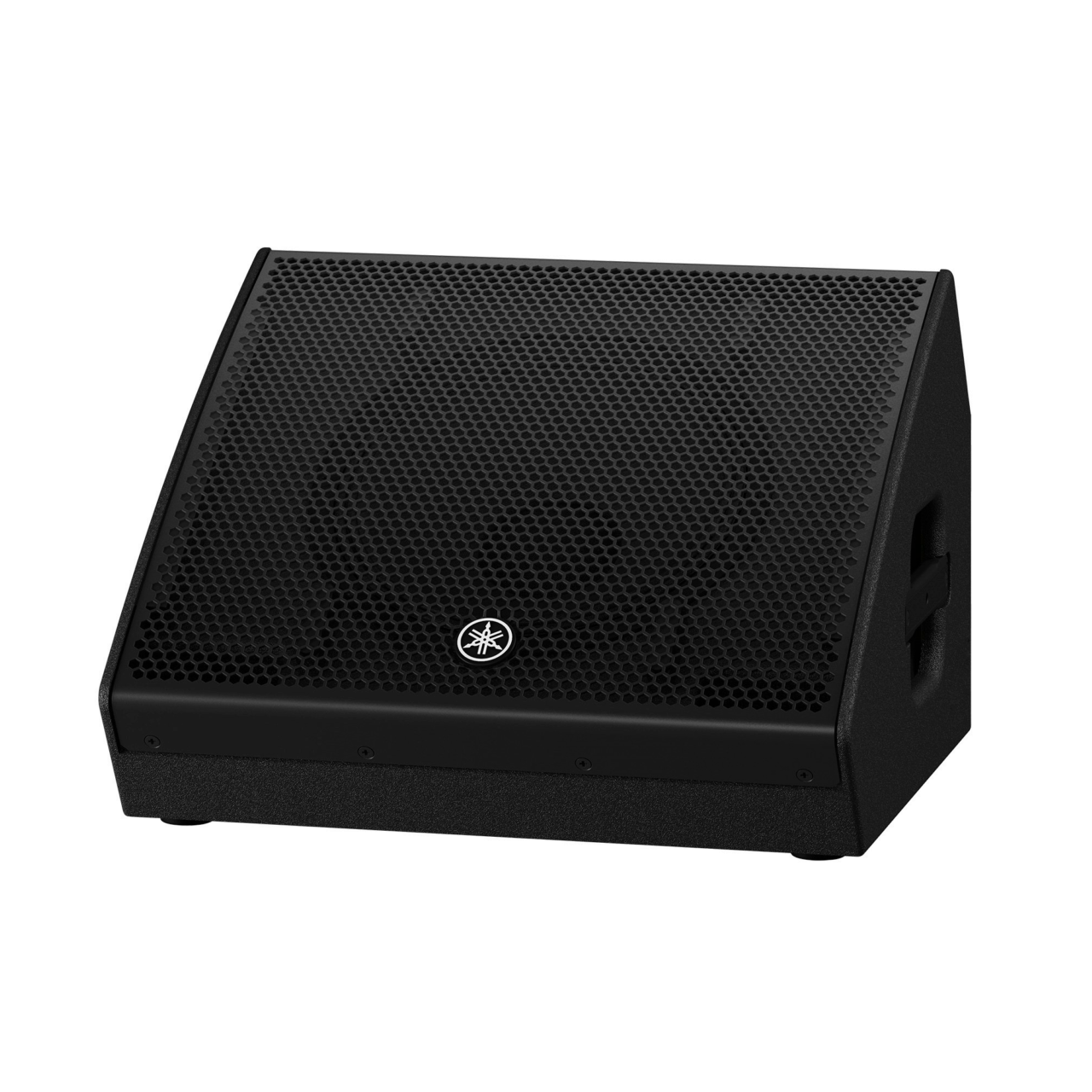

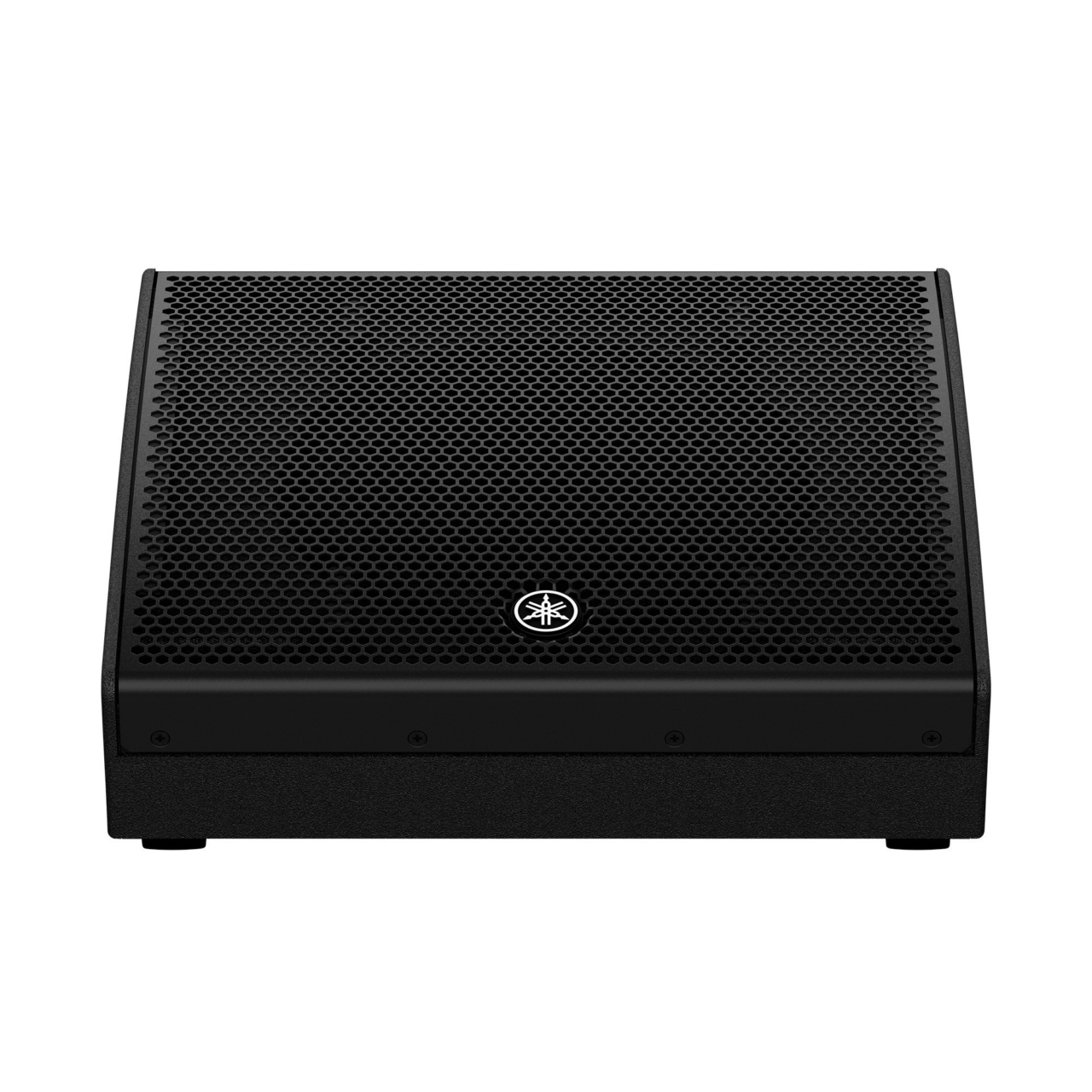

Yamaha DHR12M 12-Inch Powered Floor Monitor

The Yamaha DHR12M Offers an Ideal Solution for Anyone Ready to Step Up Their Sound Reinforcement Game to a New Level of Professional Quality, Accuracy, and Performance

The DHR12M is a 2-way bi-amp powered loudspeaker with a 12-inch woofer and a 1.75-inch HF driver in a space saving coaxial configuration, perfect for use as a floor monitor. Combining a 1000W amplifier and high performance DSP with the same plywood construction found on Yamaha’s high-end DZR Series, the DHR12M offers best-in-class sound quality and durability.

• The coaxial driver delivers precise, smooth phase and frequency response characteristics ideal for use in monitoring applications
• Featuring a plywood cabinet that delivers a clear sound with minimal vibration
• Compact, low profile, plywood enclosure with a polyurea coating for a robust, scratch-resistant surface
• A pole socket for use on a stand
• Propitiatory FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion

SPECIFICATIONS

• Speaker Type: 2-way, Bi-amped Powered Speaker, Bass-reflex
• Frequency Range (-10 dB): 55 Hz - 20 kHz
• Coverage Area: H90° x V90°
• Crossover: 1.8 kHz: FIR-X tuning™ (linear phase FIR filter)
• Maximum Output Level (Measured peak, IEC noise @ 1m): 129 dB SPL
• Amplifier: Class-D
• Components

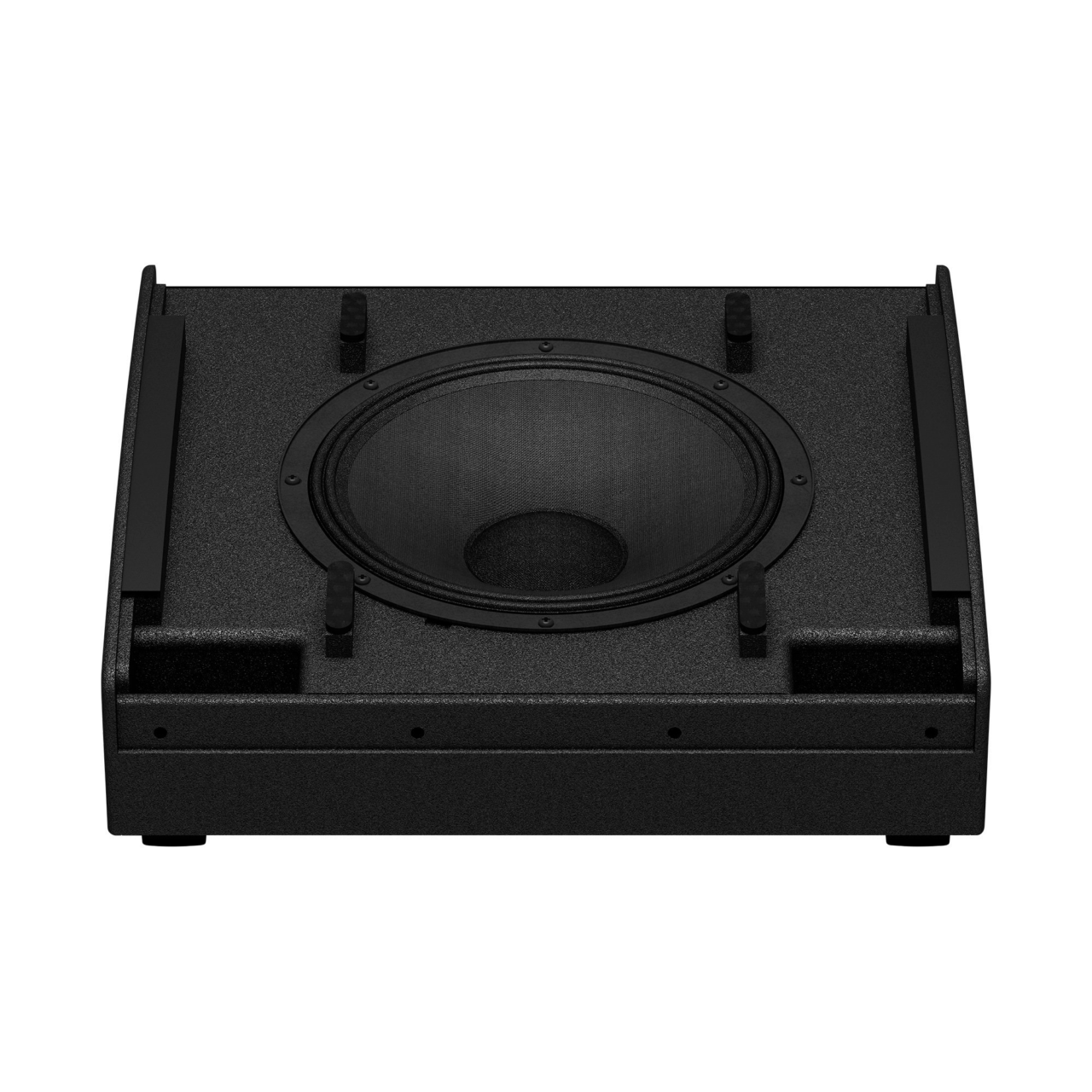

• LF: Diameter: 12" cone, Voice Coil: 2.5", Magnet: Ferrite
• HF: Diaphragm: 1.75", Type: 1" throat coaxial compression driver, Magnet: Ferrite
• Power Rating
• Dynamic: 1,000 W (LF: 800 W, HF: 200 W)*
• Continuous: 465 W (LF: 400 W, HF: 65 W)
• Cooling: Fan cooling, 4 speeds
• Power Consumption: 74 W (1/8power), 18 W (Idle)
• Power Requirements: 100 V, 100-120 V, 220-240 V, 110/127/220 V (Brazil), 50/60 Hz
• A/D D/A Converters: 24 bit 48 kHz Sampling
• Processors
• HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.
• D-CONTOUR: FOH/MAIN, MONITOR, OFF

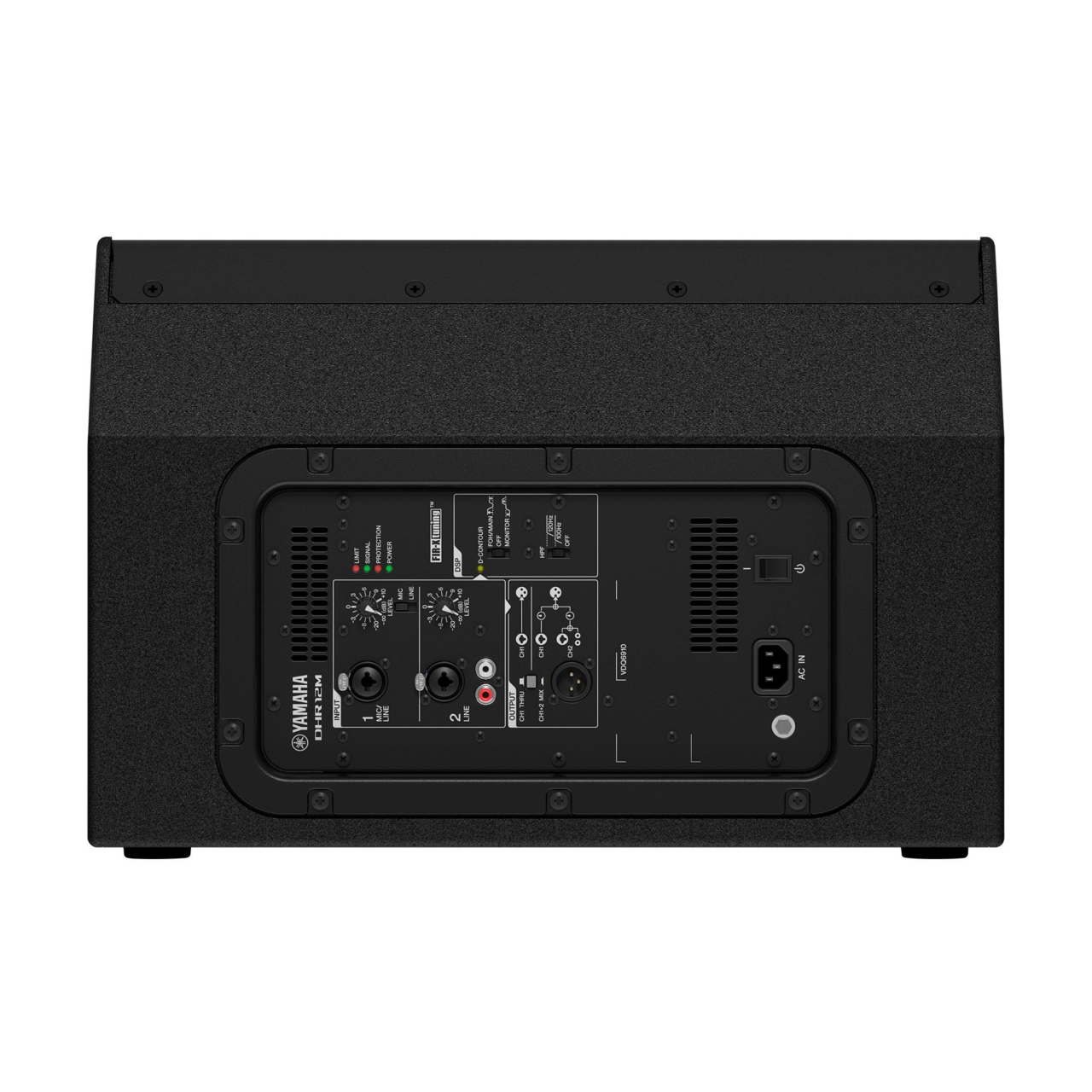

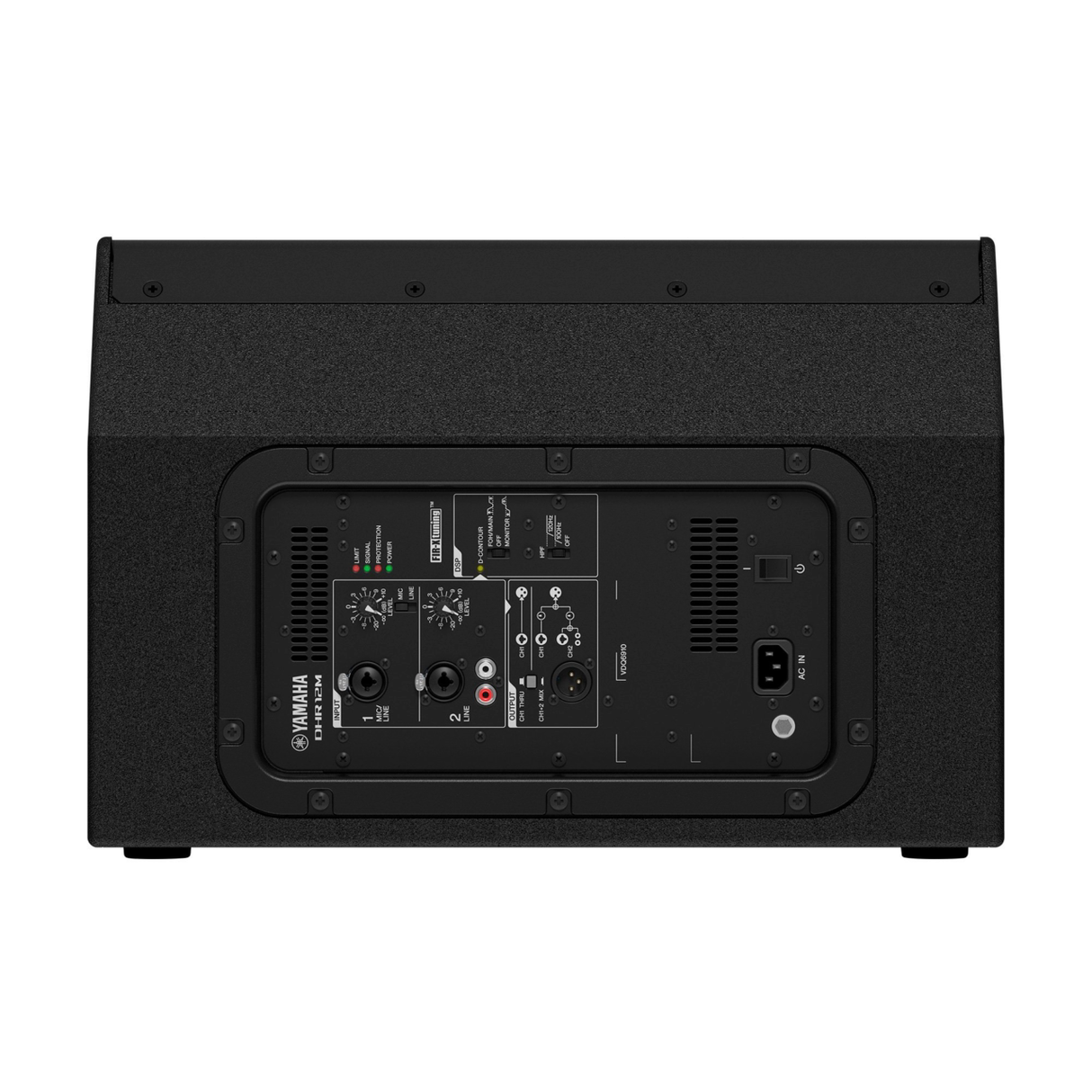

• I/O Connectors
• INPUT1: Combo x1
• INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced)
• OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
• Handle: Side x1
• Pole Socket: Φ35 mm x1 (Bottom)
• Floor Monitor Angle: 57°
• Dimensions (W x H x D): 19.7 x 13.5 x 17.9 inch / 500 x 343 x 454 mm
• Weight: 36.4 lb / 16.5 kg

*Total peak power of individual outputs (AC 120V, 25 ℃). This value was measured at minimum load impedance, with protection released.
