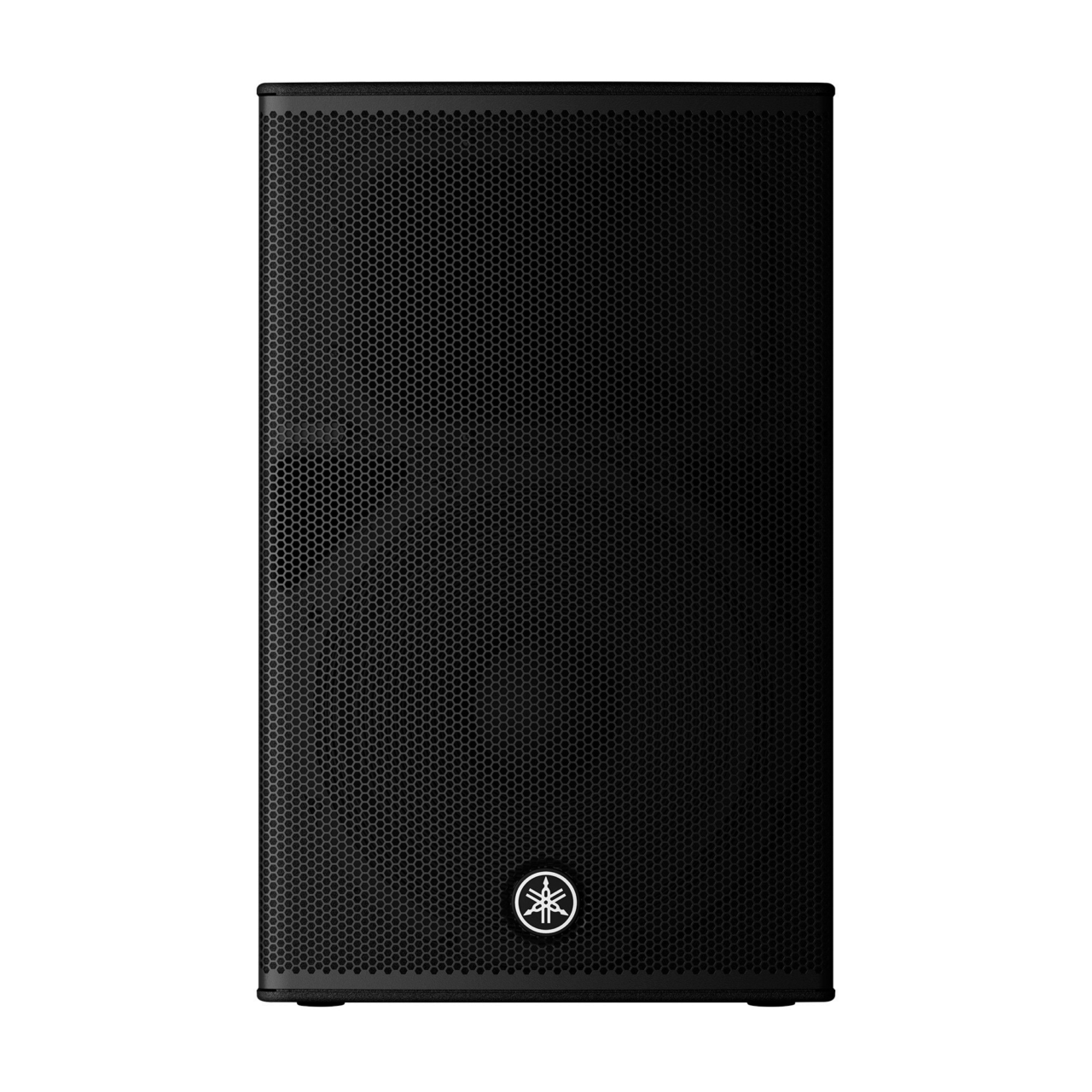

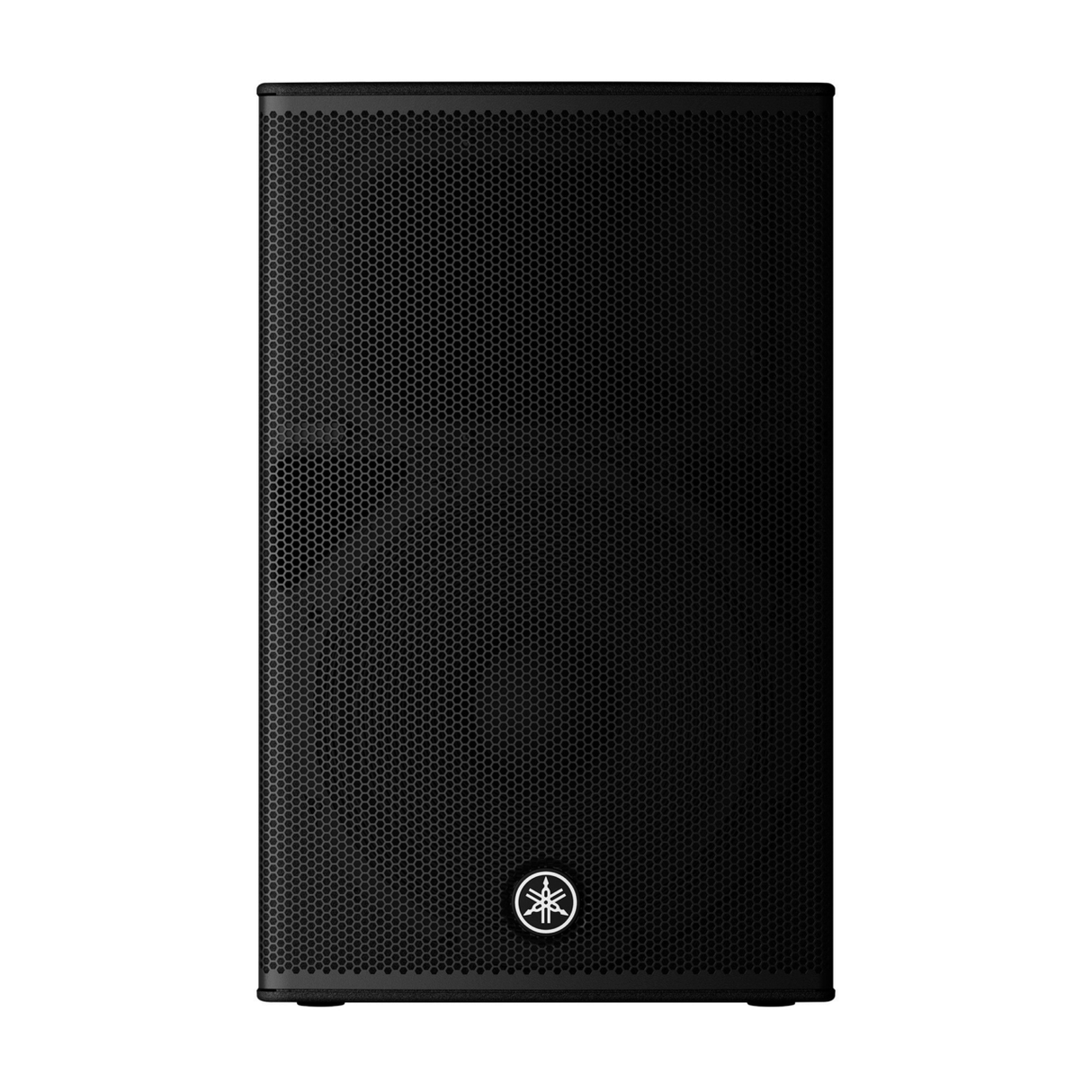

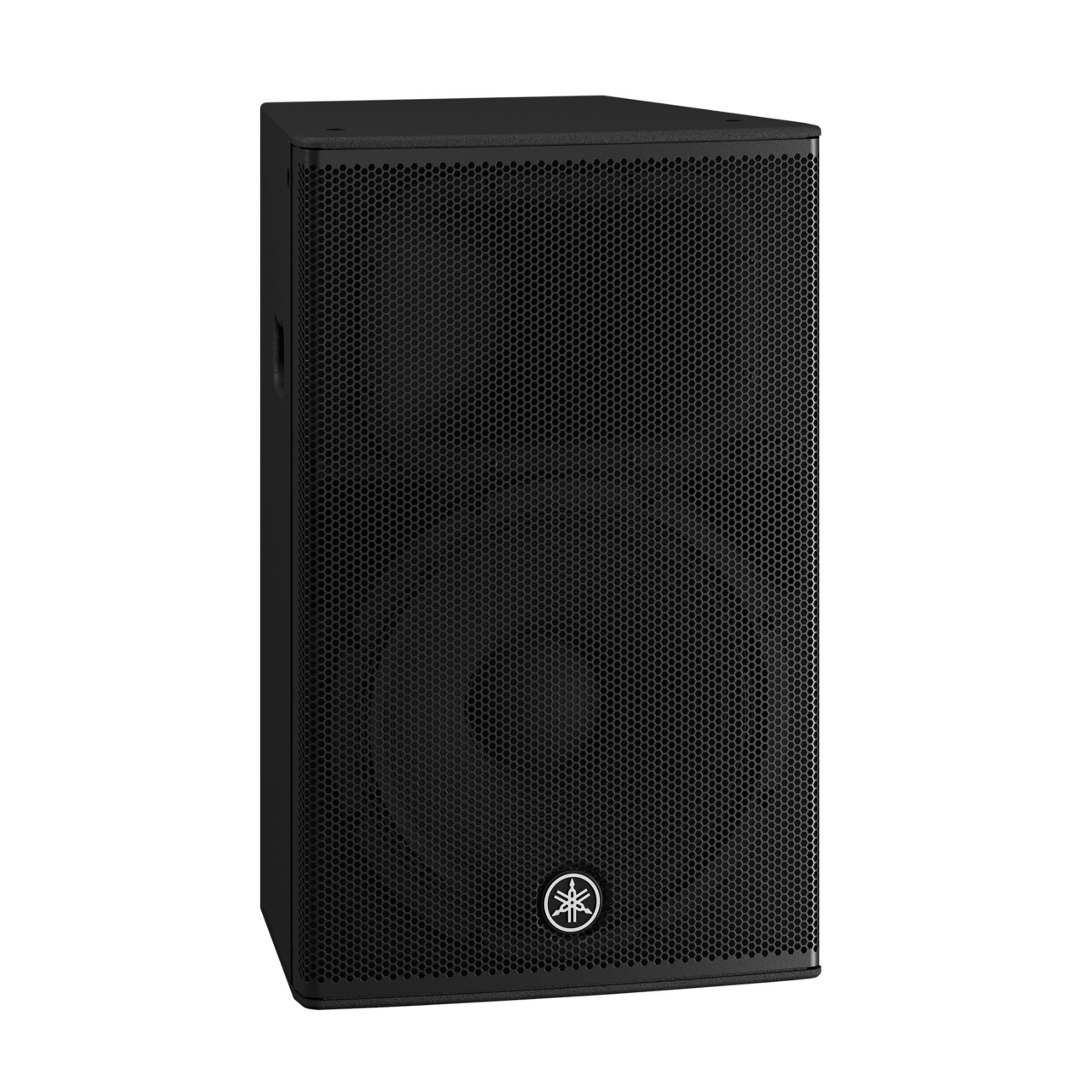

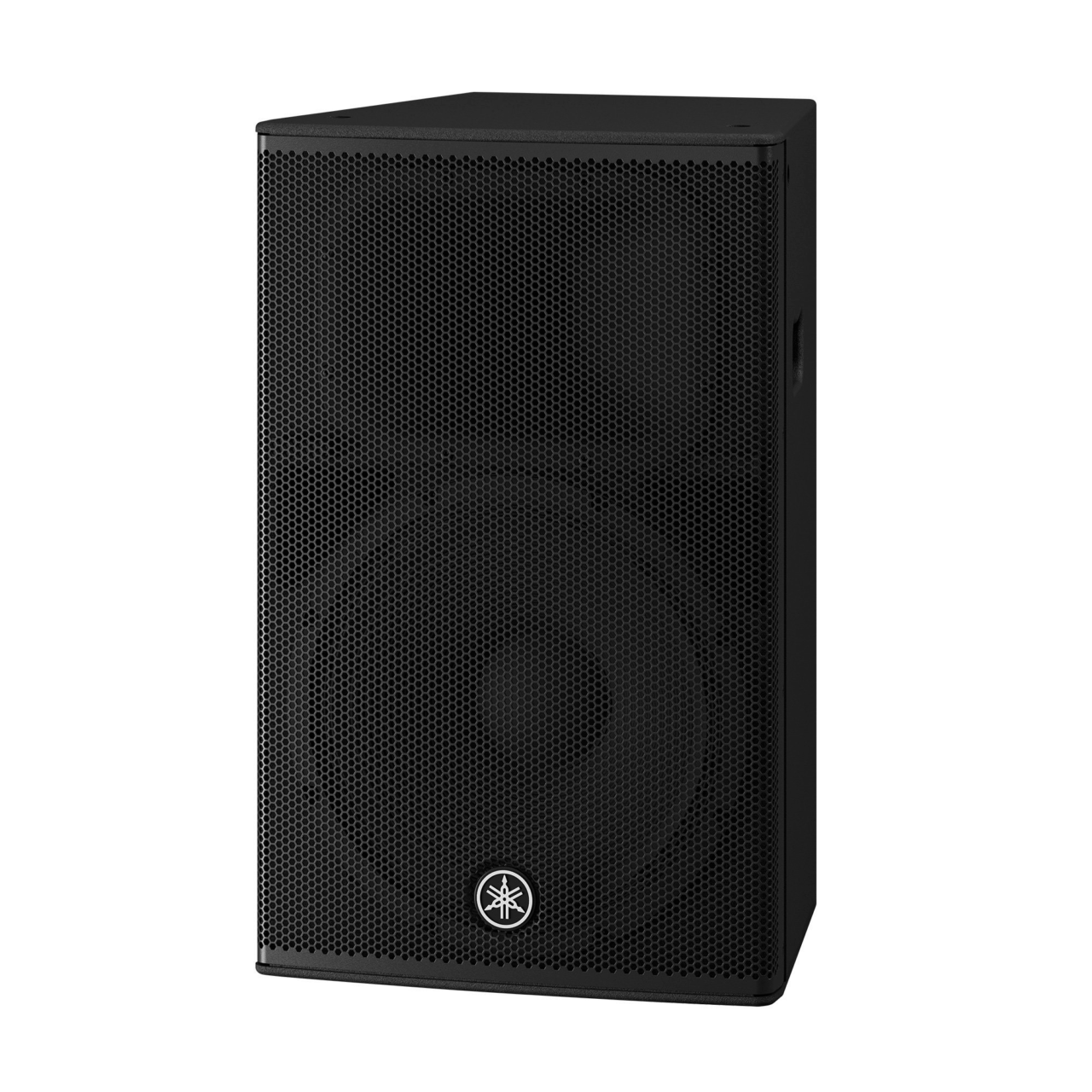

Yamaha DHR15 15-Inch Powered PA Speaker

The Yamaha DHR15 Offers an Ideal Solution for Anyone Ready to Step Up Their Sound Reinforcement Game to a New Level of Professional Quality, Accuracy, and Performance

The DHR15 is a 2-way bi-amp powered loudspeaker equipped with a 15-inch woofer and a 1.4-inch HF driver, perfect for use as a main speaker. Combining a 1000W amplifier and high-performance DSP with the same plywood construction found on Yamaha’s high-end DZR Series, the DHR15 offers best-in-class sound quality and durability.

• Plywood cabinet that delivers a clear sound with minimal vibration
• Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
• Compact size despite the 15-inch LF driver that provides excellent low frequency response
• Dual-angle pole sockets offer both 0° or a -7° down tilt
• Rigging points for use with eye bolts
• Propitiatory FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion

SPECIFICATIONS

• Speaker Type: 2-way, Bi-amped Powered Speaker, Bass-reflex
• Frequency Range (-10 dB): 44 Hz - 20 kHz
• Coverage Area: H90° x V60°
• Crossover: 1.8 kHz: FIR-X tuning™ (linear phase FIR filter)
• Maximum Output Level (Measured peak, IEC noise @ 1m): 131 dB SPL
• Amplifier: Class-D
• Components

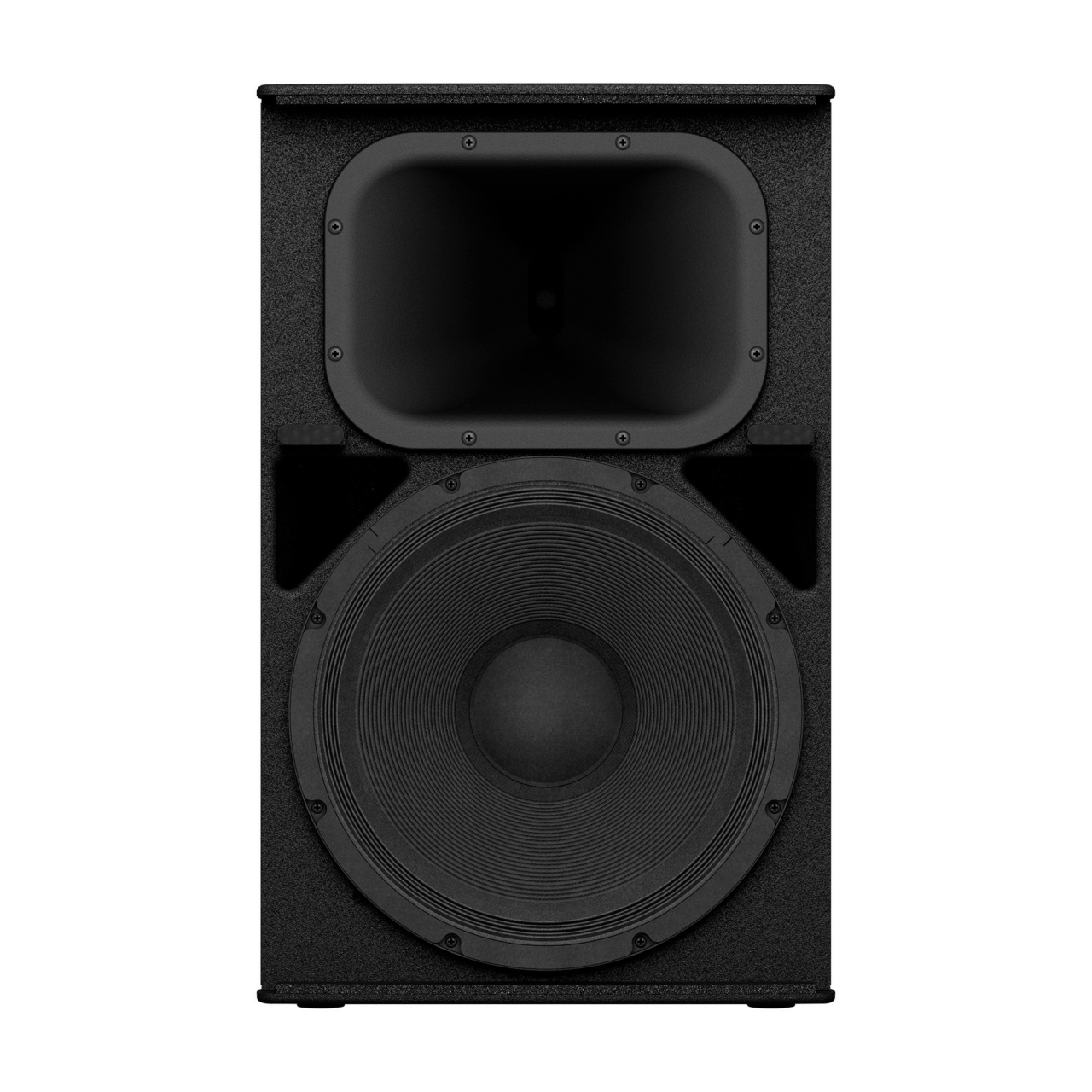

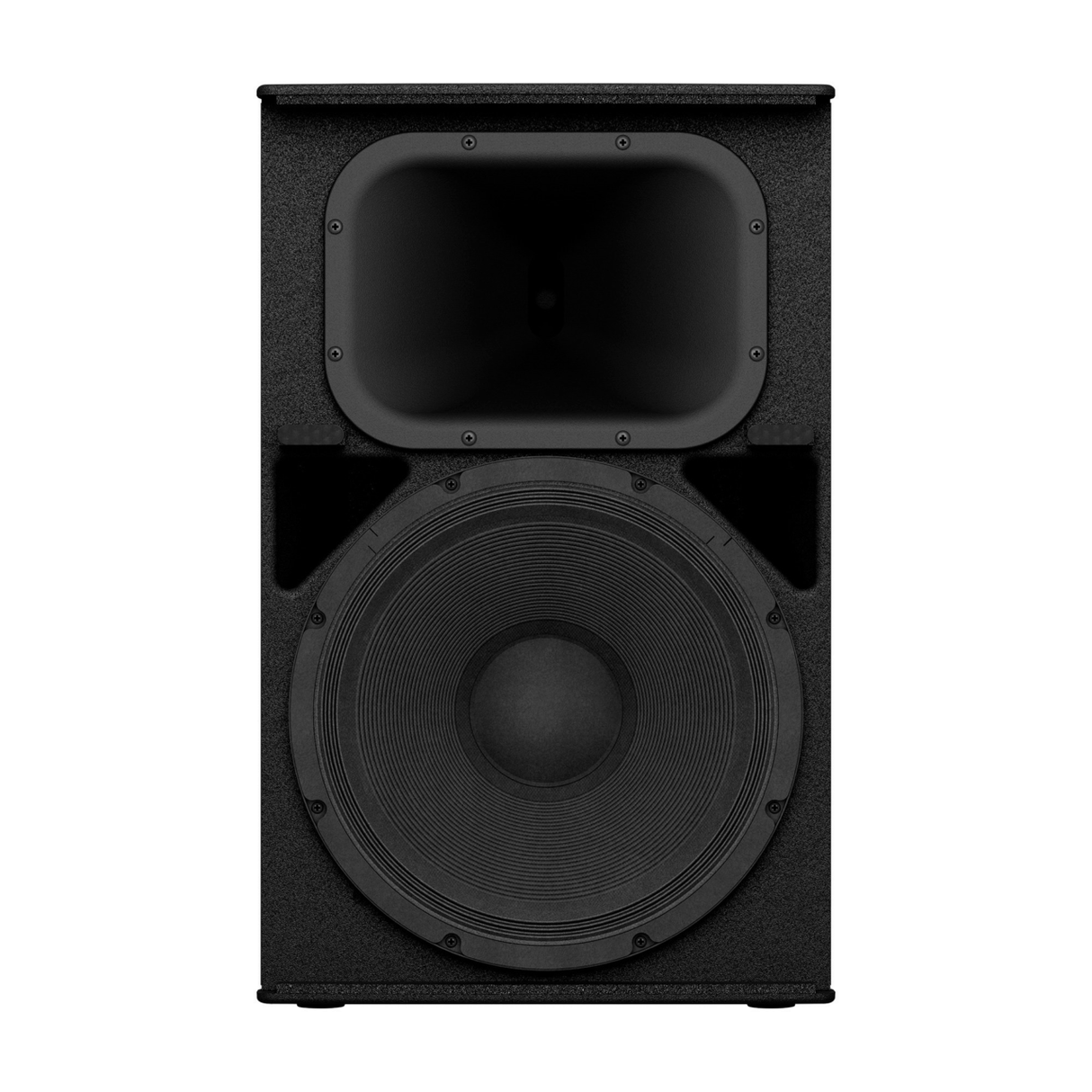

• LF: Diameter: 15" cone, Voice Coil: 2.5", Magnet: Ferrite
• HF: Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite
• Power Rating
• Dynamic: 1,000 W (LF: 800 W, HF: 200 W)*
• Continuous: 465 W (LF: 400 W, HF: 65 W)
• Cooling: Fan cooling, 4 speeds
• Power Consumption: 74 W (1/8power), 18 W (Idle)
• Power Requirements: 100 V, 100-120 V, 220-240 V, 110/127/220 V (Brazil), 50/60 Hz
• A/D D/A Converters: 24 bit 48 kHz Sampling
• Processors
• HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.
• D-CONTOUR: FOH/MAIN, MONITOR, OFF

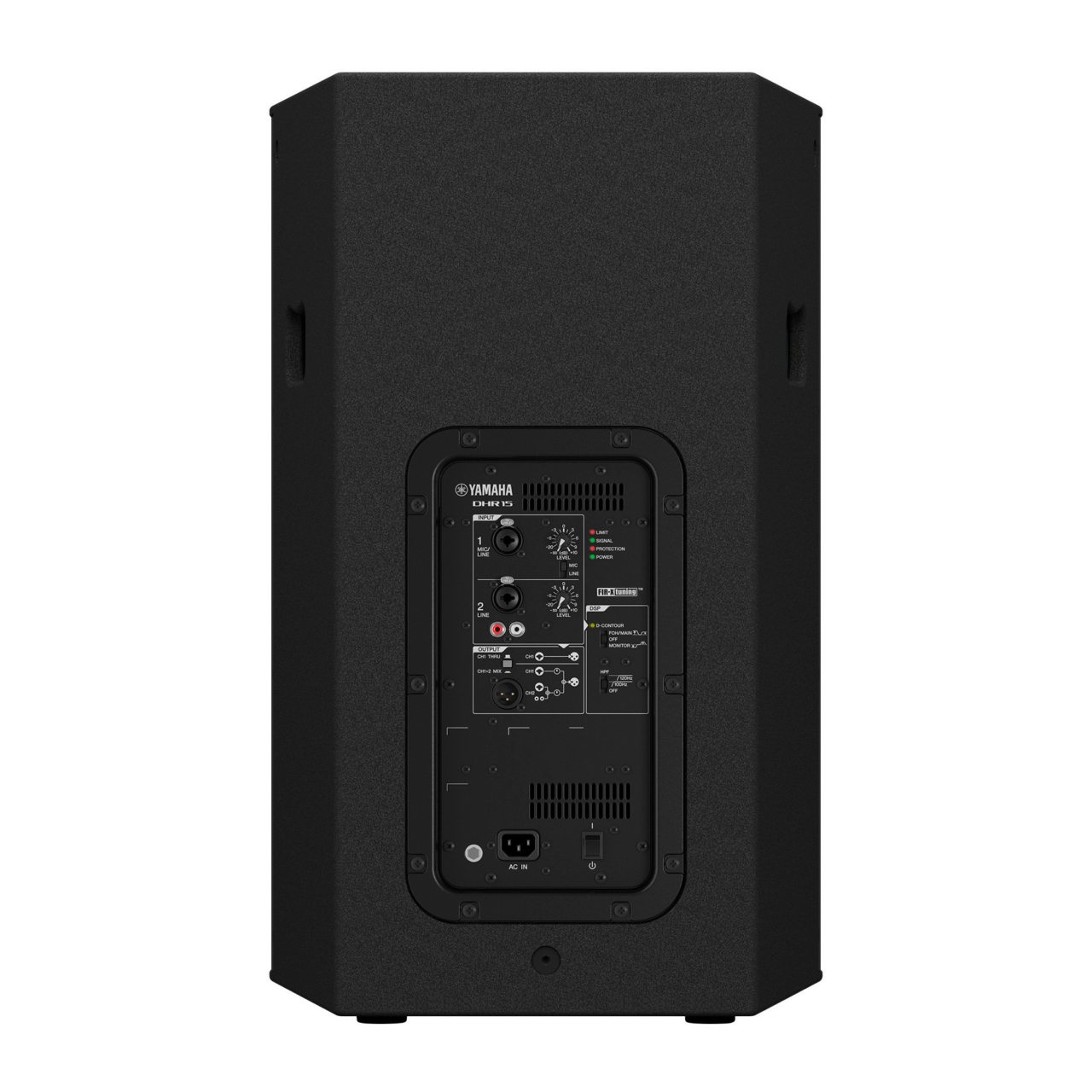

• I/O Connectors
• INPUT1: Combo x1
• INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced)
• OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
• Handle: Side x2
• Pole Socket: Φ35 mm x2 (Bottom, 0° or -7°)
• Rigging
• Top x 2
• Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts)
• Dimensions (W x H x D): 17.0 x 27.2 x 15.9 inch / 432 x 692 x 405 mm
• Weight: 52.9 lb / 24 kg

*Total peak power of individual outputs (AC 120V, 25 ℃). This value was measured at minimum load impedance, with protection released.
