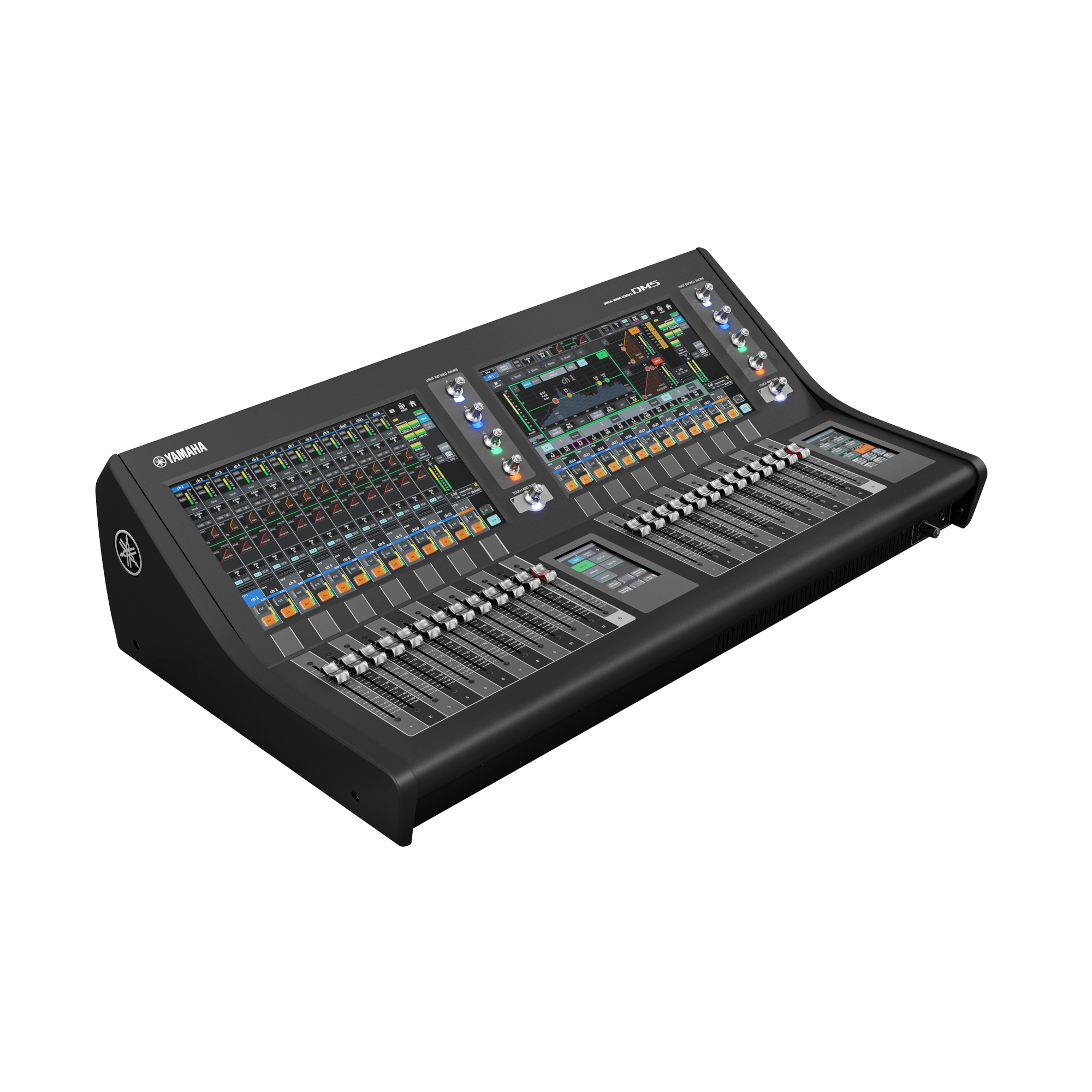

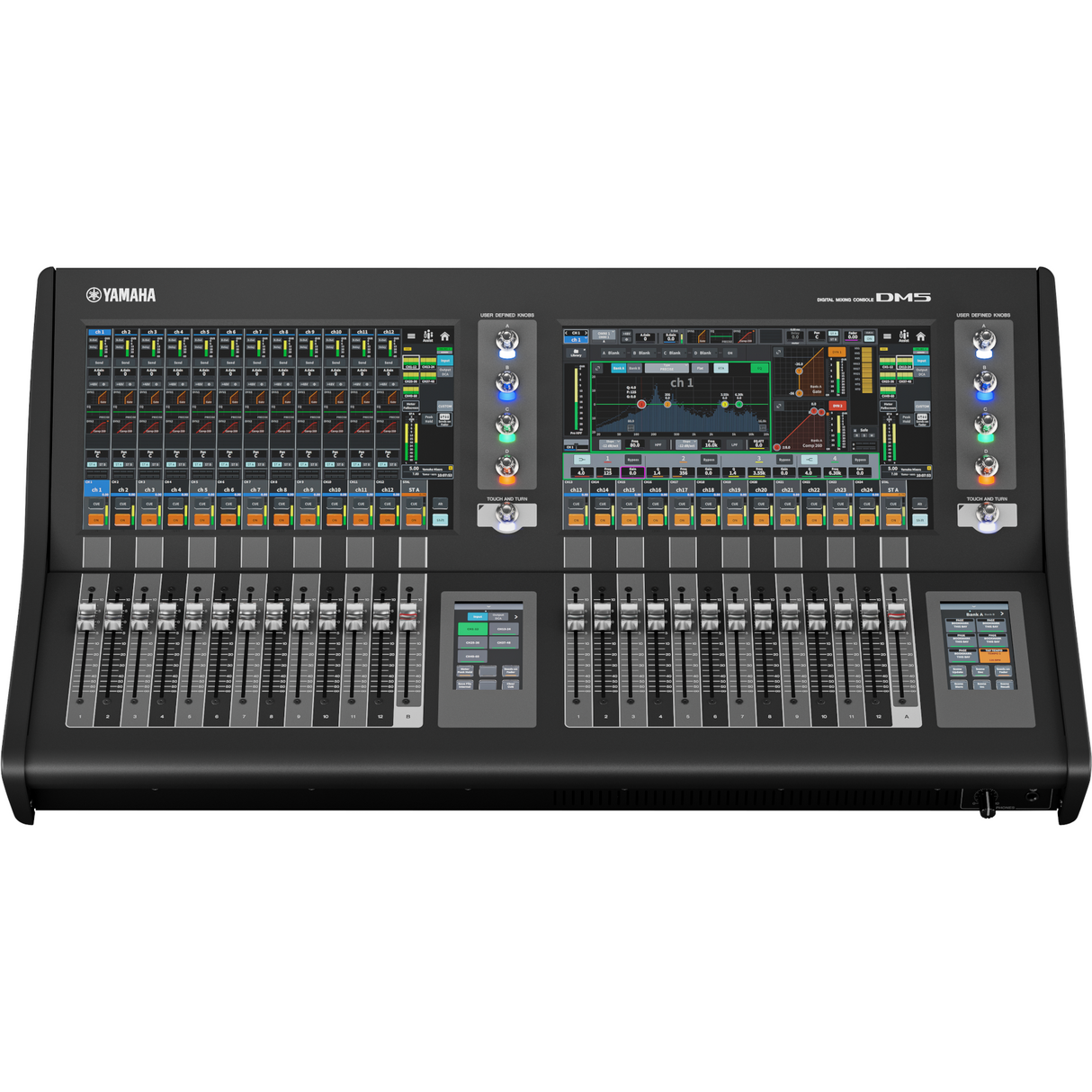

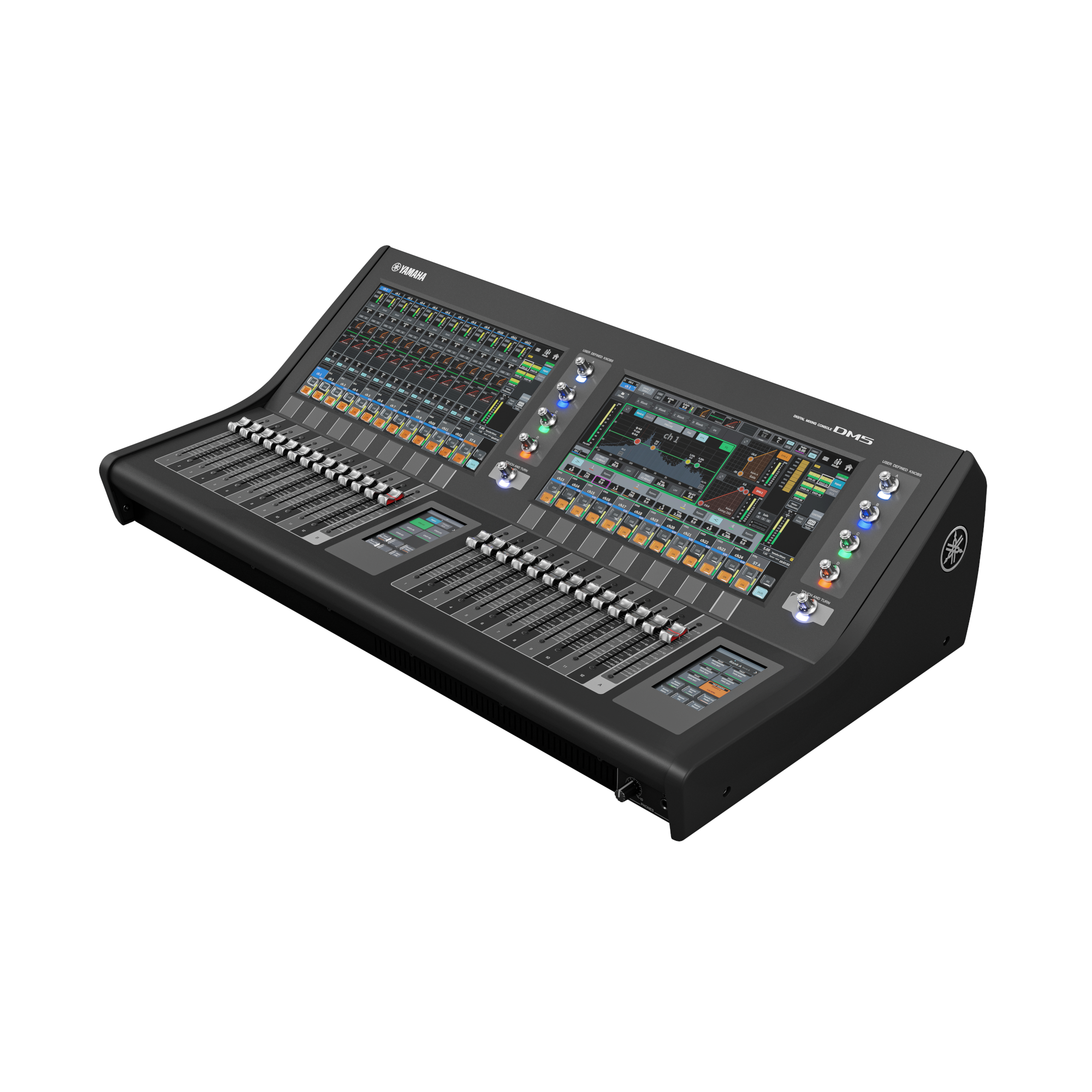

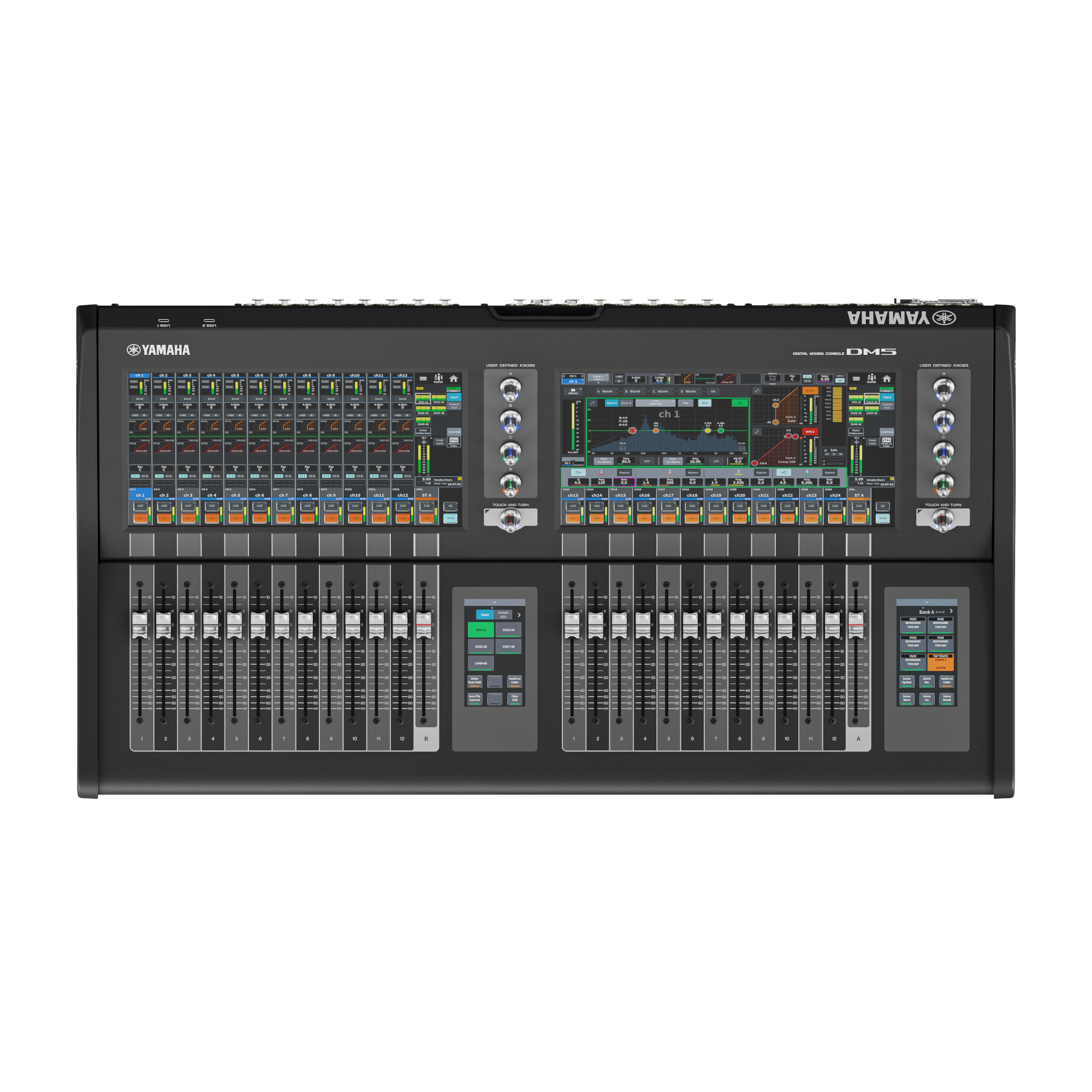

Intuitive Flow, Efficient Workflow - The Yamaha DM5 Professional 60-Channel Dual Bay Digital Console
The DM5 is a professional 60-channel, dual-bay digital console designed for live sound, corporate events, broadcast, and theater production. Built on the DM7 engine, it delivers 96 kHz audio, flagship processing, advanced effects, and compatibility with the DM Series editor for seamless show file sharing. The console features 26 faders (12+1+12+1), 32 analog inputs, 24 outputs, dual 13-inch touchscreens, and a 4-inch utility display. Weighing 47 pounds, the DM5 is durable, road-ready, and equipped with an adjustable tilt display offering four viewing angles to minimize glare in outdoor mixing environments.
- Renowned Yamaha Sound with 96kHz sample rate
- Built from the DM7 Engine: Utilizes the same firmware and editor as DM7, with seamless file transfers between the two consoles
- Next-level sonic quality: Renowned Yamaha sound at 96k, expansive onboard effects, and access to premium rack inherited from DM7 Series and RIVAGE PM Series via PY-DSP expansion card

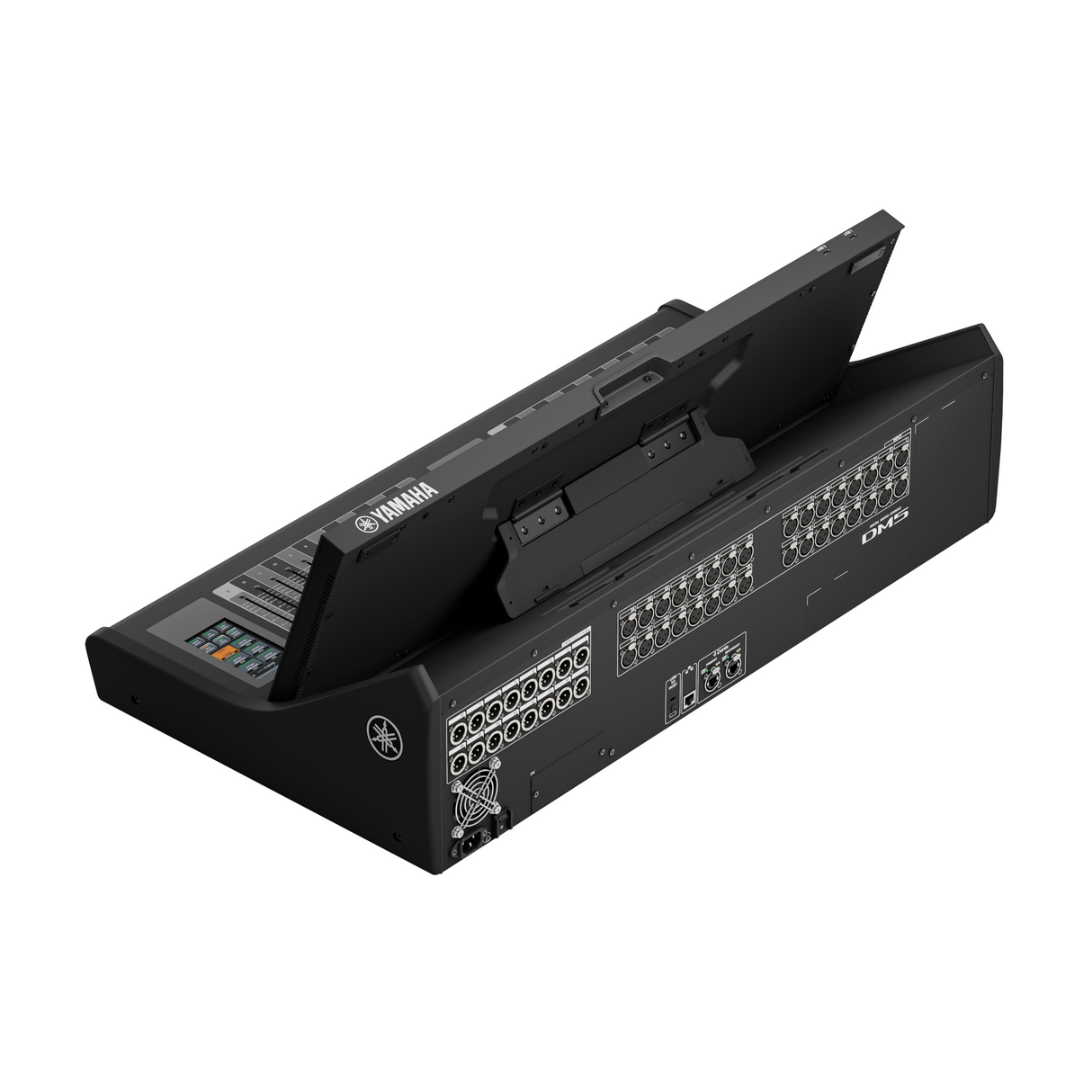

- Adjustable screen placement: Avoid screen glare by utilizing the tilt display, offering four adjustable angle settings
- Versatile for professional use cases: Optional software licenses DEK-BR/DEK-TH enable feature sets specific to broadcast and theater
The Yamaha DM5 Series establishes a new benchmark in the mid-size digital console market. Built on the proven DM7 engine, it leverages the same firmware and editor, enabling seamless show file compatibility. Beyond its shared capabilities with the DM7, the DM5 Series also supports premium effects derived from Yamaha’s flagship RIVAGE PM Series, delivering exceptional sound quality and advanced processing power.
SPECIFICATIONS
- Mixing Capacity: 60 Inputs
- Mix Buses: 24
- Matrices: 12
- Stereo Buses: 2
- Cue Buses: 1

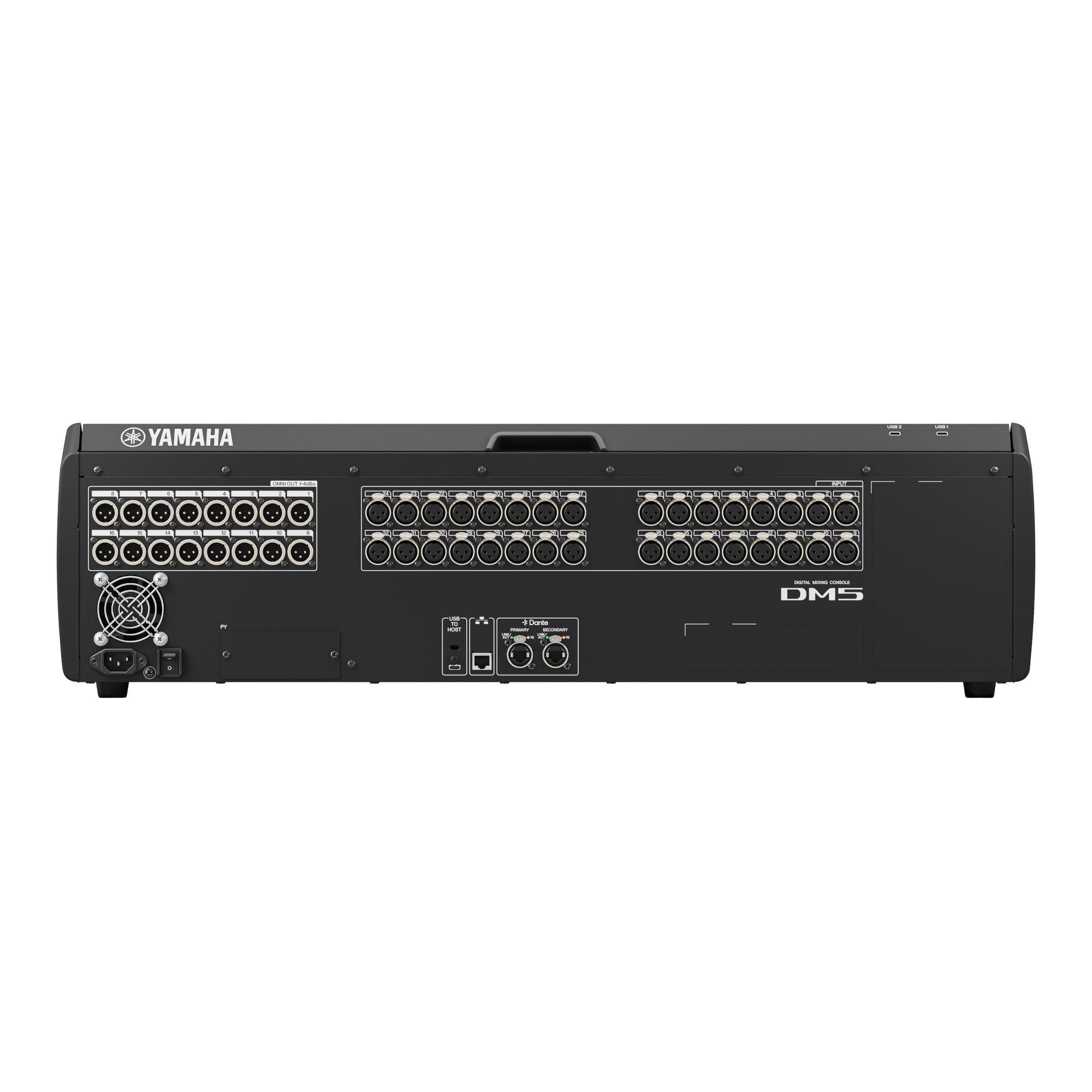

- Analog Input: 32 Analog Output: 16
- Sampling Frequency
- External Clock: 48kHz / 96 kHz +/- 200 ppm
- Internal Clock: 48 kHz / 96
- Signal Delay: Less than 1.5 ms, INPUT to OMNI OUT @Fs=96 kHz
- Screens: 13.3" multi-touch screen with Glass key x 2 / 4.3" multi-touch screen with Glass key x 2. Touch-sensitive knobs in the Selected Channel section
- Fader: 100 mm touch-sensitive motorized faders (resolution=1024 steps) x 26
- Power Requirements: 100 to 240 V, 50 / 60 Hz
- Power Conspumption: 130 W
- Dimensions (W x H x D): 32.5 x 9.3 x 17.3 inches (including rubber feet)
- Weight: 47.5 lbs
- NC Value
- Fan Speed LOW: NC=20
- Fan Speed HIGH: NC=25
- Operating Temperature Range: 32 - 104 degrees Fahrenheit
- Storage Temperature Range: -4 - 140 degree Fahrenheit
- Options: PY Cards
- Included Accessories: Read This First, Power Cord, Dust Cover, Cable hook, Nuendo Live, and VST Rack Elements Download Information leaflet
Manufacturer: Yamaha
Model: DM5
SKU: I934745-N-2-WHXA
UPC: 889025174343
