Yamaha DM7C-EX Digital Mixing Console with CTL-DM7 Control Expansion

by Yamaha
Original price $24,000.00
Original price $24,000.00 - Original price $24,000.00
Original price $24,000.00
Current price $19,999.99
$19,999.99 - $19,999.99
Current price $19,999.99
📆 PREORDER - reserve it now - risk free
About Inventory Status


Questions?
Call or text us at 301-946-8808.

In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.

📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.

Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.

Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.

█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.

About Item Conditions


Questions?
Call or text us at 301-946-8808.

New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.

Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.

Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.

Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.

Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.

B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.

Educational Sales Quotes

Click here to request an educational quote and learn more about our Educational Sales Department!

Government Sales Quote

Click here to request a government sales quote and learn more about our Government Sales Department!

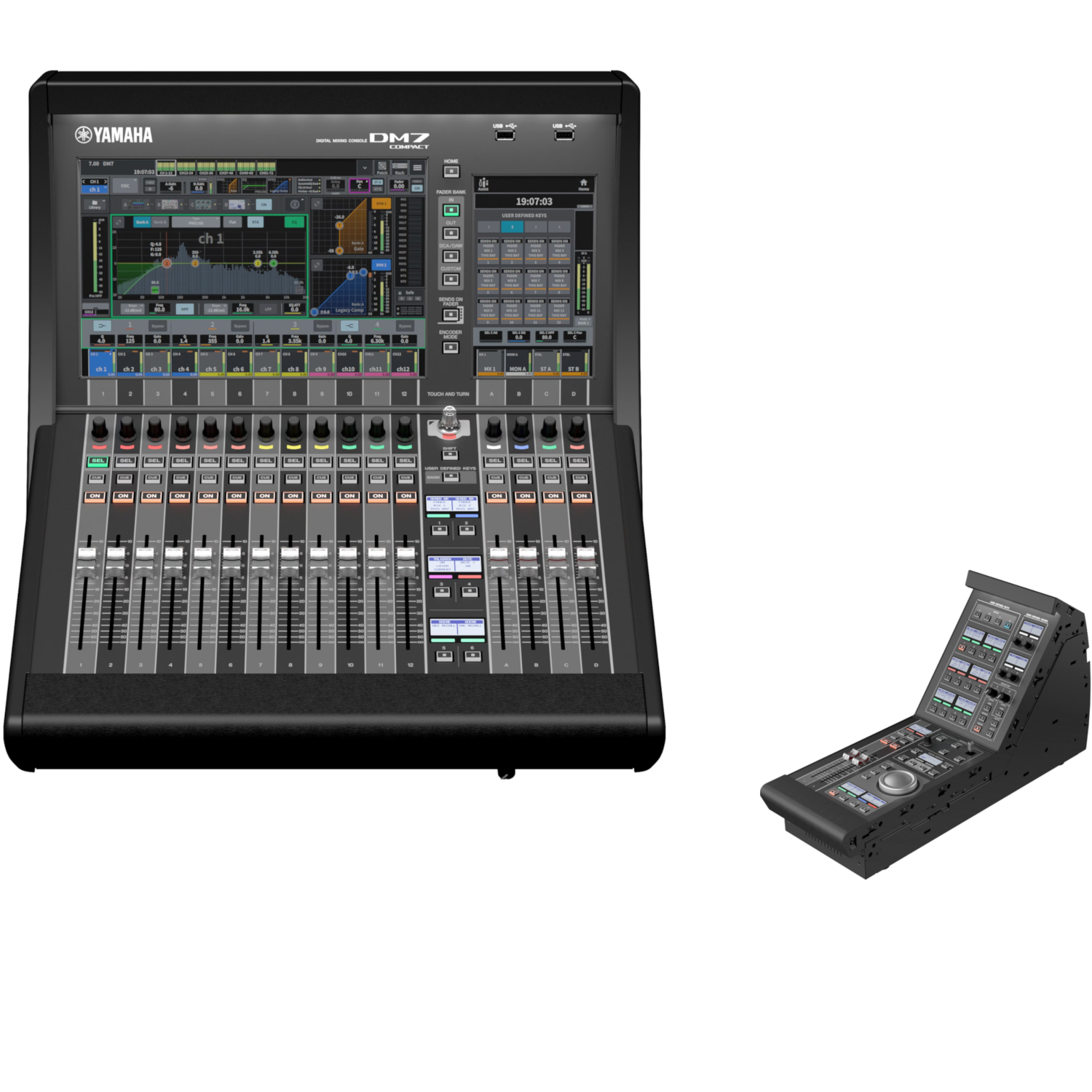

Driven by Music, Defined by Quality - The Yamaha DM7C-EX Digital Mixing Console with CTL-DM7 Control Expansion

The DM7C-EX is a mixer and expander bundle. DM7 series mixing consoles represent a sizable step forward in this evolution of form, functionality, and flexibility with their intuitive UI, compact design, and comprehensive suite of powerful features that allow them to outperform other mixers in their class in an impressive range of audio environments. From broadcasting, streaming, and music production, to live hybrid events and concert performances, the advanced capabilities of the DM7 series set a new standard in operability and workflow while simultaneously staying true to Yamaha’s sonic tradition of “natural sound”. As the times continue to change, your DM7 will keep you ahead of the curve with a user experience that’s a cut above anything in its class, and sonic performance well beyond the expectations of audiences and engineers alike.


  • (1) x DM7 Compact Professional 72-Channel Single Bay Digital Mixing Console
  • (1) x CTL-DM7 Control Expansion Controller
  • Items shipped independently

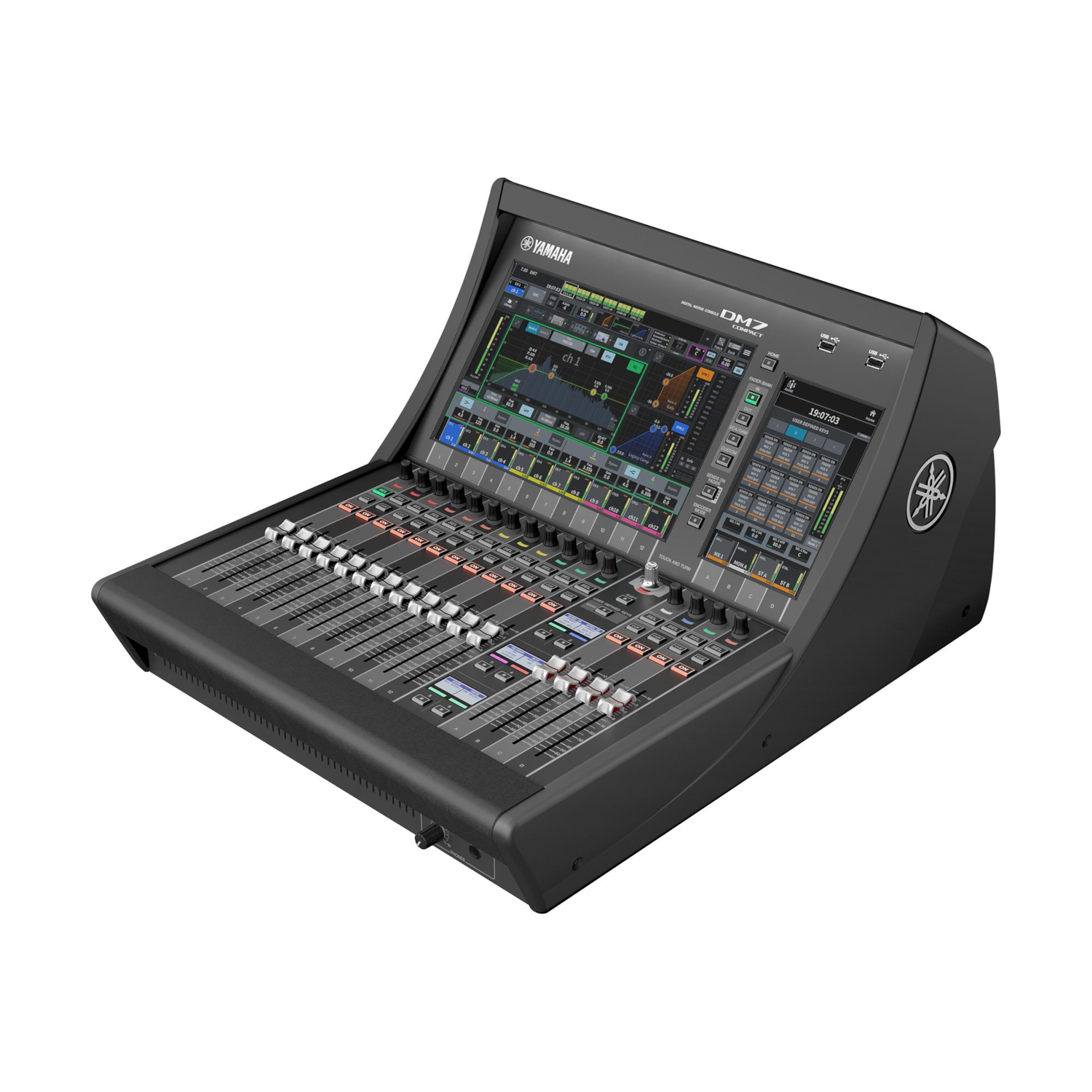

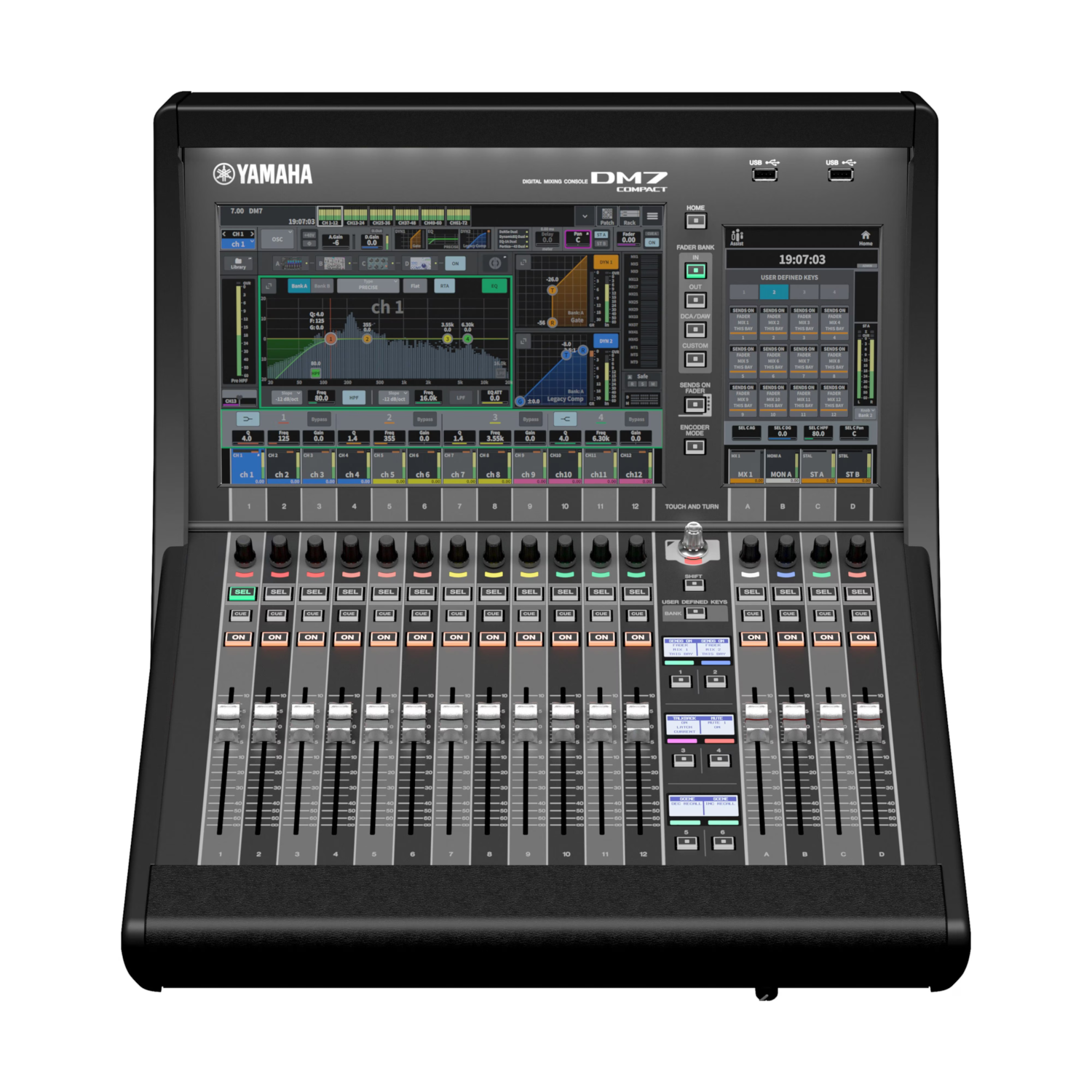

DM7 Compact Professional 72-Channel Single Bay Digital Mixing Console

The DM7 Compact is a Dante-equipped versatile digital mixing console with unparalleled sound quality, ease of operation, and high reliability that make it perfect for a wide range of applications. The DM7 is configured with 24 + 4 faders and 2 x 12-inch + 1 x 7-inch multi-touch screen.


Sound

Throughout Yamaha's long history of developing state-of-the-art digital mixers, there is one concept that we have consistently adhered too— the ideal starting point for sound creation is a totally natural, or “transparent” sound. This concept of natural sound is exemplified by the DM7 series high-end input section, producing a high-fidelity, uncolored sound that serves as the engineer's canvass to color, shape, and recreate, using the DM7 series built-in plug-ins, EQ, and dynamics. All in all, the DM7 series has evolved in every aspect to help engineers create their ideal sound.


  • Meticulously designed and constructed I/Os and 96 kHz sample rate
  • Newly added FET Limiter and Diode Bridge Compressor offer expanded dynamics control, while the new “History” function combines with the existing comps and gates
  • Dan Dugan automatic mixer with up to 64 channels in the channel strip as a standard feature. In cooperation with Dan Dugan Sound Design
  • VCM models of the renowned Portico 5033 equalizer and Portico 5043 compressor/limiter
  • FX RACK features high-quality multi-effects processors with forty-three types of high-grade effects including the newly equipped REV HD and REV R3


Operability

Yamaha digital mixers are known for offering a high level of operability that professional users demand, staying up to date with the constantly evolving state of the art. The M7CL offers analog-like operability; the CL series, a more refined operation with a brushed-up version of Centralogic; and the DM7 series puts an emphasis on intuitive operation and high efficiency via multiple displays and an advanced Selected Channel View.


  • Advanced graphical user interface is an audio engineer’s delight, offering the ultimate in touch operation convenience
  • Selected Channel View provides a list of operational information on the channel strip, retains the best aspects of previous GUI
  • Familiar touch screen operation that you use in your daily life is now available on your mixer
  • Large 2-bay DM7 with a DM7 control panel equipped with a physical controller to the rack-mountable DM7 Compact
  • 12-inch screen provides convenient operation that will allow you to focus more energy on sound creation, and includes the Selected Channel View
  • Selected Channel View and Overview from the RIVAGE PM series, but also features an updated, more intuitive operation
  • Features a multi-language option for individual channel names enabling more comfortable and intuitive operation


Design

Audio Engineers are far more than just concert staff doing “background work”. They may not be on stage, but they are an integral part of a live performance and require a high level of expertise, broad experience, and a sophisticated musicality that supports the artists' musical expression. Yamaha has been manufacturing musical instruments for over 130 years, and it is always a consideration during the design process to not only make a great sounding, eminently playable instrument, but also to focus on the form and aesthetic and how it will complement the artist playing it. In the DM7 series, we designed the consoles to be easy to operate so that mixing engineers can use them confidently and creatively even in challenging situations, while at the same time making them look sleek and attractive when they are being operated by the engineering artist helming them.


  • Strip lights illuminate fader surfaces to give engineers an advantage in darkened live venues
  • Inherits the smooth lines of the RIVAGE PM, CL, and QL consoles achieving a consistent design in terms of both operability and modeling
  • Buttons and knobs, functions, and graphics all adopt interface standards from other Yamaha series mixers for a familiar feel


Functionality

Engineers are required to deftly respond to the various demands of each artist and client on a daily basis to deliver the best sound possible to their audiences. Yamaha has enabled the DM7 series with cutting-edge technologies that allow engineers to focus on being creative in a limited time frame and establish a fast and efficient workflow without compromise.


  • Split Mode allows you to use one mixer as if it were two
  • Newly added “Assist”, is an efficient new feature that takes care of important, but more procedural tasks, allowing operators to hone their creative workflow
  • 144ch in/out via Dante, a combination of software, hardware and networking protocols which has become an industry standard
  • USB Type-C connector provides 18 in/out audio interface functions for recording, streaming, play back, connection to conferencing systems, and more
  • DAW Remote function allows operations such as volume control, playback, stop, and more, to be performed using physical controllers
  • Dual power supply units to reduce the risk of power loss resulting in downtime during a show


Expandability

Choosing and configuring an ideal system setup depends on the operator, the venue, and the type and magnitude of an event. The DM7 series allows users to tailor their system to their preferences and to streamline their workflow with compatible devices and dedicated software.


  • User Defined Keys/Knobs, Scene Memory, Monitor Control, and Panner can be accessed quickly and conveniently in a number of applications
  • Broadcast Package includes 5.1 surround support, Mix Minus, Loudness Meter, and other functions required for broadcast applications
  • Up to 64 in/out PY slot that allows users to customize the console's functionality and connectivity
  • Offers dedicated applications DM7 Editor and DM7 StageMix, as well as the Yamaha applications MonitorMix, ProVisionaire Contol, and ProVisionaire Touch
  • Yamaha Console File Converter is an application that allows data to be shared between a number of Yamaha digital mixers
  • Bundled with VST Rack Elements and Nuendo Live, inspiring creative sound shaping for a variety of live and studio applications
  • VST Rack Elements is plug-in host software that allows you to seamlessly configure your own effects rack using VST plug-ins
  • Steinberg Nuendo Live is a DAW optimized for multitrack recording of live sound

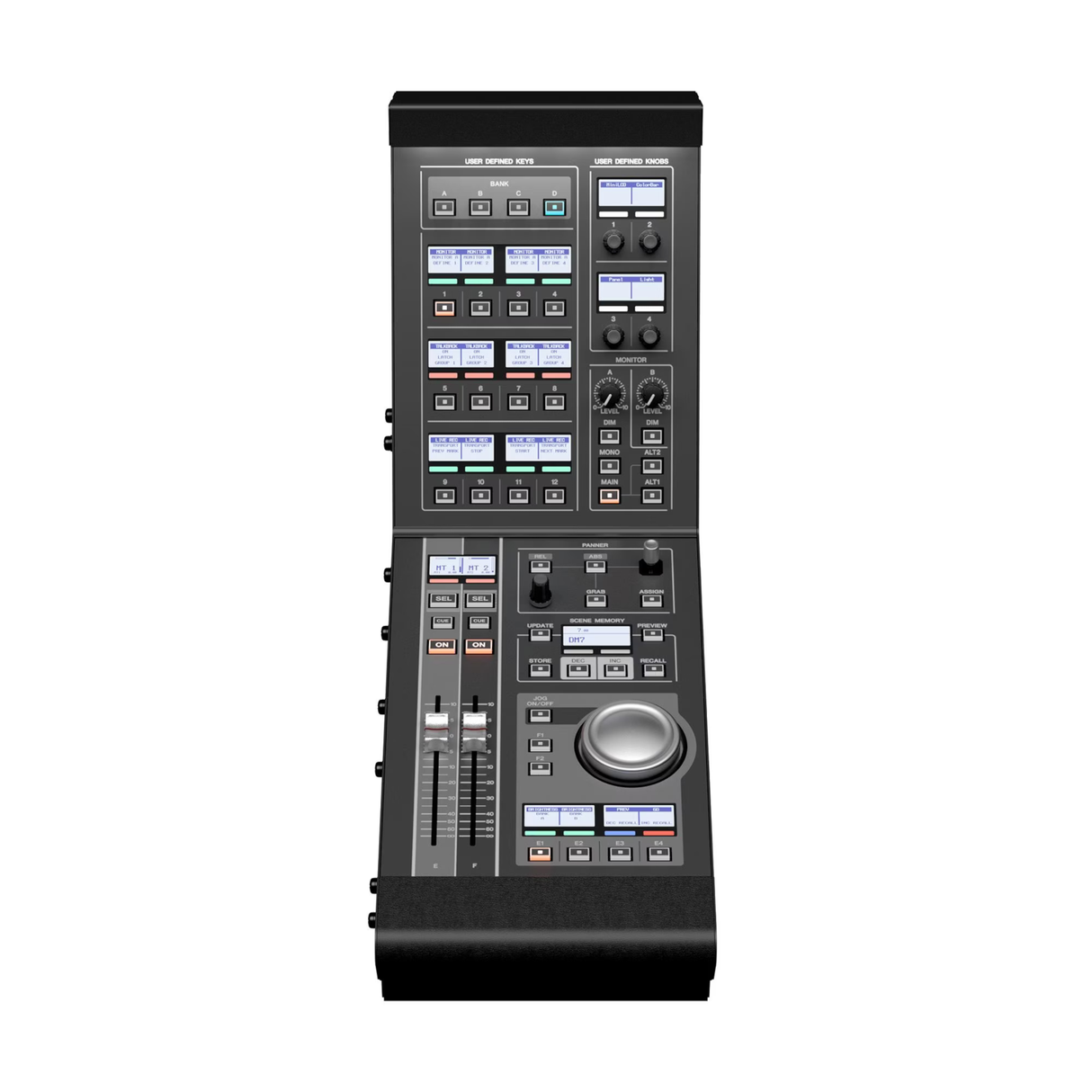

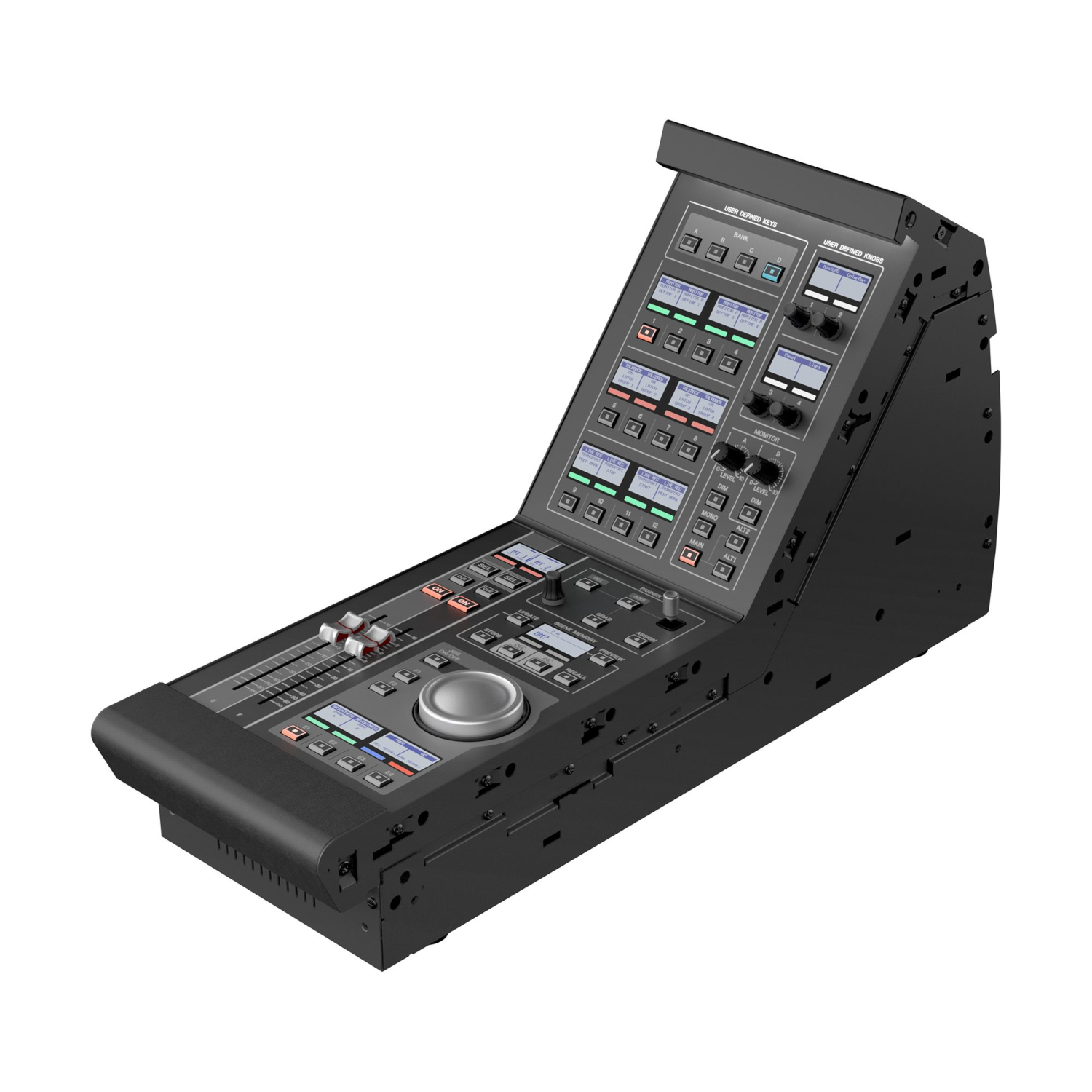

CTL-DM7 Control Expansion Controller

The DM7 Control is an expansion controller with a variety of physical control devices that can be used to conveniently control functions for a number of applications, such as User Defined Keys, Scene Memory keys, Monitor Control keys and knobs, and Panner joystick.


  • Scene Memory Keys: Update, Preview, Store, Recall, Inc, and Dec
  • Monitor Control for Monitor A/B
  • .


SPECIFICATIONS

Mixing Capacity

  • Input Channels: 72 mono
  • Mix Buses: 48
  • Matrices: 12 (input to Matrix supported)
  • Stereo Buses: 2
  • Mono Buses: 1 (Stereo B can be changed)
  • Cue Buses: 2

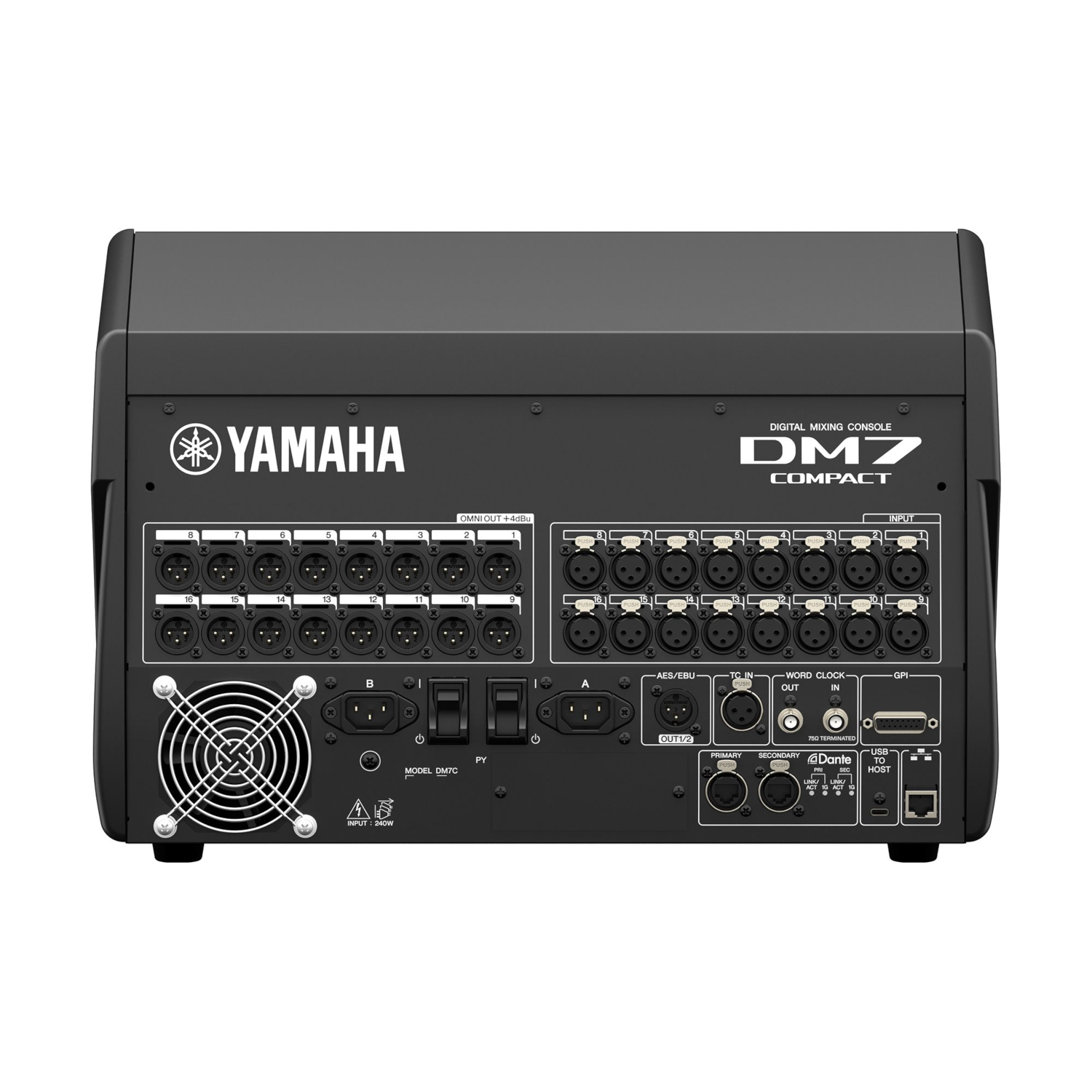

I/O Connectors

  • Analog Input: 16
  • Analog Output: 16
  • Dante: Primary/Secondary
  • AES/EBU Input: 0
  • AES/EBU Output: 1 (2 ch) with SRC
  • Expansion Slot (PY Slot): 1
  • World Clock I/O: In / Out
  • MIDI: No (MIDI protocol supported on USB to HOST)
  • GPI: 5 in / 5 out
  • USB to Device: 2 (File Save / Load, 2 Track Rec / Play)
  • USB to Host: 1 (USB Type-C, USB2.0)
  • Ethernet: Yes
  • Meter Bridge: On screen
  • Lamp: 0 (Built-in LED strip light)
  • Video Out: No
  • TC In: Yes
  • Phones: 1
  • AC: 2 (V-Lock Type)
  • External Redundant Power Supply: Built-in dual power supply

Scene Memory

  • Number of Scenes: 500
  • Recall Safe: Yes
  • Focus Recall: Yes
  • Fade Time: Yes
  • Preview: No
  • Selective Load / Save: Yes
  • Global Paste: Yes
  • Event List: No
  • Overlay: No
  • Isolate: No
  • Tactile Control Keys: No

Input Channel Functions

  • Input A/B: Yes
  • Gain Compensation: Yes
  • Digital Gain: Yes (-96 dB to +24 dB
  • Attenuator: Yes (-96 dB to +24 dB)
  • HPF: 20 Hz to 2,000 Hz, -6/-12/-18/-24 dB/oct Selectable
  • PEQ: 4 band full PEQ (4 algorithms, RTA overlay supported)
  • LPF: 20 Hz to 20 kHz, -6/-12 dB/oct
  • Dynamics 1: Legacy comp/comp260/expander/gate/ducing/de-esser
  • Dynamics 2: Legacy comp/comp260/expander/gate/ducking/de-esser/FET limiter/Diode bridge comp
  • Input Delay: Yes (output DCA supported)
  • Pan: Center nominal/LR nominal
  • DCA Group: 24 (output DCA supported)
  • DCA Rollout: Yes
  • Mute Group: 12
  • Number of Inserts: 4 slots on 1 insert point
  • Dan Dugan Automixer: Yes (Up to 64 ch)
  • Direct Out: Yes

Output Channel Functions

  • PEQ: 8 band full PEQ
  • GEQ: Virtual rack (EQ rack)
  • Dynamics 1: Legacy Comp / Comp260 / Expander / Gate / Ducking / De-Esser / FET Limiter / Diode Bridge Comp
  • Output Channel Delay: Yes (0 ms to 1,000 ms)
  • MUTE Group: 12
  • Number of Inserts: 4 slots on 1 insert point

Premium Rack

  • Number of DSP Resources: 64

Effect Rack

  • Number of DSP Resources: 16
  • Number of Effect Types: 43

EQ Rack

  • Number of DSP Resources: 32
  • Mountable Devices: 31BandGEQ / Flex15GEQ / 8Band PEQ (RTA overlay supported)

Dante

  • Number of I/O Channels: 144 in / 144 out
  • Number of Discoverable I/O Devices: 127 *1
  • Number of I/O Devices with HA: 24
  • Dante Patch from Console: Yes

USB to Host

  • Number of Audio I/O: Channels: 18 in / 18 out
  • USB MIDI: Yes

Monitor

  • Solo Mode: Yes
  • Oscillator: Sine Wave 1ch/Sine Wave 2ch/Pink Noise/Burst Noise

Other Functions

  • Port to Port: Yes
  • Timecode Reader/Display: Yes
  • Timecode Chase: No
  • GPI: Yes (5 in / 5 out)
  • MIDI: Yes (USB MIDI)
  • OSC Server: Yes
  • DAW Remote: Yes
  • Nuendo Live: Control Integration: Yes
  • Virtual Soundcheck: Yes
  • Wireless Mic Monitoring: Yes
  • RTA: Yes
  • Delay Compensation: Yes
  • Output Port Delay: Yes (up to 2o ports)
  • Sub In: Yes
  • User Levels: Yes
  • Channel: Yes
  • Temporary Channel Link: Yes
  • Multi Language Channel Names: Yes
  • Mix/Matrix to Input: Yes
  • Split Mode: Yes
  • Assist: Yes (HA/naming/fader

User Interface

  • Displays: 12.1-inch multi-touch x 2, 7-inch multi-touch x 1
  • Faders: 24+4
  • Channel/Screen Encoders: Yes
  • Channel Name/Color: No (on-screen)
  • Custom Fader Banks: Yes
  • Shift Keys: Yes
  • User Defined Keys: Surface: 12 (6 keys x 4 banks), Utility Screen (On-screen): 12 (12 keys x 4 banks)
  • User Defined Knobs: Yes (by 4 below Utility screen)
  • Touch and Turn Knobs: Yes
  • Monitor Level Knobs: Yes
  • Arm Rest: Yes
  • Rack Mountable: Yes

Software

  • Editor: DM7 editor (win/mac)
  • StageMix: DM7 StageMix
  • MonitorMix: Yes
  • Console File Converter: Yes
  • ProVisionaire Control/Touch: Yes
  • Software Package: Broadcast Package, Theatre Package

Dimensions and Weight

  • Dimensions: 468 x 324 x 564 mm (18.5 x 12.8 x 22.2 inches)
  • Weight: 16.5 kg (36.4 lbs)

CTL-DM7 Control Expansion Controller

  • Faders: 2
  • User Defined Keys: 16
  • User Defined Knobs: 4
  • Panner: 1
  • Jog Wheel: 1

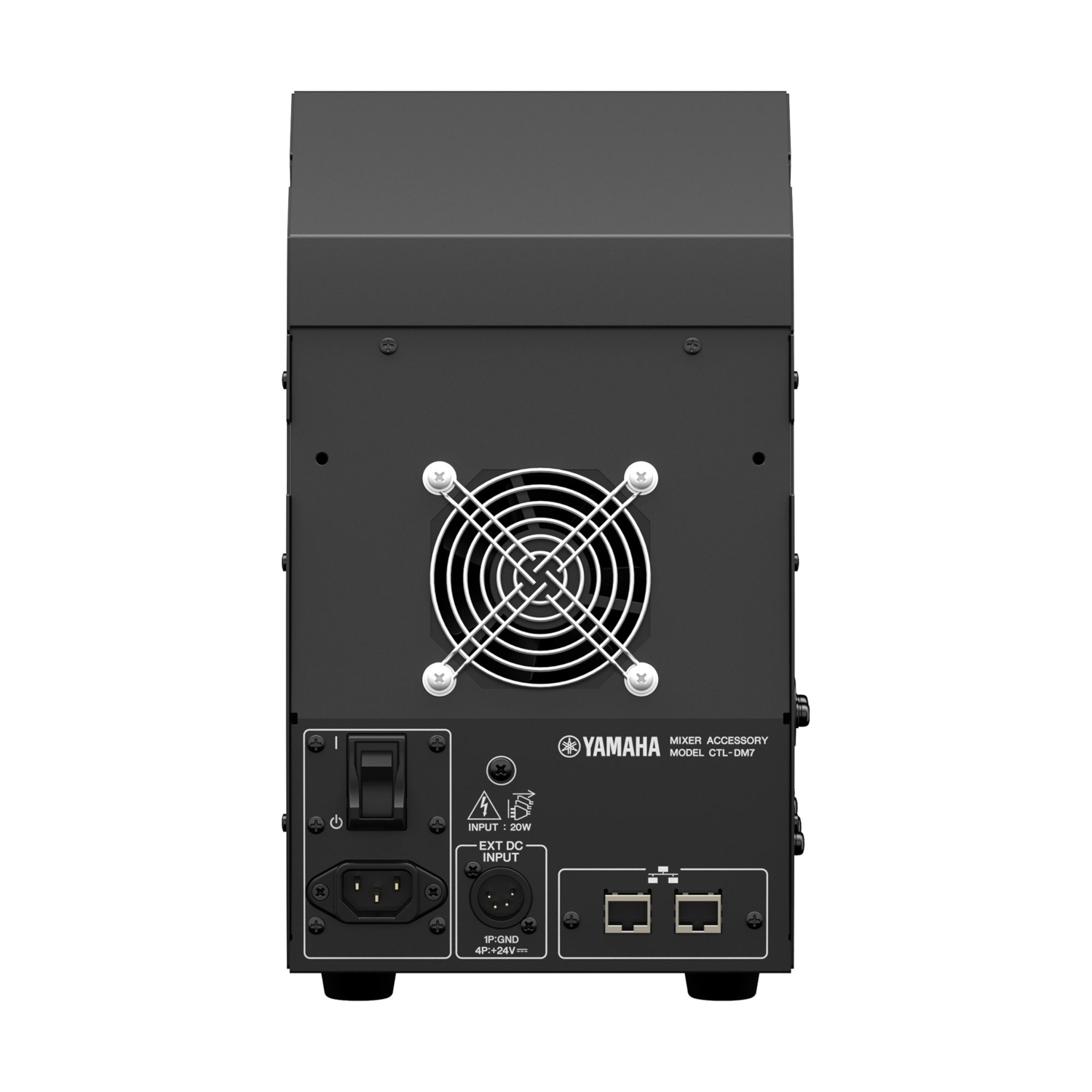

  • Power supply: AC INPUT and EXT DC INPUT for power supply redundancy
  • Power consumption: 20 W
  • Dimensions: 191 x 323 x 562 mm (7.6 x 12.8 x 22.2 inches)
  • Net Weight: 7 kg (15.5 lbs)

Manufacturer: Yamaha
Model: DM7C-EX
SKU: I747788-N-9-WHXA
