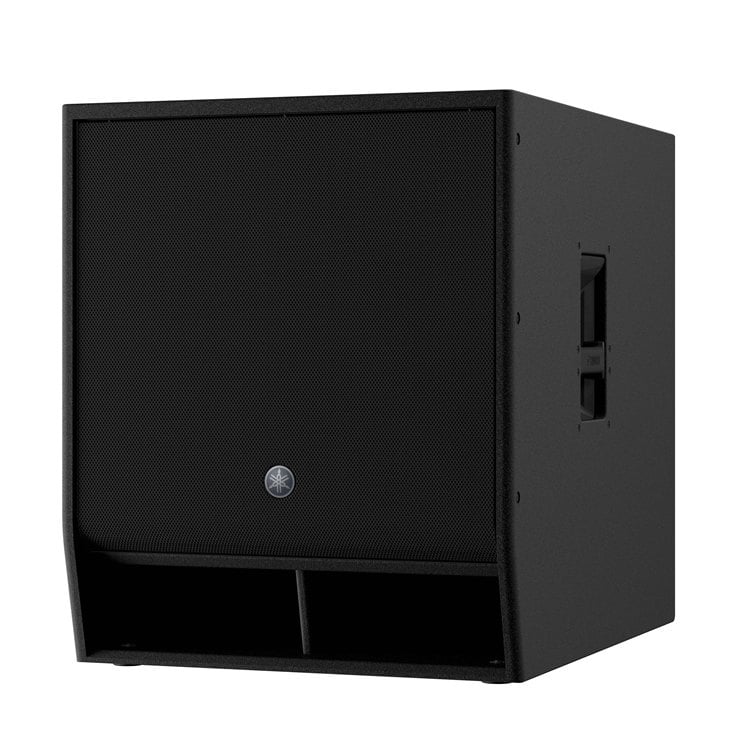

Enjoy Superb Clarity With The Yamaha DXS18XLF-D Powered Subwoofer
Not for the faint of heart, the newest DXS XLFâ€™s go deeper than any model before, with an extended low frequency of 30Hz- perfect for professional touring musicians, DJâ€™s, and sound engineers who need that extra-low, thundering bottom end that you just canâ€™t get from other subwoofers in this class. Flexible DSP and a bass-reflex cabinet design with a wide, flared port ensure your lower frequencies maintain outstanding clarity and musicality even when the volume is cranked.
Perfectly suited for use with DZR full-range speakers, the DXS18XLF-D is a Dante-equipped powered bass-reflex type subwoofer with extended low frequency, producing a best-in class maximum SPL of 136dB SPL with superb clarity and power.
- Powered 18" subwoofer with 4" Voice Coil
- Maximum 136dB SPL and 30Hz-150Hz frequency range is ideal for today's sound engineering demands
- High power 1600W Class-D amplifier module
- 96kHz DSP for true high-resolution sound with super low latency
- Equipped with Dante I/O (2in/2out) and features SRC (sample rate conversion) allowing 48kHz device compatibility
- Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
- Equipped with D-XSUB processing and cardioid mode capability
- Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
- Optional speaker cover (SPCVR-DXS18X) and wheel kit (SPW-1)
Speaker type: Powered Subwoofer, bass-reflex
Frequency range (-10dB): 30Hz - 150Hz
Components: LF: 18" Cone, 4" Voice Coil, Ferrite magnet
Sampling frequency rate: 96kHz and FIR Filter
A/D D/A Converters: 96kHz AD/DA
Maximum output level (1m; on axis): 136dB SPL
- Dynamic: 1600W
- Continuous: 1230W
- Analog I/O: Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20k ohms, Analog OUT: XLR3-32 x2, CH1/2: THRU or DSP OUT
- Digital I/O: Dante: etherCON CAT5e x2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T
- Others: USB2.0 Host 5V 500mA for USB memory DATA storage/load
- AC: IEC AC inlet x1 (V-Lock)
Cooling:Fan cooling, Variable speeds
Power consumption: 40W (Idle), 180W (1/8)
Handle: Aluminium die-cast, Side x2
Dimensions: Width - 21.7", Height - 25.9", Diameter - 28.3"
Net weight: 107.8 lbs
Options: Cover: SPCVR-DXS18X, Caster: SPW-1
Others: Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black
Pole socket: Diameter 35 mm (depth 80mm), M20 Threaded (depth 25mm)Manufacturer: Yamaha
