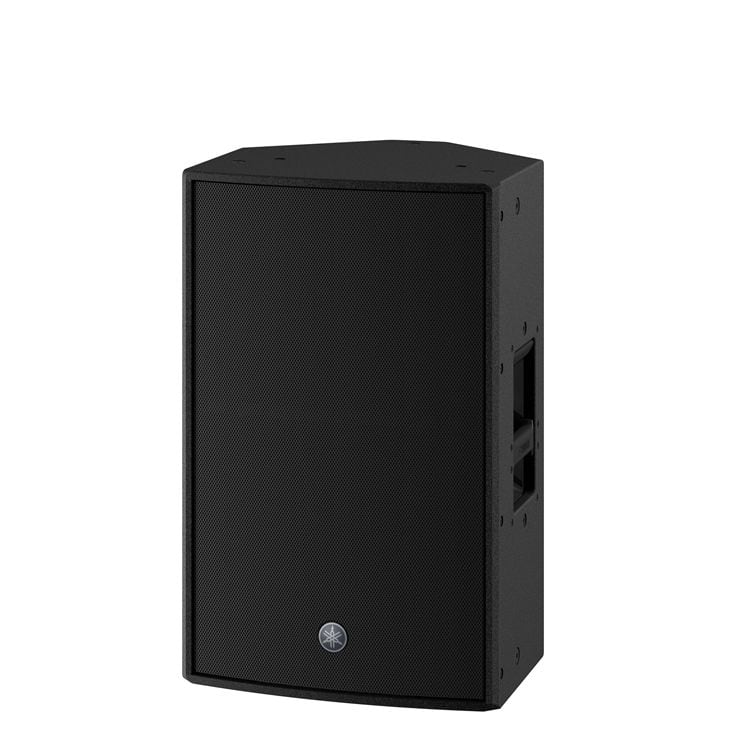

Yamaha DZR12 PA Loudspeaker

  • Our Price
  • $1,299.99
  • Regular price MSRP: $1,951.00

• Inventory changes daily
Contact us for availability | tel: 301-946-8808
• Please allow for additional delivery time due to COVID 19

Enjoy Lightweight Bi-Amped Performance With An Impressive SPL - The Yamaha DZR12 Powered Loudspeaker

The DZR12 is 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive 139dB SPL. With best-in-class SPL performance, sophisticated DSP processing, and unrivaled low-frequency sound reproduction, the DZR12 realizes a truly professional sound delivered with a level of power that belies its compact, lightweight design.

The culmination of the accrued sound reinforcement, acoustics, and signal processing technology expertise, the DZR represents the first fully-integrated, smart/editable speaker range of Yamaha professional, powered loudspeakers.

  • 96kHz DSP
  • (Dante models only) first professional loudspeaker with 2in/2out Dante integration
  • Advanced FIR-X Tuning for clarity and power
  • D-CONTOUR intelligent multi-band compressor
  • DSP protection for maxmimum output and component longevity
  • Custom designed trasnducers
  • Rotatable horns on 2-way models
  • Multiple mounting options on 2-way models
  • Panel locking option
  • Export log data for rapid troubleshooting

  • Speaker type:2-way, Bi-amped Powered Speaker, Bass-reflex
  • Frequency range (-10dB):39Hz - 20kHz
  • Coverage area: H90 Degrees x V60 Degrees (Rotatable)
  • Components
    • LF:12" Cone, 3" Voice Coil, Neodymium magnet
    • HF:2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
  • Crossover:1.8kHz (FIR-X)
  • Sampling frequency rate:96kHz and FIR Filter
  • A/D D/A Converters: 96kHz AD/DA
  • Maximum output level (1m; on axis):139dB SPL
  • Power rating
    • Dynamic:2000W (LF:1000W, MF/HF: 1000W)
    • Continuous:1300W (LF: 920W, MF/HF: 380W)
  • I/O Connectors
    • Analog I/O:Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20k ohms, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
    • Others:USB2.0 Host 5V 500mA for USB memory DATA storage/load
    • AC:IEC AC inlet x1 (V-Lock)
  • Amplifier class:Class-D
  • Cooling:Fan cooling, Variable speeds
  • Power consumption:45W (Idle), 150W (1/8)
  • Handle: Aluminium die-cast, Side x2
  • Rigging:M10 x12
  • Dimensions: Width - 16.1", Height - 25.4", Diameter - 15.5"
  • Net weight: 47.2 lbs
  • Options:U-bracket: UB-DZR12H/V, Cover: SPCVR-DZR12
  • Others:Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black
  • Floor Monitor Angle: 50 Degrees Symmetrical
  • Pole socket: Diameter 35 mm x2 (0 Degrees or -7 Degrees )

Manufacturer: Yamaha
Model: DZR12
Warranty: See manufacturer website for details
SKU: I576999-N-0-B
UPC: 889025114813
