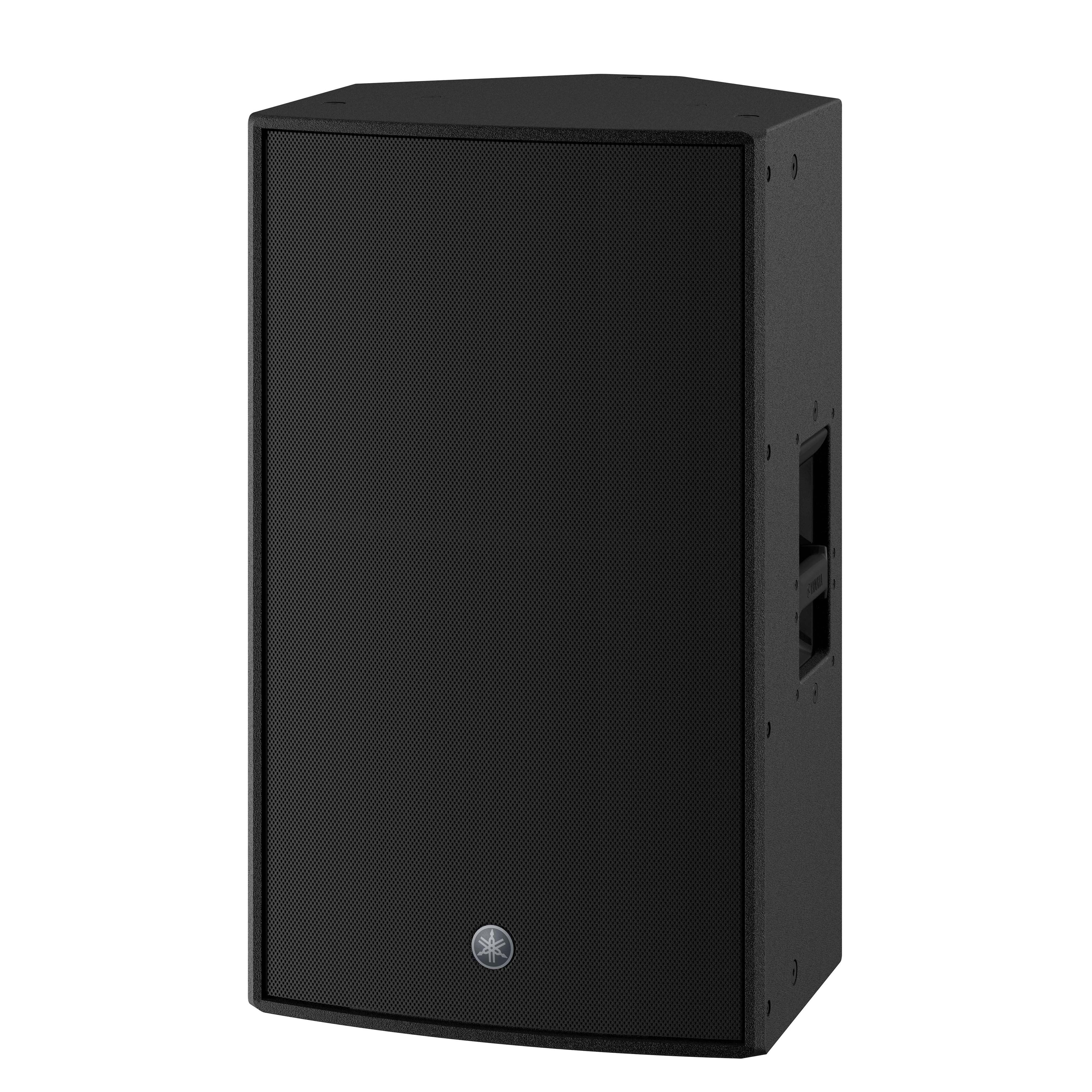

Yamaha DZR15 PA Loudspeaker


  • Our Price
  • $1,349.99
  • Regular price MSRP: $2,025.00




*IN STOCK - READY TO SHIP



Enjoy Superb Sound Clarity With The Yamaha DZR15 PA Loudspeaker

The culmination of the accrued sound reinforcement, acoustics, and signal processing technology expertise-particularly with the introduction of our Dante-enabled models-DZR represents the first fully-integrated, smart/editable speaker range of Yamaha professional, powered loudspeakers.

The DZR15 is a 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive maximum SPL of 139dB. With best-in-class SPL performance, sophisticated DSP processing, and unrivaled low-frequency sound reproduction, the DZR15 realizes a truly professional sound delivered with a level of power that belies its compact, lightweight design



  • 2-way powered loudspeaker with a 2" HF and a 15" LF
  • Maximum 139dB SPL and 34Hz-20kHz frequency range is ideal for today's professional audio demands
  • High power 2000W Class-D amplifier module
  • 96kHz DSP and FIR filter for true high-resolution sound with super low latency
  • Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
  • Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
  • D-Contour and highly reliable protection circuits
  • Floor monitoring setting enables mirroring configuration
  • Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
  • Optional speaker cover (SPCVR-DZR15)
  • Rotatable horn and variety of U-bracket options (UB-DZR) for rigging allow for very flexible setup and speaker placement


  • Speaker type: 2-way, Bi-amped Powered Speaker, Bass-reflex
  • Frequency range (-10dB): 34Hz - 20kHz
  • Coverage area: H90 Degrees x V60 Degrees (Rotatable)
  • Components
    • LF:15" Cone, 3" Voice Coil, Neodymium magnet
    • HF:2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
  • Crossover:1.7kHz (FIR-X)
  • Sampling frequency rate:96kHz and FIR Filter
  • A/D D/A Converters:96kHz AD/DA
  • Maximum output level (1m; on axis):137dB SPL
  • SRC: Yes
  • Power rating
    • Dynamic: 2000W (LF:1000W, MF/HF: 1000W)
    • Continuous: 1300W (LF: 920W, MF/HF: 380W)
  • I/O Connectors
    • Analog I/O:Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20k ohms, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
    • Others:USB2.0 Host 5V 500mA for USB memory DATA storage/load
    • AC:IEC AC inlet x1 (V-Lock)
  • Amplifier class:Class-D
  • Cooling:Fan cooling, Variable speeds
  • Power consumption: 45W (Idle), 150W (1/8)
  • Handle: Aluminium die-cast, Side x1
  • Rigging:M10 x12
  • Dimensions: Width - 17.7", Height - 30.0", Diameter - 18.1"
  • Net weight: 55.6 lbs
  • Options:U-bracket: UB-DZR12H/V, Cover: SPCVR-DZR10
  • Others:Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black
  • Floor Monitor Angle:50 Degrees Symmetrical
  • Pole socket:Diameter 35 mm x2 (0 Degree or -7 Degrees)

Manufacturer: Yamaha
Model: DZR15
Warranty: See manufacturer website for details
SKU: I612269-N-2-B
UPC: 889025114806
