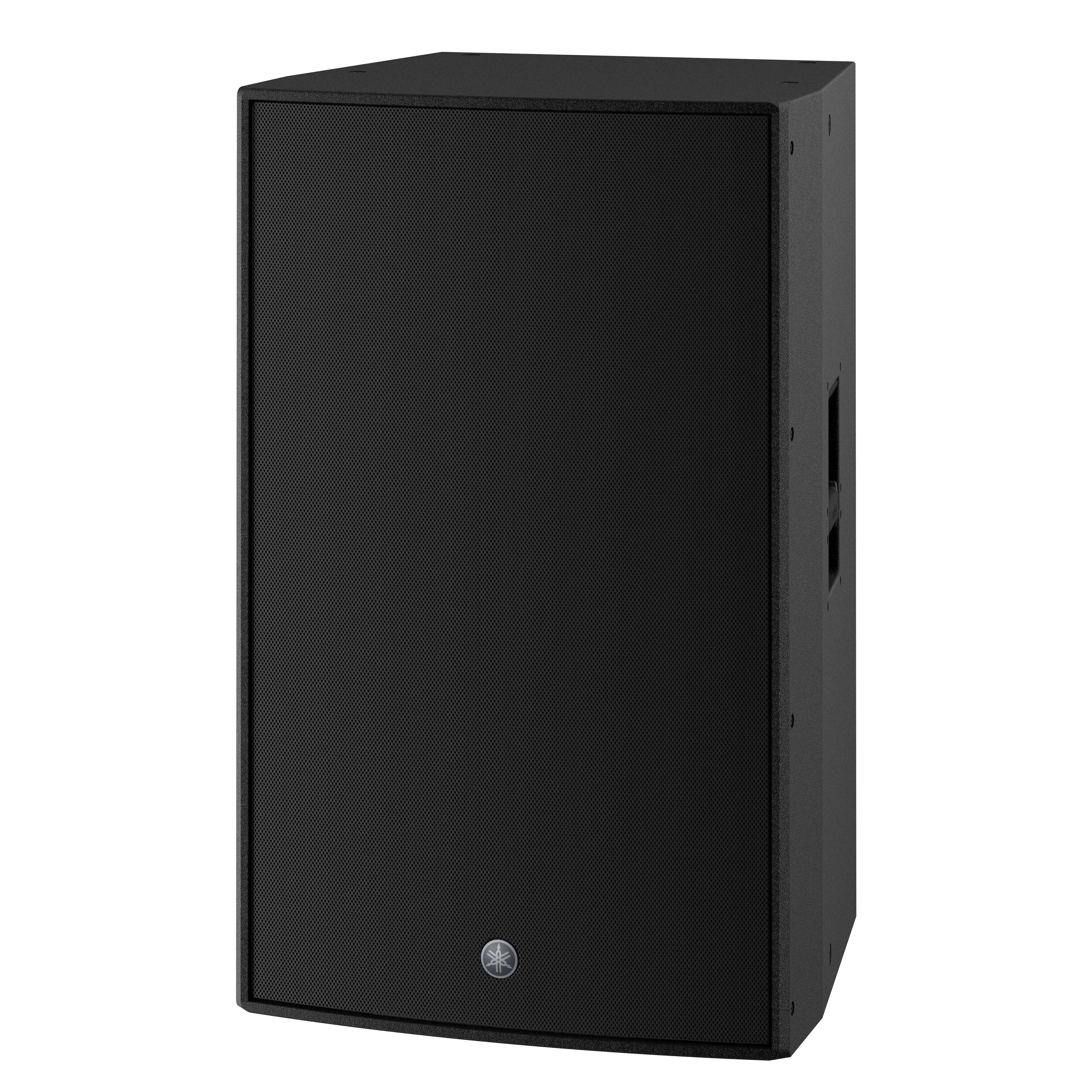

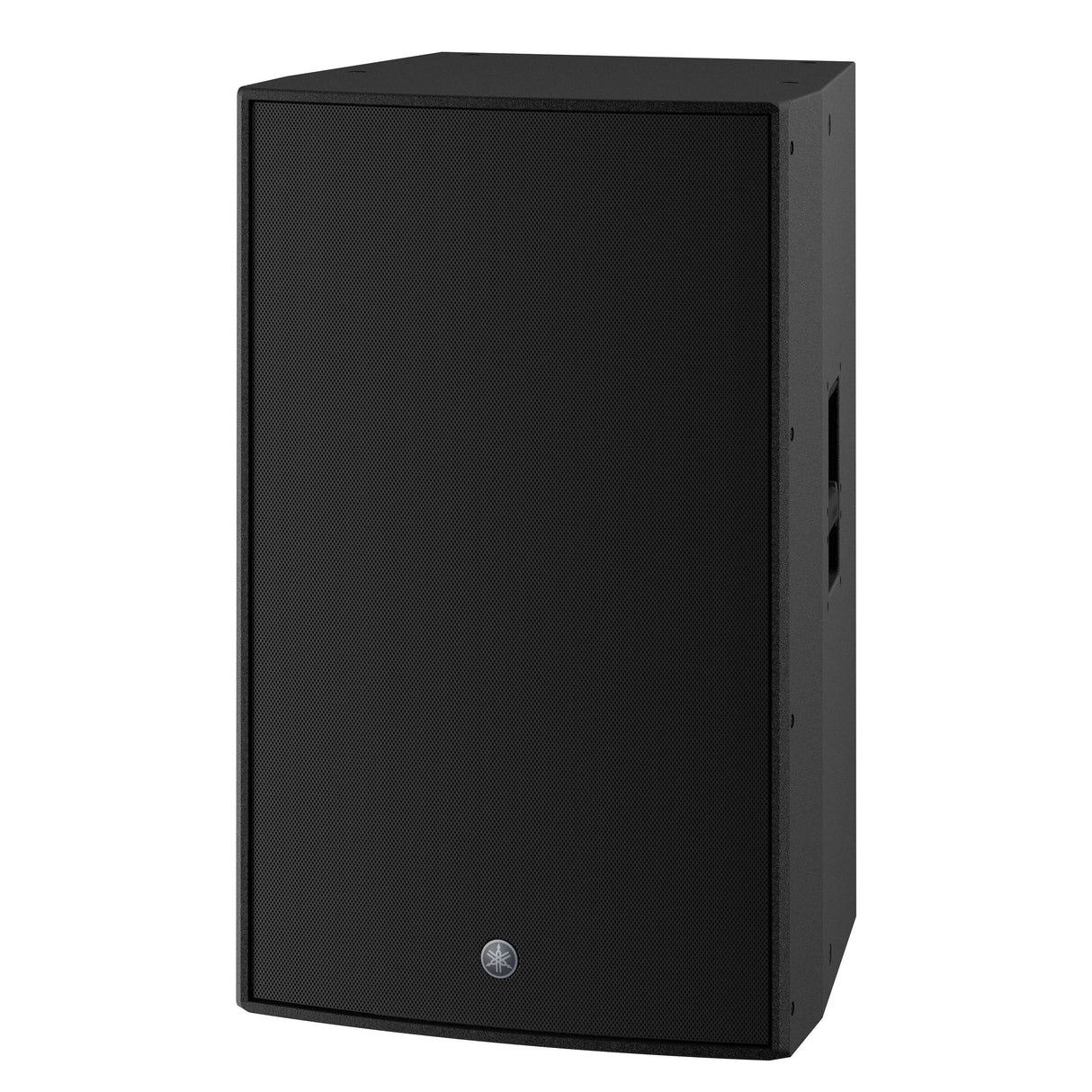

Yamaha DZR315-D 15-Inch Three-Way Powered Loudspeaker with Dante

by Yamaha
Sold out
Original price $1,909.99 - Original price $1,909.99
Original price
$1,909.99
Default Title: $1,909.99
Current price $1,909.99
❓ Out of stock

Notify Me When Available
About Inventory Status


Questions?
Call or text us at 301-946-8808.

In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.

📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.

Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.

Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.

█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.

About Item Conditions


Questions?
Call or text us at 301-946-8808.

New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.

Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.

Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.

Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.

Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.

B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.

Educational & Government Sales Quotes

Click here to inquire about an educational or government quote and discover more about our Educational & Government Sales Division.


Enjoy Superb Clarity With The Yamaha DZR315-D PA Loudspeaker

The culmination of the accrued sound reinforcement, acoustics, and signal processing technology expertise-particularly with the introduction of our Dante-enabled models-DZR represents the first fully-integrated, smart/editable speaker range of Yamaha professional, powered loudspeakers.

The DZR315-D is a Dante-equipped three-way bi-amped powered loudspeaker and is the most powerful model in the DZR Series producing a maximum 143dB SPL with supreme clarity. Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency sound reproduction-the DZR315 delivers on all fronts realizing a truly professional sound delivered with a level of power that belies its compact, lightweight design. Ideal for use in a front of house main PA, it also includes integrated M10 rigging points for suspended applications.



  • 3-way powered loudspeaker with a 2" HF, an 8" MF and a 15" LF
  • Maximum 143dB SPL and 31Hz-20kHz frequency range is ideal for FOH main PA
  • High power 2000W Class-D amplifier module
  • 96kHz DSP and FIR filter for true high-resolution sound with super low latency
  • Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
  • Equipped with Dante I/O (2in/2out) and features SRC (sample rate conversion) allowing 48kHz device compatibility
  • Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
  • D-Contour and highly reliable protection circuits
  • Lightweight yet very durable plywood cabinet with premium grade Polyurea coating


  • Speaker type: 3-way, Bi-amped Powered Speaker, Bass-reflex
  • Frequency range (-10dB): 31Hz - 20kHz
  • Coverage area: H75 Degrees x V50 Degrees(Rotatable)
  • Components
    • LF:15" Cone, 3" Voice Coil, Neodymium magnet
    • MF:8" Cone, 1.5" Voice Coil, Ferrite magnet
    • HF:2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
  • Crossover: 700Hz (FIR-X), 2.5kHz (Passive)
  • Sampling frequency rate:96kHz and FIR Filter
  • A/D D/A Converters:96kHz AD/DA
  • Maximum output level (1m; on axis): 143dB SPL
  • Power rating
    • Dynamic:2000W (LF:1000W, MF/HF: 1000W)
    • Continuous:1300W (LF: 920W, MF/HF: 380W)
  • I/O Connectors
    • Analog I/O:Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20k ohms, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
    • Digital I/O:Dante: etherCON CAT5e x2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T
    • Others: USB2.0 Host 5V 500mA for USB memory DATA storage/load
    • AC: IEC AC inlet x1 (V-Lock)
  • Amplifier class: Class-D
  • Cooling: Fan cooling, Variable speeds
  • Power consumption: 45W (Idle), 150W (1/8)
  • Handle: Aluminium die-cast, Side x2
  • Rigging: M10 x16
  • Dimensions: Width - 21.6", Height - 35.3", Diameter - 20.5"
  • Net weight: 91.7 lbs
  • Options: Cover: SPCVR-DZR315
  • Others: Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black


Manufacturer: Yamaha
Model: DZR315-D
SKU: I612271-N-0-WHXA
UPC: 889025119672
