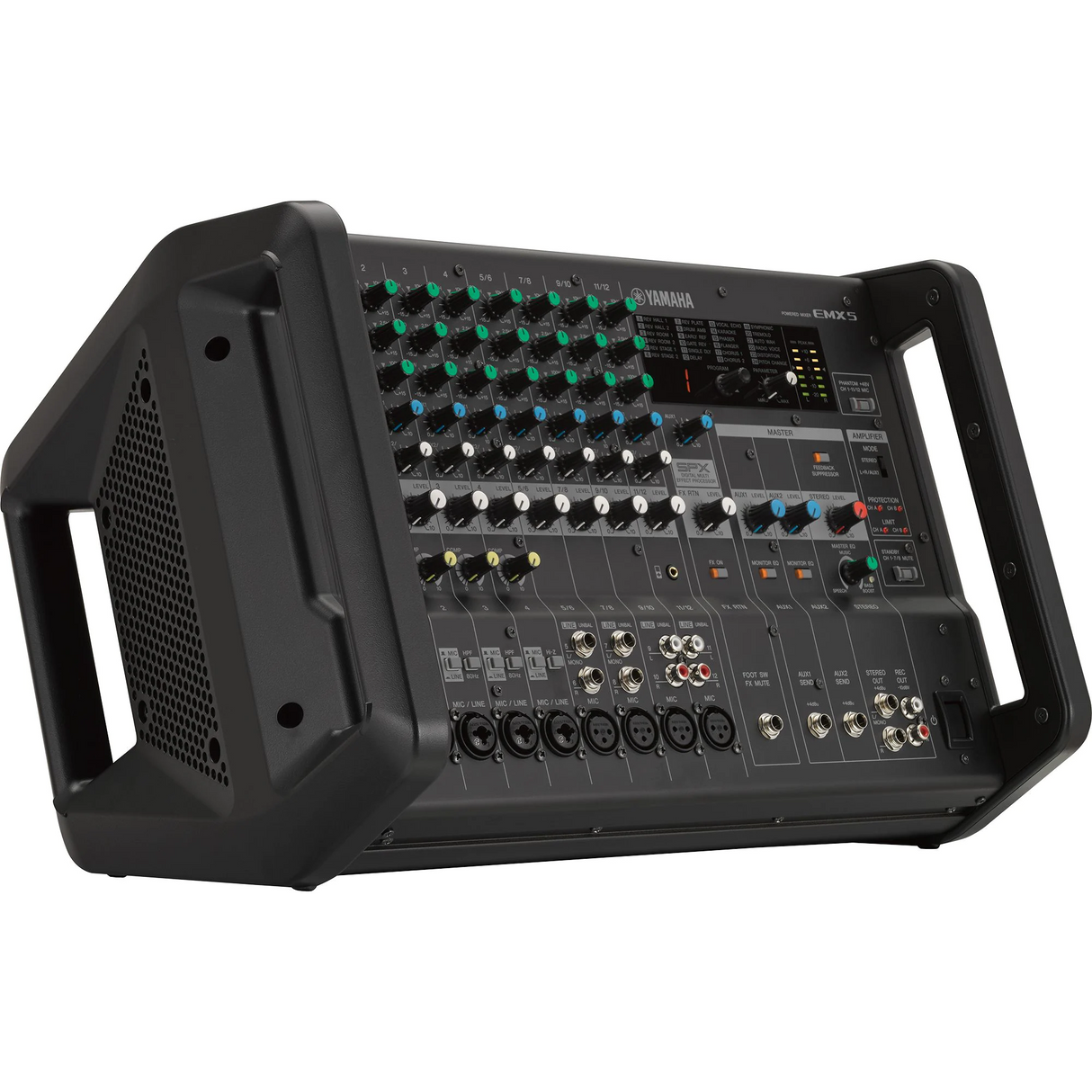

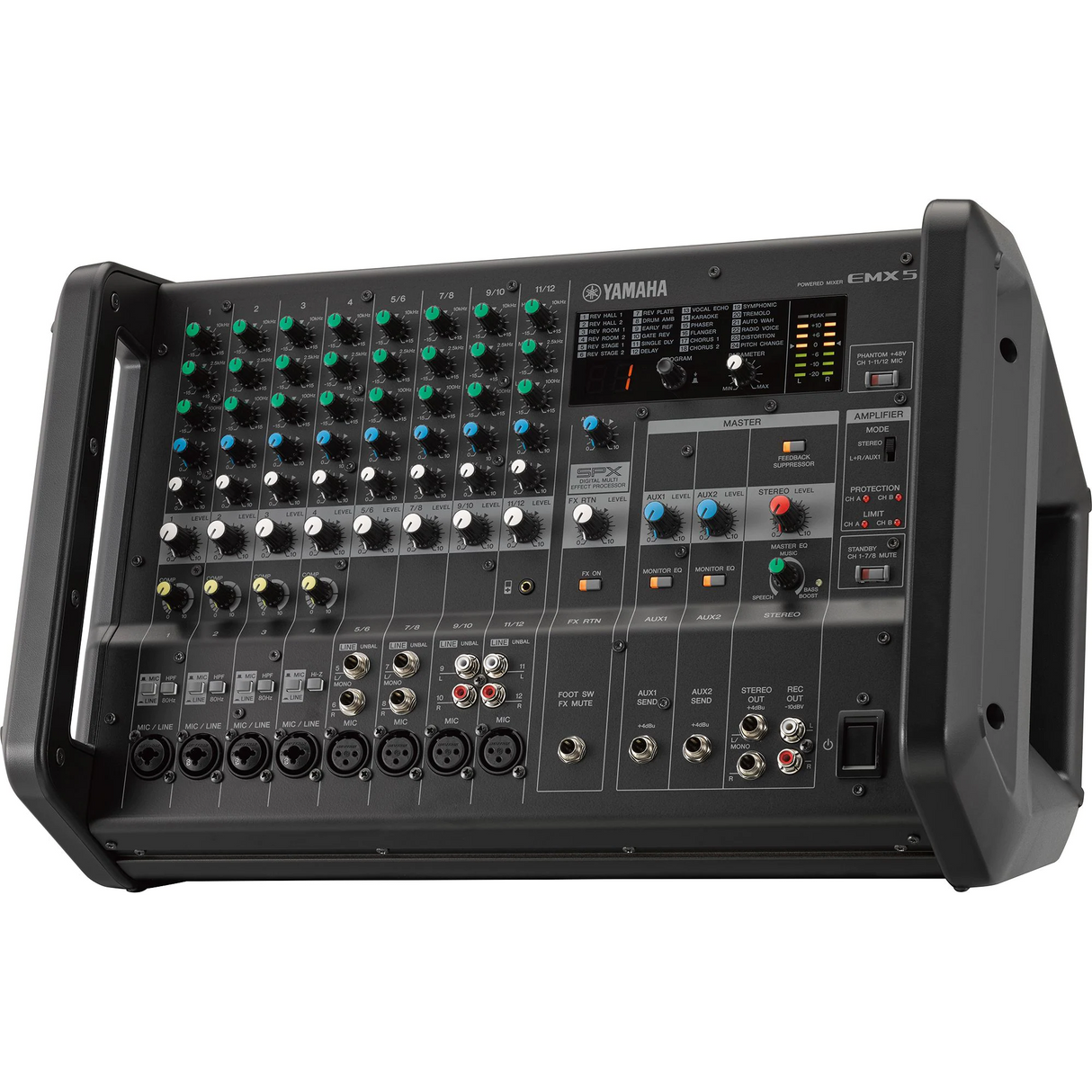

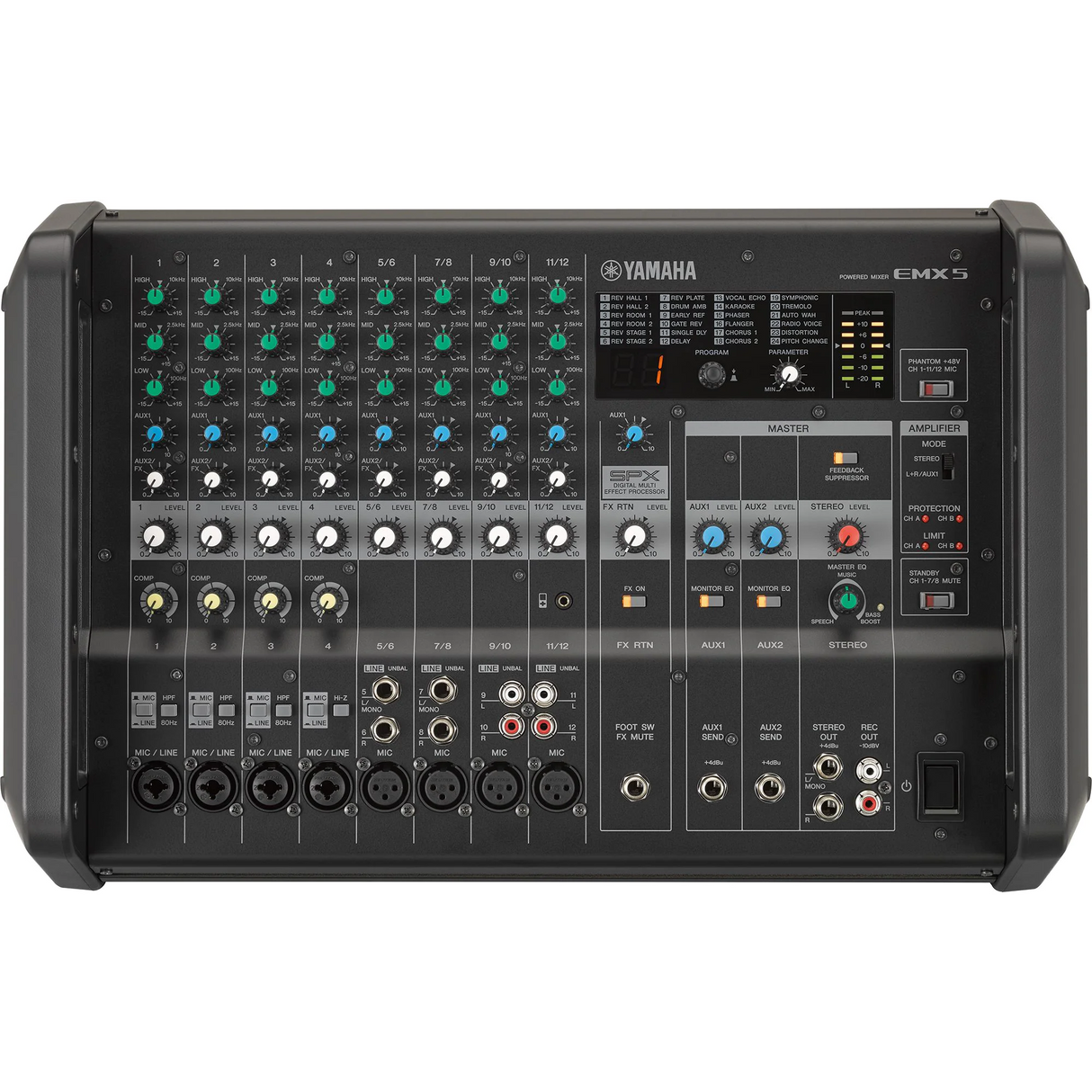

Yamaha EMX5 12-Input Powered Stereo Mixer

by Yamaha
Original price $932.00
Original price $932.00 - Original price $932.00
Original price $932.00
Current price $699.99
$699.99 - $699.99
Current price $699.99
♫ In stock
About Inventory Status


Questions?
Call or text us at 301-946-8808.

In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.

📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.

Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.

Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.

█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.

About Item Conditions


Questions?
Call or text us at 301-946-8808.

New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.

Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.

Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.

Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.

Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.

B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.

Educational & Government Sales Quotes

Click here to inquire about an educational or government quote and discover more about our Educational & Government Sales Division.


Get Incredible Versatility and Quality With the Yamaha EMX5 Portable PA With Built-In Mixer

Because the EMX5 is both a mixer and a power amplifier, you only need speakers and mics to have a fully functioning sound system. This makes it easy for newcomers, and even first-time users with no previous audio experience to easily configure their own sound reinforcement system. The EMX5's all-in-one design concept ensures that by just plugging in a single power cable and making a few simple, intuitive connections, anyone can be their own sound engineer.


  • 2x 630W, 2x 460W (1kHz THD+N less than 10 percent CEA2006)
  • 2x 500W, 2x 370W (1kHz THD+N less than 1 percent CEA2006)
  • Powerful and High Efficiency Class-D Amplifier
  • 12 Line Inputs (8 mono + 4 stereo)
  • High-Z input (channel 4) to connect guitars or basses directly
  • 1-Knob Master EQ
  • Onboard Feedback Suppressor
  • Comprehensive, professional 24 different effects
  • Metal chassis for extended operation and robustness
  • Large handles for extreme portability and protection
  • Universal power supply eliminates concern on power fluctuations
  • Optional rack-mount kit available


SPECIFICATIONS

I/O

  • Inputs: TOTAL 12 channels : 8 Mono (MIC/LINE), 4 Stereo (LINE)
  • Phantom power: +48 V
  • Outputs: SPEAKERS [A, B], AUX1 SEND, AUX2 SEND, STEREO OUT [L, R], REC OUT [L, R]
  • Control and others: FOOT SWITCH : Effect Mute on/off

Input Channel functions

  • PAD 30 dB (CH1-4)
  • Z: Supported (CH4)
  • HPF: 80 Hz, -12 dB/oct. (CH1)
  • COMP: 1-knob COMP (CH1)
  • EQ HIGH: 10 kHz +15 dB / -15 dB (Shelving)
  • EQ MID: 2.5 kHz +15 dB / -15 dB (Peaking)
  • EQ LOW: 100 Hz +15 dB / -15 dB (Shelving)

On-Board Processors

  • SPX: Algorithm 24 programs, Feedback suppressor, Master EQ, Monitor EQ

On-Board Amplifiers

  • Maximum output power 4ohms: 1kHz THD+N less than 10 percent (CEA2006) : 630 W + 630 W, 1kHz THD+N less than 1 percent (CEA2006) : 500 W + 500 W
  • Maximum output power 8ohms: 1kHz THD+N less than 10 percent (CEA2006) : 460 W + 460 W, 1kHz THD+N less than 1 percent (CEA2006) : 370 W + 370 W
  • Level Meter: 7 points LED meter (-20, -10, -6, 0, +6, +10, PEAK)

General Specifications: EMX5

  • Frequency response: Input to SPEAKERS : +1 dB/-3 dB (40 Hz to 20 kHz), Input to STEREO OUT, AUX1 SEND, AUX2 SEND : +0.5 dB/-1 dB (20 Hz to 20 kHz), refer to the nominal output level 1 kHz
  • Total harmonic distortion: Input to SPEAKERS: 0.1 percent at 10 W (40 Hz to 20 kHz), 0.05 percent at 50 W (1 kHz); Input to STEREO OUT, AUX1 SEND, AUX2 SEND: 0.03 percent at +14 dBu (20 Hz to 20 kHz), 0.007 percent at +20 dBu (1 kHz), (THD+N, measured with 22 kHz LPF)

Hum and Noise Level

  • Equivalent input noise: -117 dBu (Noise is measured with A-weighting filter)
  • Residual output noise: Input to SPEAKERS : -70 dBu(40Hz to 20kHz, STEREO MASTER LEVEL: min); Input to STEREO OUT, AUX1 SEND, AUX2 SEND: -82dBu(20Hz to 20kHz, STEREO MASTER LEVEL: min): (Noise is measured with A-weighting filter)
  • Crosstalk: -85 dB (1 kHz, Measured with 1 kHz band pass filter)

Protection Circuit

  • Load protection: DC-fault
  • Amplifier protection: Over heat protection, Over current protection, Integral power protection
  • Power supply protection: Over heat protection, Over current protection
  • Net weight: 9.5 kg (20.9 pounds)
  • Accessories: Owner's Manual, Technical Specifications, AC power cord (2.5 m)
  • Options: Foot switch: FC5, Rack-mount brackets: RK-EMX7
  • Others: Operating Temperature : 0 to +40

Manufacturer: Yamaha
Model: EMX5
SKU: I435948-N-4-WHXX
UPC: 889025106221
