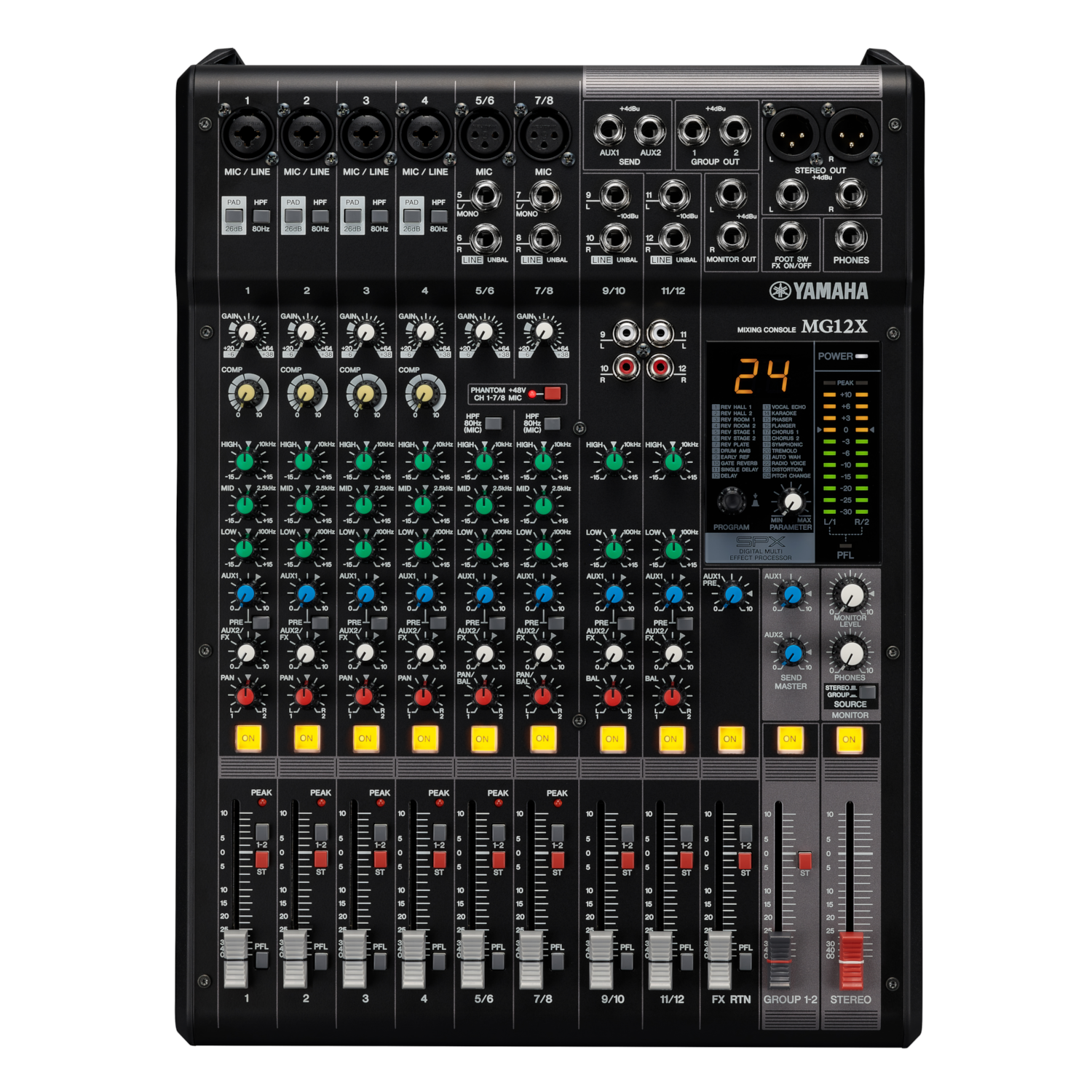

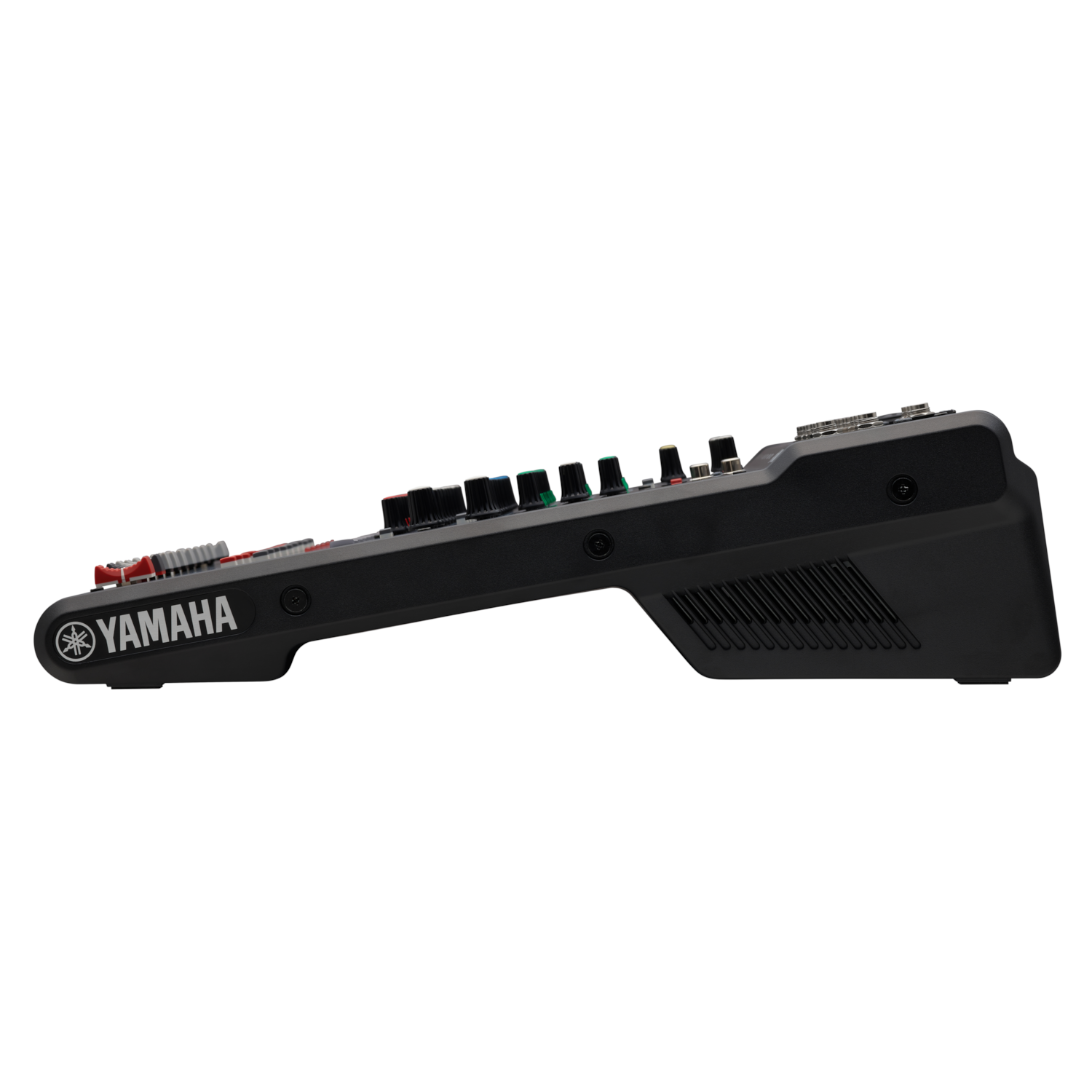

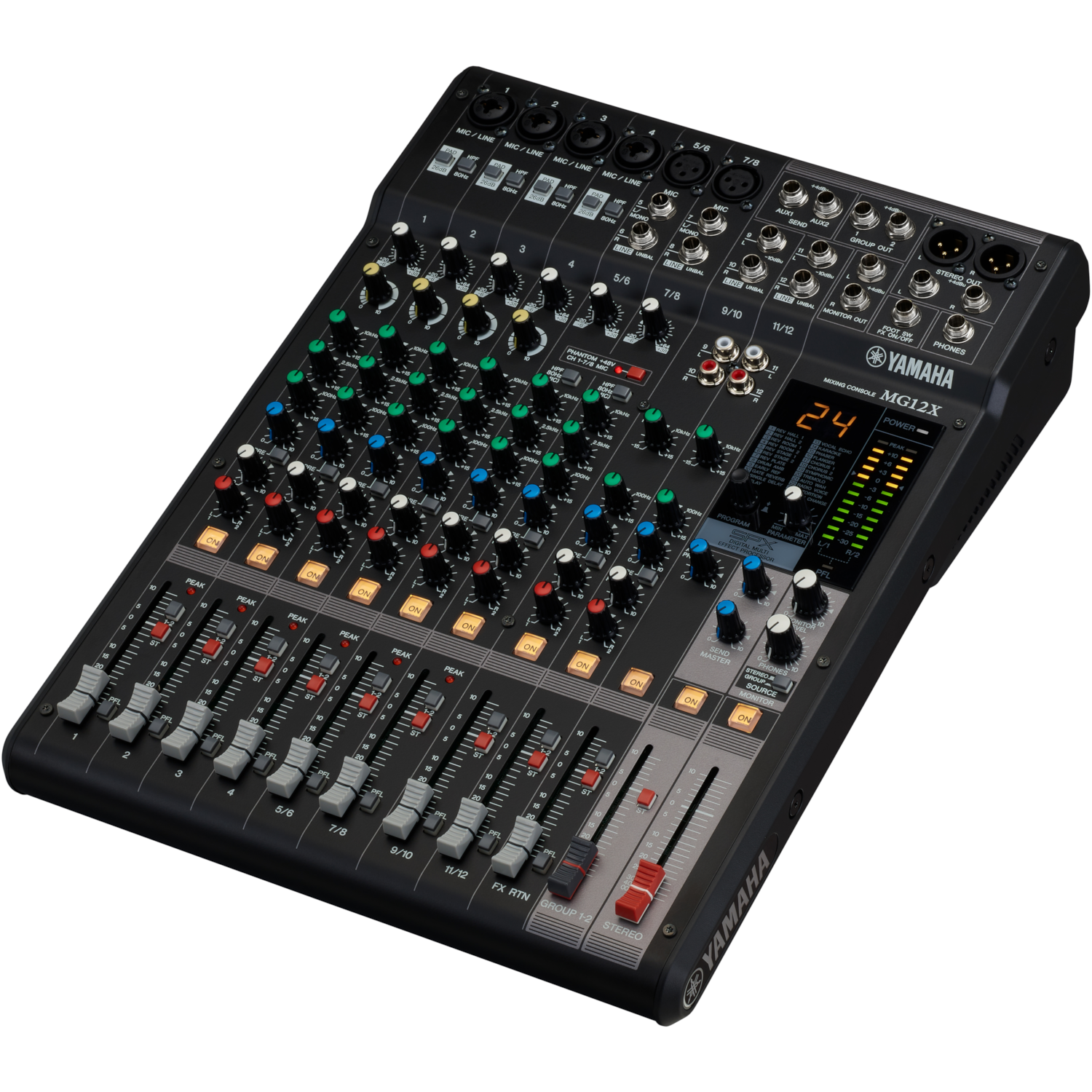

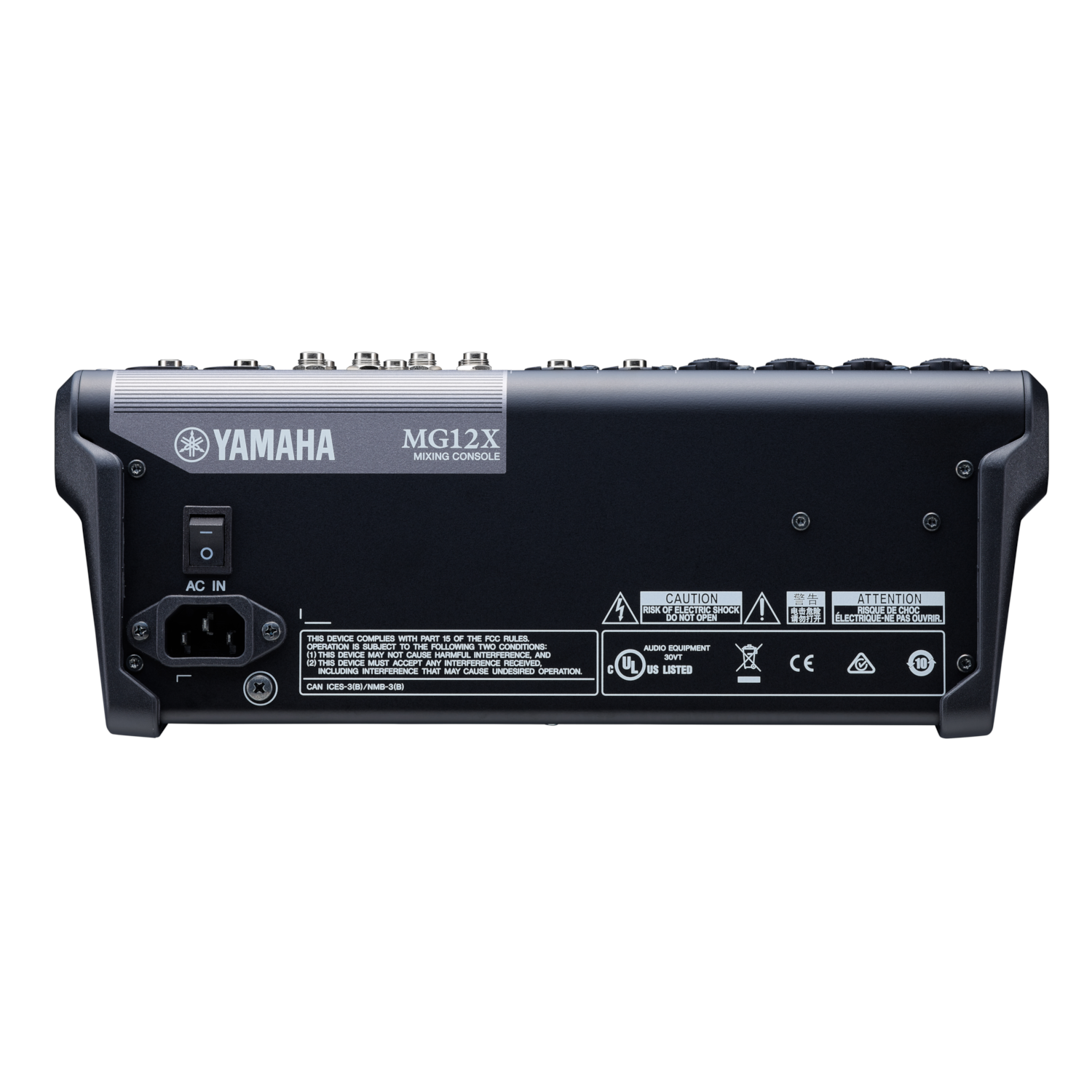

Impressive and Intuitive - The Yamaha MG12X CV 12-Input Stereo Mixer

Housed in a rugged steel chassis, the MG12X CV can accommodate up to 12 inputs and offers a balanced stereo output. Featuring D-Pre discrete Class A microphone preamplifiers for pristine sound, it includes an Aux bus for the built-in SPX effect with 24 presets and four channels of single knob compression. The MG12X can accept XLR, 1/4-inch Phone and RCA type pin jack inputs, and offers XLR and Phone outputs. The MG12X offers faders, and lit channel on/off switches for easy visual indication of settings. A footswitch input allows hands free effect muting. The MG12X CV can be rack mounted with the optional RK-MG12 Rack mount kit.

  • Rugged, Powder-coated steel chassis for superior durability
  • Discrete Class-A microphone preamps
  • Switchable +48V Phantom power
  • Color-coded controls offer easy operation



  • Frequency Response Input to STEREO OUT: +0.5 dB (20 Hz to 48 kHz), refer to the nominal output level @ 1 kHz, GAIN knob: Min
  • Total Harmonic Distortion (THD+N) Input to STEREO OUT: .03% @ + 14 dBu (20 Hz to 2 kHz), GAIN knob: Min
  • Pre Monitor Level Meter: 2 x 12 -segment LED meter [PEAK, +10, +6, +3, 0, -6, -10, -15, -20, -25, -30 dB
  • Internal Digital Effect: SPX algorithm 24 programs
  • Phantom Power Voltage: 48 V PA-10, AC 100 - 240 V, 50.60 Hz
  • Power Consumption: 22 W
  • Dimensions (W x H x D): 308 mm x 118 mm x 422 mm, 12.1 x 4.6 x 16.6-inch
  • Net Weight: 4.2 kg (9.3 lbs)

Hum and Noise (20 Hz to 20 kHz)

  • Equivalent Input Noise: -128 dBu (Mono Input Channel, RS 150 Ω, GAIN knob: Max)
  • Residual Input Noise: -102 dBu (STEREO OUT, STEREO master fader: Min)

Input Channels

  • Mono [MIC/LINE]: 4
  • Mono/Stereo [MIC/LINE]: 2
  • Stereo [LINE]: 2

Output Channels

  • PHONES: 1
  • AUX SEND: 2
  • GROUP OUT: 2


  • STEREO: 1
  • GROUP: 2
  • AUX SEND: 2 (incl. FX)

Input Channel Function

  • HPF (Mono, Mono/Stereo): 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
  • COMP (Mono)
    • 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu
    • Ratio: 1:1 to 4:1
    • Output level: 0 dB to 7 dB
    • Attack time: approx. 25 msec
    • Release time: approx. 300 msec
  • EQ
    • High: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
    • Mid: Gain: +15 dB, Frequency: Mono 2:5 Hz peaking
    • Low: Gain: +15 dB/-15 dB, Frequency: 100 kHz shelving
  • Peak LED (mono): LED turns on when EQ signal reaches 3 dB below clipping

Manufacturer: Yamaha
Model: MG12X CV
SKU: I692857-N-5-WHXB
UPC: 889025142687
