Yamaha STAGEPAS 200BTR Battery-powered Portable PA System with Bluetooth

by Yamaha
Original price $1,000.00
Original price $1,000.00 - Original price $1,000.00
Original price $1,000.00
Current price $849.99
$849.99 - $849.99
Current price $849.99
♫ In stock
About Inventory Status

Call or text us at 301-946-8808.

In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.

📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.

Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.

Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.

█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.

About Item Conditions

Call or text us at 301-946-8808.

New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.

Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.

Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.

Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.

Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.

B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.

Educational & Government Sales Quotes

Click here to inquire about an educational or government quote and discover more about our Educational & Government Sales Division.

Move Your Audience with the Yamaha STAGEPAS 200BTR Battery-powered Portable PA System with Bluetooth

A portable PA system equipped with a 180 W power amp, coaxial compression driver with 1.4” voice coil HF and 8” cone LF, a 5-channel digital mixer, and sold together with a high-capacity lithium-ion battery.

  • 180 W (HF: 30 W + LF: 150 W) Class-D amplifier
  • 1.4” HF + 8” LF high-quality coaxial compression driver
  • 5-channel digital mixer (3 monaural mic/line + 1 stereo line)
  • Main output multi-band compressor “MODE”
  • 1-knob EQ/preset for each channel
  • High-grade SPX digital reverb (4 program, parameter control), delay, chorus
  • Hi-Z input
  • Equipped with link-out/monitor out

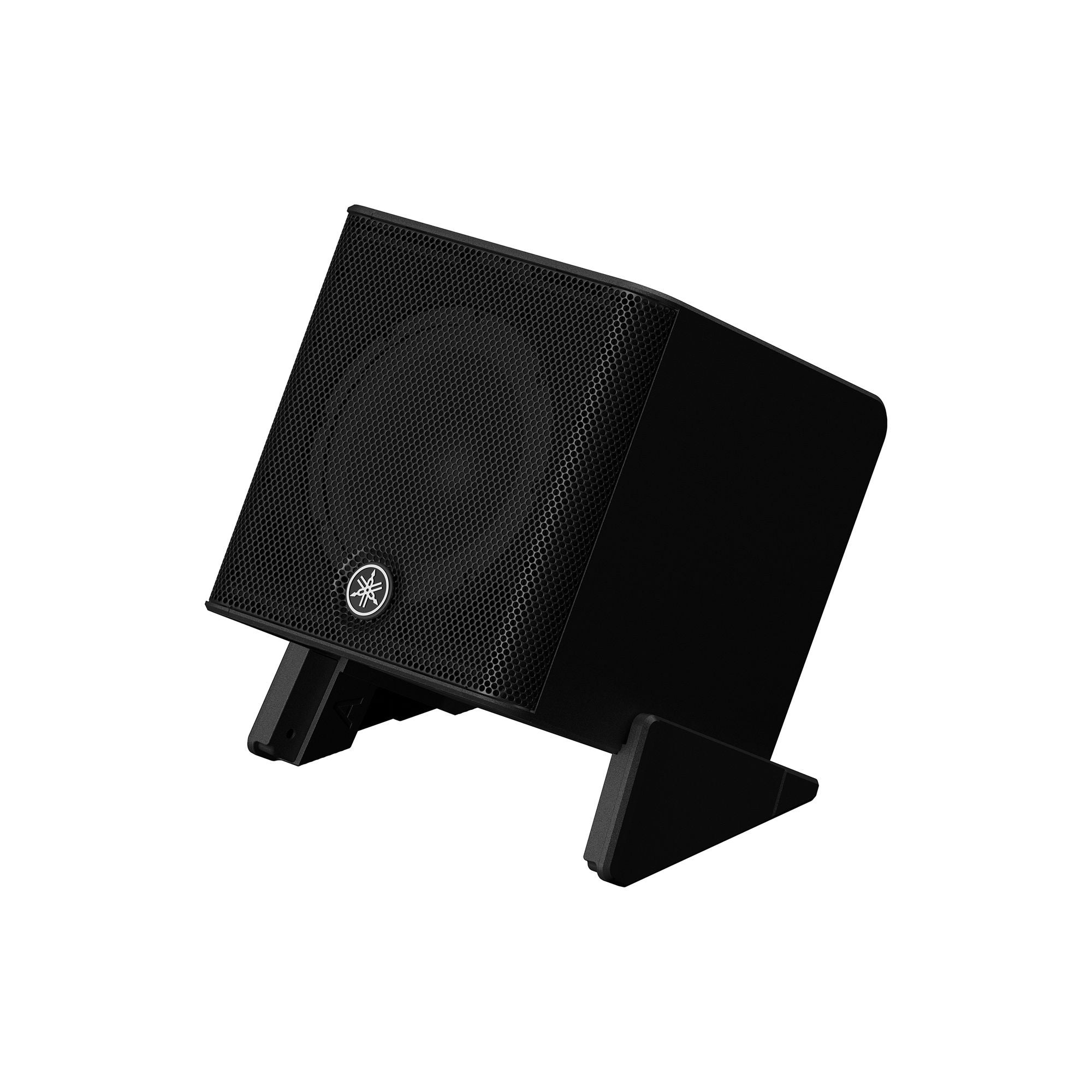

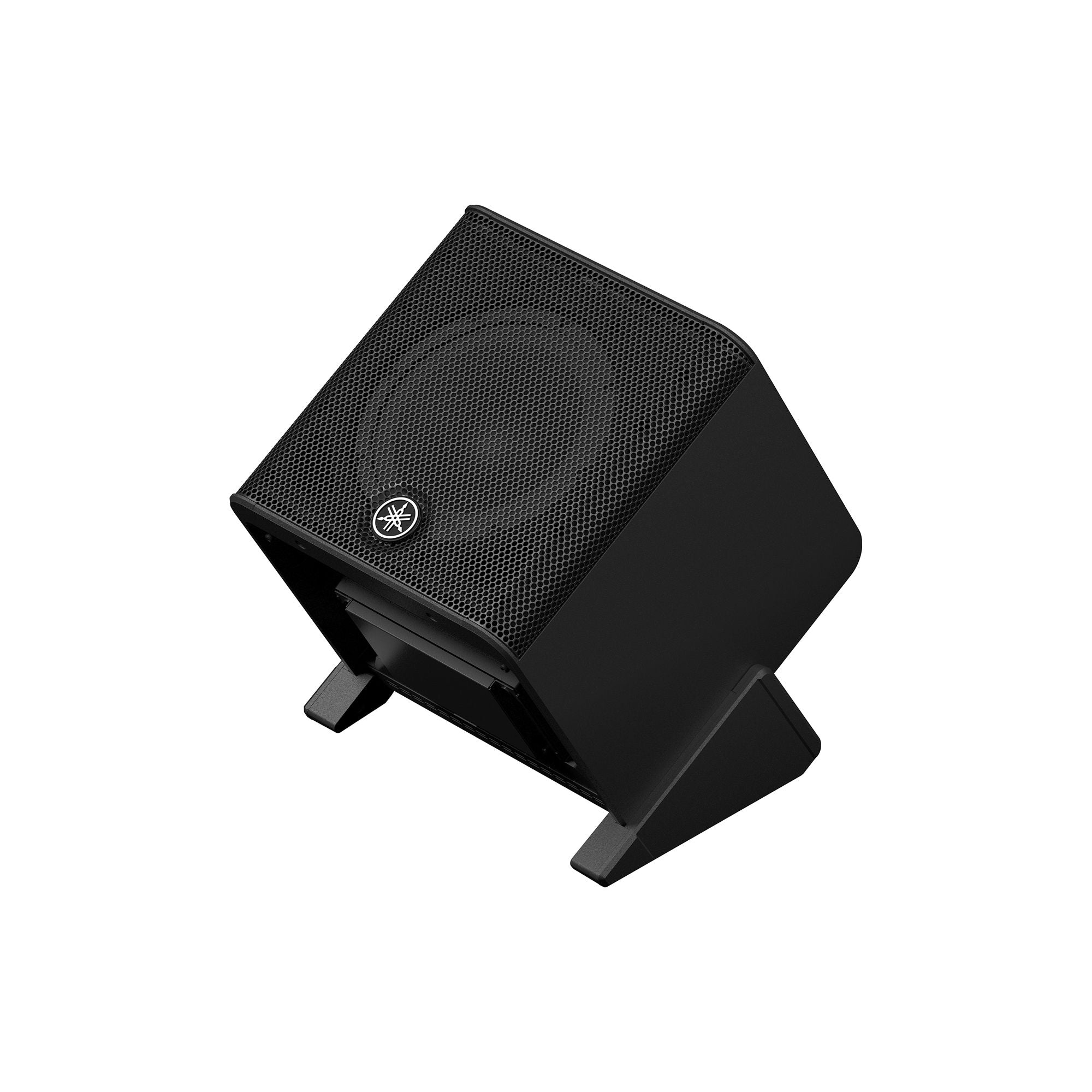

  • Supplied rubber stand allows inclining at 30 or 60 degrees
  • Compatible with audio streaming via Bluetooth
  • Can be controlled remotely via an iOS or Android device using the dedicated STAGEPAS Controller app
  • Optional BTR-STP200 battery included
  • Optional CASE-STP200 carry case for convenient carrying


  • Type: 2-way Bi-amp Powered Speaker with mixer
  • Mixing Capability: Mixing channels 5 (Mono x3 + Stereo x1)
  • Input Channel Functions: Hi-Z: CH2/3, 1-knob EQ/Preset: CH1-3/ST
  • Output Channel Functions: MODE (SPEECH/MUSIC/CLUB)
  • I/O Inputs: Mono x3 (mic/line) + Stereo/Mono x1 (line)
  • Outputs: Monitor/Link out x1
  • Bluetooth: Ver.5.0, A2DP (SBC, AAC), Class 1
  • Control and Others: STAGEPAS Controller (iOS/Android app)
  • On-Board Processors: DSP SPX digital reverb (4 program, parameter control), delay, chorus
  • Speaker Type: Coaxial speaker with compression driver
  • Frequency Range (-10dB): 60 Hz – 20 kHz
  • Coverage Area: H90゚ x V90゚
  • Crossover: 2.0 kHz
  • Maximum Output Level (1m; on axis): 125 dB SPL
  • Components: LF 8" Cone, 2.0" voice coil; HF 1" throat compression driver, 1.4" voice coil
  • Amplifier Class: Class-D
  • Power Rating: Dynamic 180 W (LF: 150 W, HF: 30 W)
  • Cooling: Natural convection (no fan)
  • Power Consumption: 10 W (Idle), 20 W (1/8 power)
  • Power Requirements: 100-240 V 50/60 Hz, or 29.6 Vdc
  • Battery:
    • Type: Rechargeable Lithium ion battery pack
    • Capacity: 79.92 Wh (2700 mAh, 29.6 V)
    • Operating Time: Maximum 10 hours, 1/16 power continuous 8 hours
    • Charging Time: Approx. 4 hours
  • Cabinet Material: Plastic (ABS)
  • Handle: Top x1

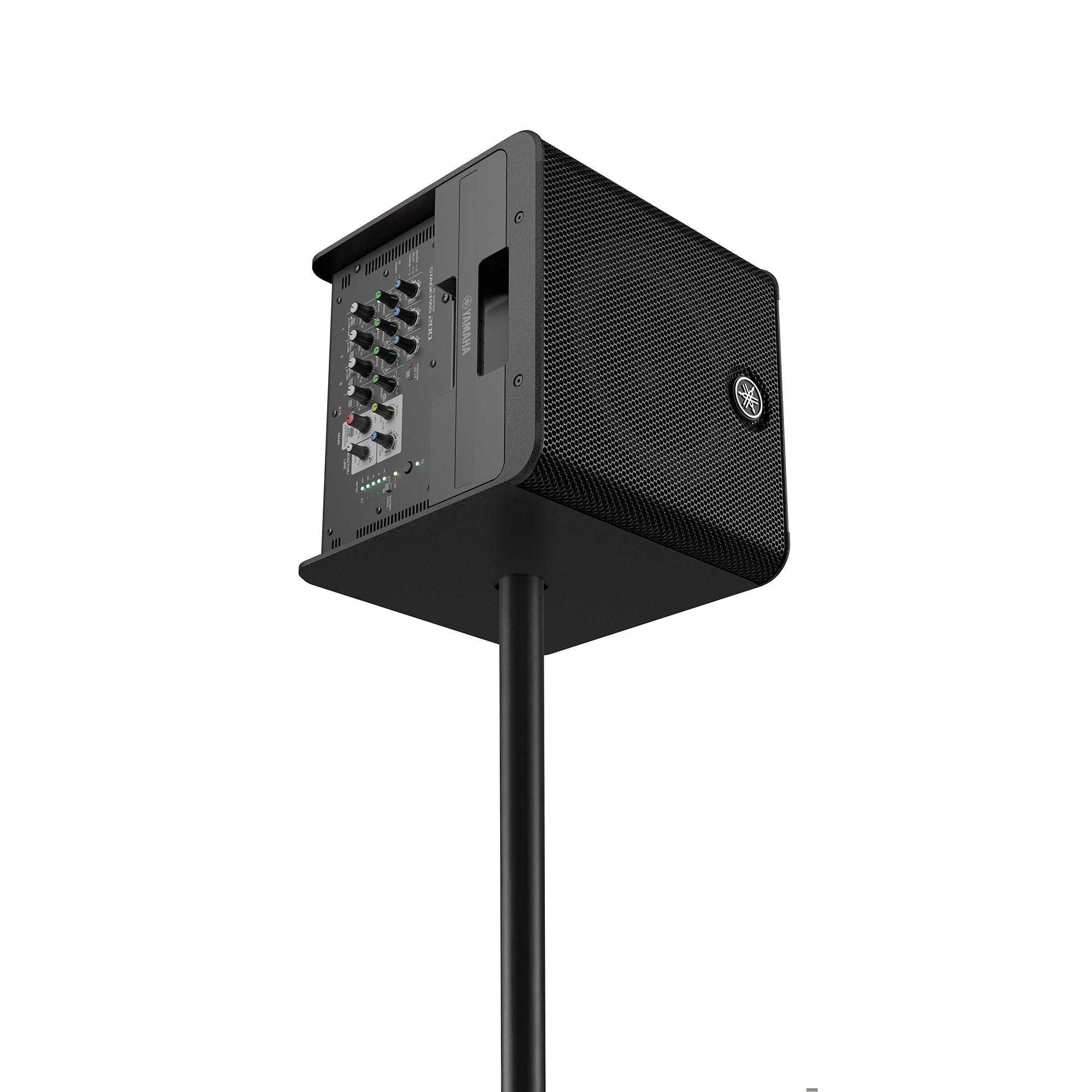

  • Pole Socket: Φ35 mm x1 (Side)
  • Floor Monitor Angle: 30° or 60°
  • Dimensions (W x H x D): 300 x 308 x 301 mm (11.8" x 12.1" x 11.9")
  • Weight: 12.5 kg (27.6 lbs) (Including battery)
  • Accessories: Power cord x 1, Battery x 1
  • Options: Battery: BTR-STP200, Carry case: CASE-STP200

Manufacturer: Yamaha
SKU: I748303-N-3-WHXC
UPC: 889025142175
