Unlock Superior Sound with the Yamaha Tio1608-D2

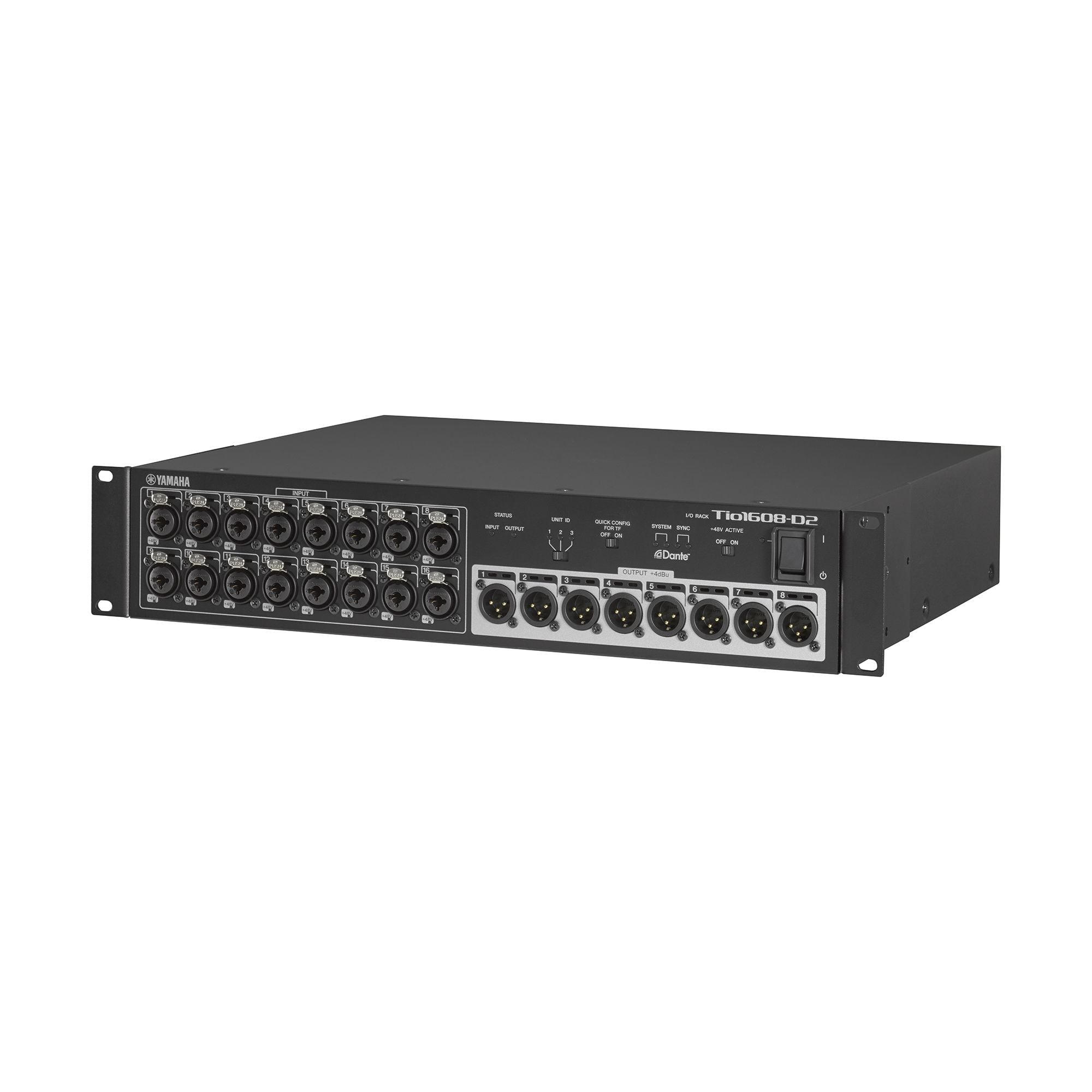

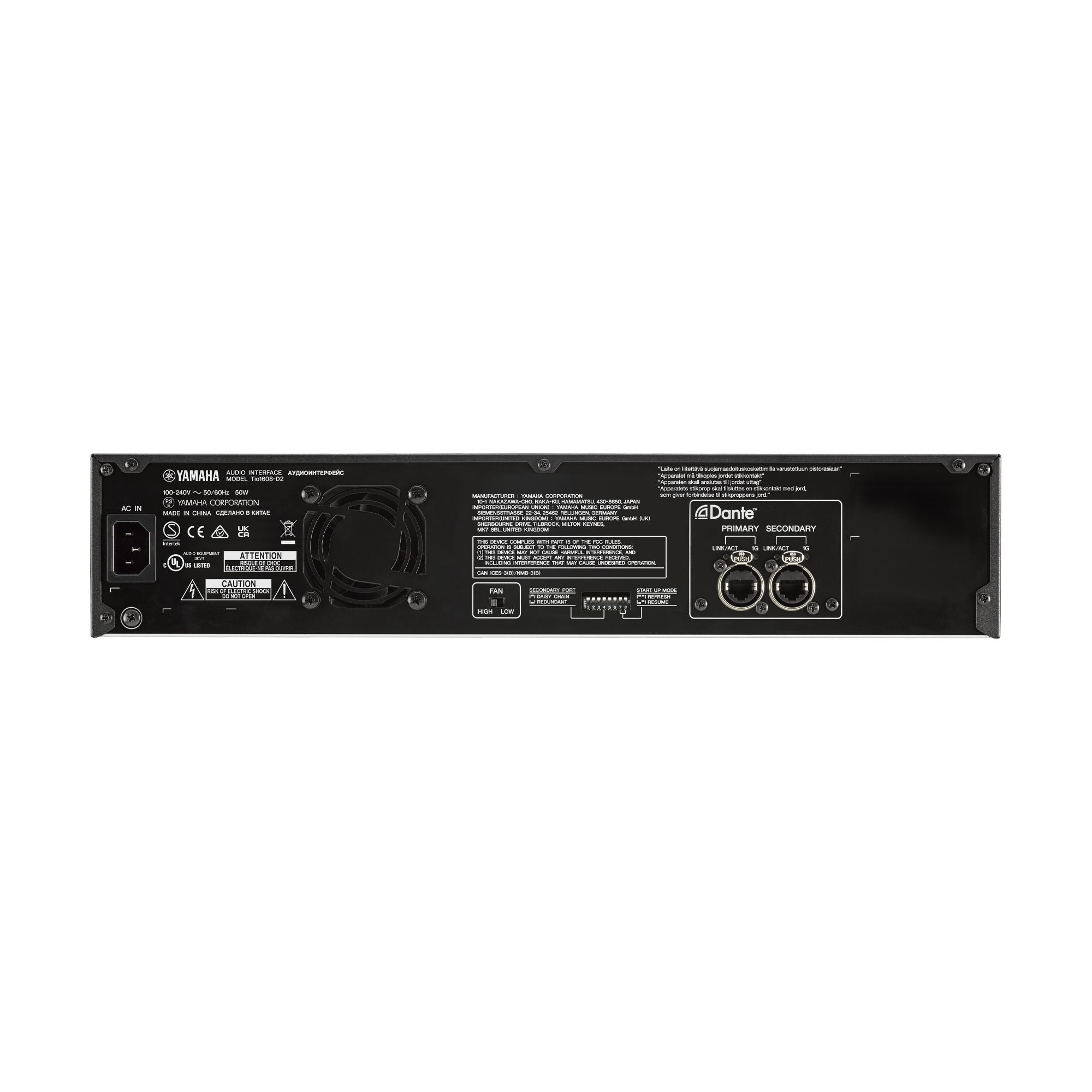

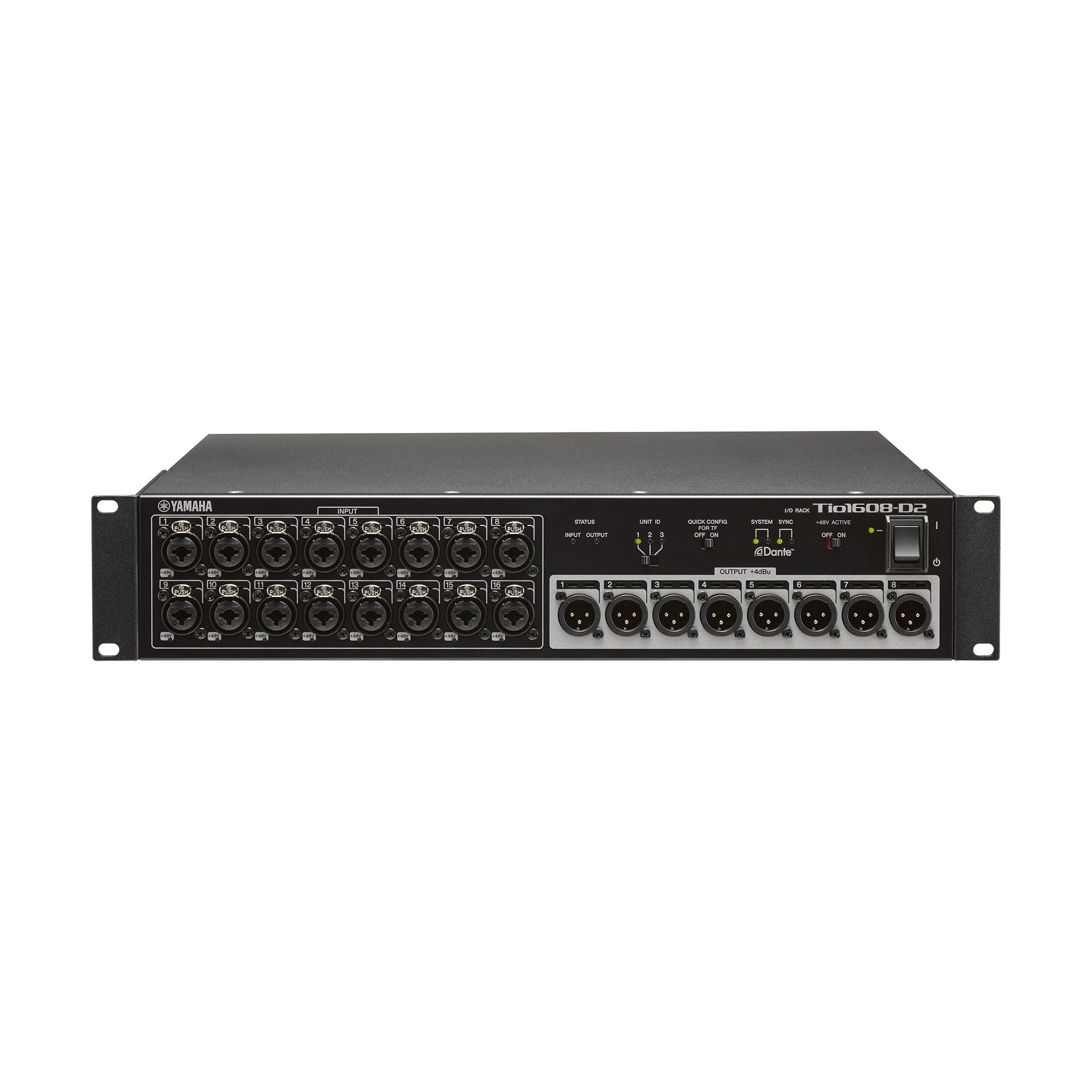

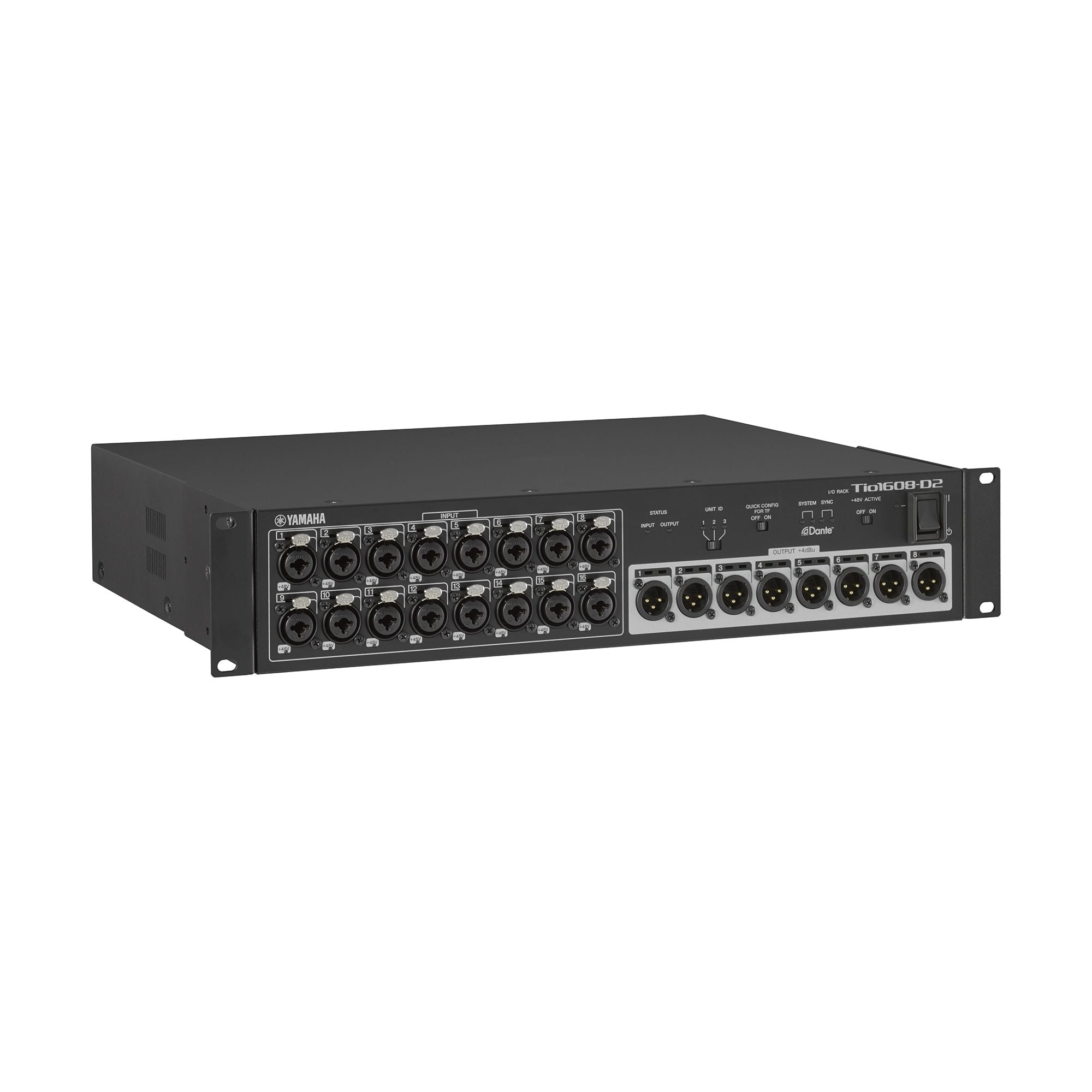

The Tio1608-D2 is a 96kHz capable Dante-equipped I/O rack with 16 microphone/ line inputs and 8 line outputs. A stage box system can be used with DM3-D and other Yamaha digital consoles. The D2 version features low latency and 96kHz converters. Not only can the Yamaha digital consoles control Tio1608-D2's internal preamp, the Auto Setup feature enables setup with minimal effort.

  • Renowned Yamaha sound quality with 96kHz sample rate
  • 3U size, 16 inputs and 8 outputs
  • Dante network protocol contributes to greater system scalability and flexibility
  • Supports QUICK CONFIG Mode for DM3 and TF series
  • Automatic digital-stage compensation for analog gain changes (CL/QL series only)
  • Recallable D-PRE preamplifiers


  • Sampling frequency rate
    • External: 44.1kHz, 48kHz, 88.2kHz, 96kHz
  • Buses
    • 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Input to Matrix supported)
  • Signal delay
    • Less than 1.3ms INPUT to OUTPUT, connect with DM3, Dante Receive Latency set to 0.25ms (one way), Fs=96kHz
    • Less than 2.6ms INPUT to OUTPUT, connect with DM3, Dante Receive Latency set to 0.25ms (one way), Fs=48kHz
  • Total harmonic distortion
    • Various levels and conditions provided, including less than 0.2% +4 dBu@20Hz-20kHz into 600Ω, and others
  • Frequency response
    • +0.5, -1.5 dB 20Hz-20kHz, refer to the nominal output level @1kHz, INPUT to E14
  • Dynamic range
    • 108 dB, INPUT to OUTPUT, Gain=-6 dB / 110 dB, DA Converter, Fs 96kHz
    • 108 dB, INPUT to OUTPUT, Gain=-6 dB / 112 dB, DA Converter, Fs 48kHz
  • Hum & noise level
    • Equivalent input noise: -128 dBu, Gain=+66 dB, Fs 96kHz, 48kHz *Measured with A-weighting filter
    • Residual output noise: -86 dBu, Fs 96kHz / -88 dBu, Fs 48kHz, ST main off *Measured with A-weighting filter
  • Crosstalk
    • -100 dB, adjacent INPUT/OUTPUT channels, Input Gain = -6 dB *Measured with a -30 dB/octave filter @22kHz
  • Heat dissipation
    • 100-240V, 50/60Hz, 43.5kcal/h
  • Power requirements
    • 50W
  • Dimensions
    • W: 18.9 inches (480 mm)
    • H: 3.5 inches (88 mm)
    • D: 14.4 inches (364 mm)
  • Net weight
    • 12.6 lbs. (5.7 kg)
  • Accessories
    • Owner’s Manual, Power Cord (2.5m), Rubber stoppers (4)
  • Others
    • Temperature Range: Operating temperature range: 0 - 40℃, Storage temperature range: -20 - 60℃

Manufacturer: Yamaha
Model: TIO1608-D2
SKU: I757803-N-23-WHXC
UPC: 889025153454
