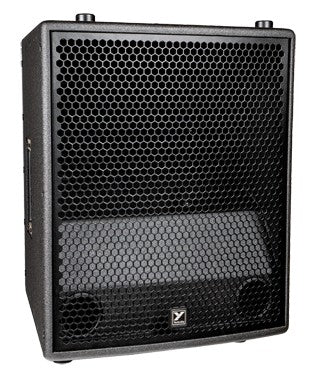

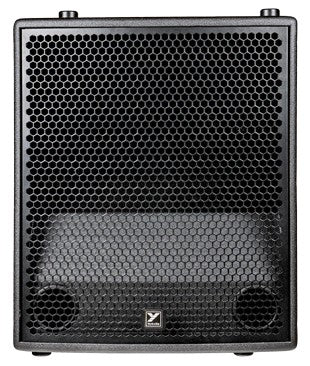

Yorkville SA153 Synergy Series 3-Way Full Range Active Loudspeaker



*IN STOCK - READY TO SHIP


Get Balanced Power And Flexibility With The Yorkville SA153 Synergy Series 3-Way Full Range Active Loudspeaker

Never before has a powered point source array been so flexible and powerful, and never before has a technologically advanced system been so easy to use.

YORKVILLE'S MOST POWERFUL AND FLEXIBLE POINT SOURCE SYSTEM

The Synergy Array Series is a truly revolutionary active point source system with unmatched flexibility, power, and directivity control. The Synergy System offers users unrivaled simplicity without sacrificing sonic performance.

The Synergy Array Series consists of the SA153 full-range powered cabinet, along with the SA315S powered subwoofer. This dynamic duo makes the ultimate point source speaker system scale-able for club gigs of all sizes, outdoor festivals, inclined seating venues, and arenas. Never before has a large point source system with this much output and sound quality been this easy to set up and use.

PARALINE LENS TECHNOLOGY

The unique geometry of the patented Paraline Lens is capable of producing a precisely shaped wave front that matches the horn's physical coverage pattern. It does this while providing a continuous horn throat from cabinet to cabinet on the horizontal plane. This virtually eliminates the comb filtering usually associated with traditionally arrayed cabinets. The Paraline Lens is fed by a high output mid-high driver which results in seamless coupling and a matching coverage pattern.

SYNERGY HORN TECHNOLOGY

The Synergy Horn configuration of the Paraline Lens coupled with a single 15-inch high output woofer seamlessly couples the output from both drivers while performing as a true point source. The horn utilizes the entire front area of the cabinet maximizing efficiency and directivity control.

Features
  • 3-way full-range powered speaker: 2600 watts (program), 5000 watts (peak)
  • 1 x 15-inch LF woofer, 1 x MF/HF Co-ax Compression Driver
  • Incorporates Tom Danley's patented Paraline Lens and Synergy Horn technologies
  • Exceptionally high output and pristine clarity
  • Simple and secure rigging hardware
  • Extremely well controlled coverage pattern
  • Measured MAX SPL (C-Weighted, Max Hold): 131dB continuous, 137dB Peak
  • Frequency Response (Hz +/- 3db): 55Hz-18K
  • Dispersion (H x V): 22.5 degrees x 45 degrees (Asymmetrical 10 degrees Up, 35 degrees Down)
  • Audio Inputs: 1 XLR, 2 x XLR Loops
  • AC Connections: 1 In, 1 Loop (Locking Powercon)
Specifications
  • Active or Passive: Active
  • Program Power (Watts): 2600 Watts Program (5000 Watts Peak)
  • Biampable: Triamp
  • Measured Max SPL (C-Weighted, Max Hold): 131 dB Cont. 137 dB Peak
  • Frequency Response (Hz +/- 3dB): 55Hz-18k
  • Dispersion (H x V): 22.5 x 45 Asymetrical 10 Up, 35 Down
  • Crossover Frequency (Hz): 400Hz, 7kHz
  • Cabinet Configuration: Patented Synergy Horn and Paraline Lens Technology
  • Driver Configuration: 1x15" LF woofer, 1x MF/HF Co-ax Compression
  • HF Driver(s): 1.75" Diaphragm/Voice Coil Annular Co-axial
  • HF Program Power (Watts): 300 Watts
  • HF Impedance (Ohms): 16 ohm Load
  • HF Protection: Peak and Average Limiting
  • MF Driver(s): 3.5" Diaphragm/Voice Coil Annular Co-axial
  • MF Program Power (Watts): 300 Watts
  • MF Impedance (Ohms): 16 ohm Load
  • MF Protection: Peak and Average Limiting
  • LF Driver(s): 1x15" Neo Woofer with 3.5" Voice Coil
  • LF Program Power(Watts): 2000 watts Program (4000 watts Peak)
  • LF Impedance (Ohms): 8 ohm Load
  • LF Protection: Excursion, RMS
  • HF Power Amplifier (Watts): 300W
  • HF Amplifier Type: 3-Tier Class H
  • MF Power Amplifier (Watts): 300W
  • MF Amplifier Type: 3-Tier Cllass H
  • LF Power Amplifier (Watts): 2000W
  • LF Amplifier Type: Class D
  • Cooling Scheme: Convection

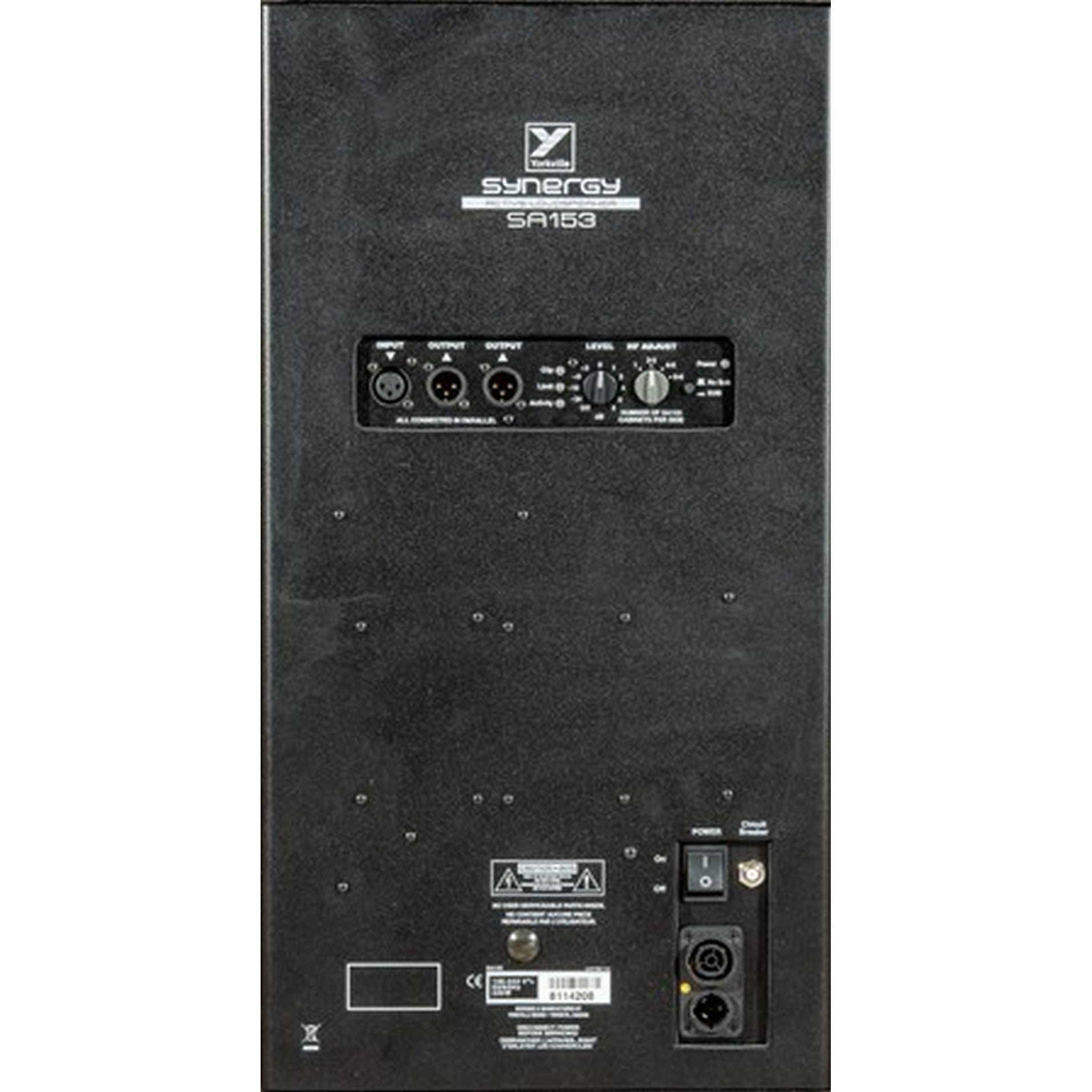

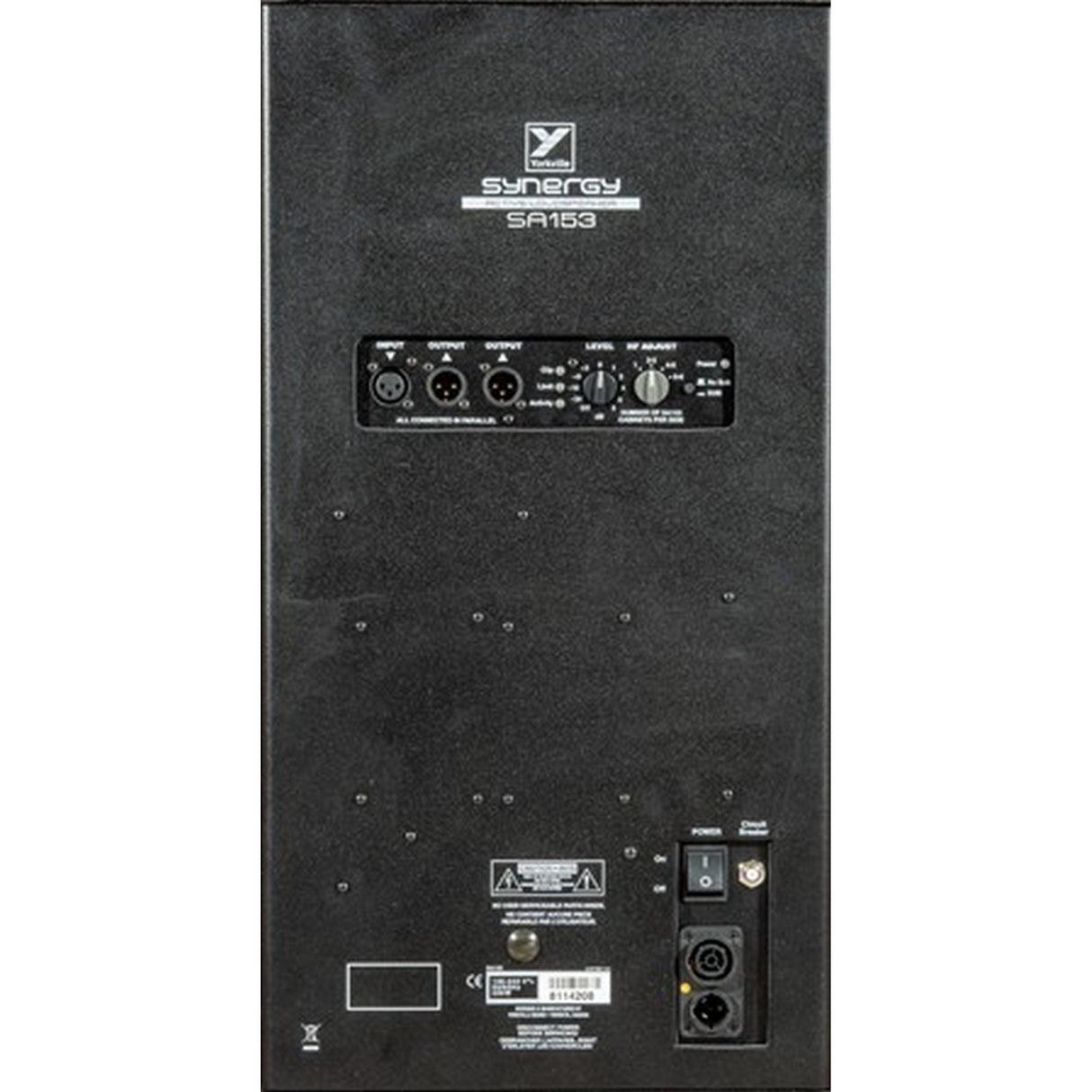

  • Power Cable: Removable Locking Powercon True Input and Loop Thru Output
  • Power Switch: Yes
  • Power Consumption (typ/max): 220 VA / 400 VA
  • Inputs: 1 XLR, 2 x XLR Loop
  • Input Sensitivity (Vrms Sine): Line in 1.4 at center, 0.56 at max
  • Level Controls: Volume
  • EQ Controls: HF/MF Boost select, Fullrange/Sub switch
  • LED Indicators: Power, Limit, Clip
  • Enclosure Materials: Multiply 15mm Birch Plywood
  • Standard Rigging Hardware: RAIL and LOCKBAR Rigging System (Top and Bottom)
  • Stacking Feature: Interlocking UHMW Feet (Top and Bottom)
  • Covering / Finish: Paint
  • Dimensions (DWH xbackW, inches): 24 x 21 x 26.5 x 12.25
  • Dimensions (DWH xbackW, cm): 60.9 x 53.3 x 67.3 x 31.1
  • Weight (lbs/kg): 115/52.1

Manufacturer: Yorkville Sound
Model: SA153
Warranty: See manufacturer website for details
SKU: I581911-N-4
UPC: #840402043867
Listing ID: NA91996
