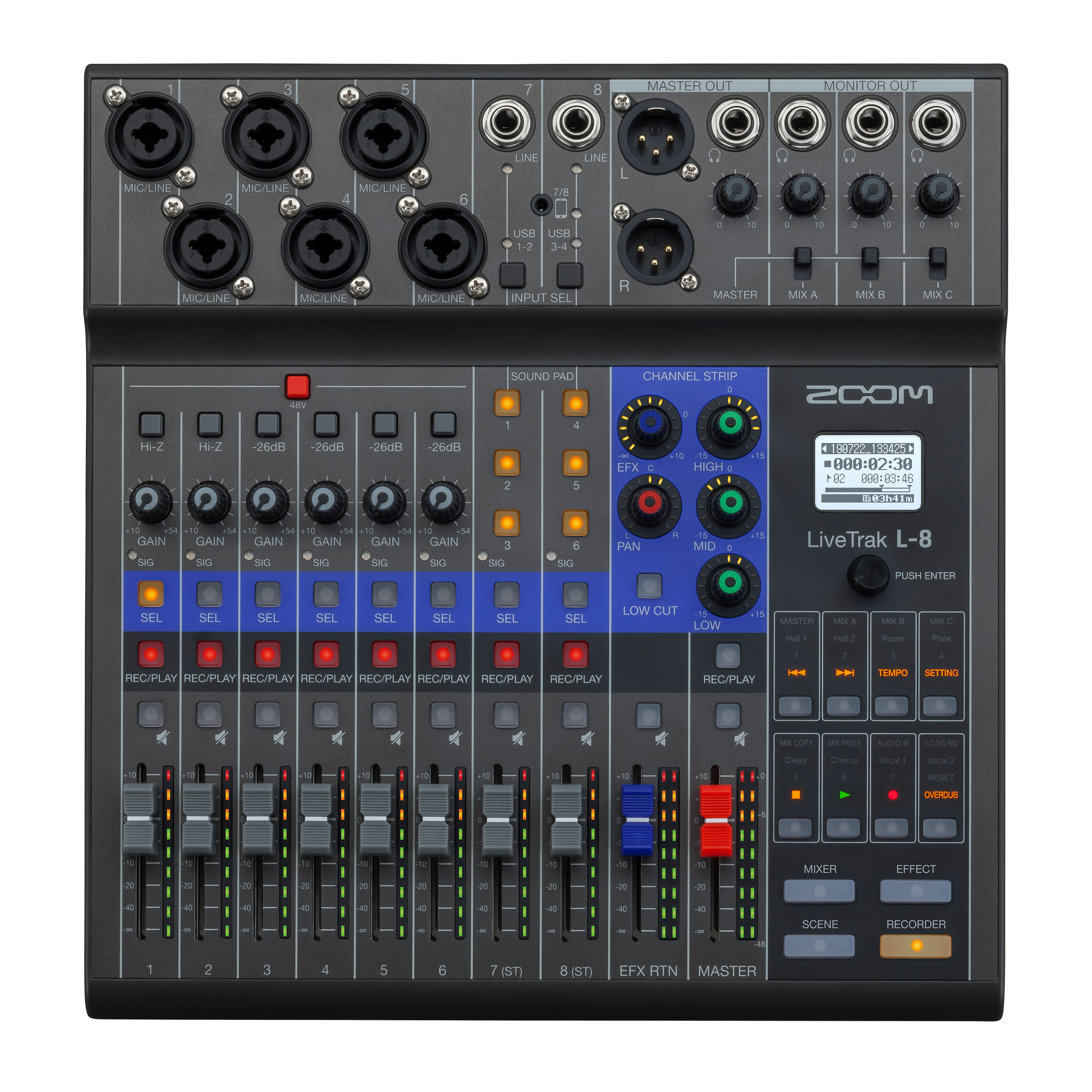

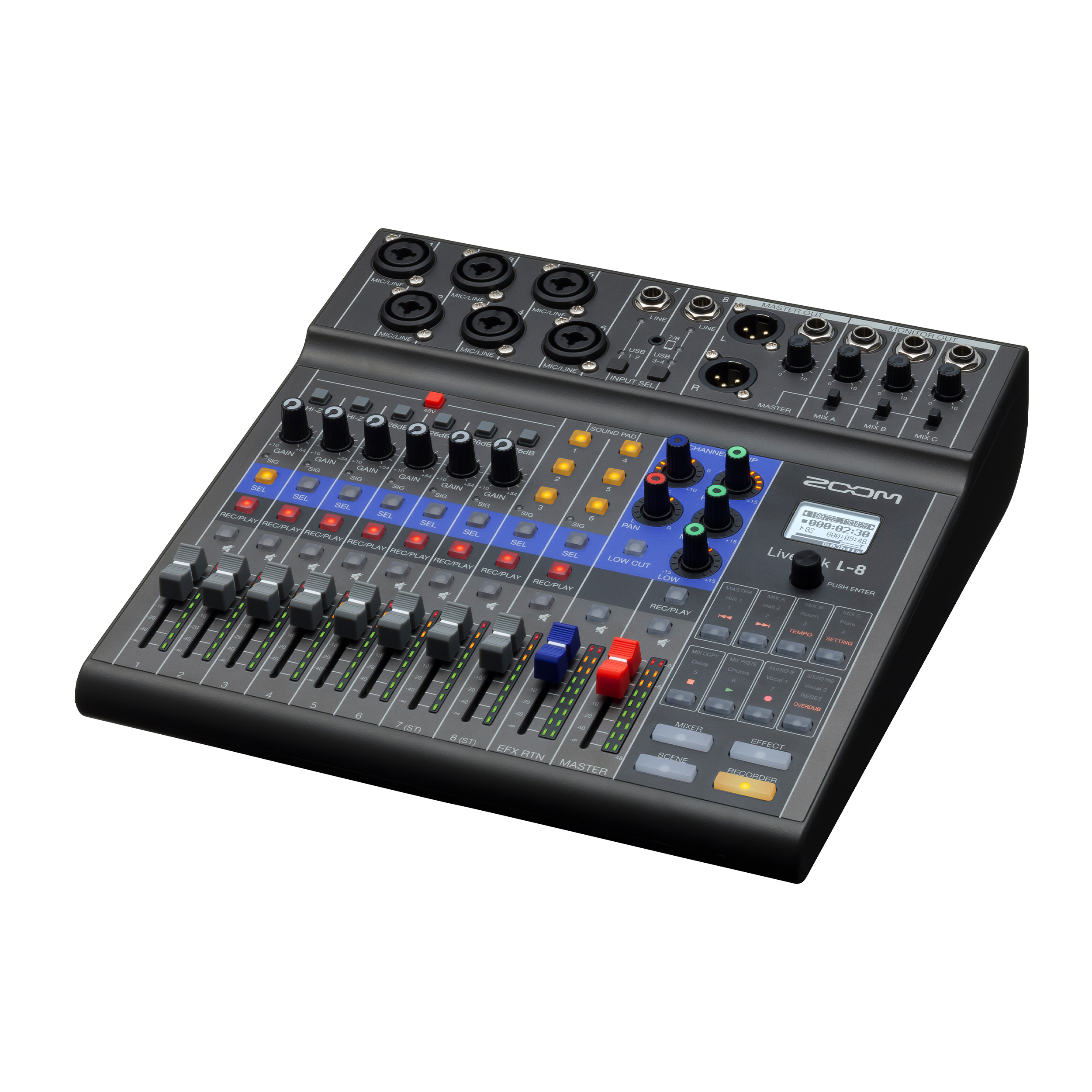

Zoom LiveTrak L-8 Mixer

Record With The Best Using The Zoom LiveTrak L-8 Mixer

Zoom LiveTrak L-8 makes it easier than ever to mix, monitor and record professional-sounding podcasts and music performances in one portable, affordable package. The L-8 lets you record up to 10 discrete tracks plus a stereo mix directly to an SD card at resolutions up to 24-bit/96 kHz*. You can punch-in and overdub with ease, then transfer your work to your favorite DAW for fine tuning. The L-8 features six high performance preamps each with phantom power, a low noise floor(-121dBU EIN), and maximum input gain of +54dB. Additionally, there are two each Hi-Z, line-level and USB inputs. You can also fine-tune each channel with EQ and onboard effects.

• 8-channel mixer (6 combo, plus 2 TS)
• 12-track simultaneous recording, 10-track playback
• Mix-Minus function preventing audio feedback from dial-in guests
• TRRS connection and included TRRS cable for phone connectivity
• 6 assignable Sound Pads, with 13 preset sounds
• 4 headphone outputs, consisting of 3 custom monitor mixes, plus one main mix
• 3-band EQ and a low-cut function
• 7 scene memories for storing mixes 12-in / 4-out USB audio interface
• Class-compliant mode (for iOS compatibility)

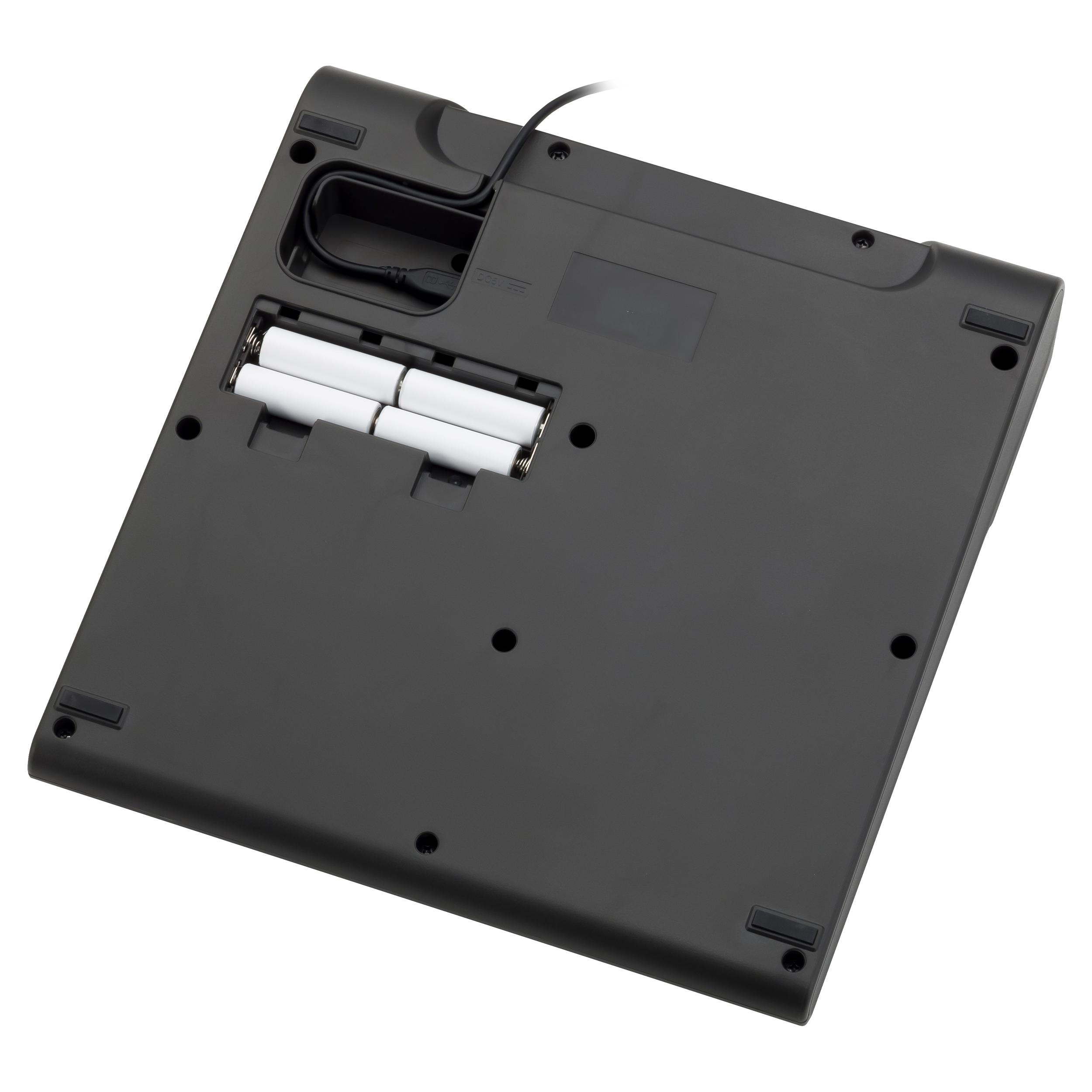

• Battery operated with four AA batteries or a USB power supply
• Record up to 24-bit/96kHz, record up to 48kHZ to computer and SD card simultaneously

SPECIFICATIONS

Input/Output Channels

• Mic/Line: 6
• Line: 2
• Master Out: 1
• Master Out (Phones): 1
• Monitor Out (Phones): 3

Mic/Line Inputs

• Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
• Input gain: +10 db +54 dB
• Input impedance: XLR: 3 kΩ, TRS: 3 kΩ/510 kΩ (when Hi-Z ON)
• Maximum input level 2 dBu when 26dB switch OFF (at 0 dBFS) +24 dBu when 26dB switch ON (at 0 dBFS)
• Phantom power: +48 V

Line

• Specifications: TS phone jack/TRRS mini jack (4-pole/TIP: L, RING: R, RING: GND, SLEEVE: MIC)
• Input impedance: 3 kΩ
• Maximum input level: +4 dBu

Master Out

• Type: XLR jacks (balanced)
• Maximum output level: +14.5 dBu
• Output impedance: 100 Ω

Master Out (Phones)

• Type: Standard stereo phone jack
• Maximum output level: 10 mW + 10 mW (60Ω load)
• Output impedance: 10 Ω
