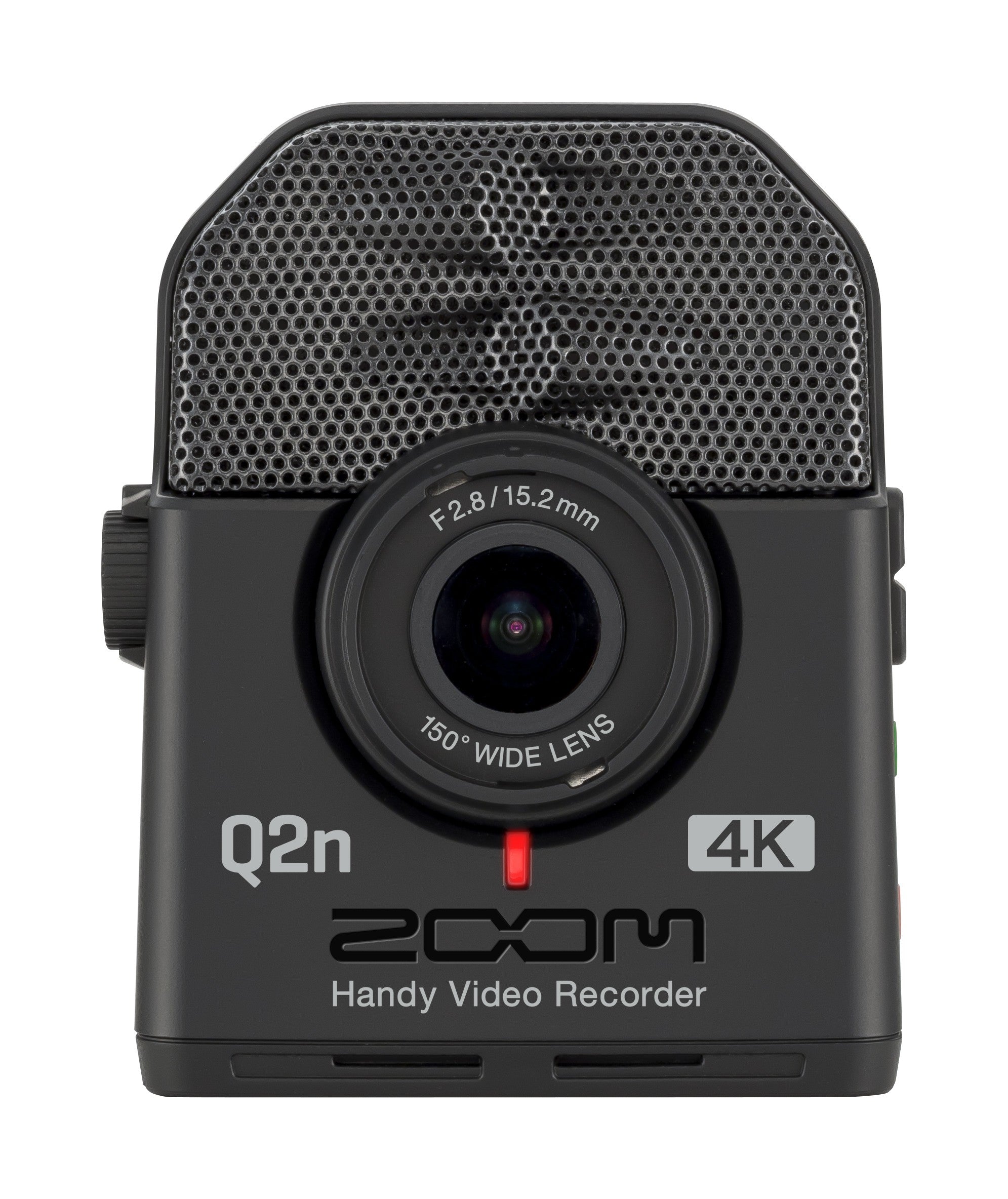

Zoom Q2n-4K Handy 4K Camcorder w/ Stereo Audio

Look As Good As You Sound With The Zoom Q2n-4K Handy 4K Camcorder w/ Stereo Audio

The Zoom Q2n-4K combines unrivaled audio with crisp 4K imaging to completely capture your rehearsals, performances, and live streams like never before.

Sound as Good as You Look

You work hard to cultivate your sound. The Q2n-4K's X/Y stereo microphones are designed to handle everything from saxophone to heavy metal.

The Camera for Lights & Action

Stage lights can overexpose your video and can ruin a good take. The Q2n-4K's high dynamic range (HDR) technology automatically adjusts the exposure, so your lighting effects don't blow out the shot.

Setting the Scene

12 'Scene' presets allow you to record your performances in a wide range of environments, including "Jazz Club", "Concert Light", "Dance Club", and "Outdoor". The Q2n-4K even features an "Auto" scene-setting, which will detect your current lighting and select the appropriate balance for you.

Monitoring

Monitor your audio via headphones with the Q2n-4K's 1/8" stereo output jack.

Live Stream with Great Audio

The Q2n-4K is the ultimate musician's webcam, able to stream performances live to Facebook, YouTube, Twitch, and more. You can also output the Q2n-4K's audio to your iOS device for mobile podcasting and streaming.

*iPad Camera Connection Kit or Lightning to USB Camera Adapter required (sold separately).

Watch It on a Big Screen

With a micro HDMI video output, the Q2n-4K lets you watch your video in high definition on your TV.

• High-quality 150-degree wide-angle lens (f2.8/15.2 mm)
• 12 'Scene' options for use in different lighting environments, including 'Auto' setting that intelligently adapts to your environment
• Built-in X/Y stereo microphones capable of handling sound levels up to 120 dB SPL
• Can be used as a standalone audio recorder with data saved in WAV format up to 24-bit/96 kHz
• 5 field of view (FOV) settings
• Records directly to microSD, microSDHC, and microSDXC cards up to 256 GB for extended recording times
• Easy one-button recording
• Color LCD
• Support for three HD video modes: 720p, 1080p, and 4K
• Video bitrates up to 76 Mbps for improved image quality
• Frame rates: 4K/30fps, 4K/25fps, 4K/24fps, 1080p/60fps, 1080p/50fps, 1080p/30fps, 1080p/25fps, 1080p/24fps, 720p/30fps, 720p/25fps
• HDMI video output for connection to HDTVs, selectable between NTSC and PAL
• Records video (with audio) in MOV format
• Analog-style level control with onscreen digital metering
• Auto Gain function gives automatic control over audio input level
• Stereo input for use with external devices plus support for plug-in power
• Headphone/line-level output for fast audio monitoring
• Low-cut filter for the elimination of low-frequency noise and rumble
• USB interface for live streaming and data transfer
• Compatible with OBS Open Broadcaster Software, Skype, and other popular streaming applications
• USB mic function (with low-latency direct monitoring) when used with computers and iOS devices (Apple Camera Connection Kit or Lightning to USB Camera Adapter required for use with iOS devices)
• Operates with two AA batteries
• Built-in standard tripod mount

Specifications

General

• Image Sensor: 1/2.3" 16 M-flexible CMOS sensor
• Lens: F 2.8, 150-degree FOV
• Video Format: MPEG-4 AVC/H.264 (MOV)
• Audio Formats:WAV: 96 kHz/24-bit, 48 kHz/24-bit, 44.1 kHz/16-bit
• Display:1.77" four-color LCD (160 x 128)
• Built-in speaker:300 mW 8 ohms mono speaker
• Recording media:microSDHC/microSDXC (class 10 or higher, 256 GB maximum)

Video resolutions:

• 4K: 30p, 25p, 24p
• 1080: 60p, 50p, 30p, 25p, 24p
• 720: 30p, 25p

Audio Functions:

• Lo-cut: Off, 80 Hz, 120 Hz, 160 Hz
• Auto Gain: Off, Concert, Solo, Meeting
• Delay: .0 F, .5 F-10.0 F (Only During Web Camera Use)
• Direct Monitor On/Off (Only During Usb Mic Use)

Image functions:

• Fov (5 Steps): Wide-0-tele
• Scene Settings:
• Auto
• Outdoor
• Sunset
• Night
• Concert Light
• Jazz Club,
• Dance Club
• Monochrome
• Sepia
• Film
• X-process
• Flat

Audio inputs:

• MIC:
• Fixed 120 degree XY stereo mic
• Maximum sound pressure: 120 dB SPL
• Input gain: -0 dB - +39 dB
• LINE:
• Input connector: stereo mini jack (supports plug-in power)
• Input gain: -0 dB - +39 dB
• 2 k ohm or higher input impedance
• Plug-in power (2.5 V) supported

Output connector:

• Combined headphone/line stereo mini-jack
• HDMI micro Type D

USB:

• micro USB
• WEBCAM:
• Class: UVC 1.0 + UAC 1.0
• Formats: 720 p WVGA video
• 48 kHz/16-bit audio
• CARD READER:
• Class: USB Mass Storage
• USB MIC:
• Class: UAC 1.0
• Format: 44.1 kHz/16-bit
• Note: card reader and USB mic functions support iOS devices

Power:

• 2 AA batteries: alkaline LR6 (1.5 V), nickel-metal hydride HR6 (1.2 V) or lithium FR6 (1.5 V)
• AC adapter (ZOOM AD-17): DC 5 V/1 A
• Note: USB bus power supported

Estimated continuous recording time using batteries @ different resolutions:

• 720/30p: Alkaline LR6 (1.5 V) - 2.0 hours, Ni-MH HR6 (1.2 V) - 3.0 hours, Lithium FR6 (1.5 V) - 6.0 hours
• 1080/30p:Alkaline LR6 (1.5 V) - 1.2 hours, Ni-MH HR6 (1.2 V) - 2.0 hours,Lithium FR6 (1.5 V) - 4.0 hours
• 4K/30p:Alkaline LR6 (1.5 V) - 0.5 hours,Ni-MH HR6 (1.2 V) - 1.0 hours,Lithium FR6 (1.5 V) - 2.0 hours
• Audio quality: 48 kHz/24-bit
• The above values are approximate.
• Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.

External dimensions:

• Main unit (maximum dimensions): 58.7 mm (D) x 68.5 mm (W) x 83.0 mm (H)
• Weight (main unit only): 124 g

In The Box

• Q2n-4K Handy Video Recorder
• Lens hood
• Lens cap
• AA batteries (x2)
• Quick Guide

Optional Accessories (Sold Separately)

• WSU-1 universal hairy windscreen
• HS-1 hot shoe mount
• MA-2 tripod to mic stand adapter for Handy Recorders
• Zoom AD-17 AC adapter
• BCQ2n battery case
• MSM-1 mic stand mount
