We recently had Jason from Yamaha stop by the shop to walk us through the EAD50 — and if you've been following the EAD10 over the years, you're going to want to pay attention. This isn't just an incremental update. Yamaha took everything drummers were asking for and built it into one unit.
We set up a kit in the studio, let Jason run through the features, and recorded the whole thing. The video above covers it start to finish. Here's what stood out to us.
Why the EAD50 Exists
The EAD10 was designed to make recording drums simple — point a mic at your kit, hit record, post to social media. It worked great for that. But drummers started using it for more. They were taking it to gigs, building it into their live rigs, replacing their in-ear monitor setups. And they kept asking for features the EAD10 wasn't built to deliver.
The EAD50 is Yamaha's answer to all of that. Same core idea — mic your acoustic kit, add effects, record — but now with the I/O, routing, and control that working drummers actually need on a stage.
Five Mic Inputs. Eight Outputs. Real Routing.
The two most-requested features from EAD10 users were more mic inputs and better routing. The EAD50 delivers on both.
On the back you'll find five combination XLR/TRS inputs, all with phantom power. You can run any condenser microphone you own — you're not locked into Yamaha's ecosystem. Add to that eight individual audio outputs plus balanced outs and two TRS unbalanced outs, and you've got the flexibility to send click where it needs to go, route tracks independently, feed front of house directly, and generally stop fighting with your setup on every new stage.
Jason put it plainly: this is a digital mixer and microphone system for drummers. Yamaha took the routing and EQ architecture from their digital mixer line and built it into the EAD50. That means full EQ on every channel — your headphone mix, your track outputs, your click, individual mics — all adjustable.
The DSU50 Microphone

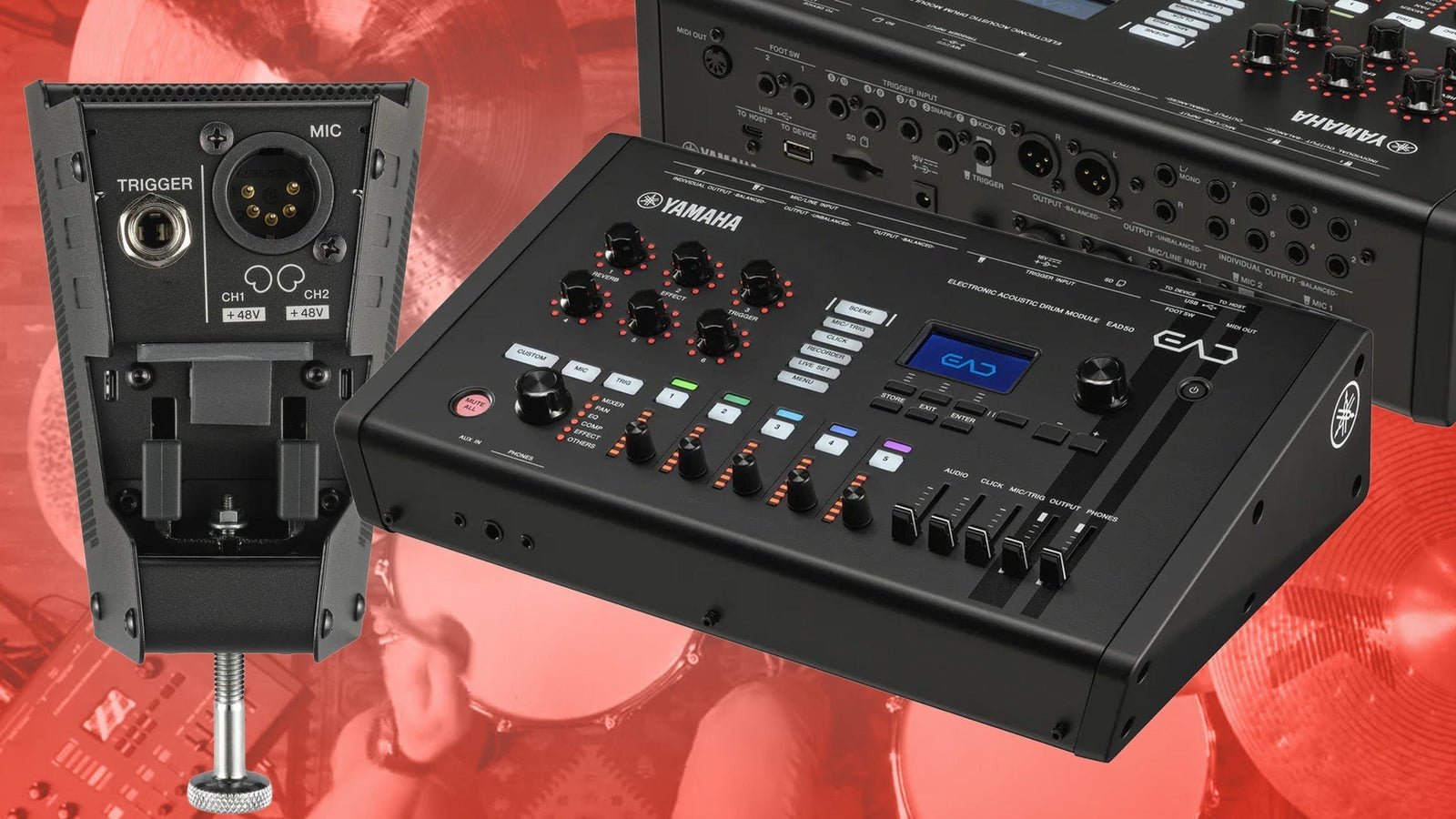

The EAD10 shipped with a sensor unit that combined a condenser XY mic and a kick trigger in one clip-on piece. The EAD50 comes with something better: the DSU50, a dedicated condenser microphone with a threaded mount so you're not stuck attaching it to the hoop.
The capsules were designed specifically for drums by a well-known Japanese manufacturer and individually tuned by a specialist engineer. Jason demoed it dry — no effects, no processing — and the kit sounded genuinely good. That matters, because everything else you layer on top starts there.
The DSU50 connects via a 5-pin XLR (the cable splits to two standard 3-pin XLRs at the unit end) and takes up inputs 1 and 2. The gain pairing is automatic — you adjust one knob and both channels move together. A second DSU50 can go overhead, which opens up five dedicated scenes that blend room sound with the kick-mounted mic. The difference is noticeable.
The DSU50 is also worth mentioning as a standalone mic. Jason used it on acoustic guitars and percussion in the demo — it holds up well outside the drum room.
2,300 Sounds. 230 Effects. Five Trigger Inputs.
Yamaha pulled the full sound library from both the DTX Pro X module and the FG-DP50 finger drum module and loaded them into the EAD50. That's over 2,300 sounds, plus room for 500 of your own samples. Five trigger inputs on the back can handle up to 10 triggers when split, so you can add pads, cymbals, or acoustic triggers and blend electronic sounds with your kit however you want.
Effects-wise, there are over 230 options — vintage reverbs, plate reverbs, flangers, phasers, distortions, delays. The 71 built-in scenes (available after the update) each combine a preset effects chain with automatic modifier knob assignments. You can leave them as-is or dig in and change everything.
Six assignable modifier knobs on the front panel (up from three on the EAD10) give you hands-on control of whatever parameters matter most to your sound, with a wider adjustment range than before.
Built for the Stage
A few features are specifically aimed at live use. The LiveSet function lets you sequence your scenes in set order and move through them with foot switches — no need to touch the unit while you're playing. SD card playback streams directly from the card with near-zero latency, so backing tracks and click don't drift. Two foot switch inputs can also start and stop tracks, change parameters, or step through scenes hands-free.
The EAD50 also supports USB MIDI, and if you're running a Yamaha DTX-MPAD, you get 12 virtual triggers through USB trigger link. LED level indicators stay visible on dark stages. The internal recorder captures up to 90 minutes of your set to an SD card — useful for listening back after the show.
Gain Setup in About 30 Seconds
One thing Jason demonstrated that's easy to overlook: automatic gain setup. Go into the mic settings, select gain auto setup, play your kit for a few seconds, and the EAD50 sets all your input levels. For anyone who's spent time fighting gain staging on a board before a soundcheck, this alone is worth something.
Bluetooth and the EAD Touch App
Bluetooth is off by default and needs to be enabled in the menu, but once it's on, you can control the EAD50 wirelessly from the EAD Touch app (iOS, Android, and macOS). The app layout mirrors a digital mixer — channel faders, EQ, effects, scene selection. The Rec and Share app from the EAD10 is also supported. Both are free.
The Bottom Line
Drummers have always had to hand their sound to someone else the moment they walk into a venue. The EAD50 is a serious attempt to change that. It replaces your mic package, your laptop, your trigger system, and your monitor rig — in one unit that travels in a backpack.
If you were happy with the EAD10 but kept wishing it could do more, this is what more looks like.
